Week 12 Challenge

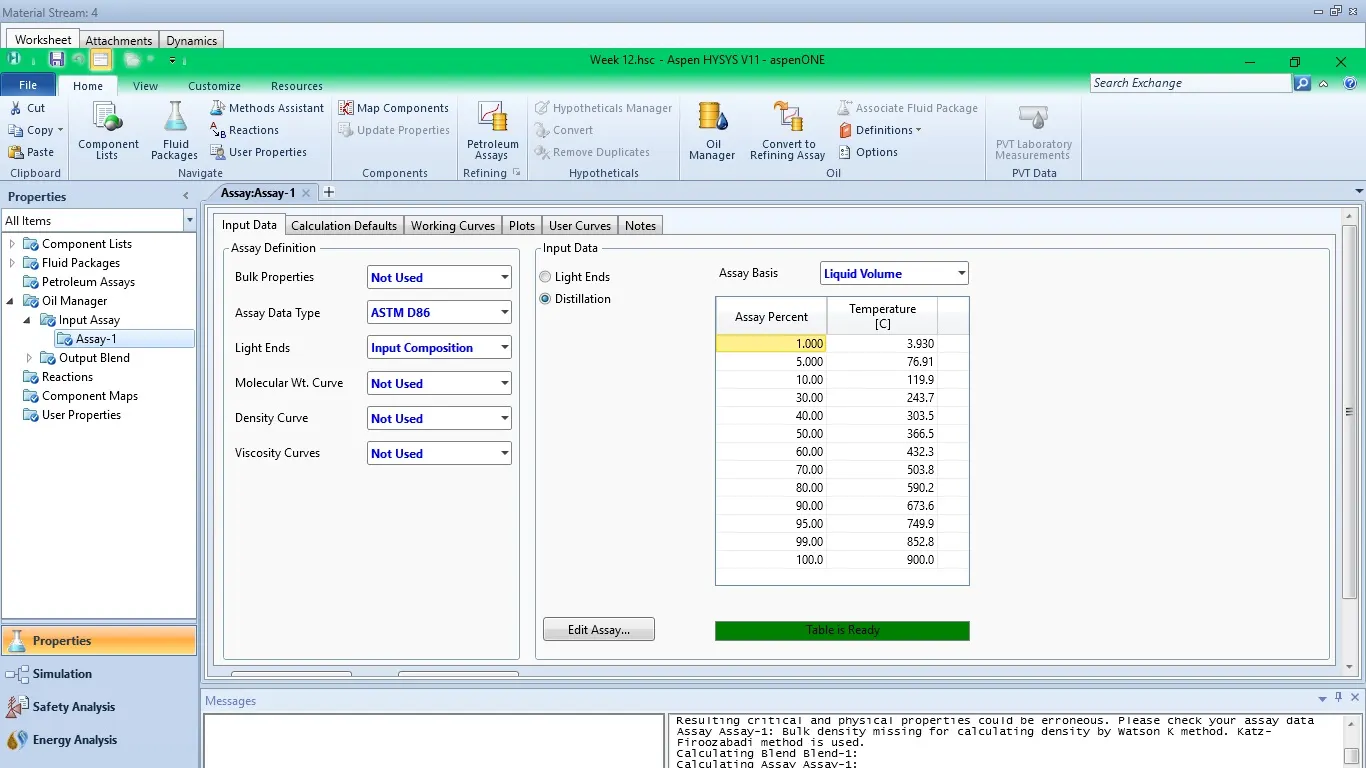

Q1. In this question it is asked to generate 15 Hypocomponents according to ASTM D86 data using HYSYS Oil Manager:

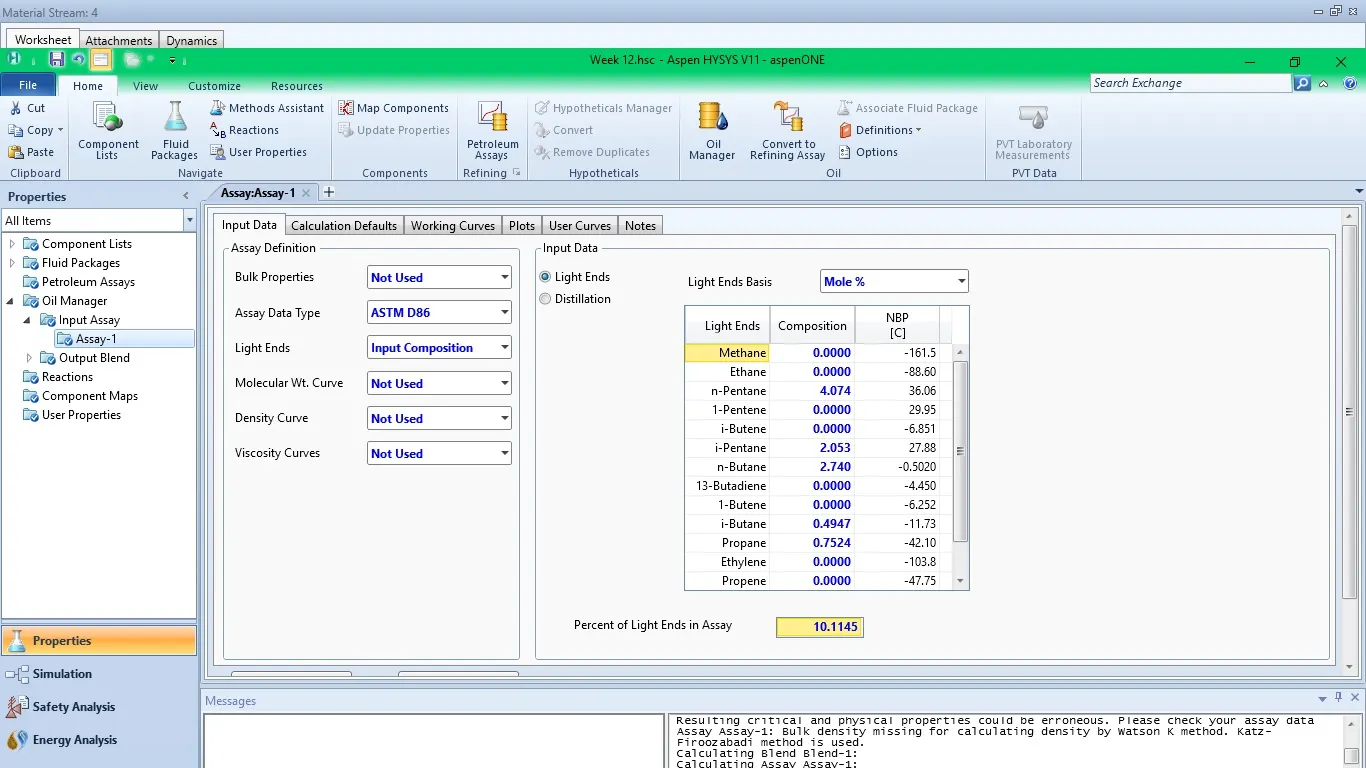

As it is seen from the above two images the Assay data type is ASTM D86 and taken according the question. The light ends composition are also considered in the assay data.

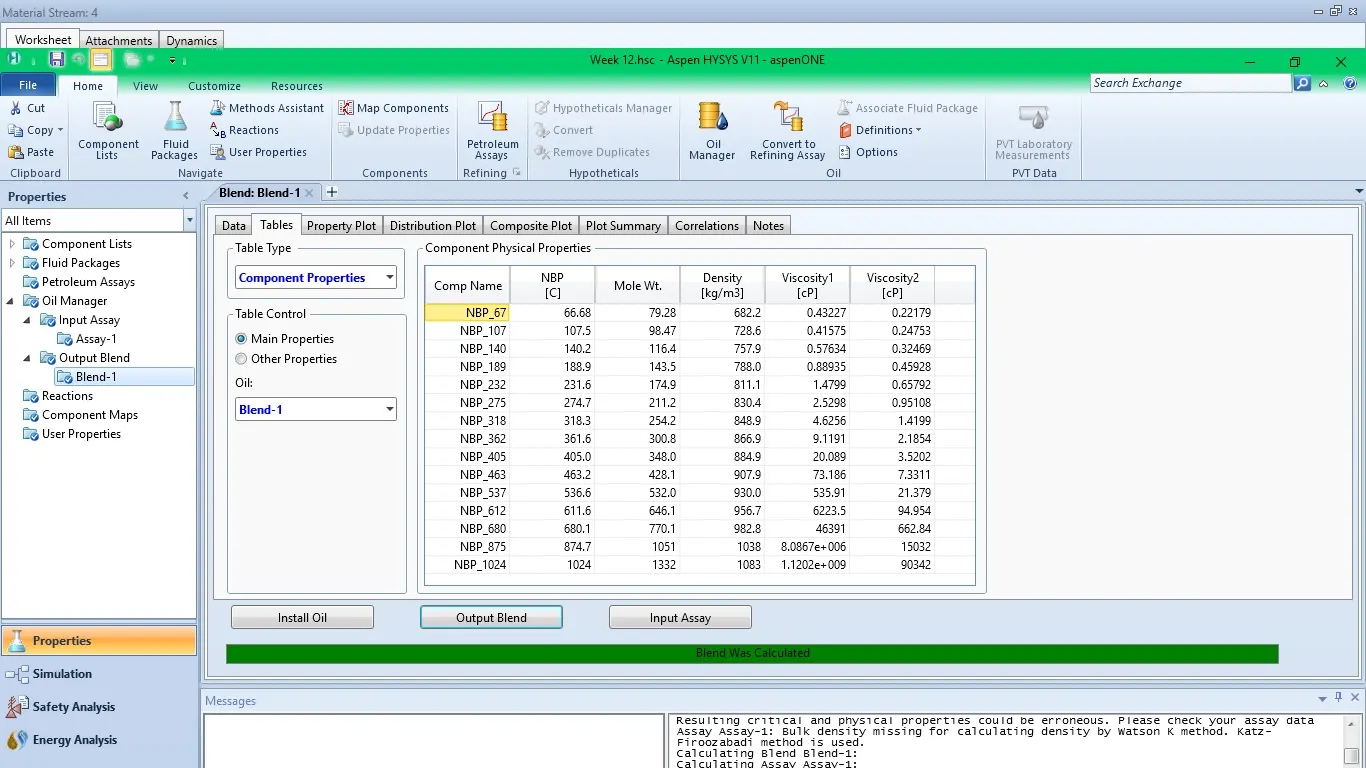

The generated 15 Hypocomponents as per the Assay data are shown below:

Q2. In this question it is asked to use the refining shortcut column to determine the yield fraction for different side products of crude oil distillation:

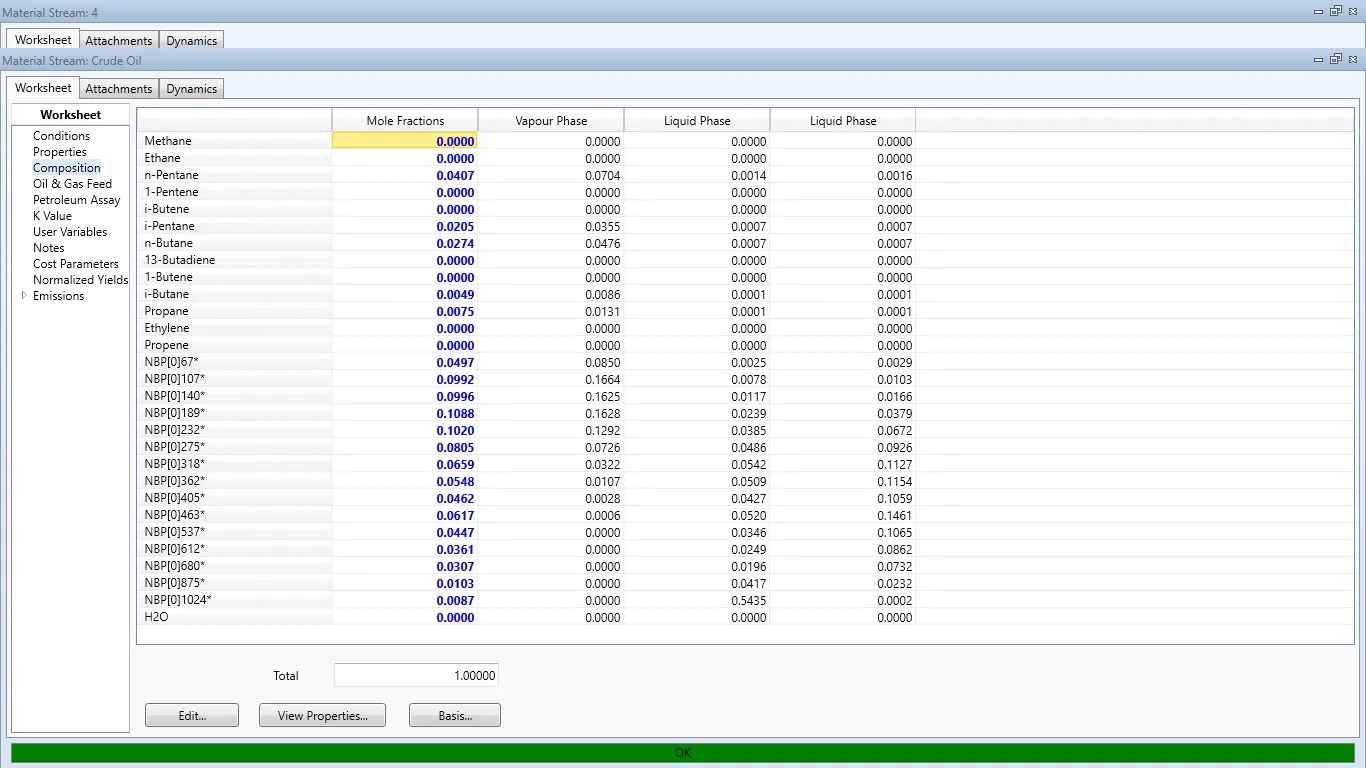

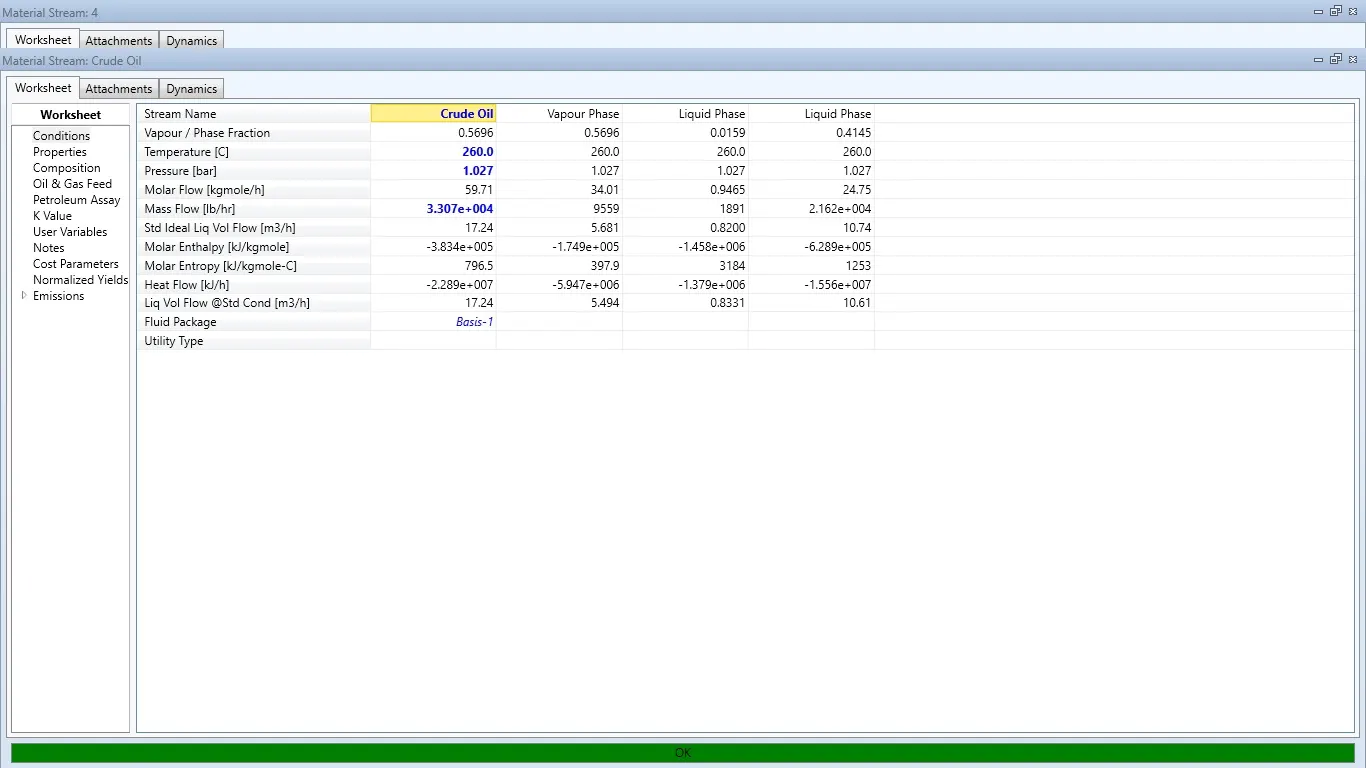

The composition and conditions of the crude oil are as follows:

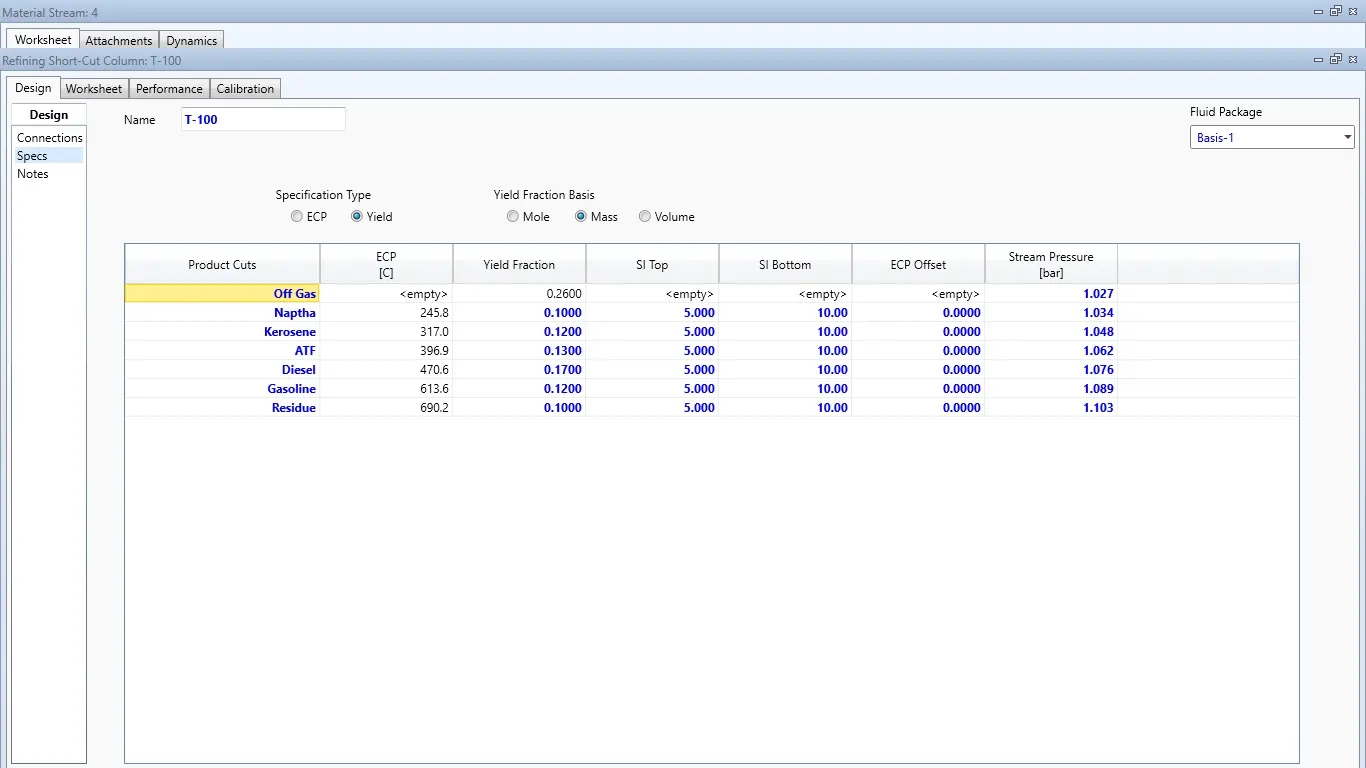

The yield of the various products are as follows:

NOTE: The ASPEN HYSYS save files are attached along with this answe for further review.
