Week 11 - Simulation of Flow through a pipe in OpenFoam
AIM:
To campare the plots velocity,tau,analytical

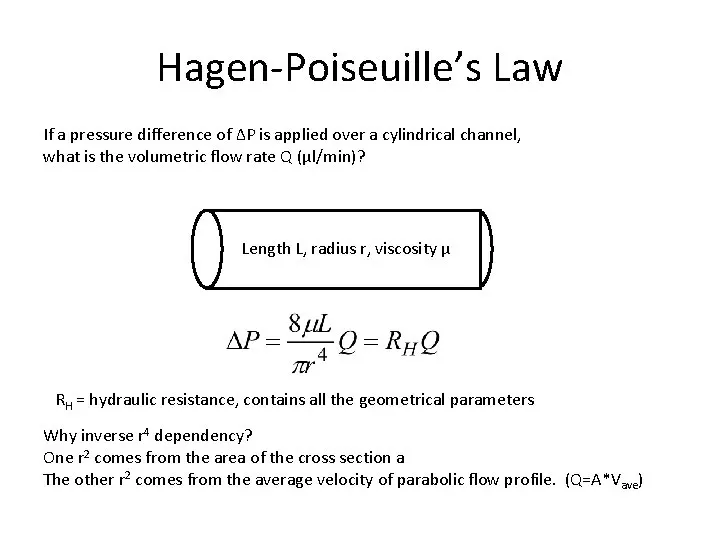

Formulae:
CODE:
blockmeshdict:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
// blockMesh parameterization
/* Geometrical Info */
D 0.004; // Diameter
r #calc "0.5*$D"; // Radius
angle 5; // Angle in degrees
theta #calc "degToRad($angle)"; // Angle in radians
Re 100; // Reynolds Number
Le #calc "0.06*$Re*$D"; // Entrance Length
L #calc "0.2 + $Le"; // Total length of pipe
/* Vertices Info */
xmin 0;
xmax $L;
ymax #calc "$r*cos($theta)";
zmax #calc "$r*sin($theta)";
zmin #calc "-$r*sin($theta)";
/* Mesh Info */
nx 10; // Cells along local X
ny 1; // Cells along local Y
nz 50; // Cells along local Z
gx 0.2; // SG along local X
gy 1; // SG along local Y
gz 1; // SG along local Z
convertToMeters 1;
vertices
(
($xmin 0 0) //0
($xmin $ymax $zmax) //1
($xmin $ymax $zmin) //2
($xmax 0 0) //3
($xmax $ymax $zmax) //4
($xmax $ymax $zmin) //5
);
blocks
(
hex (0 2 1 0 3 5 4 3) ($nx $ny $nz) simpleGrading ($gx $gy $gz)
);
edges
(
);
boundary
(
inlet
{
type patch;
faces
(
(0 1 2 0)
);
}
outlet
{
type patch;
faces
(
(3 5 4 3)
);
}
front
{
type wedge;
faces
(
(0 3 4 1)
);
}
back
{
type wedge; // symmetry
faces
(
(0 2 5 3)
);
}
wall
{
type wall; // symmetry
faces
(
(2 1 4 5)
);
}
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
);
mergePatchPairs
(
);
// ************************************************************************* //controldict:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 5;
deltaT 0.001;
writeControl timeStep;
writeInterval 500;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //pressure:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
inlet
{
type zeroGradient;
}
outlet
{
type fixedValue;
value uniform 0;
}
front
{
type wedge; // symmetry
}
back
{
type wedge; // symmetry
}
wall
{
type zeroGradient;
}
axis
{
type empty;
}
}
// ************************************************************************* //velocity:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (0.0223169508525577 0 0);
}
outlet
{
type zeroGradient;
}
front
{
type wedge; // symmetry
}
back
{
type wedge; // symmetry
}
wall
{
type noSlip;
}
axis
{
type empty;
}
}
// ************************************************************************* //physicalproperties:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "constant";
object transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
nu [0 2 -1 0 0 0 0] 8.9267803410231e-07;
// ************************************************************************* //
OUTPUTS:

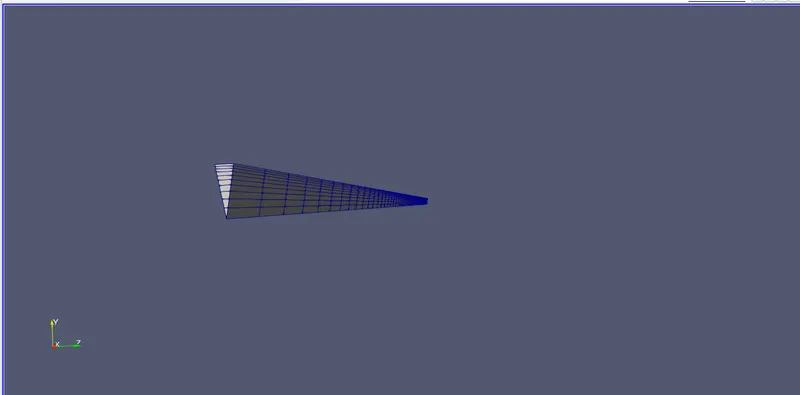

MESH:

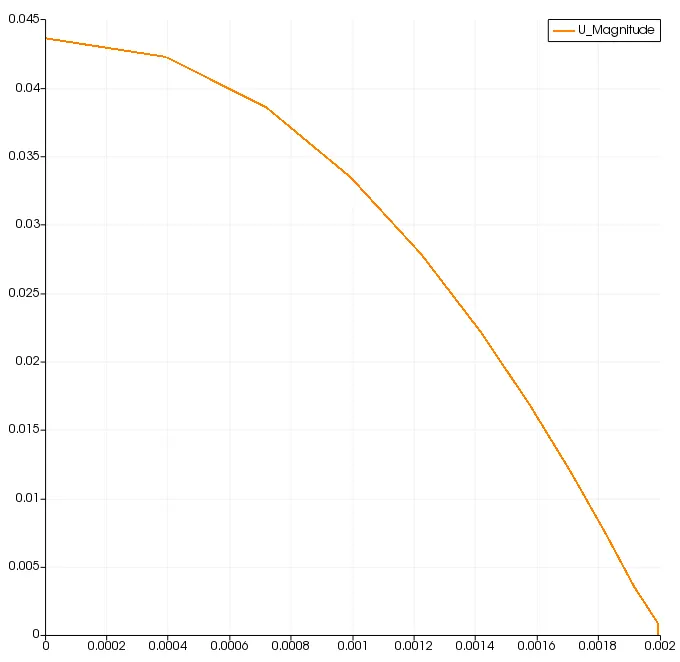

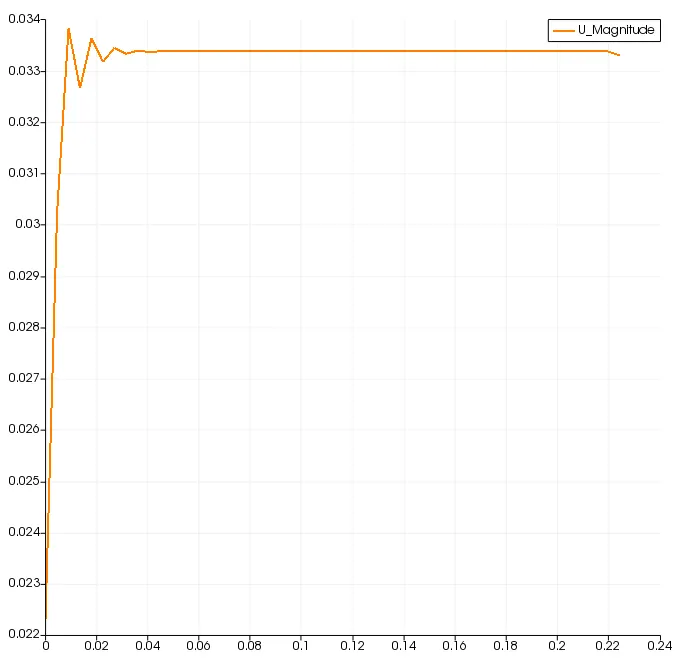

VELOCITY:

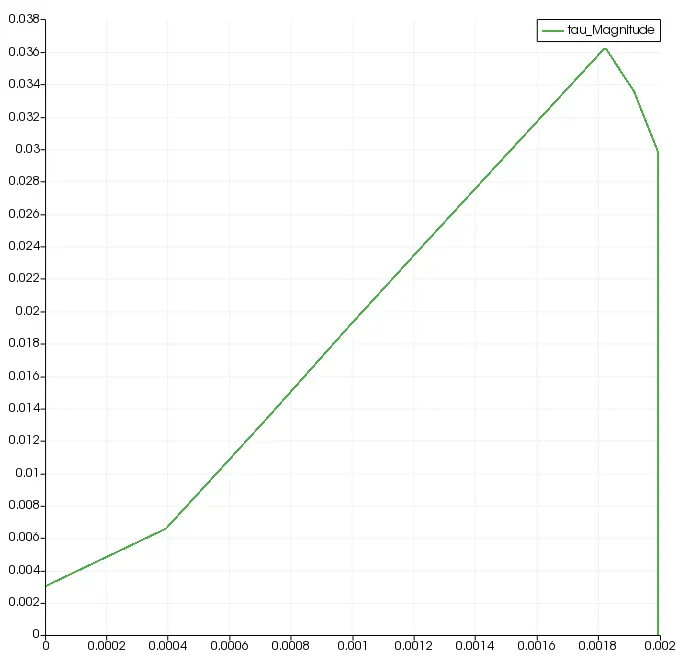

TAU_MAGNITUDE:

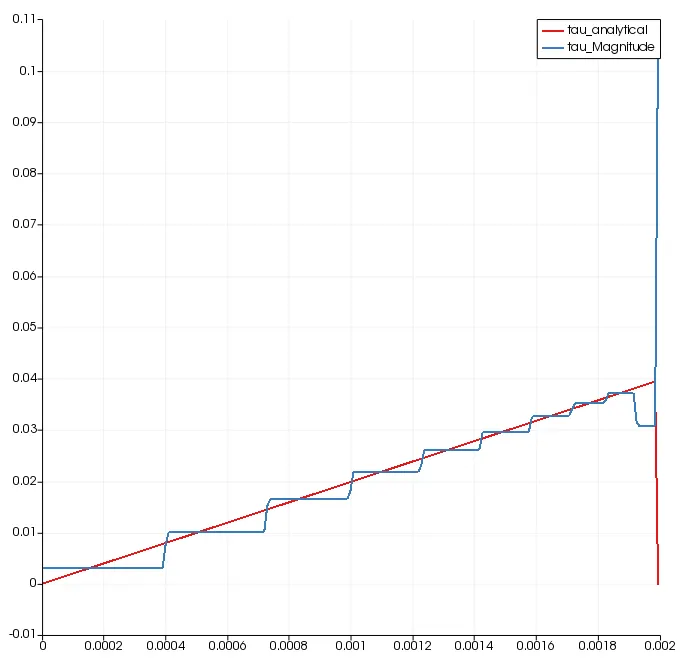

Comparison between tau and analytical:
CONCLUSION:
We can observe there is no much change in the maximum velocities. The only difference observed is execution time a little high than type-wedge. While the angle increases the error in the maximum velocity is decreased. Though there is not much difference between analytical and numerical results and also with increasing the angle of the wedge, The Courant number is slightly increasing. we can say that the symmetric boundary condition plays an important role in terms of accuracy in the result.
