Week 11 - Project - A pillar Design with Master Section

Week 11 - Project - A pillar Design with Master Section

Objective: The main objective of this challenge is to understand the given master section to create a solid body and B-side features for a given class A surface, by considering all the design parameters.

Master Section: Master sections are the guides for design requirements which decide the component packaging after technical (Styling, Concept or Class-A) surfaces.

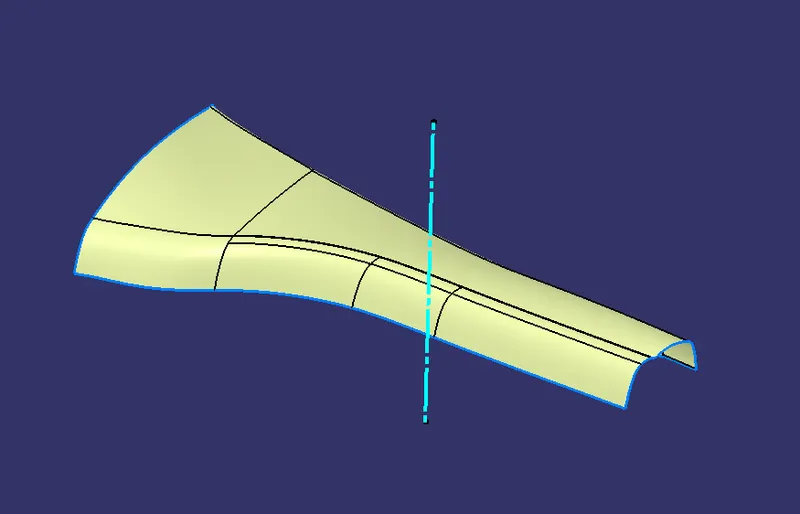

Tooling Axis creation:

To create the tooling axis, I used the 'bisecting' line method. Initially, I created two lines on the master section by using 'point to point line' and then I created a bisecting line at the centre of those two lines by using bisecting line option in the line command.

Point to-point lines on the master section

Draft analysis for class A surface:

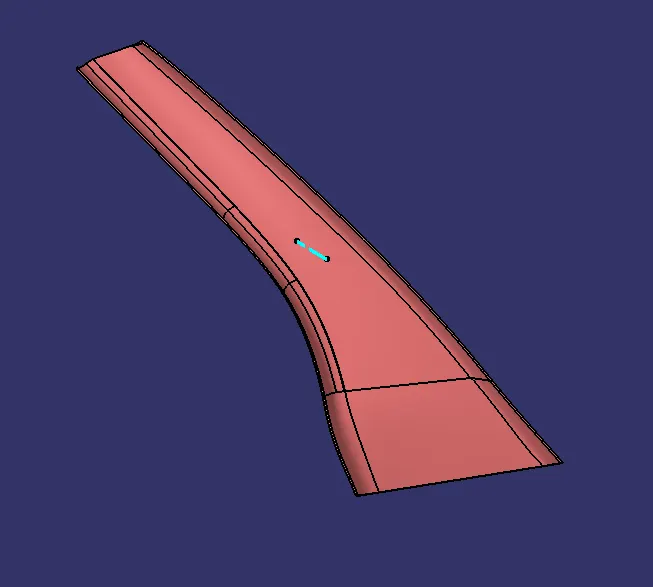

The craft analysis check is performed on the class A surface before we create the solid part from that class A surface, to check whether the given class A surface is drafted properly or not. The draft angle for a plastic component is 0.5deg to 3deg).

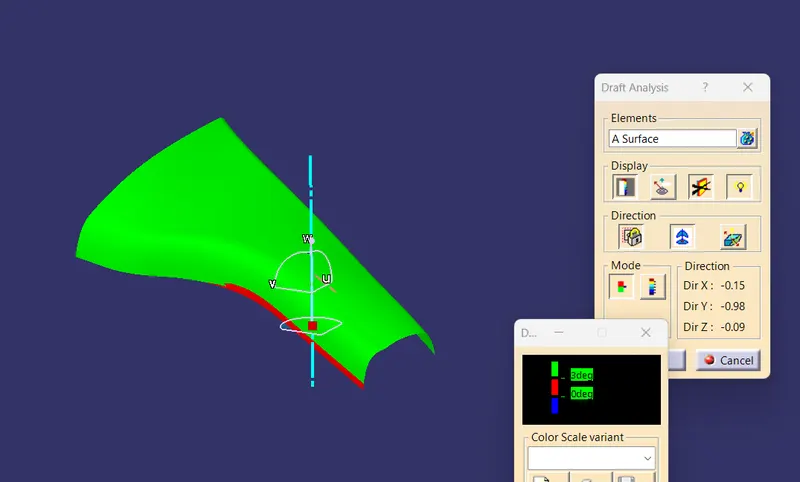

In the above image, some faces on the class A surface are not clearing with a 3deg draft angle. I reduce the draft angle gradually to clear the faces which are not clearing with 3deg.

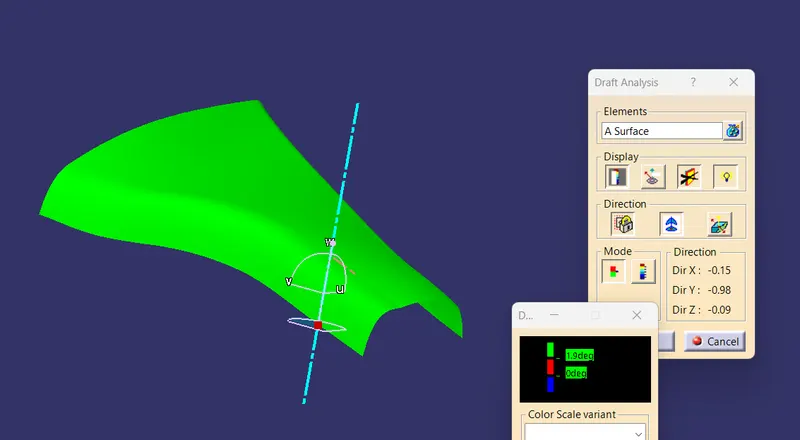

The all surface are only cleared with 1.9° Draft

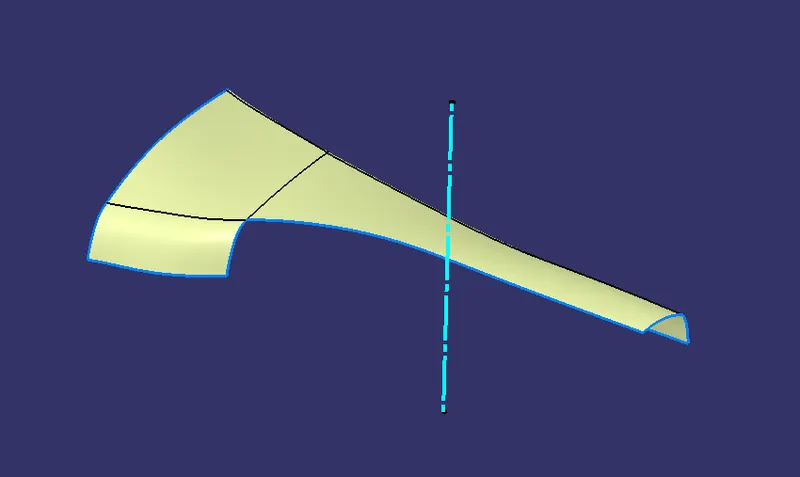

Class B surface creation:

To create the class B surface initially, I measured the thickness of the master section (2.5mm). I offset the class A surface 2.5mm to the inside direction. The styling fillets on the class A surface are not offset properly, it created the patch on the offset surface. I used the sweep command to close the patch on the offset surface.

Class C surface creation:

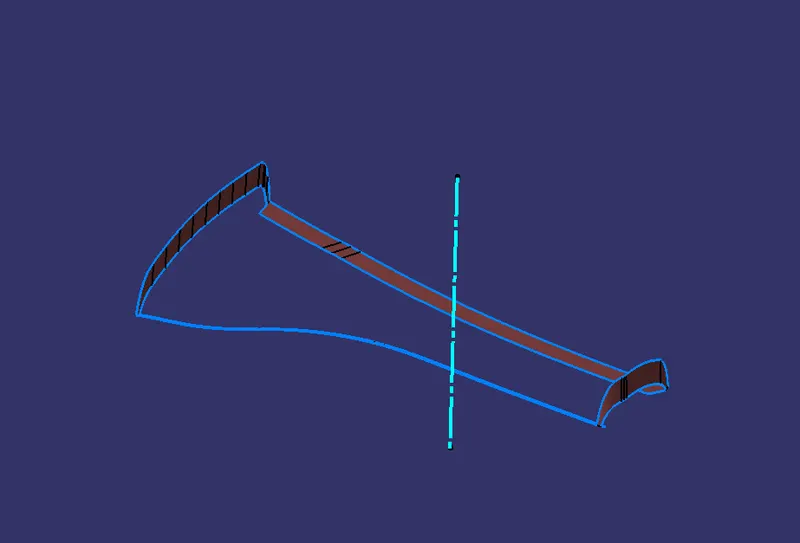

To order to create the class C surface, I used the sweep command. I sweep the class A surface edges along with referencing the surface for 4mm inside with 90deg. After the creation of the class C surface, the surface edges are needed to be extrapolated to intersect properly from all 4 sides. I trim the surfaces which extrapolated, to get the closed class C surface. I joined the class A surface and Class C surface to get a single surface of class A+C surfaces. I trim the Class B surface with class A+C surface join, to get the closed surface to create the solid body.

Solid part body creation:

To create the solid part body, 1st i make it close body with A,B and C surface trim together to get closed body.

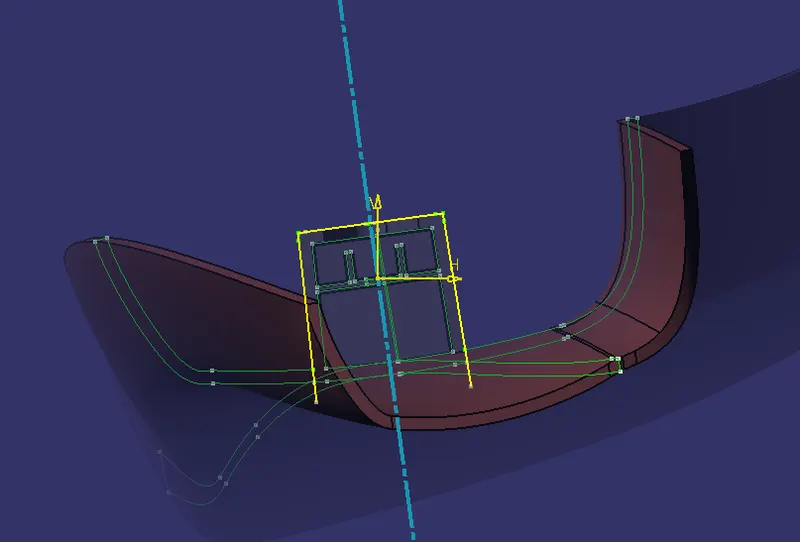

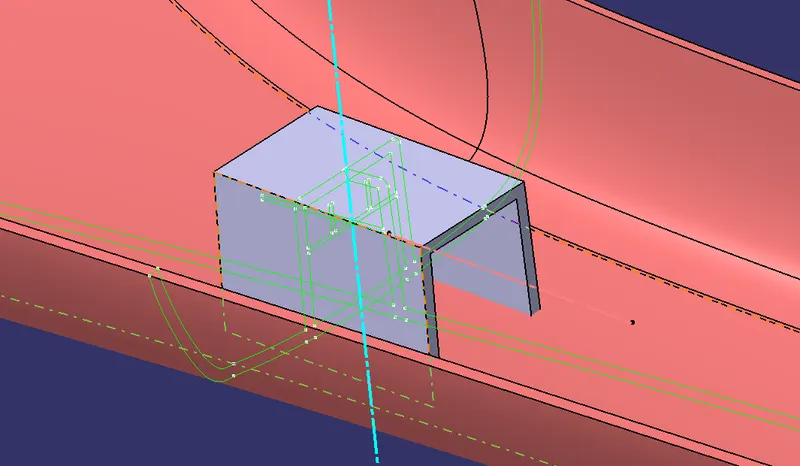

Dog House creation:

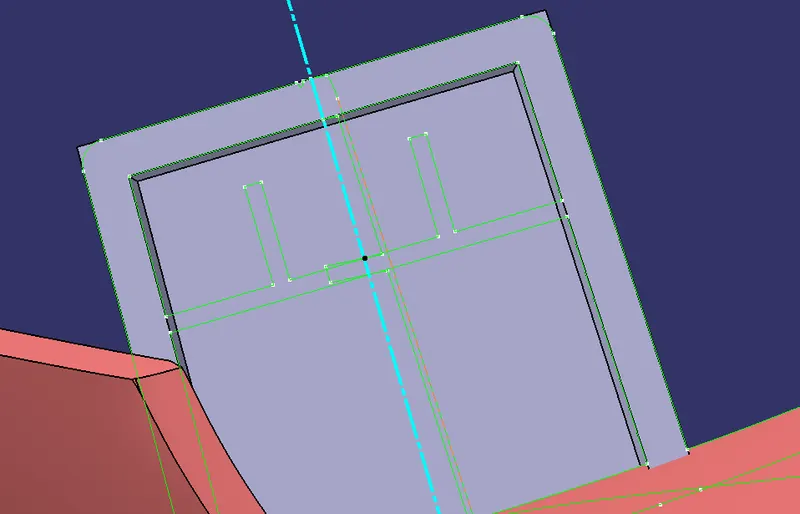

1st i projected the master section and pad with thick surface of 2.5mm already it have darft but i make side core axis and draft at the inside area.

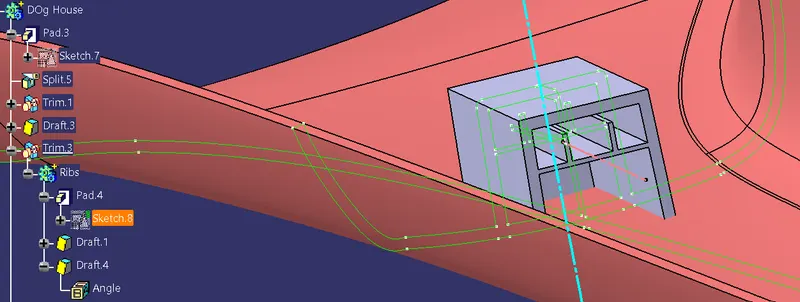

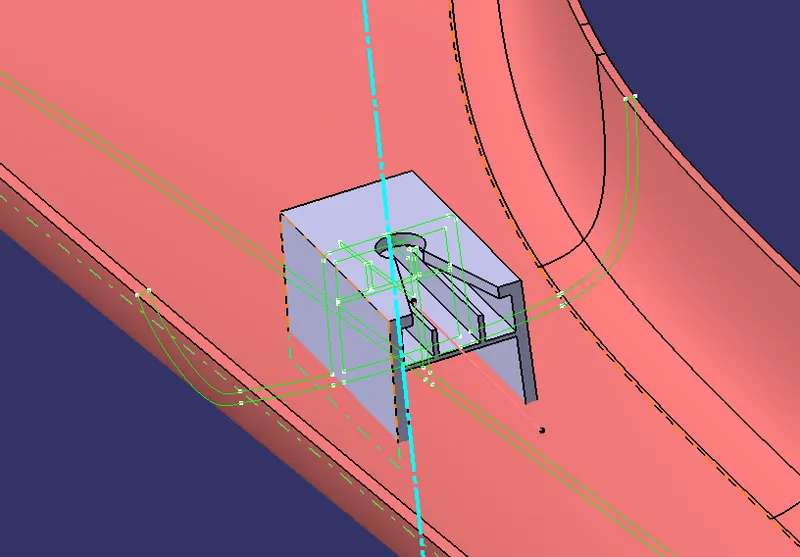

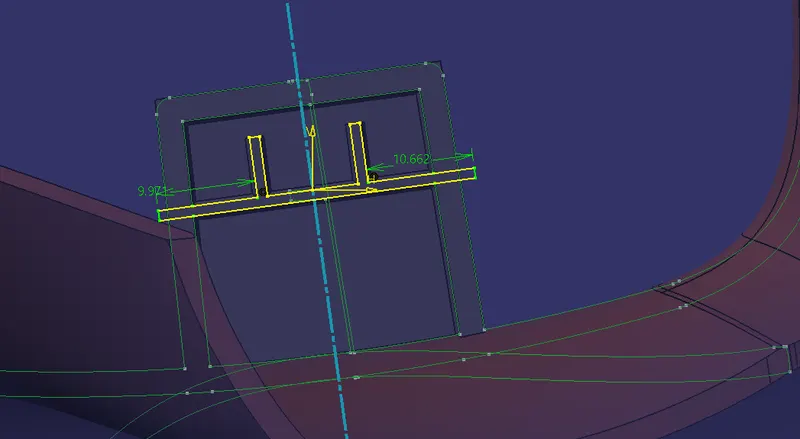

In my next step i make the inside rib for the dog house for that a projected the master section into sketch and pad it and uniontrim with the dog house body

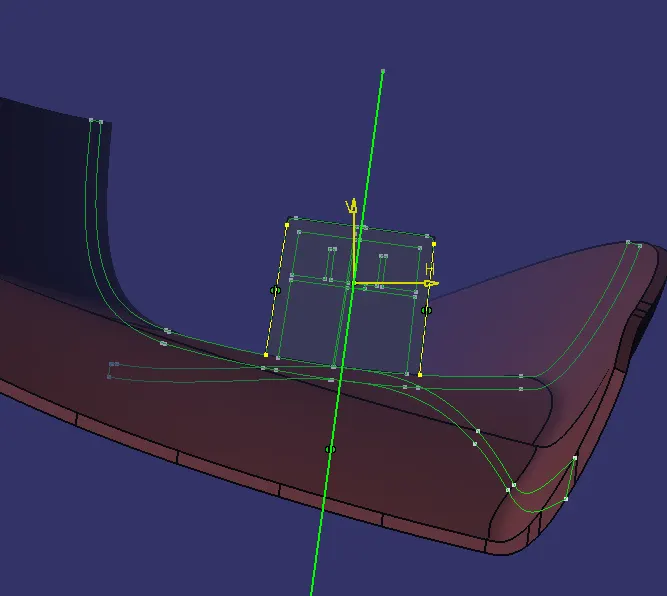

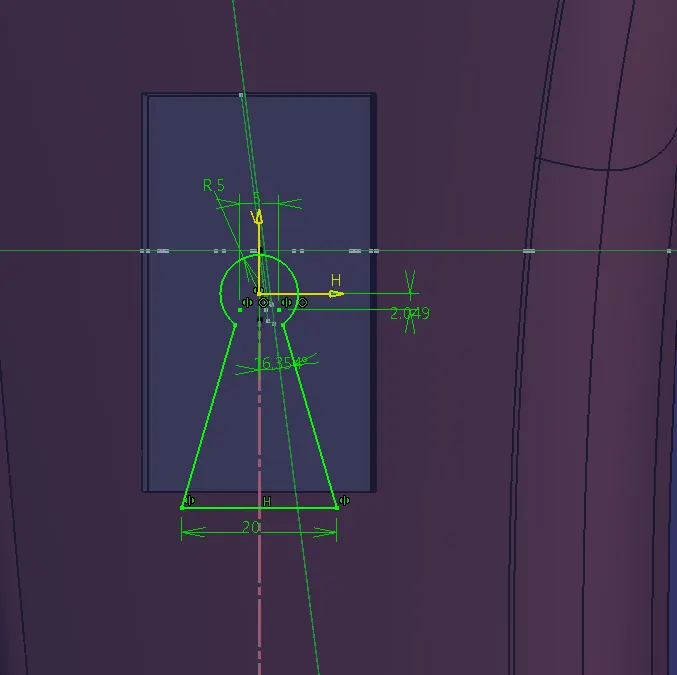

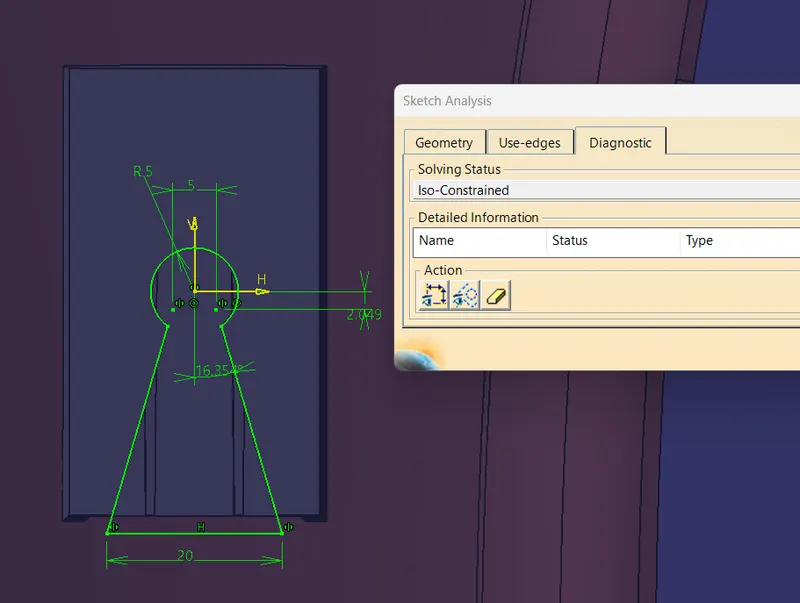

Nex i need to make Cutout for doghouse for that i make sketch at the top of the dog house

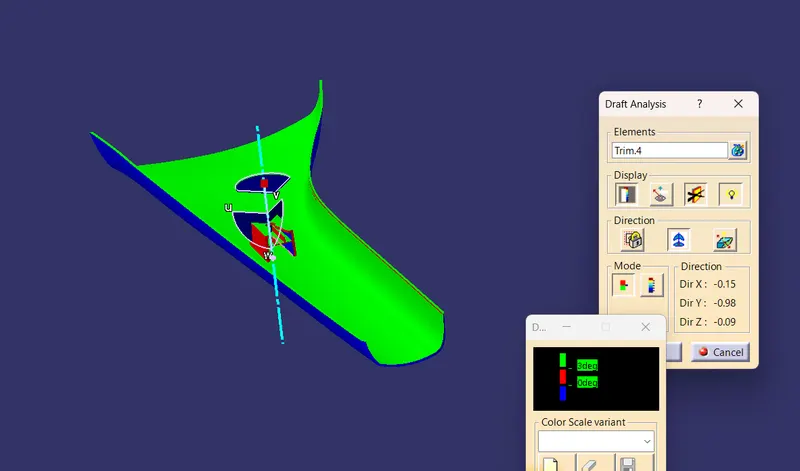

Draft analysis for the solid part body:

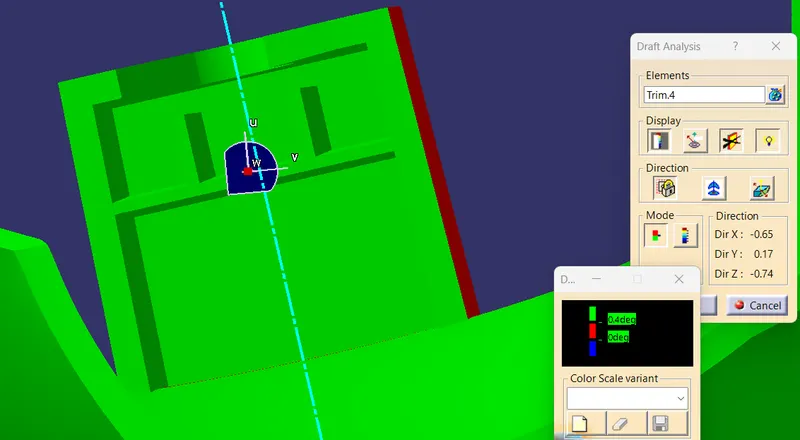

Draft analysis for dog house

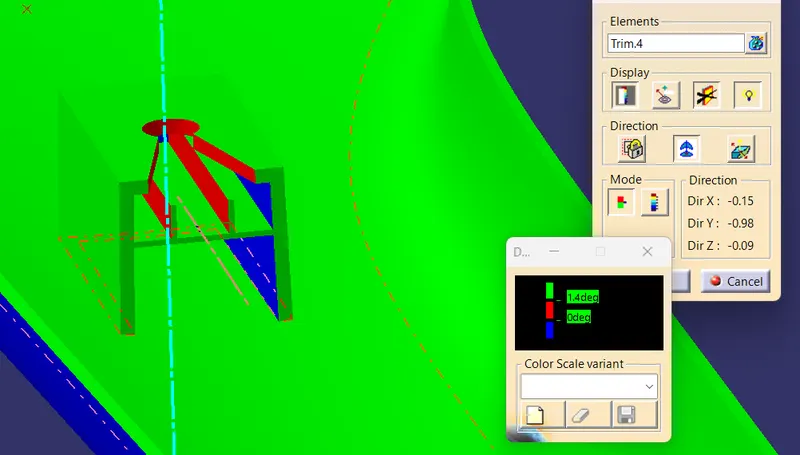

Draft Angle for Side core

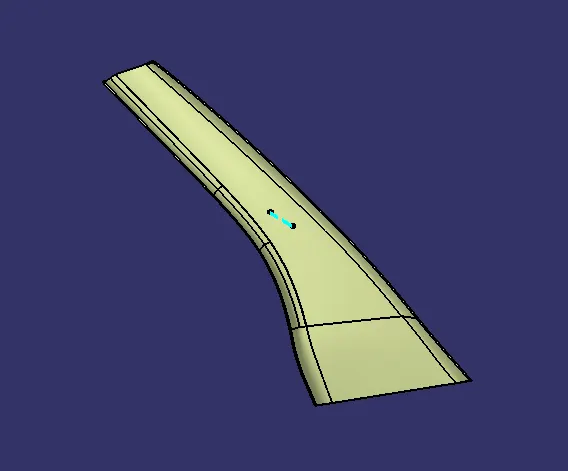

Solid Model In Different Orientions

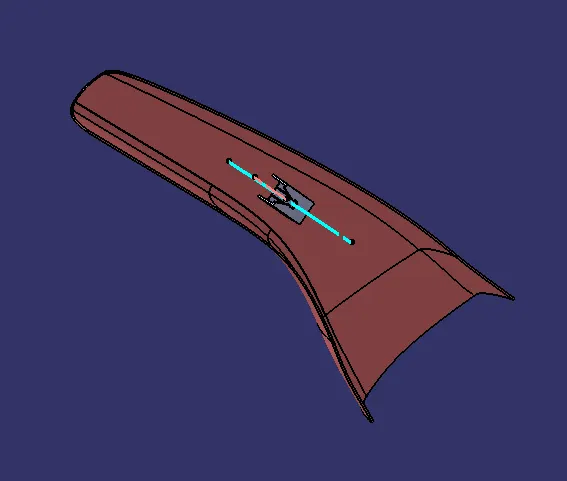

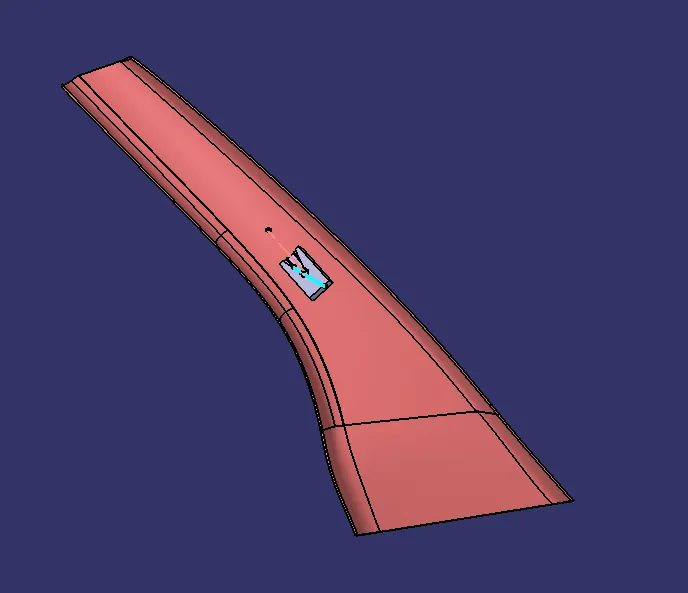

Isometric View

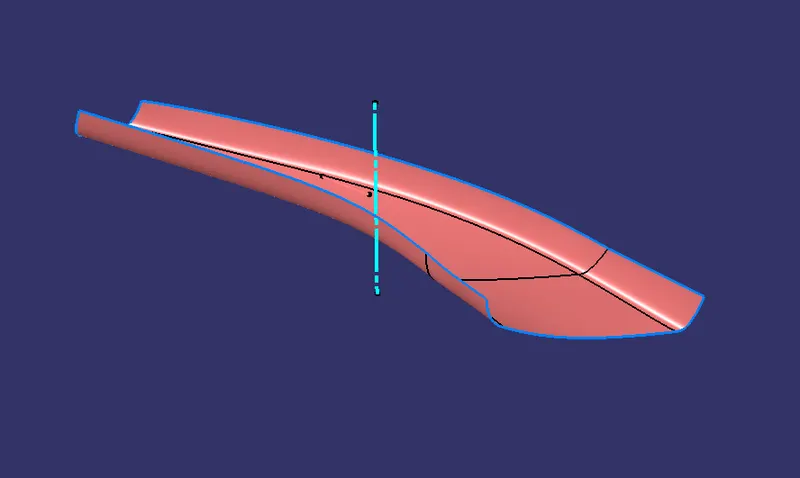

Front View

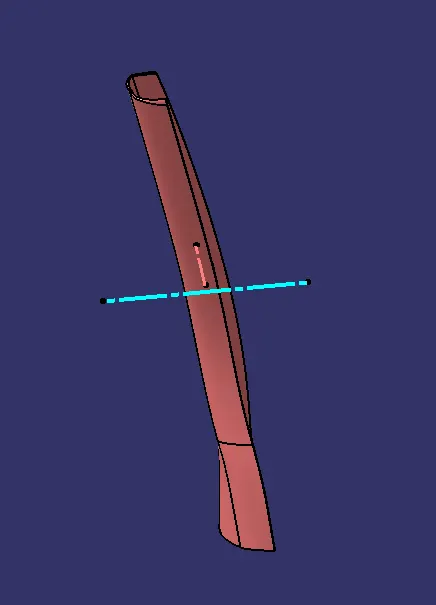

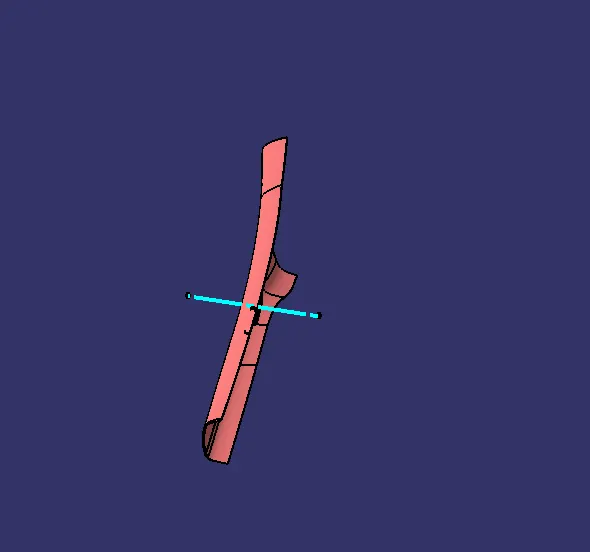

Side View

Top View

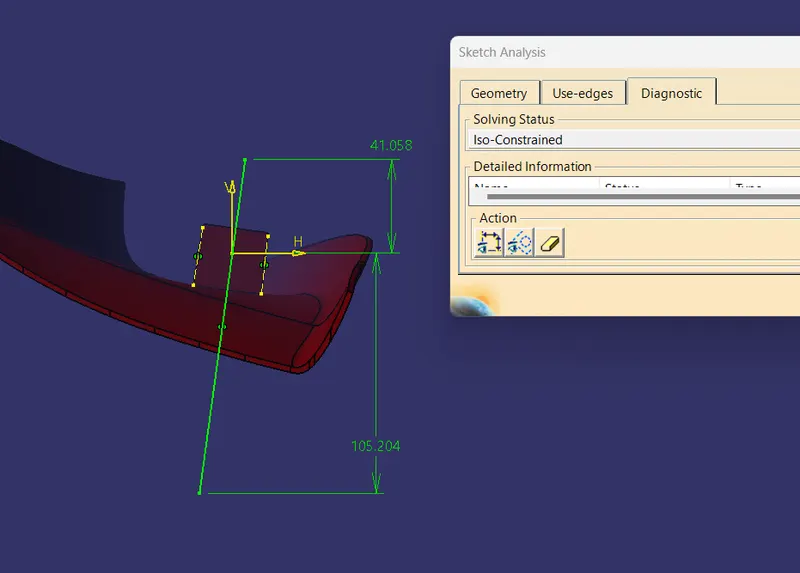

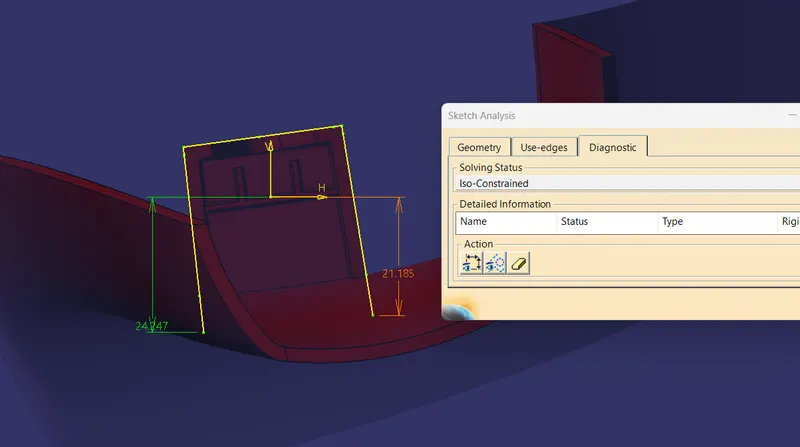

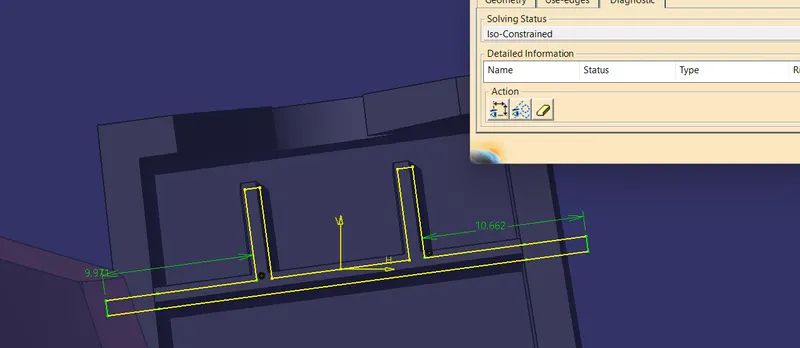

Iso Constrained Sketches

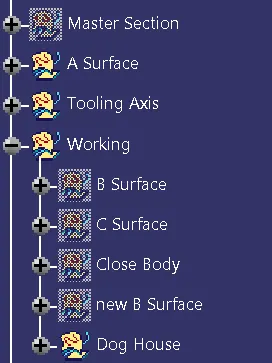

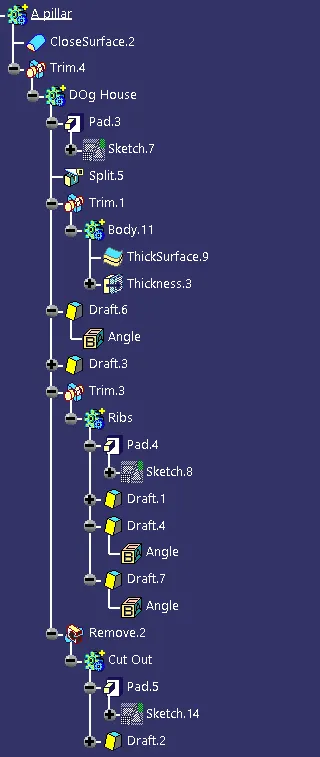

Tree Structure

CONCLUTIONS

Final part is created as per the given guidlines
