Week 11 - Project - A pillar Design with Master Section

AIM: Create the A Pillar Plastic component through the given Class-A surface and master section and perform Draft analysis.

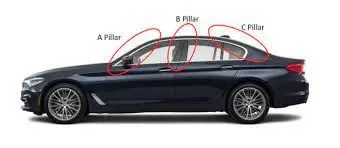

PILLARS: A-Pillars straddle the windshield, B-Pillars are in the middle of the passenger compartment (just behind the front doors) and C-Pillars are those at the rear of the passenger compartment.

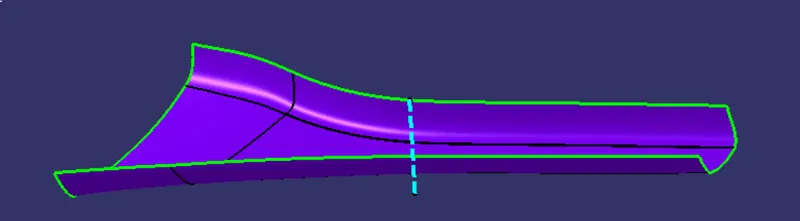

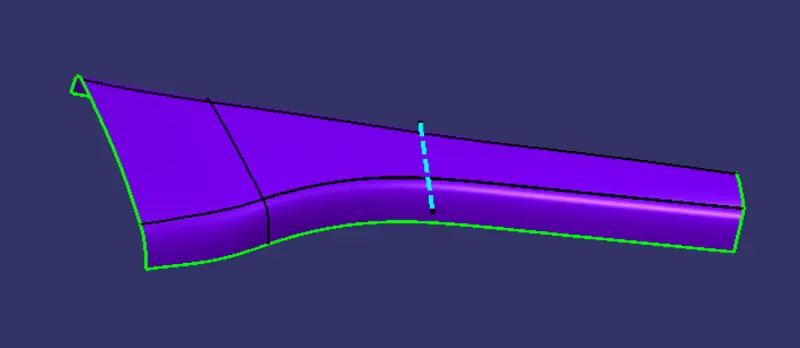

CLASS (A) SURFACE:

Class A surface is a surface made by the designer specially in automotive design which is the aesthetic part of a body and is given as an input to the plastic designer to work on it.

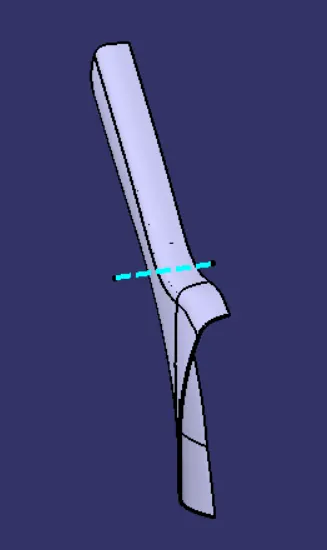

CREATION OF TOOLING AXIS:

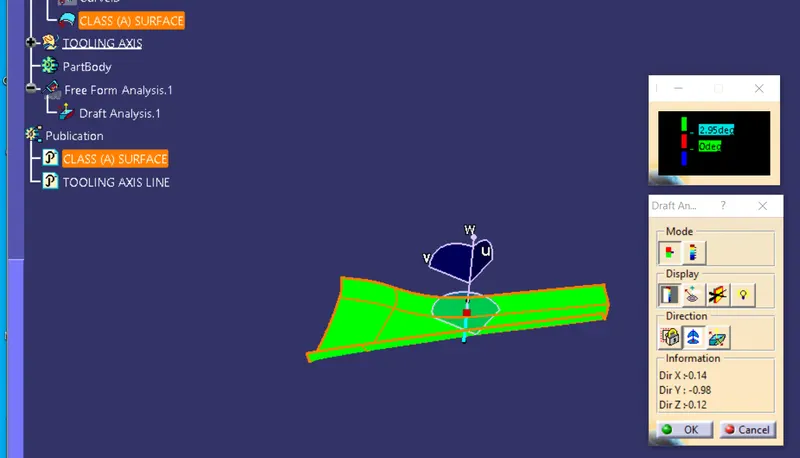

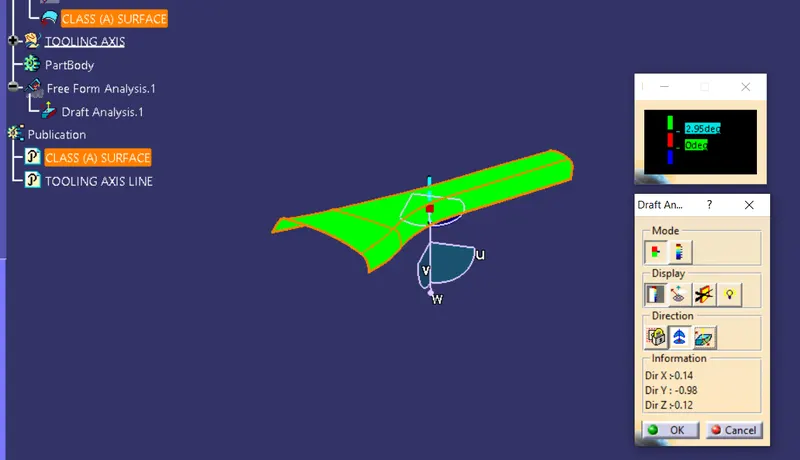

DRAFT ANALYSIS ON CLASS (A) SURFACE:

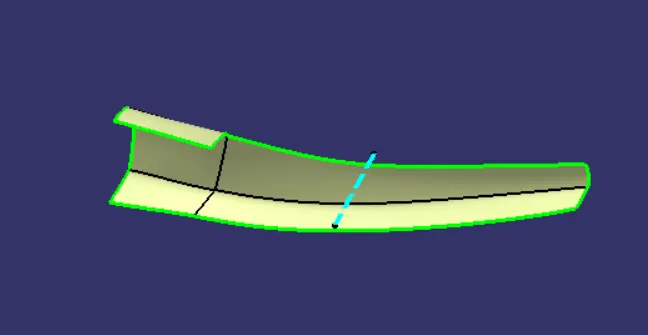

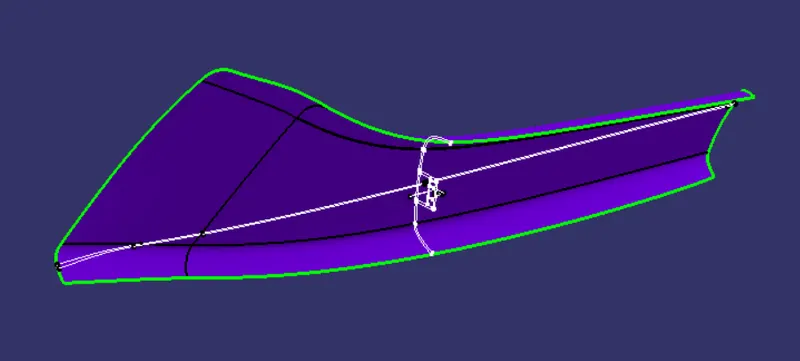

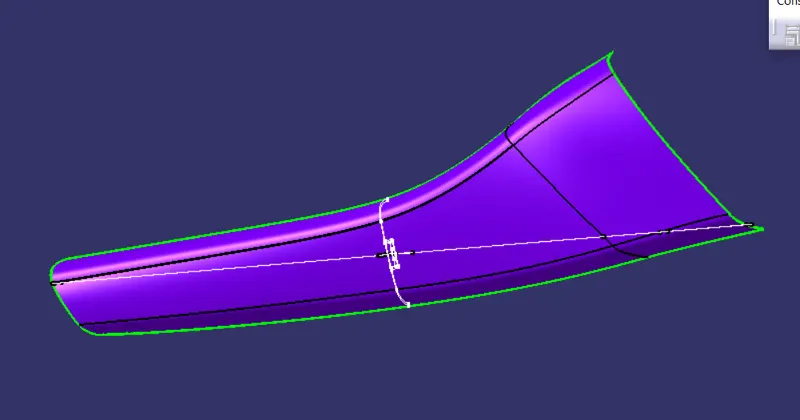

CREATION OF CLASS (B) SURFACE:

CLASS (B) SURFACE:

It is a surface which comes below the class A surface with a particular thickness. This surface contains engineering features of a model.

CLASS (C) SURFACE:

It is the surface which joins class A with class B surface.

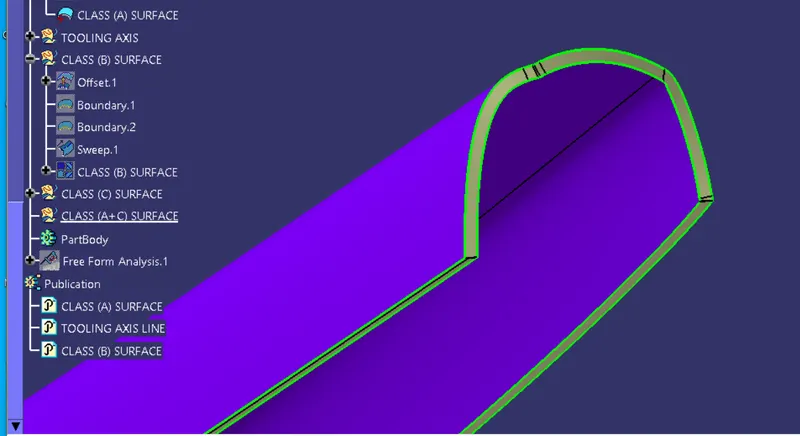

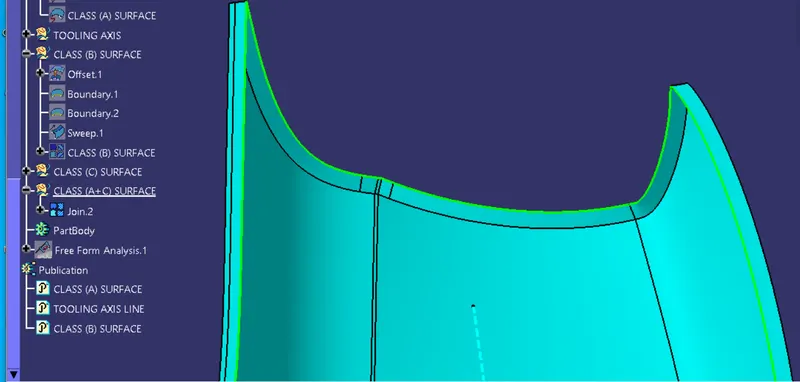

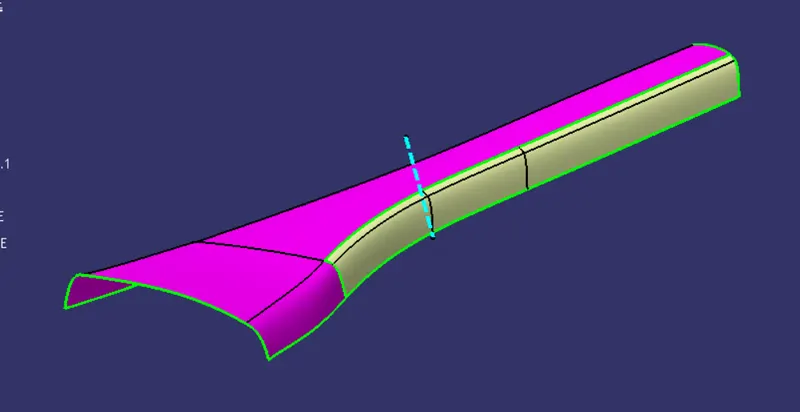

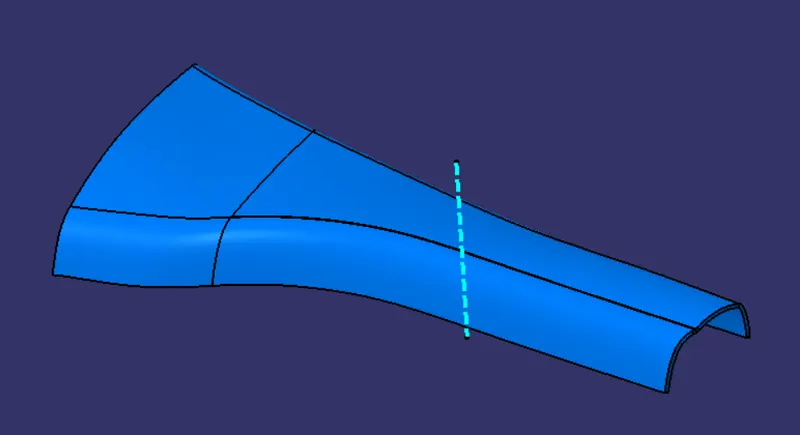

JOIN CLASS (A+C) SURFACE:

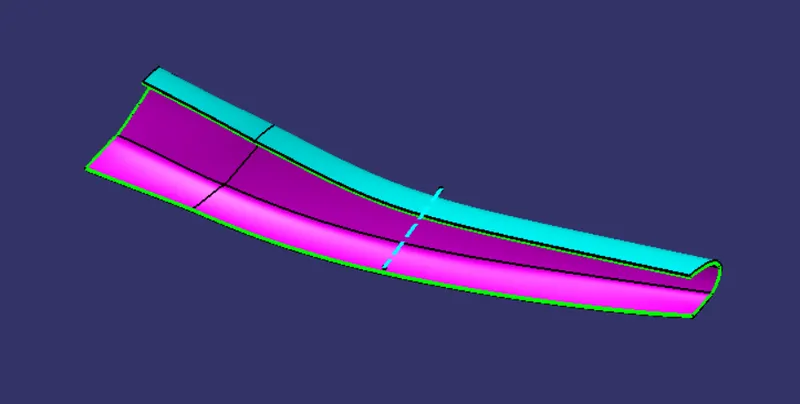

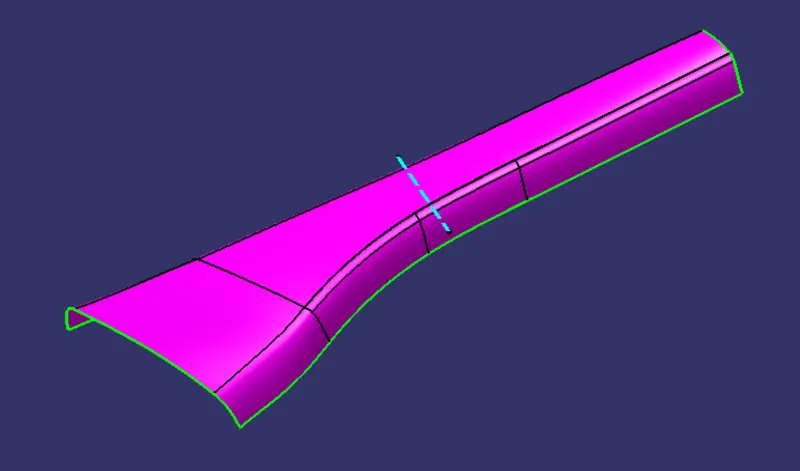

JOIN CLASS(A+B+C) SURFACE:

CLOSE SURFACE TOOL:

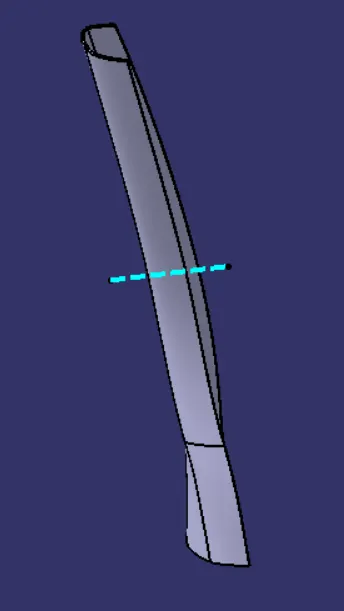

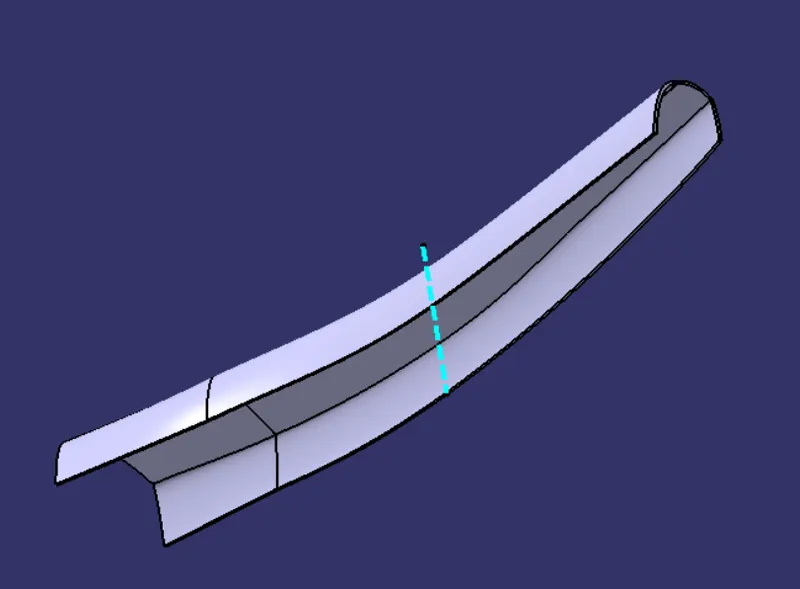

ISOMETRIC VIEW:

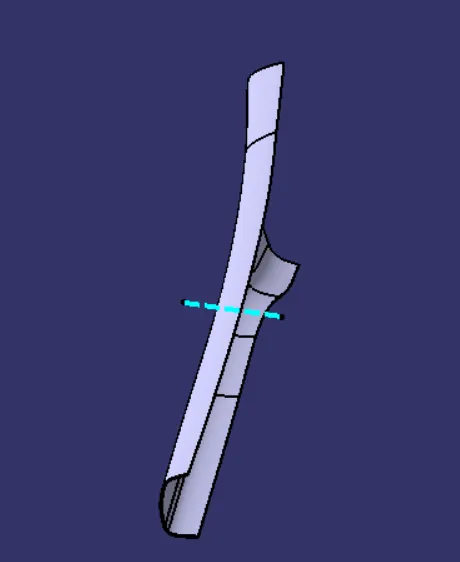

FRONT VIEW:

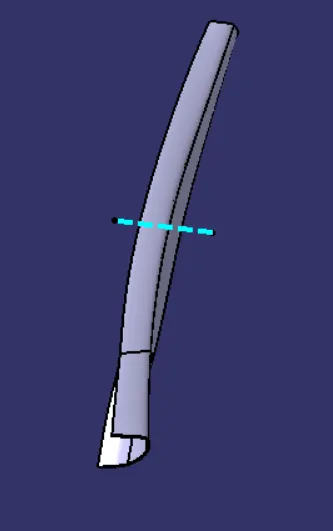

SIDE VIEW:

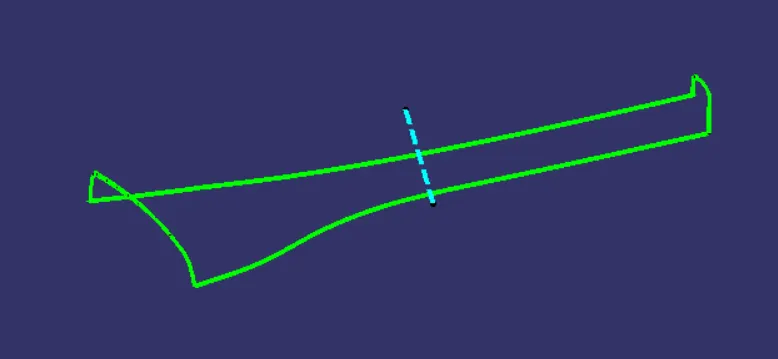

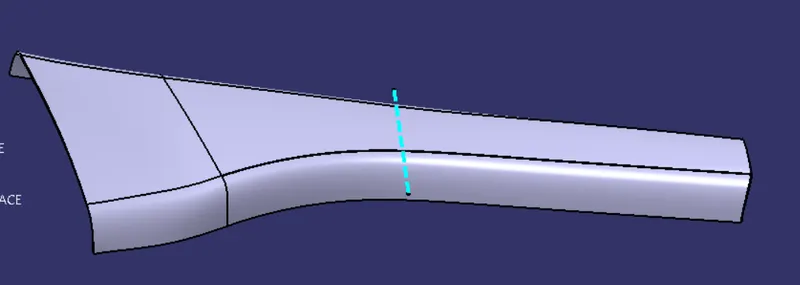

TOP VIEW:

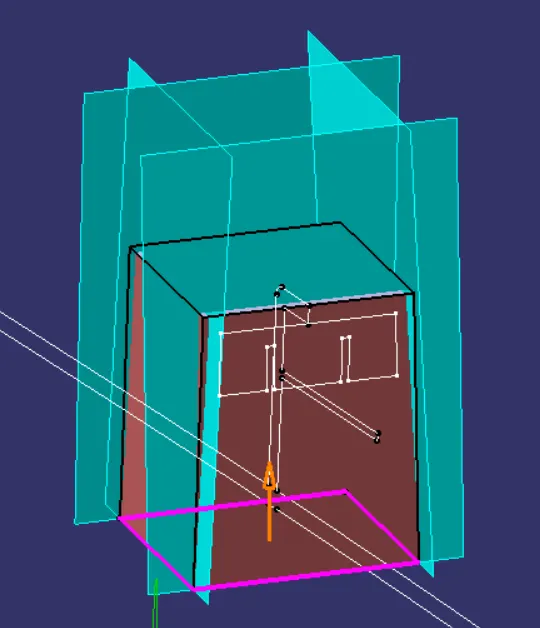

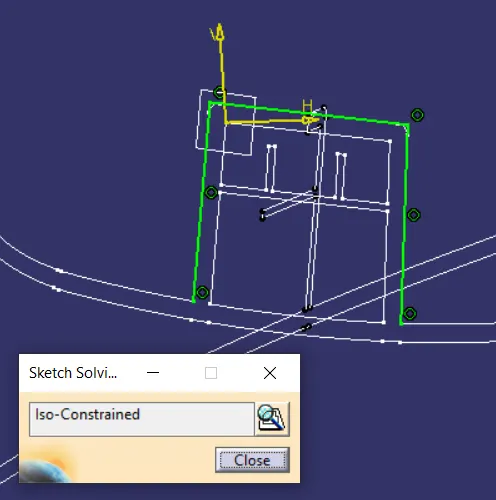

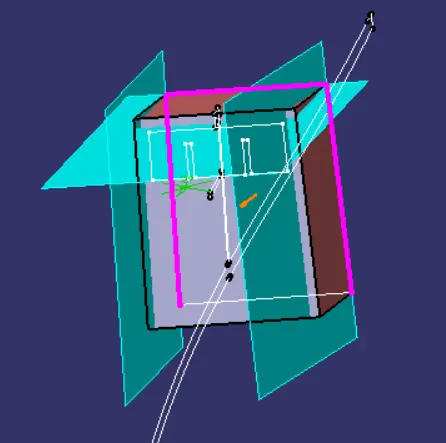

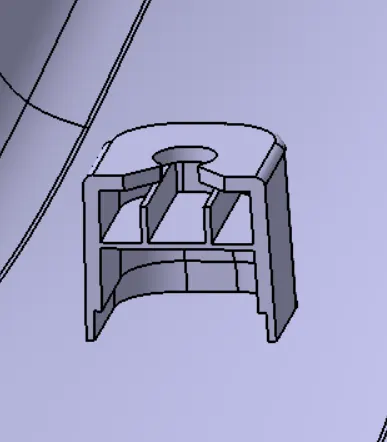

DESIGN OF DOG HOUSE:

DRAFT ON DOG HOUSE:

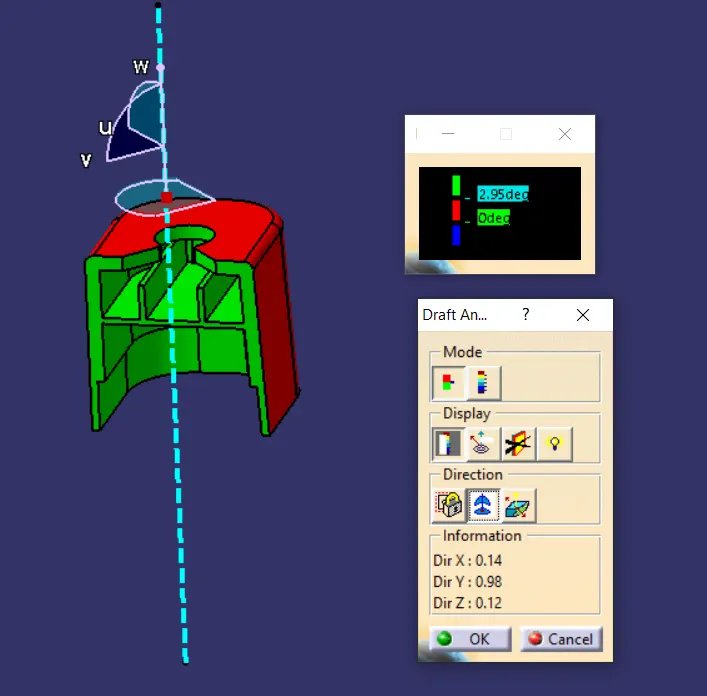

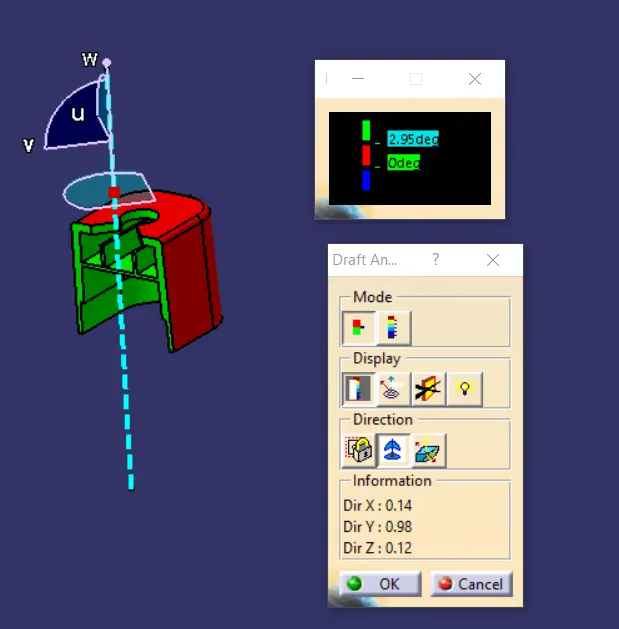

DRAFT ANALYSIS ON DOG HOUSE:

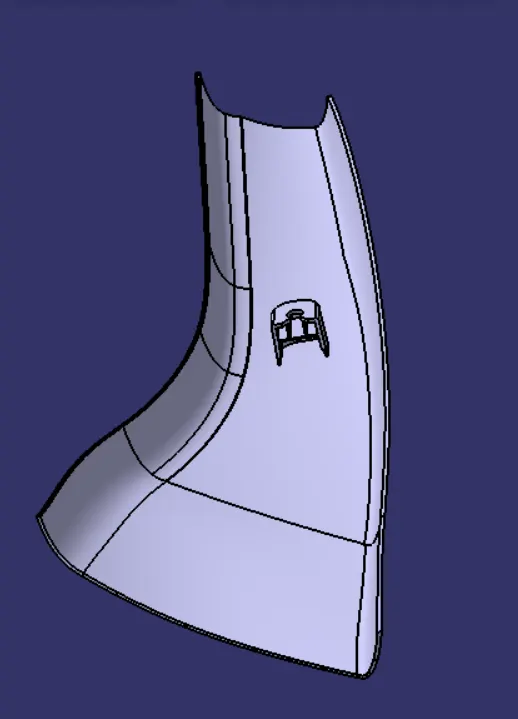

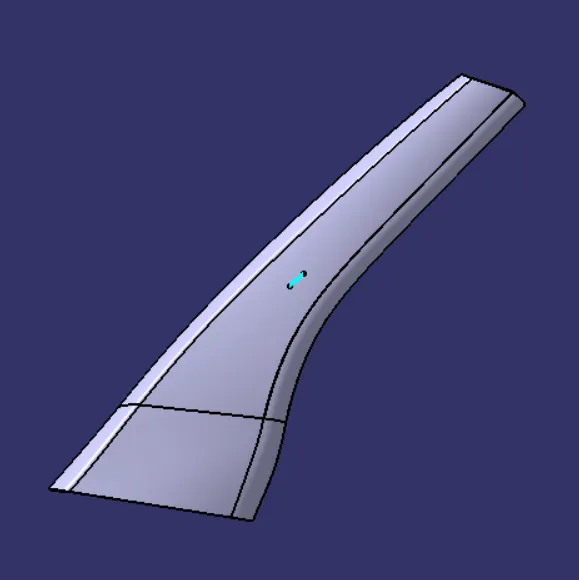

FINAL COMPONENT:
