Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

AIM :

• To Create the Door Handle Component from the given Class-A surface.
• To Create the tooling axis for the given Class-A Surface meeting the requirements of the draft angle.
• To Attach B side Features in the component.
• To perform the Draft analysis on the components.

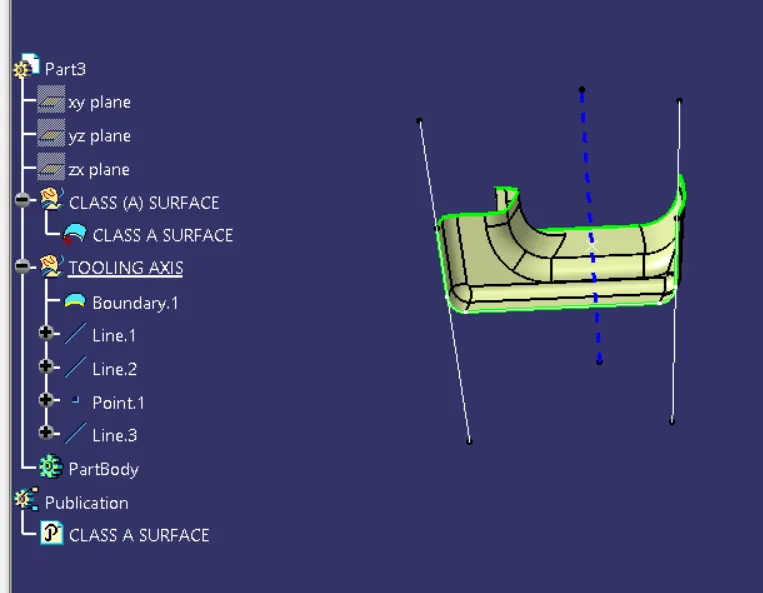

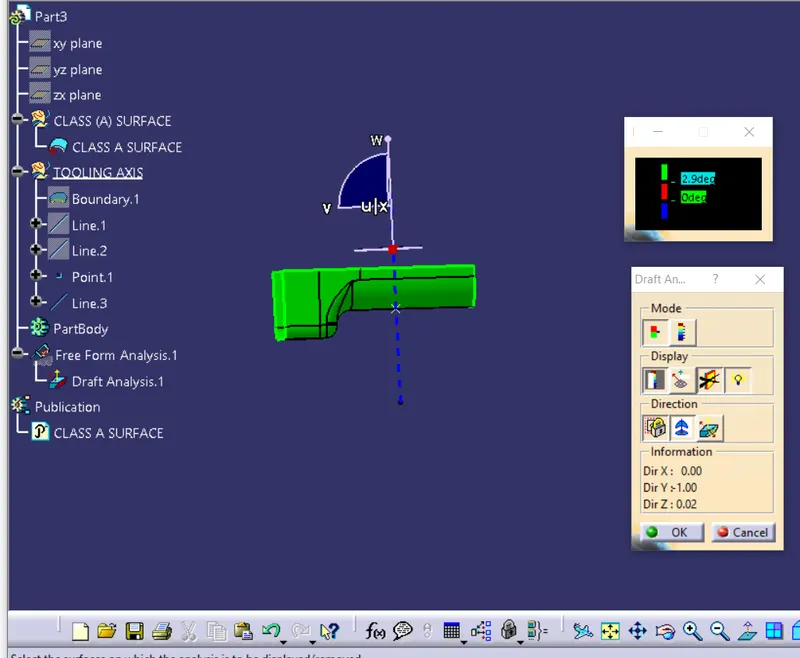

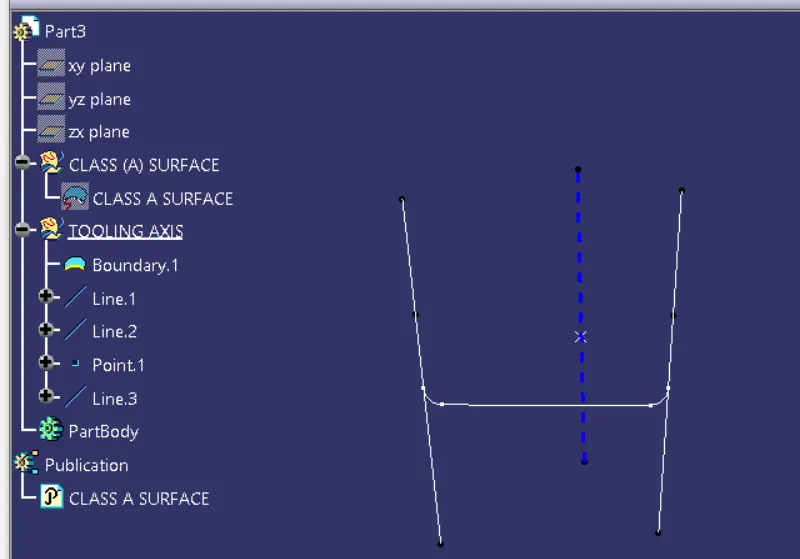

1. CREATION OF TOOLING AXIS.

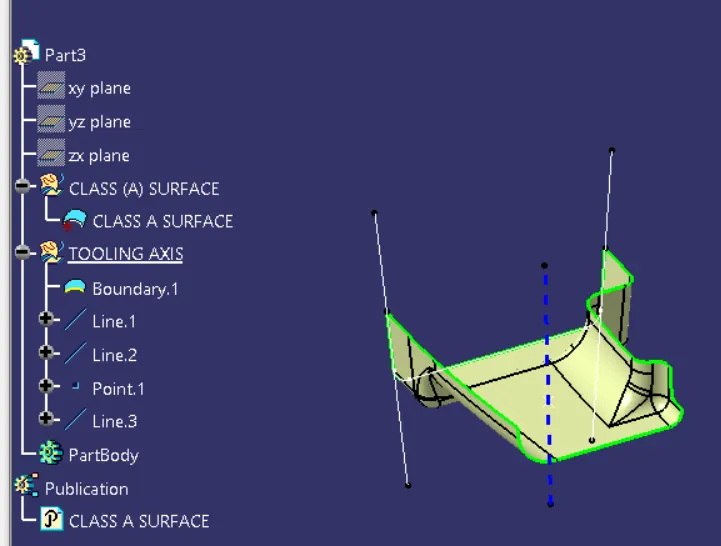

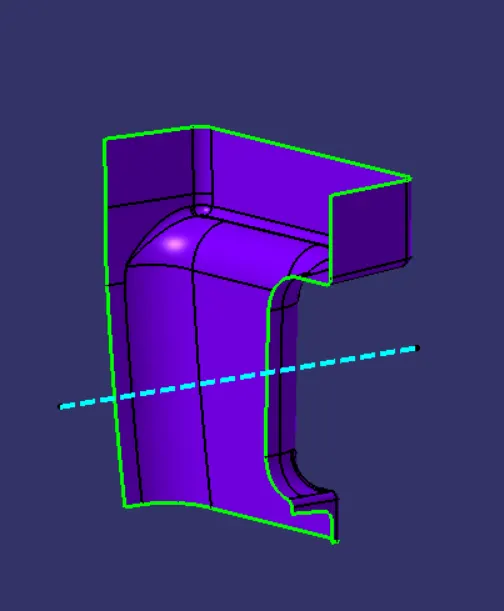

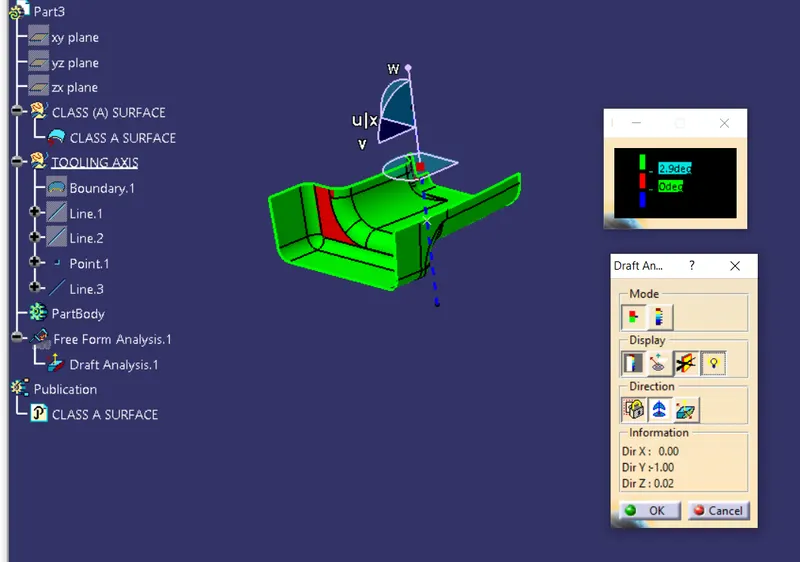

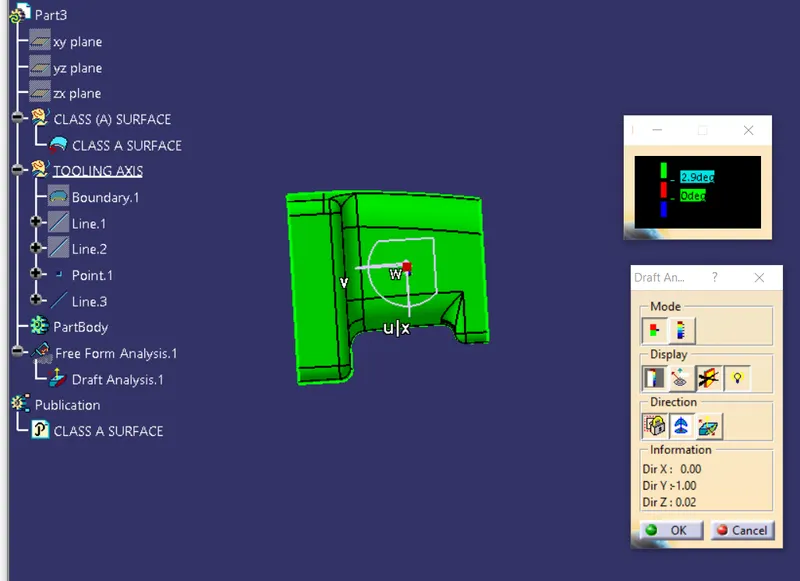

DRAFT ANALYSIS ON CLASS (A) SURFACE

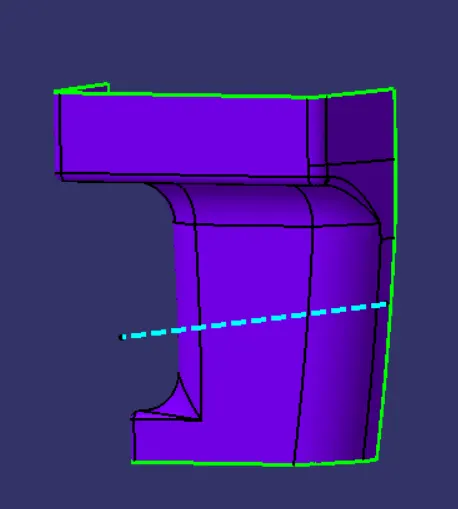

CLASS (B) SURFACE CREATION:

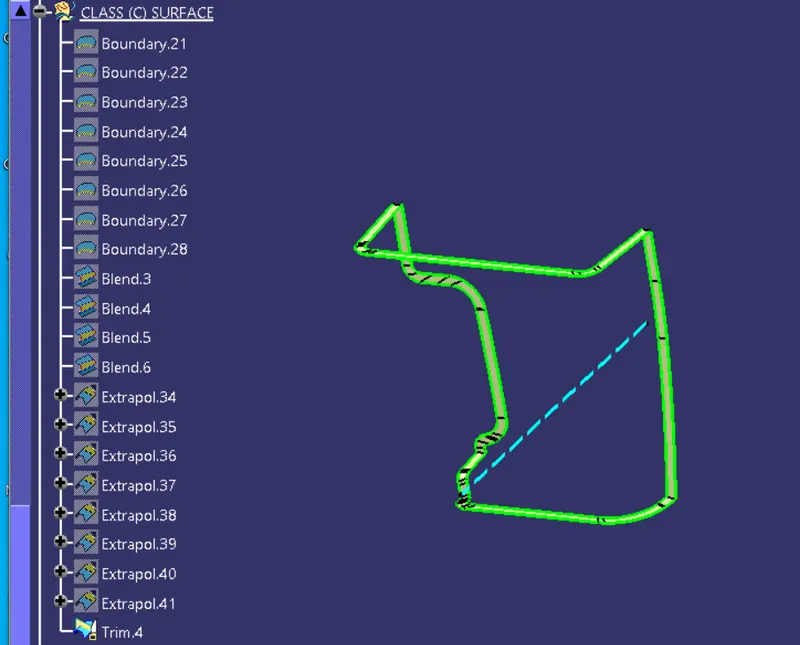

CREATION OF CLASS (C) SURFACE:

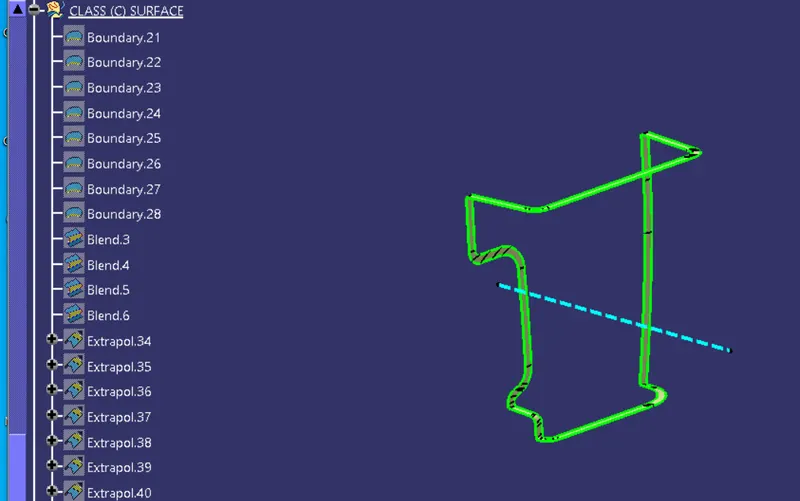

CLASS (A+C) SURFACE:

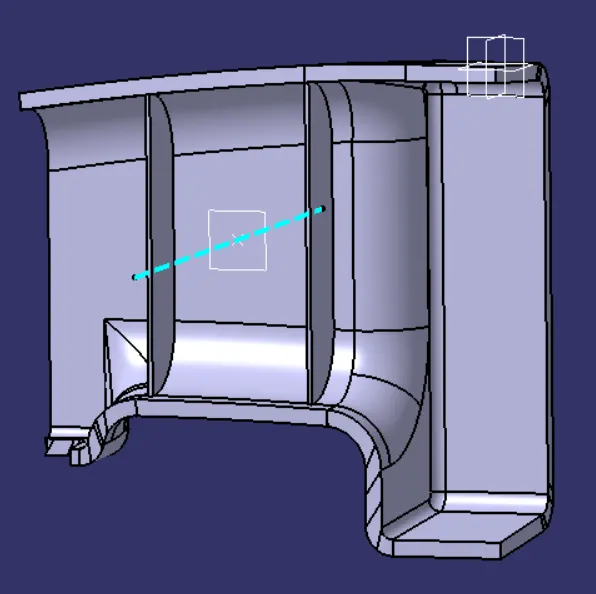

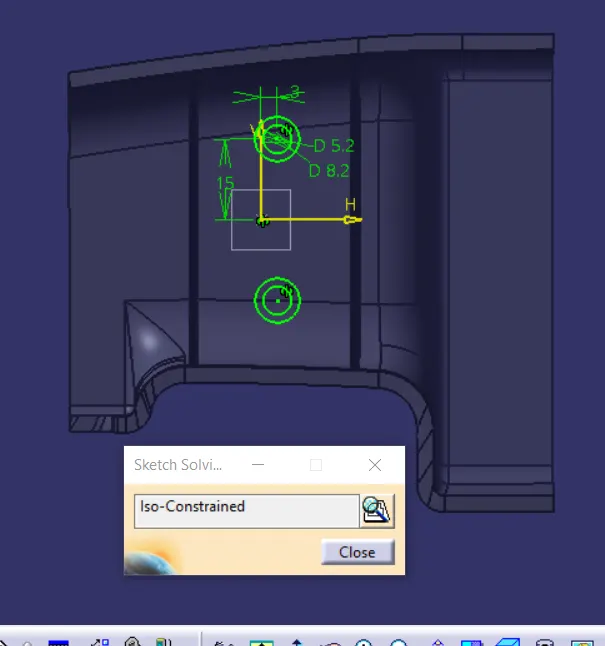

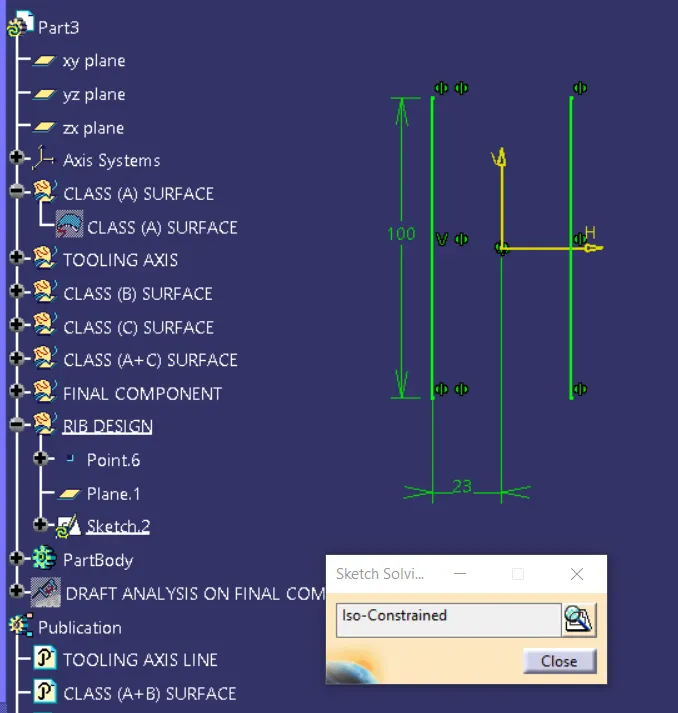

RIB CREATION:

CHECK RIB ROOT THICKNESS AND FILLETS:

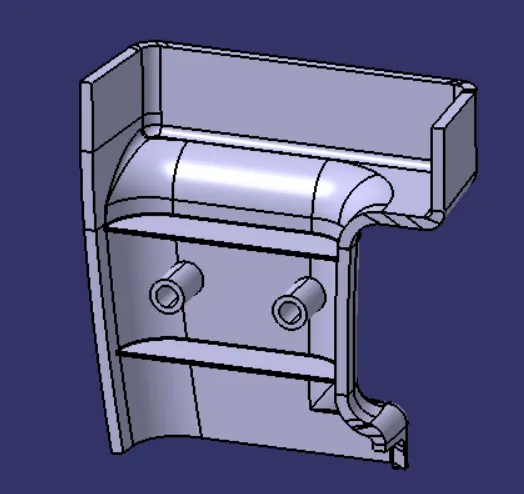

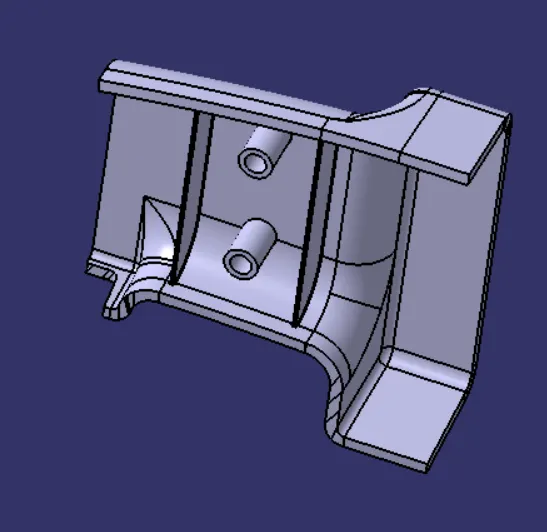

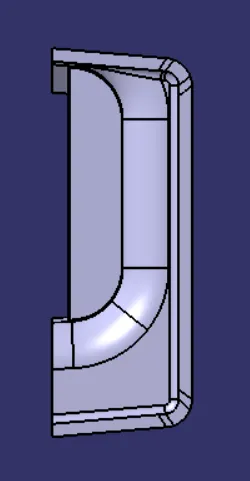

ISOMETRIC VIEW:

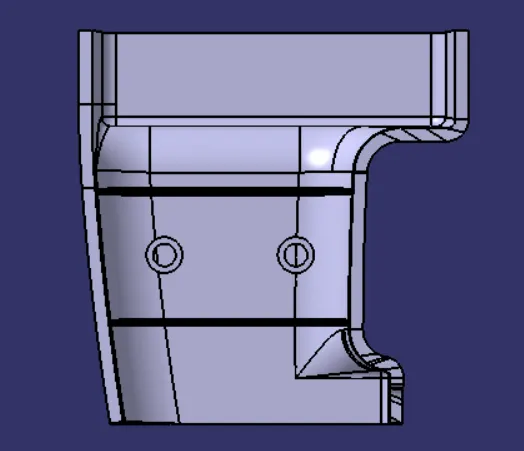

FRONT VIEW:

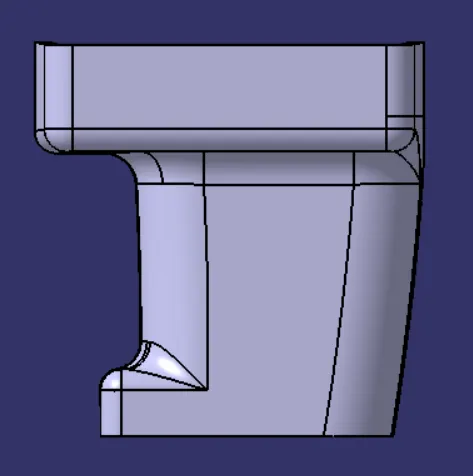

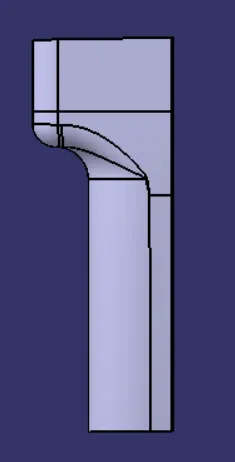

SIDE VIEW:

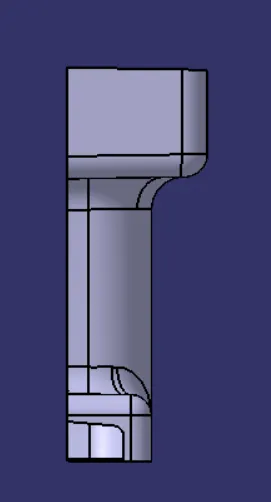

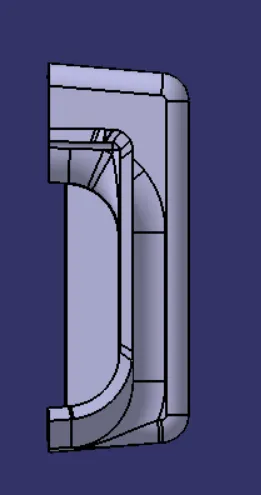

TOP VIEW:
