Week 11 - Final project

FINAL  PROJECT

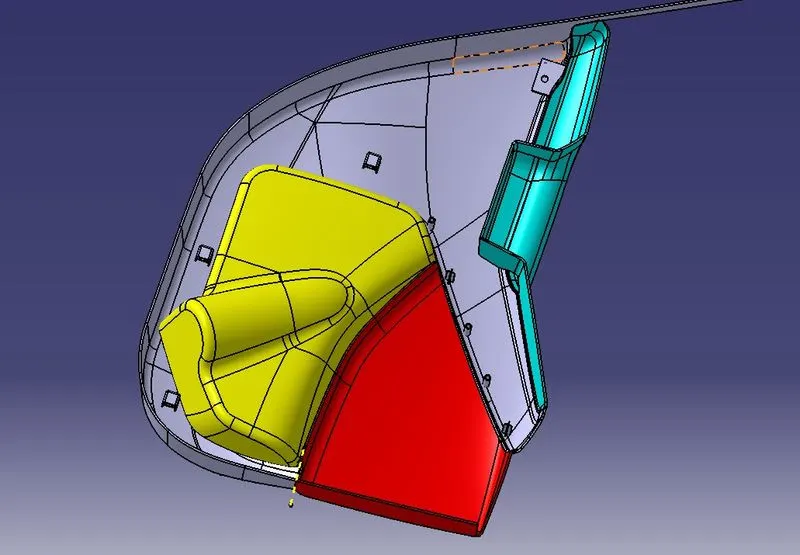

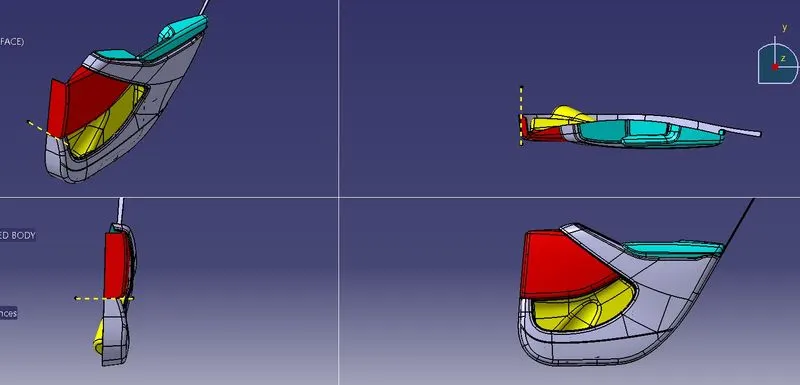

IN THIS FINAL PROJECT GIVEN MASTER SECTION TO CREATE THE CLOSED SURFACE AND HEAT STAKES AND LOCATOR FINALY CREATE THE DOG HOUSE AND MAINTAIN THE ALL THE REQUIRED DIMENESION FOR THE HEAT STAKES AND LOCATOR AND DOG HOUSE AND ALL ALSO WE HAVE TO CREATE THE FLANGE.

ARM REST

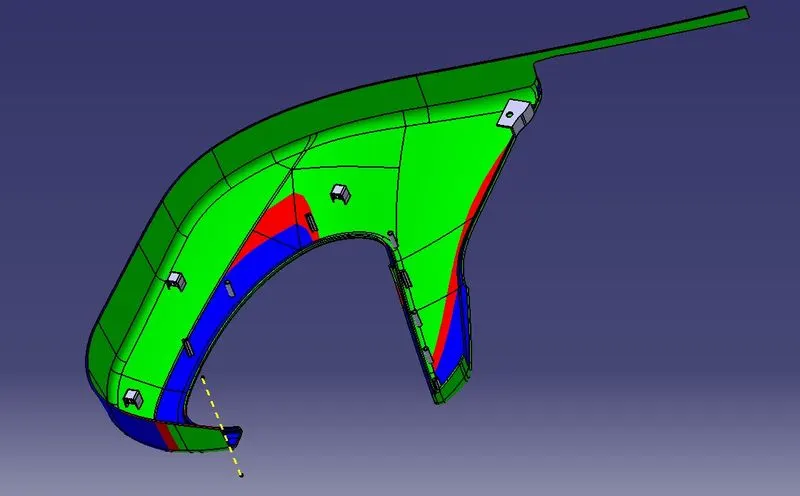

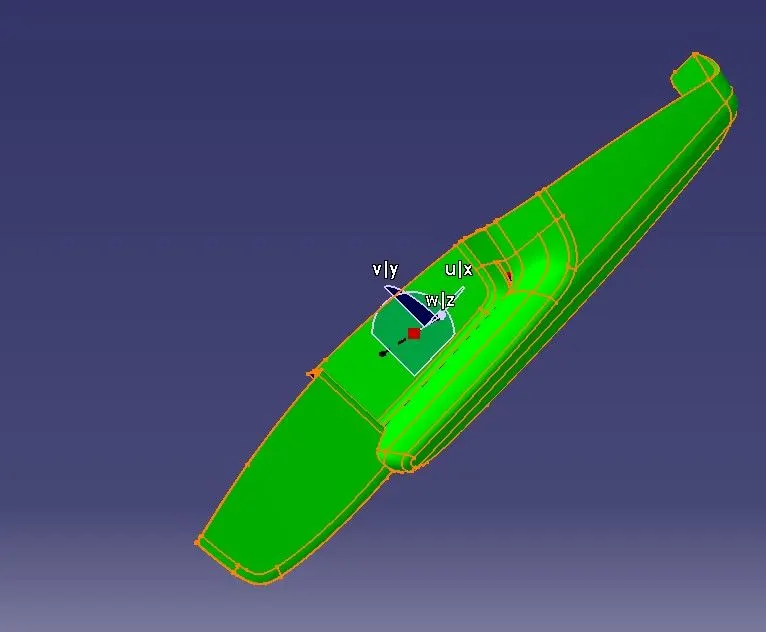

GIVEN THE MASTER SECTION TO CREATE THE TOOLING AXIS AND  B SURFACE AND C SURFACE FINALY CREATE THE CLOSED SURFACE FOR THE ARM REST IN THIS ARM REST WE HAVE TO CHECK  THE SURFACE FINISH BY USING JOIN COMMAND AND CHECK THE BOUNDRY ALSO IN THIS ARM REST GIVEN MASTER THERE IS GAP IN  THE SOME AREA SO WE NEED TO MAKE IT JOIN  AND  THE OUR A  SURFACE  IS  WE HAVE TO APPLY FOR THE PUBLICATIONS TO EASILY IDENTIFY THE A CLASS SURFACE AFTER THE THAT WE NEED PROVIDE THE OFFSET FOR THE A CLASS SURFACE 2.5MM  SO THERE WE CAN GET SOME GAPS WE HAVE TO CLOSE THE GAPS AND CREATE THE SURFACE AND CREATE THE C SURFACE JOIN A AND C TRIM IT OFF WITH B SURFACE FINALLY WE GOT THE CLOSED SURFACE BODY FINALL WE HAVE TO CHECK THE DRAFT ANALYSIS FOR THE ARM REST.

LOWER SURFACE

GIVEN THE MASTER SECTION TO CREATE THE LOWER SURFACE IN THIS LOWER SURFACE WE NEED CHECK THE MASTER SECTION WHETHER IT IS  OK OR NOT WITH HELP SOME COMMANDS THOSE ARE JOIN AND BOUNDRY TO VERIFY THE GIVEN MASTER SECTION AFTER CHECKING WE HAVE TO CREATE THE TOOLING AXIS AND AND B SURFACE AND C SURFACE A AND C TRIM IT OFF WITH B SURFACE WE GOT THE CLOSED SURFACE AND APPLY THE DRAFT ANALYSIS AND WE HAVE TO MAKE AS PUPLICATION.

MAP POCKET

IN THE GIVEN MASTER SECTION WE HAVE TO CHECK THE WHETHER THE SECTION IS OK OR NOT TO USE THE SOME COMMANDS CALLED JOIN AND BOUNDRY COMMANDS TO VERIFY WHETHER IT IS OK OR NOT IF IT IS NOT OK DO SOME ALTERNATION IN THE GIVEN MASTER SECTION TO MAKE THE PERFECT  SURFACE AND APPLY FOR THE PUBLICATION AND WE HAVE TO APPLY FOR THE OFFSET 2.5 MM AND THERE WE GET SOME GAPS WE HAVE TO MAKE IT AS THE  CLOSED SURFACE B SURFACE AND TRIM IT OFF WITH THE C SURFACE TO CREATE THE CLOSED SURFACE TOOLING AXIS TO CHECK THE DRAFT ANALYSIS IF IT  IS FAIL WITH TOOLING AXIS WE HAVE TO MAKE ALTERNATE  CHANGES CREATE THE PERFECT CLOSED BODY.

BOTTLE HOLDER

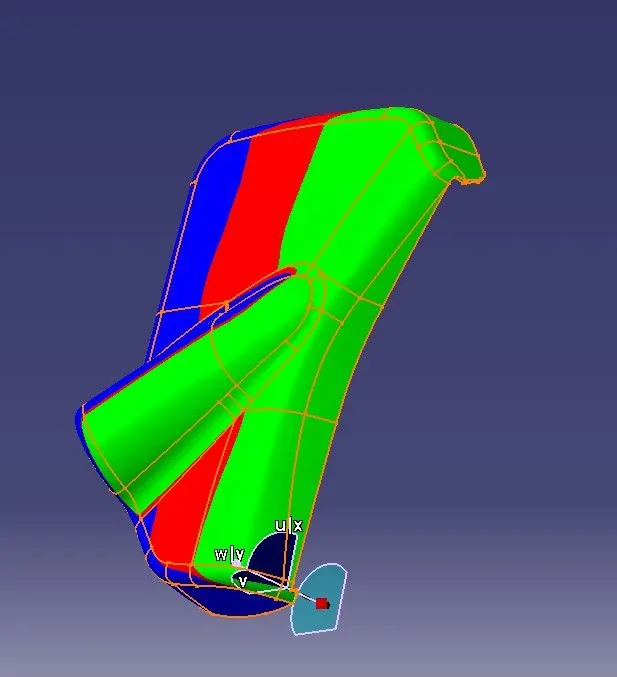

IN THIS GIVEN BOTTLE HOLDER WE HAVE TO CHECK THE WHETHER GIVEN  MASTER SECTION IS OK OR NOT AND CREATE THE TOOLING AXIS FOR THE BOTTLE HOLDER FROM THAT OFFSET 2.5 MM IN THIS BOTTLE HOLDER THERE WE HAD THE SMALL BATCH BEFORE OFFSETING CLEAR THE BATCH TO AFTER MAKE THE OFFSET SO IT WILL COME GOOD AND CREATE THE C SURFACE TO TRIM IT OFF WITH B SURFACE TO CREATE THE CLOSED SURFACE AND APPLY DRAFT ANALYSIS TO FIND WHTHER IT IS OK OR NOT OR NEED TO CLEAR SOME AREA  ACHIEVE THE GOOD PRODUCT OF THE CLOSED SURFACE.

HEAT STAKES

WE HAVE TO CREATE THE HEAT STAKES FROM THE GIVEN MASTER SECTION AND DRAFT ANGLE  AND CHECK  WITH DRAFT ANALYSIS AND PROVIDE THE NECESSARY DIEMENSION FOR THE HEAT STAKES AND MAKE OFFSET FOR HEAT STAKES IS 50 MM GAP REQUIRED TO CREATE THE ANOTHER HEAT STAKES  THIS HAS TO BE DONE WITH ALL  THE REQUIRED AREA FINALL CHECK WITH DRAFT ANALYSIS FOR THE HEAT STAKE.

LOCATOR

GIVEN MASTER SECTION TO CREATE THE FOUR WAY LOCATOR APPLY THE DRAFT ANGLE AND RADIUS FOR THE SHARP EDGES CLEAR SHARP CORNERS AND APPLY THE ALL THE AREAS FOR THE LOCATOR AND PROVIDE THE DIEMENSIONS WITH THE GIVEN MASTER SECTION.THERE TWO TYPES LOCATOR AVAILABLE ONE IS TWO WAY LOCATOR ANOTHER ONE IS FOUR WAY LOCATOR.

DOG HOUSE

THE DOG HOUSE DETAILS  IS NOT GIVEN IN THE MASTER WE HAVE TO ASSUME TO CREATE THE DOG HOUSE HERE WE HAVE  TO MAINTAIN ALL THE NECESSARY DIEMENSIONS TO CREATE THE DOG HOUSE AND  CREATE THE CORING AREA APPLY DRAFT ANGLE  FOR THE OUTSIDE PROVIDE THE 1.5 DEGREE ANGLE AND  INSIDE PROVIDE THE 0.5 DEGREE AND APPLY THE APPROPRIATE RADIUS DIEMENSIONS TO APPLY  GET THE DOG HOUSE.
