Week 11 - Final project

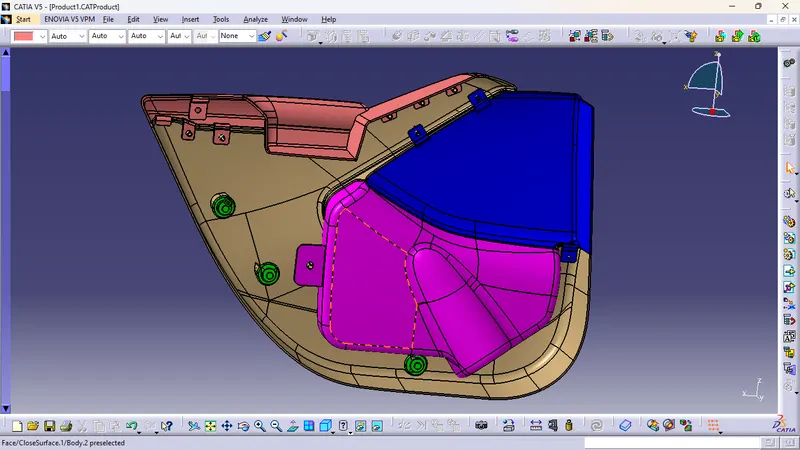

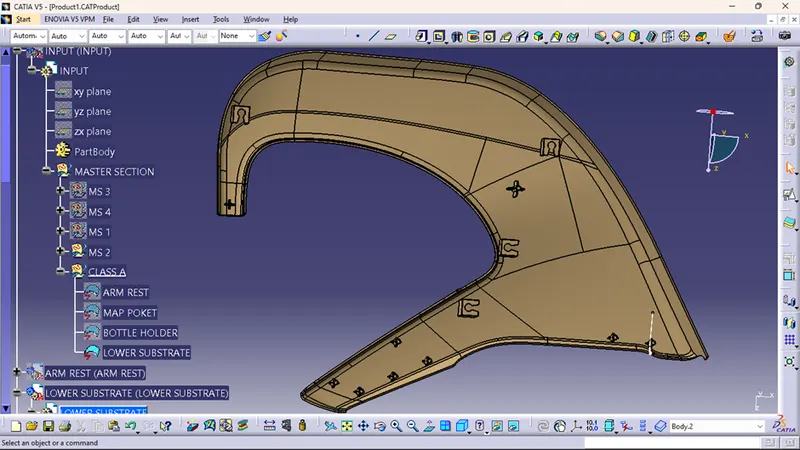

CLASS A INPUT

ARM REST

CLASS A ARM RSET ONE SURFACE PATCHS WAS NOT GOOD TO WORK FIRST I WORKED ON CLASS A SURFACE. AND NAMED AS A CLASS A MODIFIED

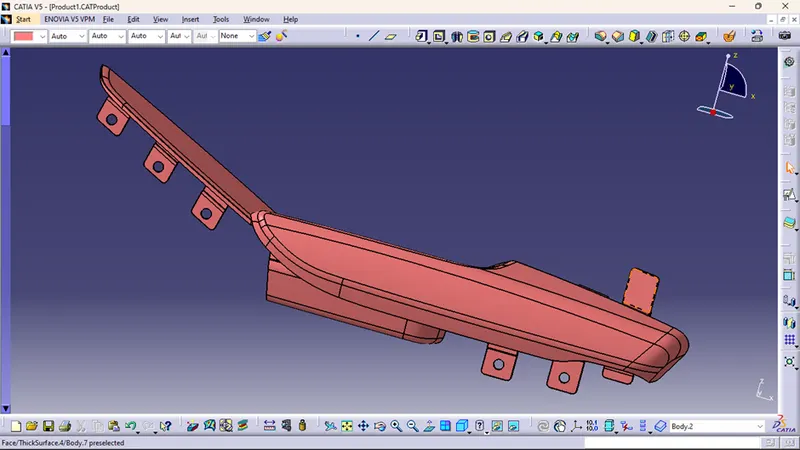

FORMATION OF CLASS B OF ARM REST

1. OFFSET CLASS A MODIFIED 2.5MM AND BROKE SOME PATCHS
2. WORKED ON SURAFCE PATCHS.

FORMATION OF CLASS C

1. TOOK A BOUNDARY OF CLASS A
2. IN SWEEP CAMMAND WITH REFERENCE SURFACE AND ANGLE IS 3 DEG.
3. THEN I JOIND THE CLASS A AND SWEEP.
4. THEN TRIMED CLASS B WITH SWEEP JOIN.
5. THEN USING A THIK SURFACE COMMAND MADE IT SOLID BODY.

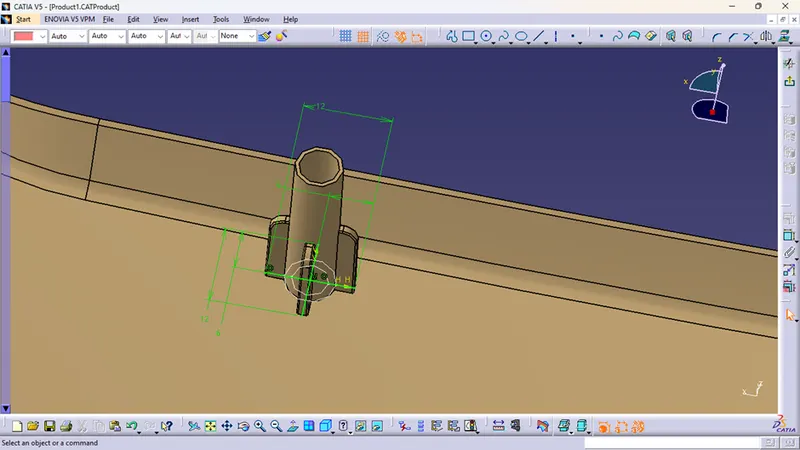

FORMATION OF HEAT STICK

1. FIRST TOOK A POINT USING A BETWEEN POIN COMMAND USING MASTER SECTION.
2. THEN ADD A PLANE OF ZX.
3. SKETCH A 2 CIRCLE OF R 3.5 AND R 2.5 .
4. THEN PAD IT.
5. DRAFT THE PAD OF .5 MM
6. THEN TOOK A LINE USING A EXTRACT PALCE A POINT ON THE LINE
7. THEN TRANSLETE THE HEAT STIK USING A POINT TO POINT COMMAND.

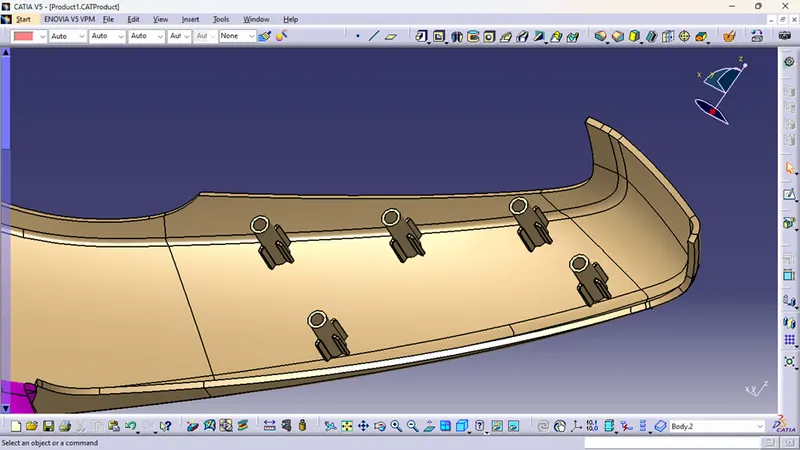

FORMATION OF HEAT STICK ATTACHMENT

1. USING A SAME ZX PLANE AND POINT.
2. SKETCH A LINE IN THE MIDDLE OF THE HEAT STICK
3. PAD IT WITH THIK OPTION.
4. DRAFT IT .5MM.
5. AND THEN REMOVE THE INNER PART OF THE CIRCLE USING REMOVE BOOLEAN COMMAND.

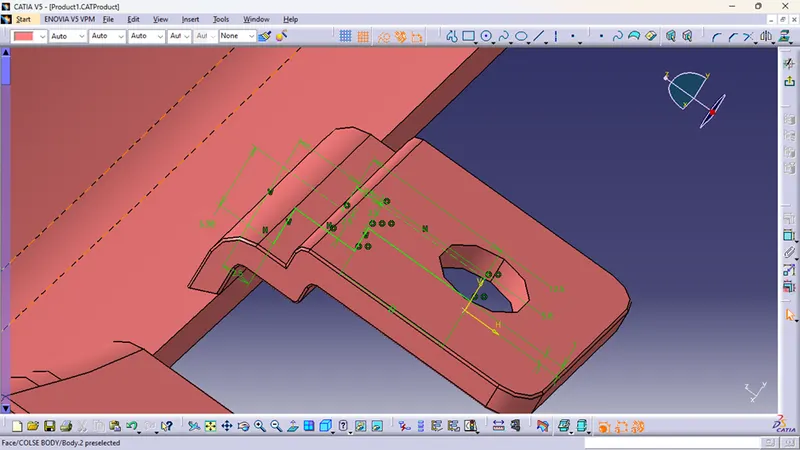

FORMATION OF FLANGE

1. TOOK A YZ PLANE AND POINT
2. USING A YZ PALNE AND POINT POSITIONED SKETCH
3. EXTRACTED THE FLANGE LINE
4. THEN EXTRUDED
5. AND THEN TOOK ANOTHER LINE EXTRUDE FOR THE DESIRED WIDTH
6. THEN OFFSET THE EXTRUDED .
7. TRIM THE UNWANTED SURFACE
8. THEN USING A THIK SURAFCE COMMAND MADE IT SOLID SURFACE
9. THEN UNION TRIM WITH ARM REST SOLID BODY.

FORMATION OF LOWER SUBSTRATE

1. LOWER SUBSTRATE OF CLASS A SURFACE WAS GOOD NO NEEDED TO MODIFY.
2. TRIMED THE EXTRA SURFACE WHICH IS NOT NEEDED .
3. OFFSET IT 2.5MM.
4. TOOK A BOUNDRY ON CLASS A THEN SWEEP WITH THE REFERENCE SURFACE.
5. THEN JOIN THE CLASS A AND SWEEP.
6. THEN TRIMED WITH CLASS B
7. THEN USING A THICK COMMAND MADE IT A COLSE BODY.

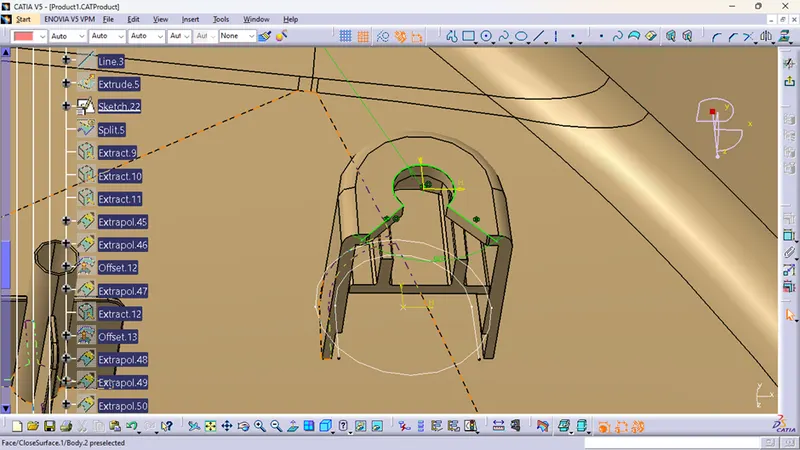

FORMATION OF DOG HOUSE

1. TOOK A POINT ON THE SURFACE , ISOLATE THE POINT THEN CORDINATE THE POINT
2. TOOK A PLANE ZX PLANE AND THE POSITIONED SKETCH .
3. DIMENTION OF THE HEAT STICK IS WIDTH IS 12MM AND THE HIGHT IS TWICE OF THE WIDTH.

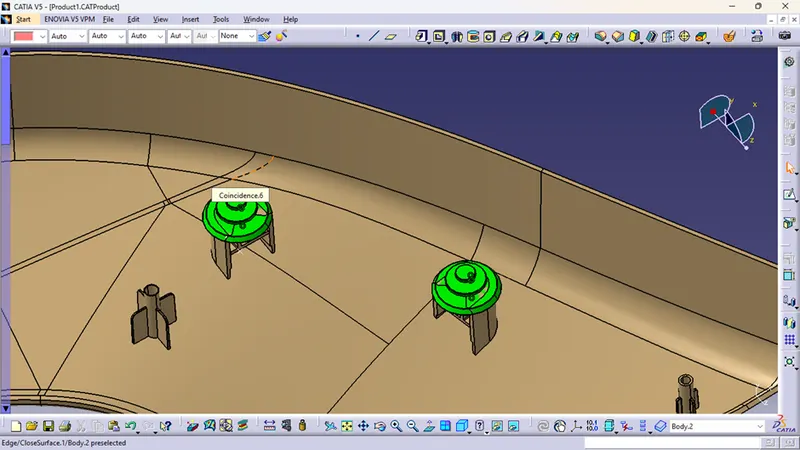

POSITION OF PUSH PIN

1. INSERT A PUSH PIN IN THE SAME PRODUCT.
2. USING A COINCIDENCE CONSTRAINT PLACE THE PUSH PIN OVER THE DOG HOUSE.
