Week 11 - Final project

Drive link: https://drive.google.com/file/d/1Urpw4UhYQ8vqx-fkUzR7Zs3RhyC_GlWz/view?usp=sharing

class A surface of the interior of an automotive door is given and aim of the project is to create the class B and class C surface with respect to tooling axis

The given plastic parts are

• arm rest
• lower substrate
• bottle holder

First tooling axis is created for all the components, class B and class C surfaces are created, trimmed and converted into solid using Closed Surface command then dog house and heat stakes are provided

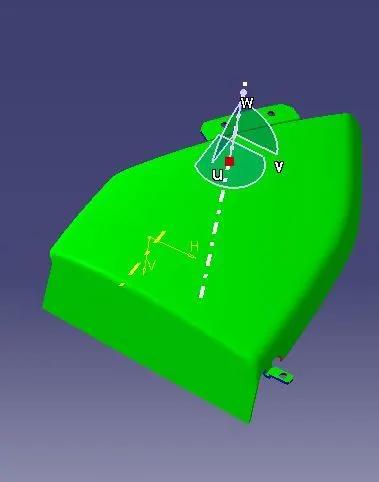

the arm rest is split into two parts and the parts are shown below

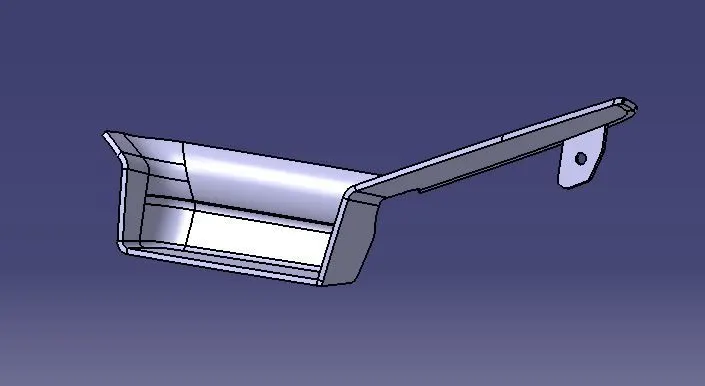

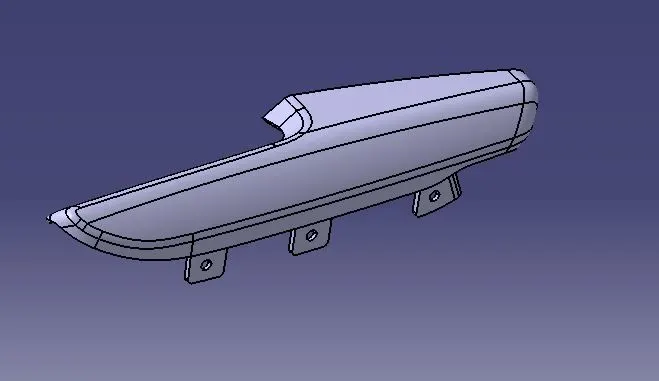

figure shows the arm rest

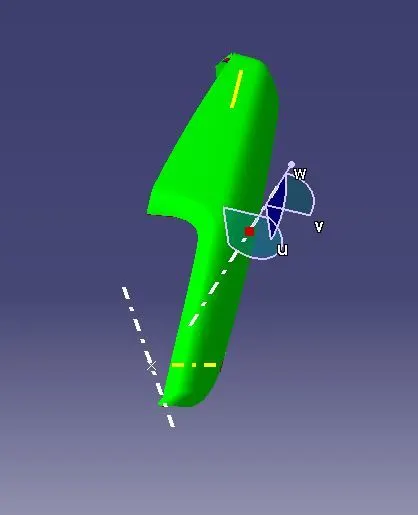

the bottle holder is split into two parts and the parts are shown below

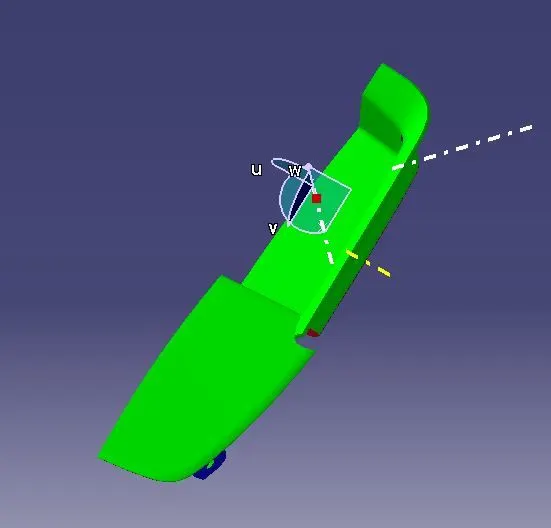

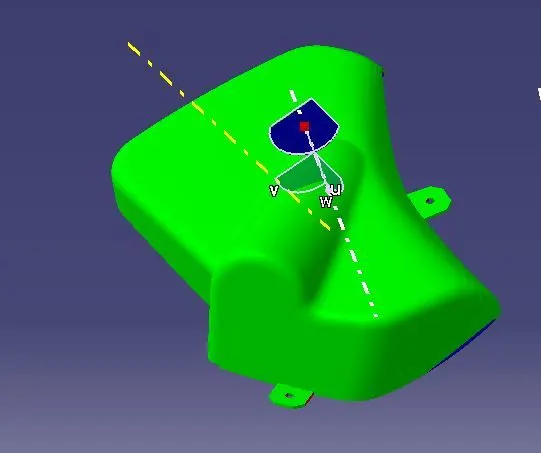

figure shows the bottle holder

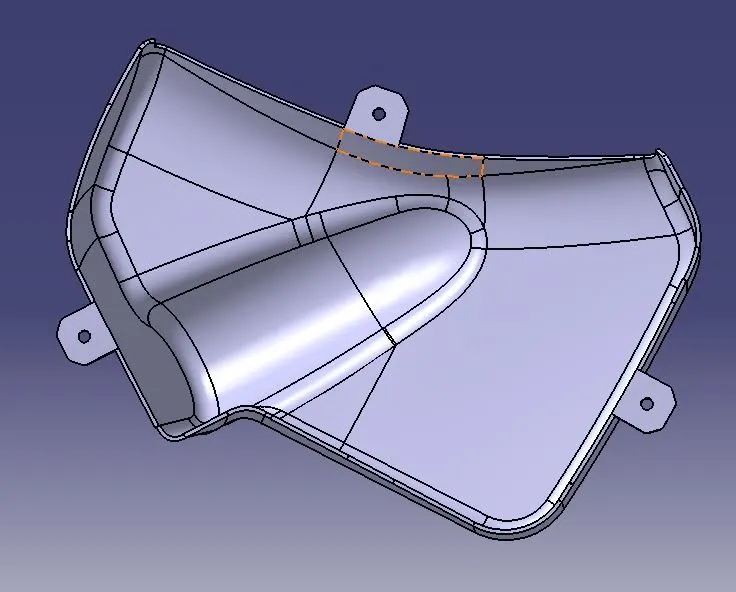

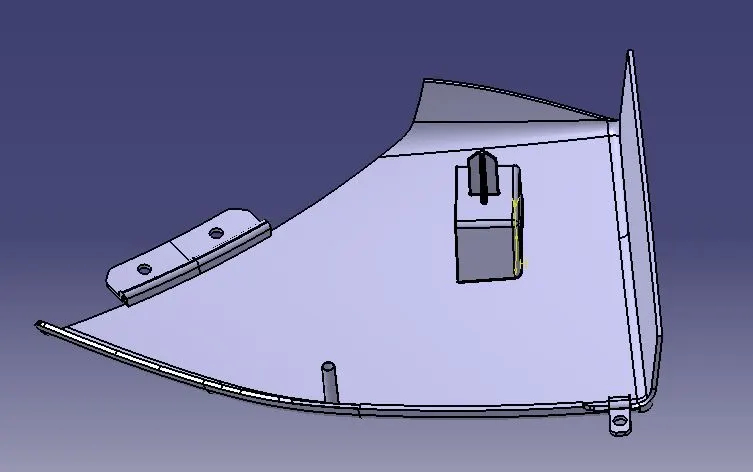

figure shows the lower substrate

The draft analysis of the above parts are shown below

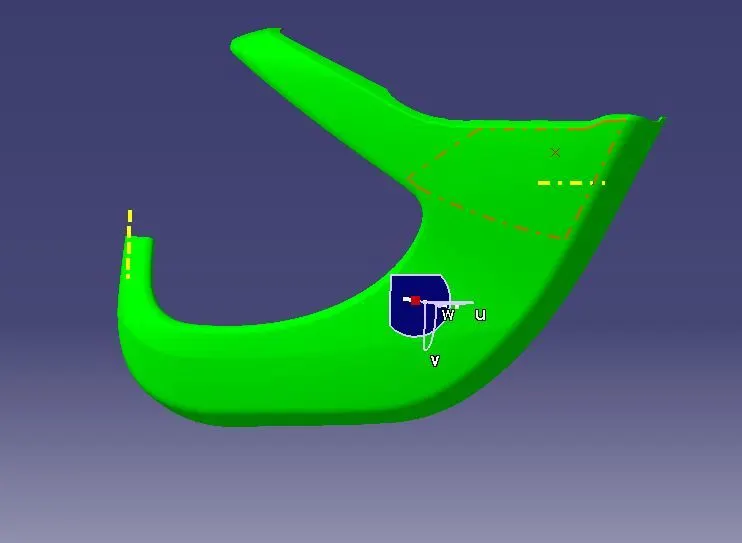

Figure shows the draft analysis of the arm rest, bottle holder and lower substrate

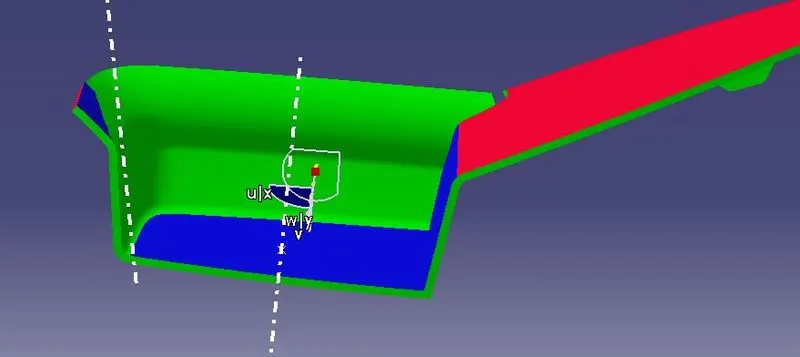

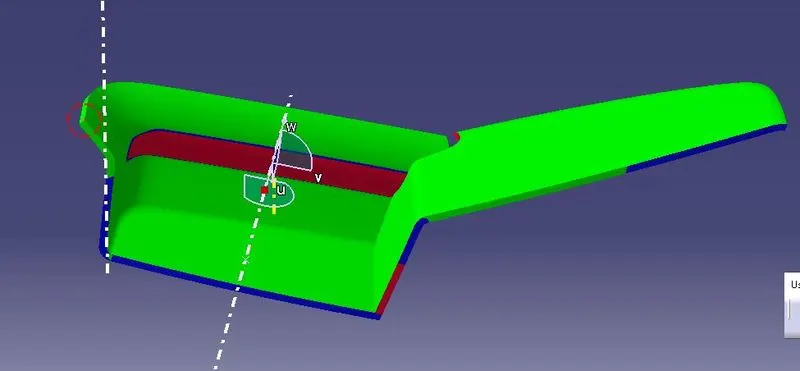

Figure shows the mold cannot flow in the red region therefore and additional tooling axis is needed and it is called side core axis

by providing side core axis the area is cleared

Similarly side core axis is provided to all the components wherever needed.

the heat stakes and dog house is created and is mated in their respective positions with the help of boolean operation

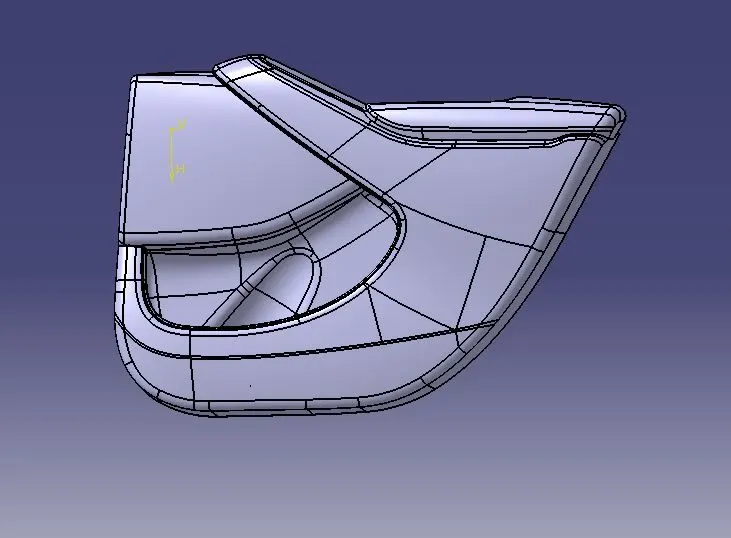

Figure shows the front side of arm rest, lower substrate and bottle holder

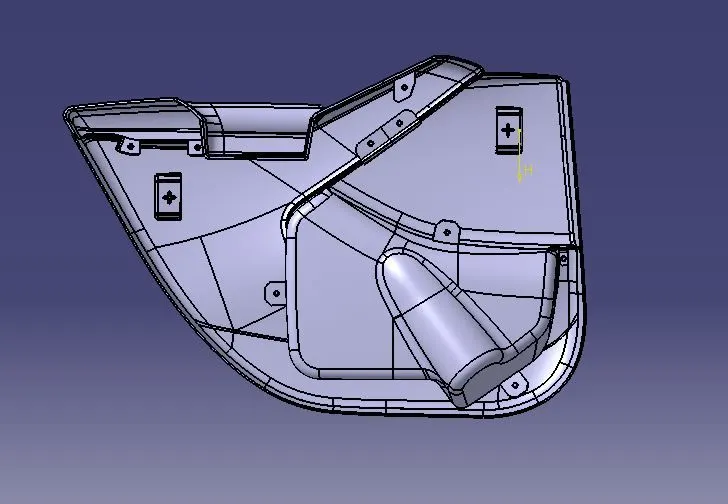

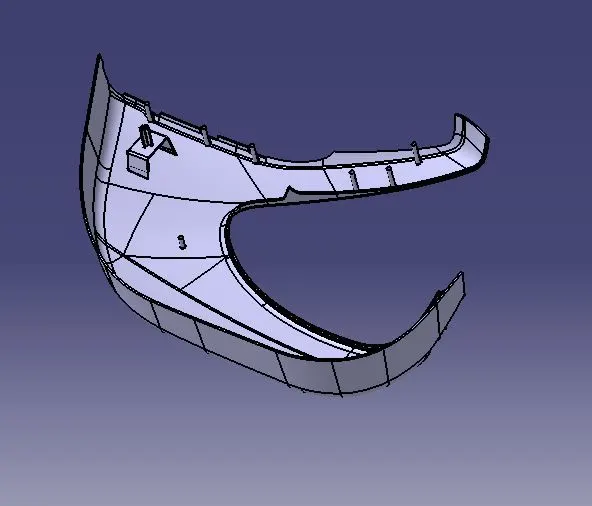

Figure shows the back side of arm rest, lower substrate and bottle holder
