Week 11 - Final project

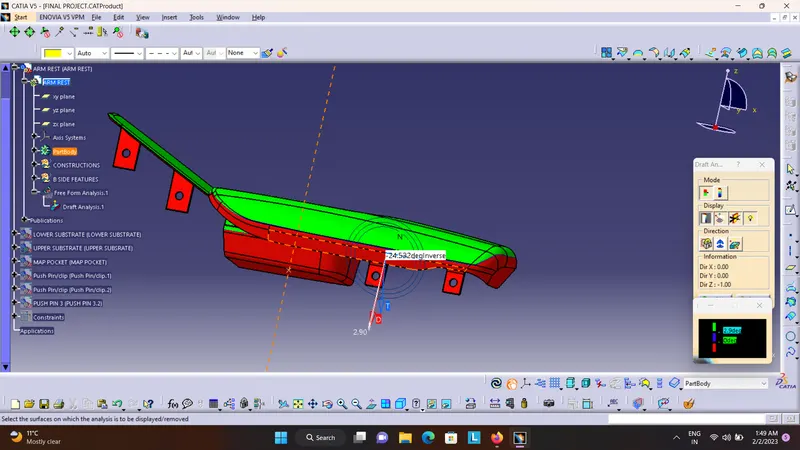

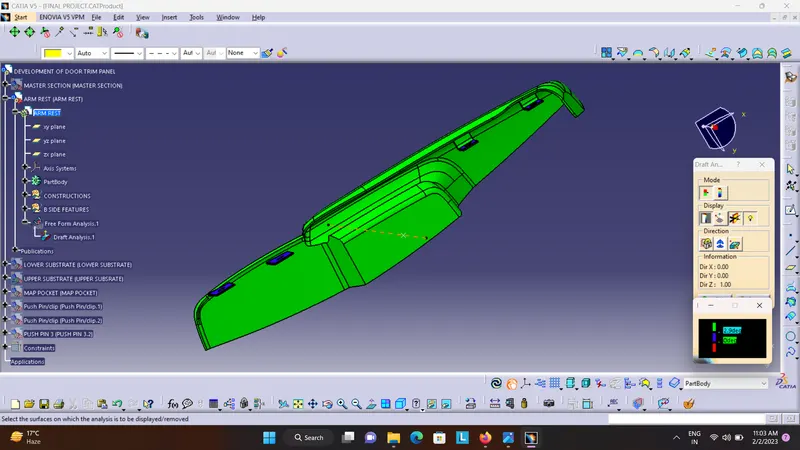

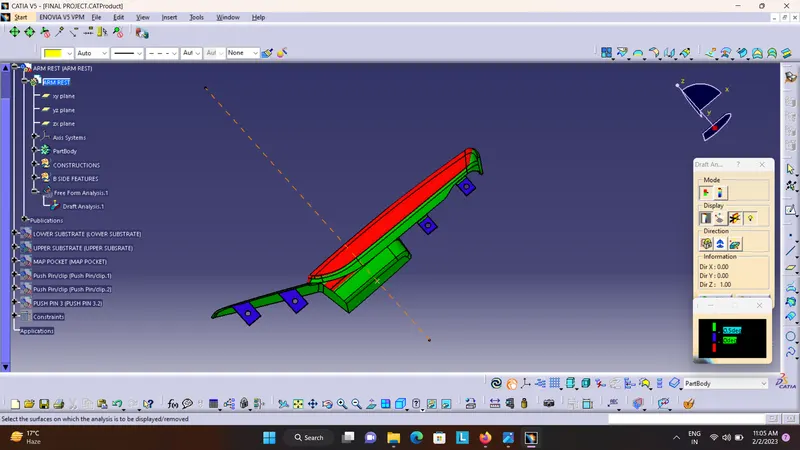

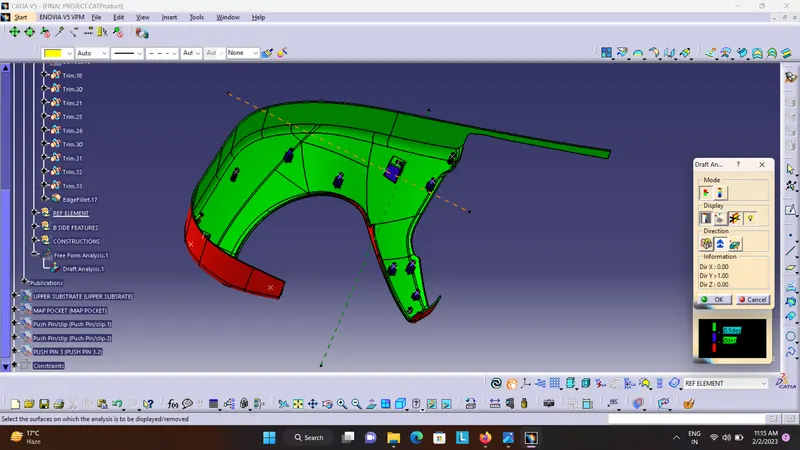

*REPORT ON DRAFT ANALYSIS OF THE ARM REST-

THE CLASS A SURFACE HAVE SOME AREA WITH NEGTIVE DRAFT ANGLE WITH MAX VALUE -24DEG

IN CLASS B HAVE SAME AREA WITH NEG DRAFT ANGLE

ALL CLASS C HAVE DRAFT ANGLE UPTO 2.9DEG

ALL B SIDE FEATURES HAVE DRAFT ANGLE UP TO 0.5DEG.

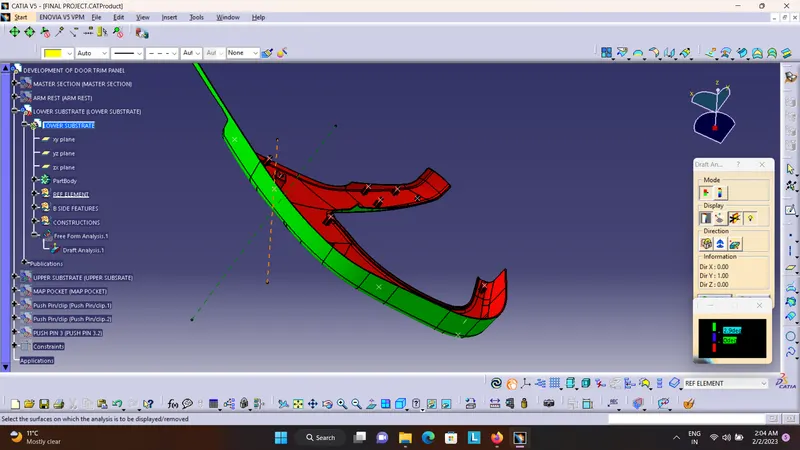

*REPORT OF DRAFT ANALYSIS ON LOWER SUBSTRATE:-

ALL CLASS A B AND C SURFACE HAVE DRAFT ANGLE UPTO 2.9DEG.

ALL B SIDE FEATURE HAVE DRAFT ANGLE UPTO 0.5DEG.

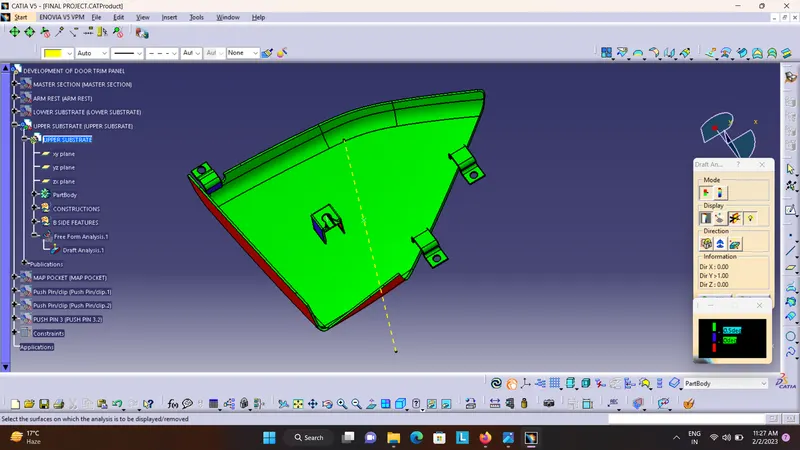

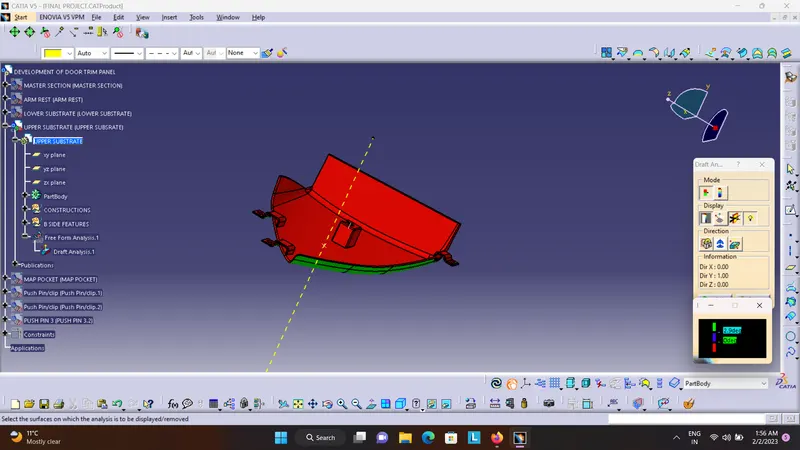

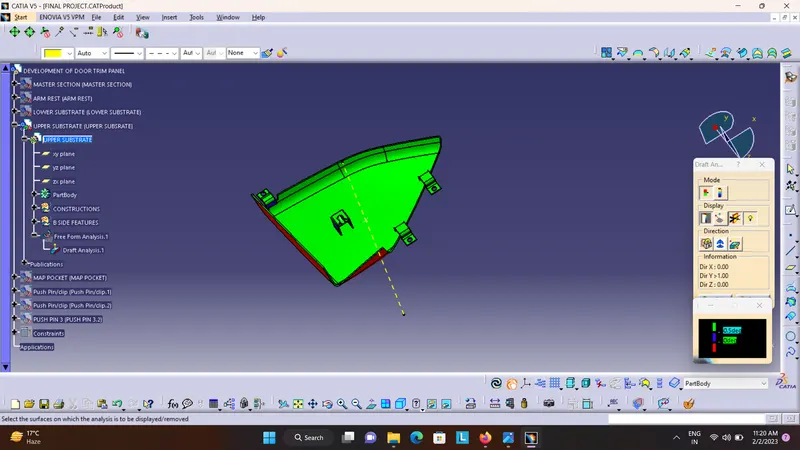

*REPORT OF DRAFT ANALYSIS ON UPPER SUBSTRATE:-

ALL CLASS A B AND C HAVE DRAFT ANGLE UPTO 2.9DEG.

ALL B SIDE FEATURE HAVE DRAFT ANGLE UPTO 0.5DEG.

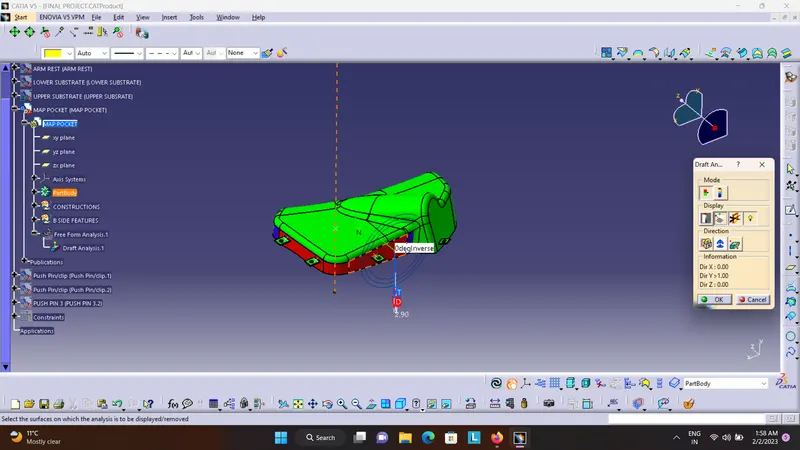

*REPORT ON DRAFT ANALYSIS OF THE MAP POCKET:-

IN SHOWING AREA CLASS A SURFACE HAVE 0DEG DRAFT ANGLE.

CLASS B HAVE SAME AREA WITH 0DEG ANGLE.

ALL CLASS C SURFACE HAVE DRAFT ANGLE UPTO 3DEG.

ALL B SIDE FEATURE HAVE DRAFT ANGLE UPTO 0.5DEG.
