Week 11 - Final project

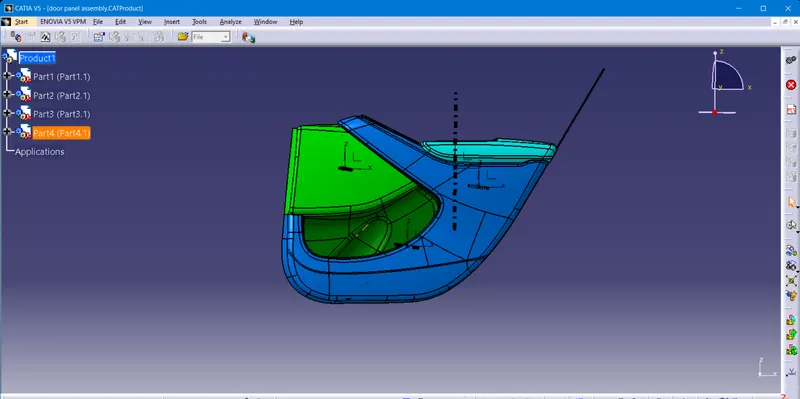

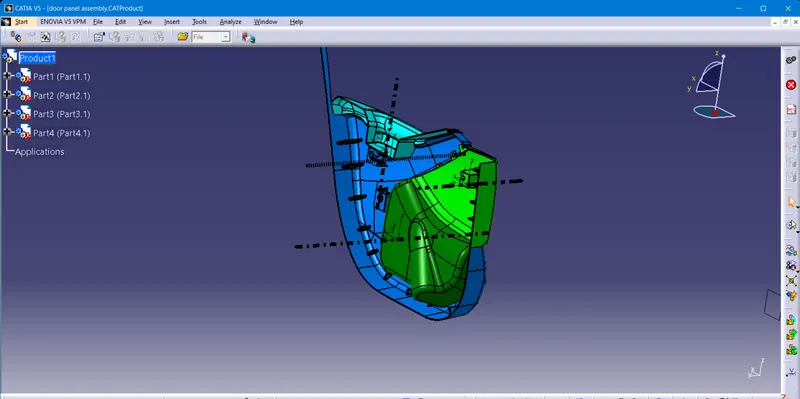

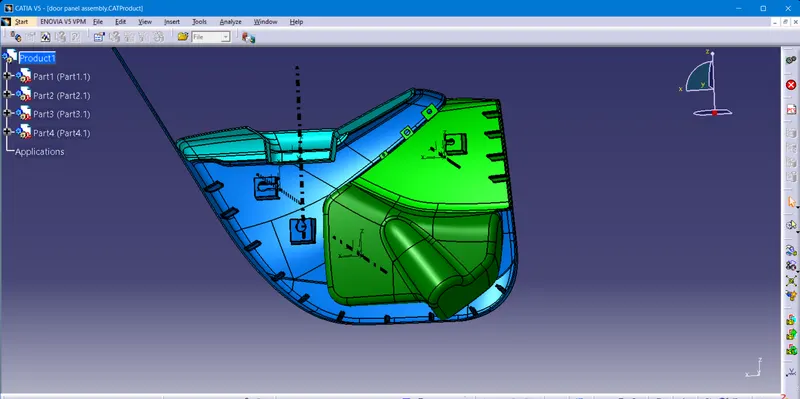

Ive developed the CAD model of Door panel using Catia V5.

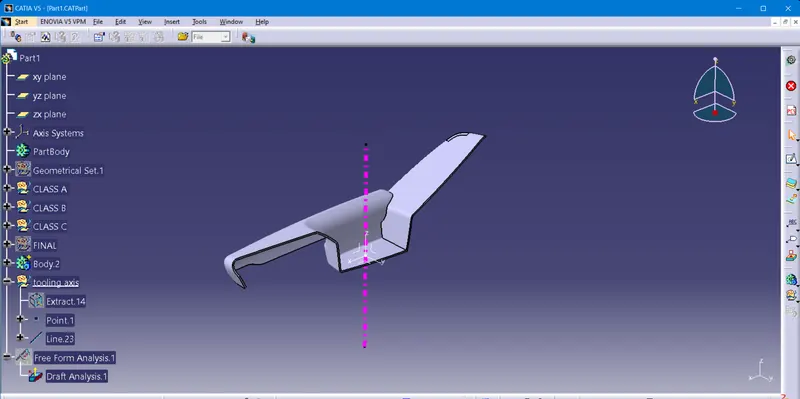

this is the part body of Door arm rest

ive created the tooling axis and also done with draft anylasis

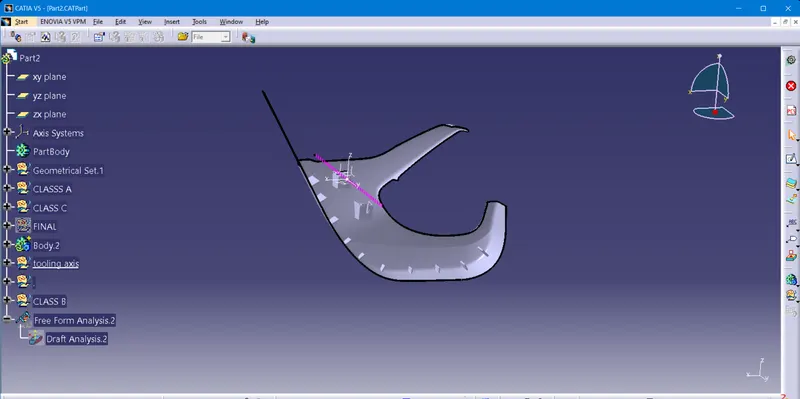

This is the part body of Lower door trim

ive created the tooling axis and done with draft analysis

And also ive created B side features (ribs and dog house)

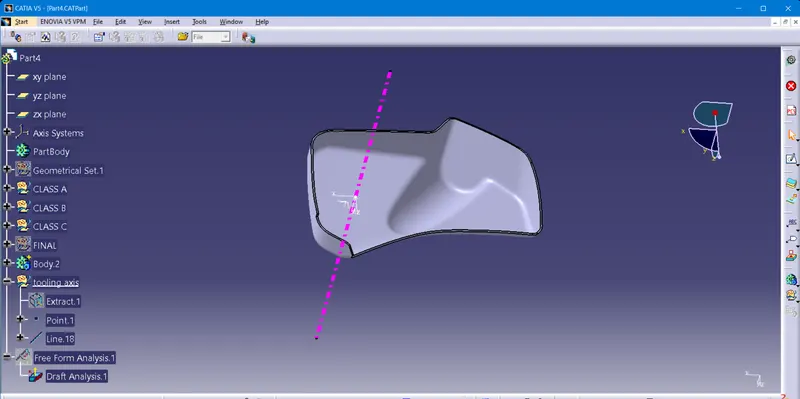

This is the part body of Map pocket

Ive created the tooling axis and draft analysis.

And also created B side features (flanges, ribs and dog house).

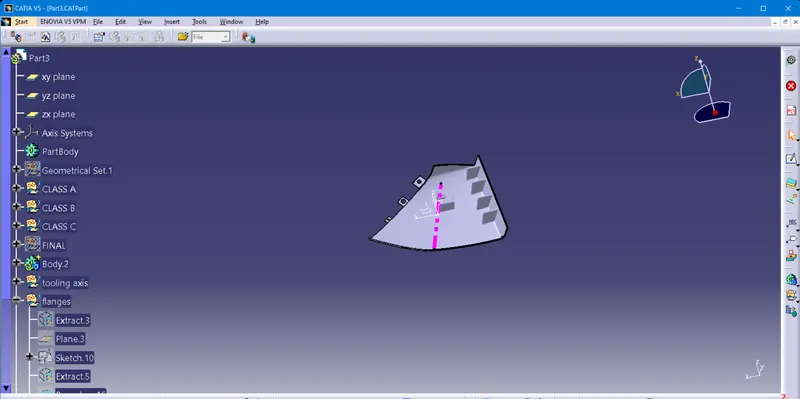

This is the part body of bottle holder.

Ive created the tooling axis and draft analysis.
