Week 11 - Final project
- Open mechanical design and start working in assembly workbench
- open the existing file in downloads and name the given substracts idividually
- create the B class and C class by thickness of 2.5mm
- make this as a closed body for all the parts
- by using and a detailed study of master sections know the values and aplly the desihn of doug house , flanges
- after creating the flanges, heat stakes and doghouse make this as a closed body too
- download the push pin and generate the axis such that the push pin settles onto the doghouses

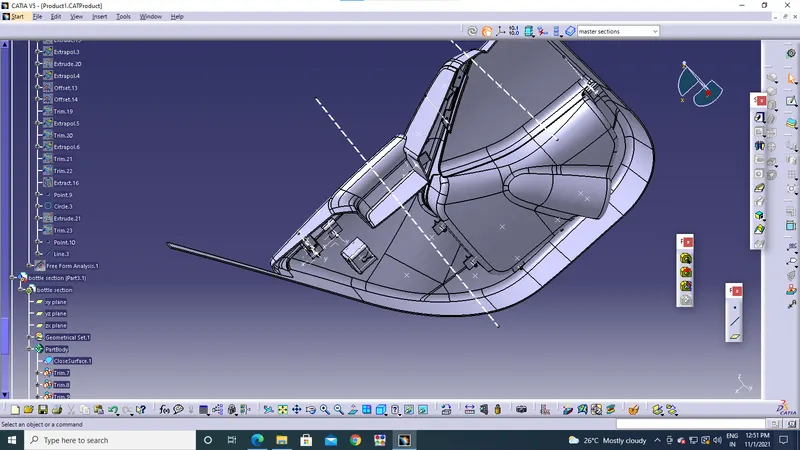

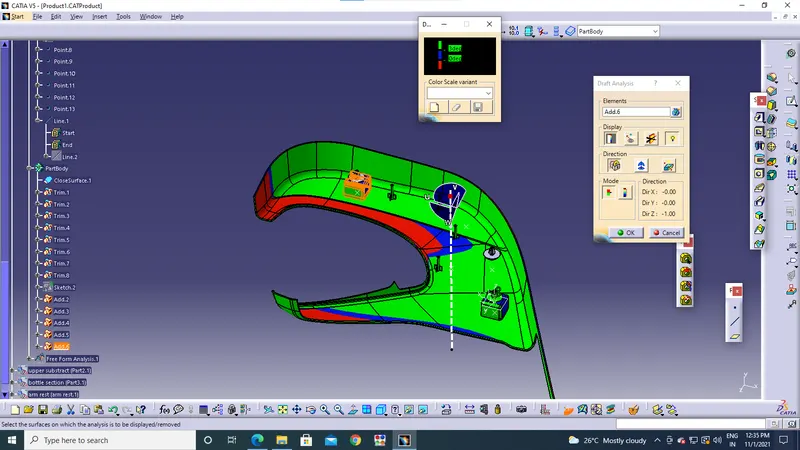

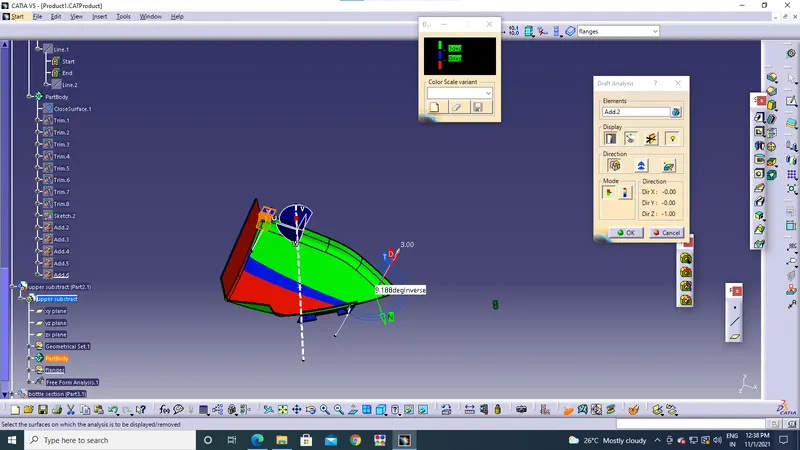

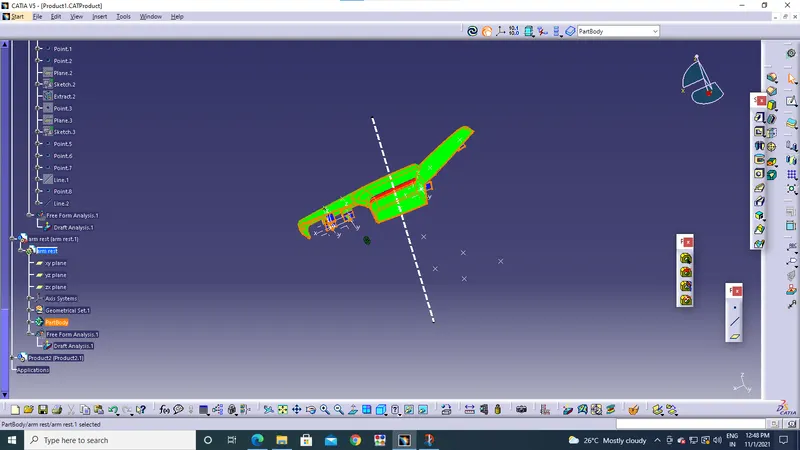

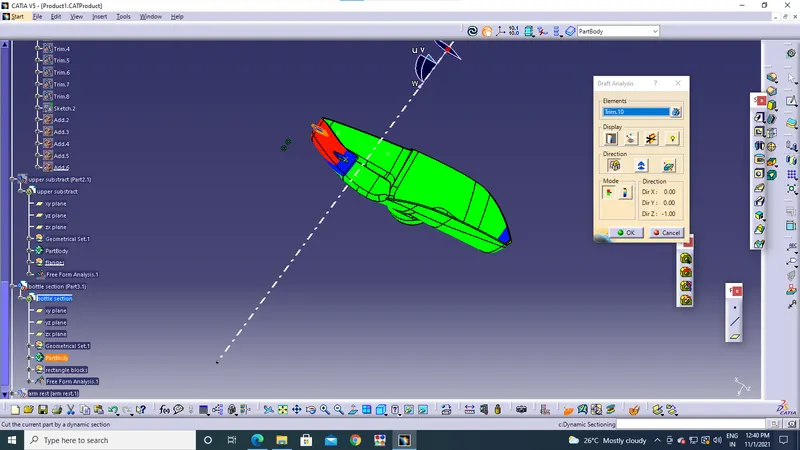

- the final body of the door is complete and do the draft analysis for the each component
