Week-11 Challenge: Braking
CONCLUSIONS:
- For a defined driving cycle, the energy required for braking is calculated.
- Why electric motor can’t develop braking torque at high speed similar to starting and how electric and mechanical brakes are coordinated were dicussed.

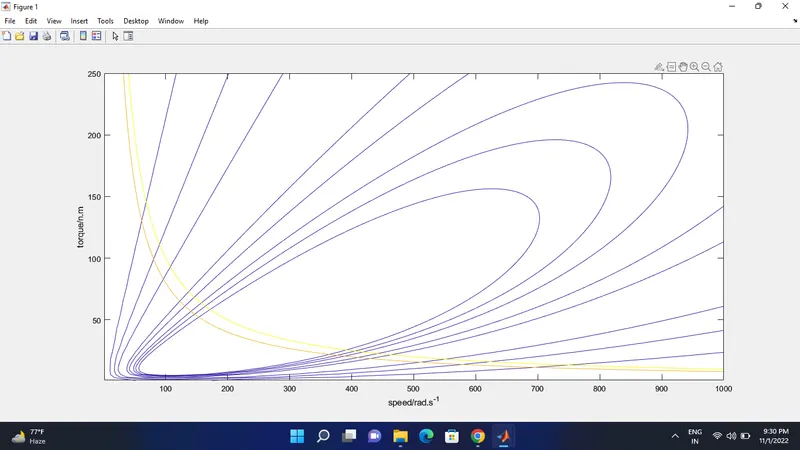

- A MATLAB program which plots contour of given motor speed, torque and efficiency values is coded.
QUESTION NO.2
- Why electric motor can’t develop braking torque at high speed similar to starting?
When the motor is at rest and it has to operate from standstill position to the reach the moderate speed the higher torque is required to bring the motor in operation. Whereas when the vehicle is already at high speed the capping or the limit is reached by the motor operation and thus any further higher torque could not be obtained while braking. The braking operation happens in the motion which is been distributed as per proportion in the BRAKE ENERGY and the REGENERATIVE BRAKING.
- How electric and mechanical brakes are coordinated?
In Mechanical braking which we usually see and experience in all vehicles the brake pedal in the vehicle cabin helps us to engage or disengage the brakes. Currently the braking technology have done wonders by inventing life saving braking technologies such as ABS, EBD, BA and mny others. All these technologies play vital role in stopping the vehicle and coming back to rest from a high speed. In all these vehicles when the driver applies the brakes the brake peds come closer to the disc connected with the driving disc. The brake pads usually help in efficient braking.
There are two generic methods by which the vehicle could be braked in the ELECTRIC BRAKES.
Series - The Regenerative Braking or the Mechanical Braking noth are applied one after another.
Parallel - The Regenerative Braking or the Mechnical Braking both are applied Parallely.
When the brake pedal is pressed the hydraulic fluid reaches the brake piston and created the braking pressure on the wheels and the same kinetic energy is been used by the Regenerative Braking for generating more power using the Bi-directional motor which operates as a generator while braking.
