Week 11 Challenge

SOLUTION 1.

1. Friction load determination

VERTICAL FORCE =125 KN

TAKE FRICTION COEFFICIENT =0.3

ASSUMPTION

ALONG THE PIPE -RESTRAINED IS THERE

TRANSVERSE-NO RESTRAINT

ONLY 10 PERCENT IS CONSIDERED FOR TRANSVERSE

LONGITUDINAL =125*0.3=37.5 KN

TRANSVERSE =125*0.1=12.5 KN

If TEFLON pad is used between shoe and pipe support.

TEFLON =N=0.1

IF TEFLON PAD IS USED =LONGITUDINAL=125*0.1KN =12.5 KN

SOLUTION 2.

2. Support Types

FIGURE 1.

SPRING SUPPORT

FIGURE 2.

RIGID SUPPORT

FIGURE 3.

STOP + REST SUPPORT

FIGURE 4.

STOP + REST + GUYED SUPPORT

FIGURE 5.

GUYED + REST SUPPORT

FIGURE 6.

GUYED SUPPORT

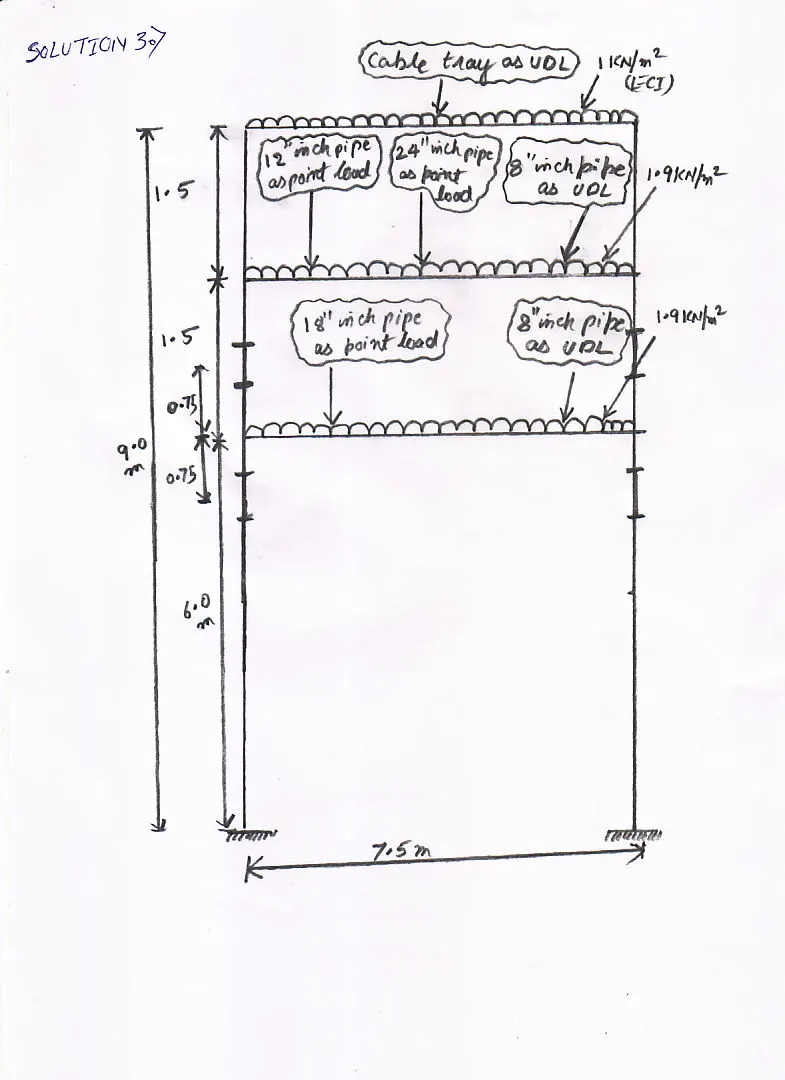

SOLUTION 3.

3. Design of a pipe rack

CABLE TRAY AS UNIFORMLY DISTRIBUTED LOAD

8 INCH PIPE AS UNIFORMLY DISTRIBUTED LOAD

12 INCH PIPE AS POINT LOAD

18 INCH PIPE AS POINT LOAD

24 INCH PIPE AS POINT LOAD
