Week 11 Car Crash simulation
Week 11 Car Crash simulation
AIM
To run the Explicit dynamics analysis for Mechanism Car Crash simulation on a total of 3 different cases with change in thickness condition terms and provide the inference on the output.
Objective
To find and compare the results of Equivalent stress, directional deformation, Equivalent elastic strain in all cases.
For this challenge, you will have to perform a parametric study using 3 different values of thickness for the car body. You need to apply the same conditions as mentioned in the video that corresponds to this challenge.Analyse the total deformation and Equivalent stresses acting on the model.
CASE 1 3MM thickness
CASE 2 4MM thickness
CASE 3 5MM thickness
In all cases thickness can be varry
CASE 1 3MM thickness

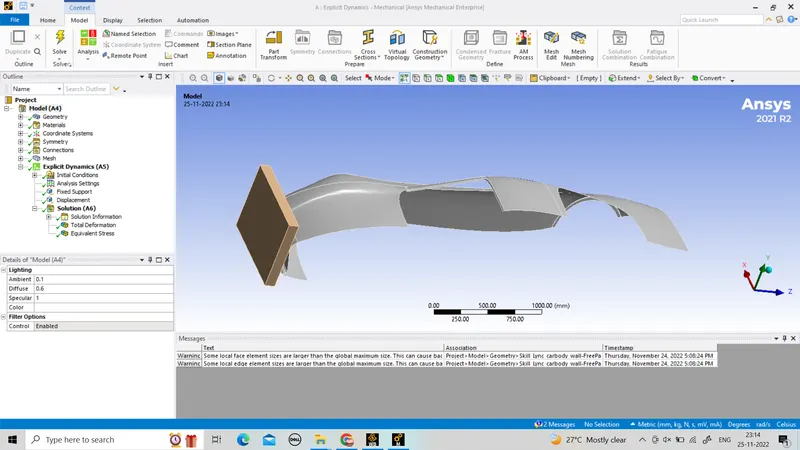

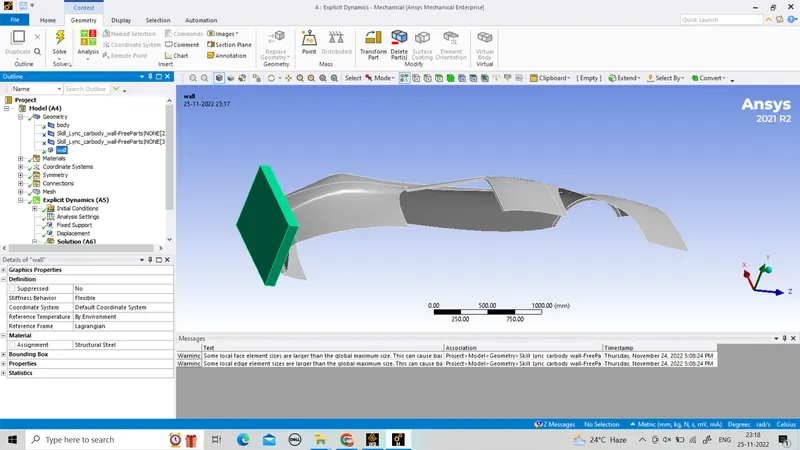

Import the model.
select the material.
structural steel for wall
And strainless steel NL for car body.

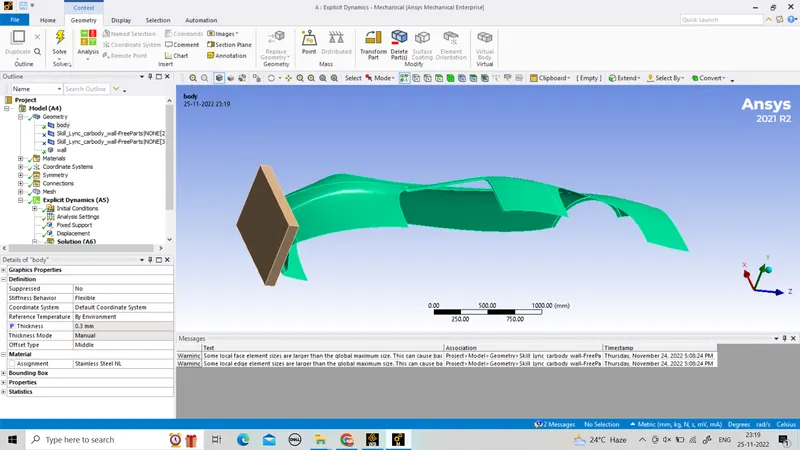

Also add thickness to it as 3MM

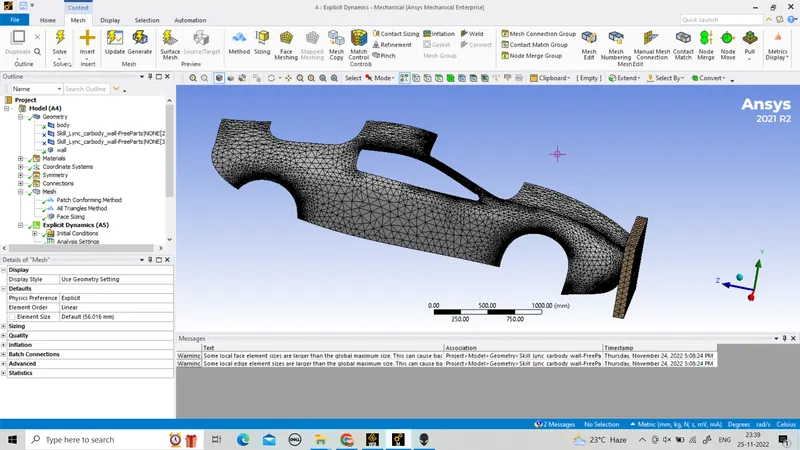

Mesh the component with mesh option.
Use method option for 2d is trianglar
Use method option for 3d is tetrahedral
And make face sizing of 200mm

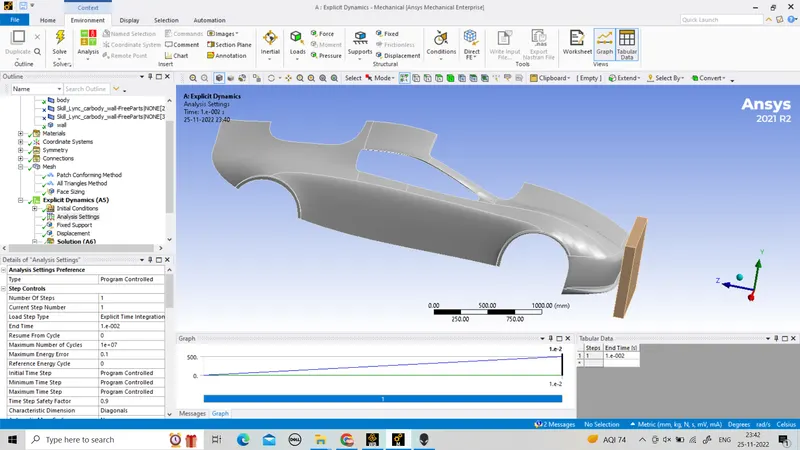

Analysis setting
End time step = 1e-2

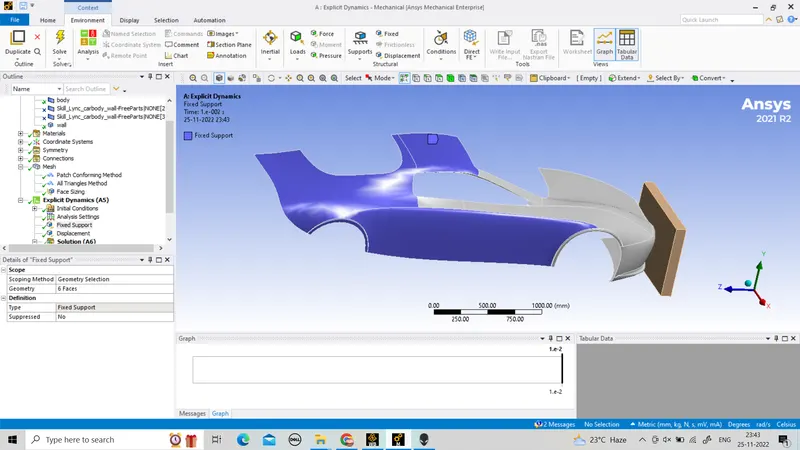

fixed support

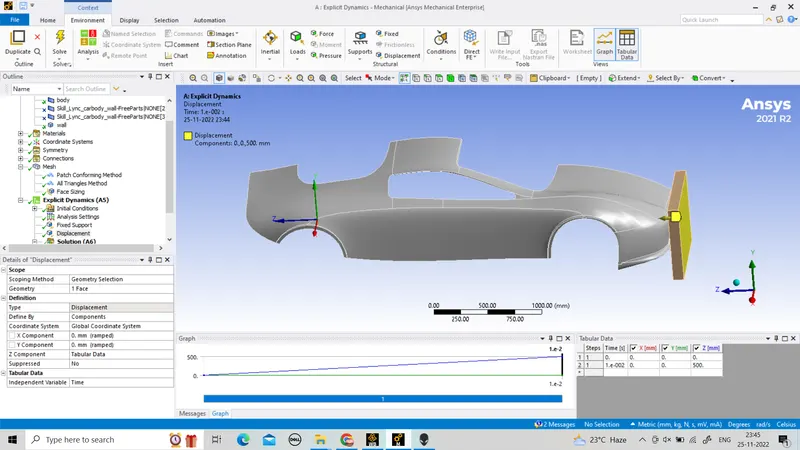

displacement
z = 500

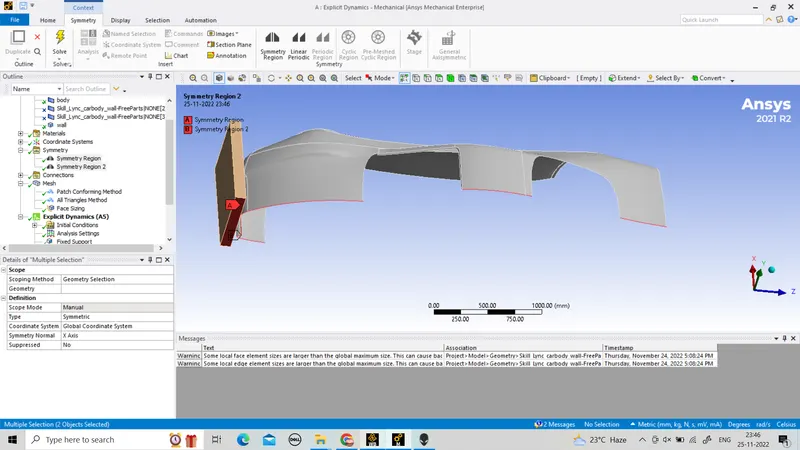

Use symmentry
CASE 1
Thickness of 4mm
Import the model.
select the material.
structural steel for wall
And strainless steel NL for car body.
Also add thickness to it as 4MM
Mesh the component with mesh option.
Use method option for 2d is trianglar
Use method option for 3d is tetrahedral
And make face sizing of 200mm
Analysis setting
End time step = 1e-2
fixed support
displacement
z = 500
Use symmentry
CASE 1
Thickness of 5mm
Import the model.
select the material.
structural steel for wall
And strainless steel NL for car body.
Also add thickness to it as 5MM
Mesh the component with mesh option.
Use method option for 2d is trianglar
Use method option for d is tetrahedral
And make face sizing of 200mm
Analysis setting
End time step = 1e-2
fixed support
displacement
z = 500
Use symmentry
RESULT
to perform a parametric study using 3 different values of thickness for the car body. You need to apply the same conditions as mentioned in the video that corresponds to this challenge.Analyse the total deformation and Equivalent stresses acting on the model.
CASE 1
Thickness of 3mm

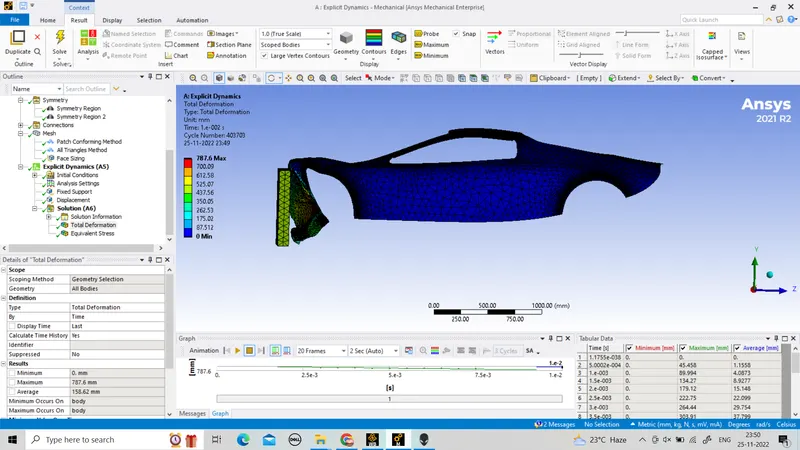

total deformaton

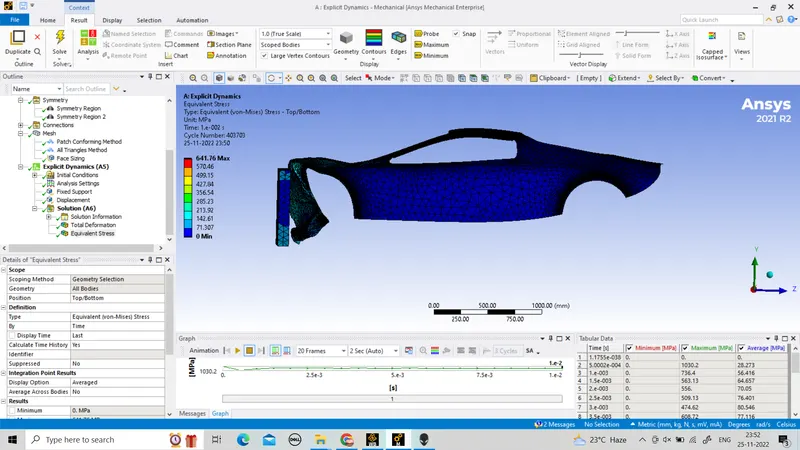

equivalent stress

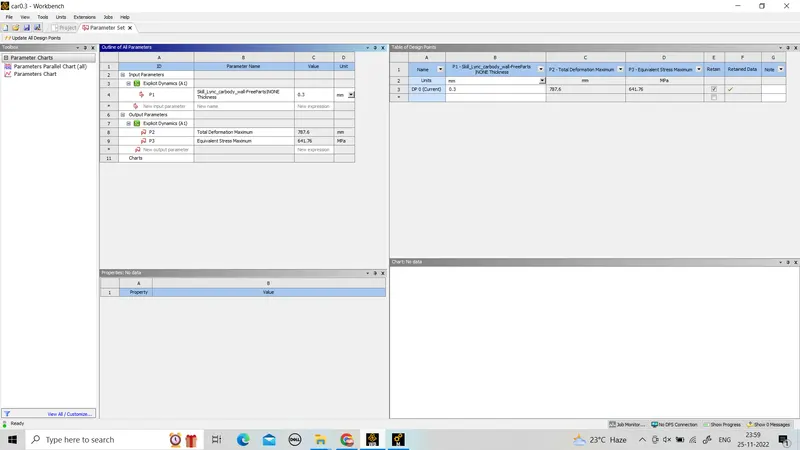

parameter
CASE 2
Thickness 4mm

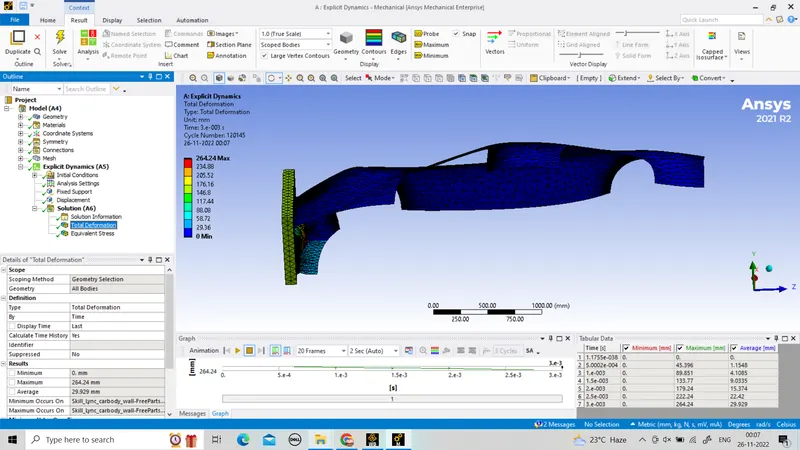

total deformation

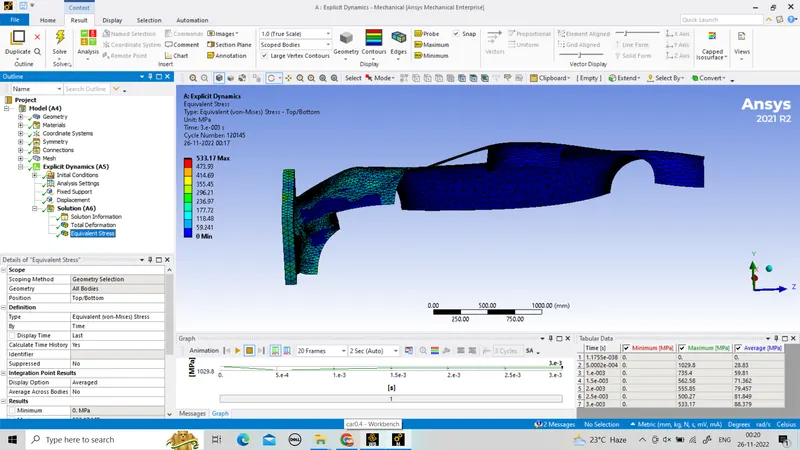

equivalent stress
parameter
CASE 3
Thickness 5mm

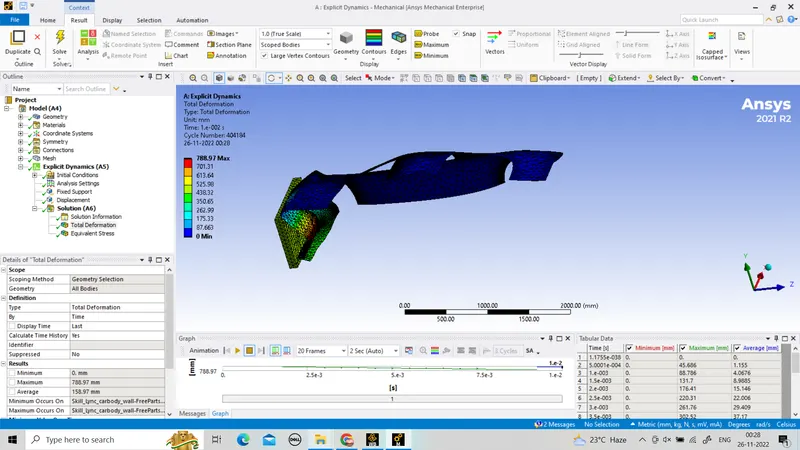

total deformation

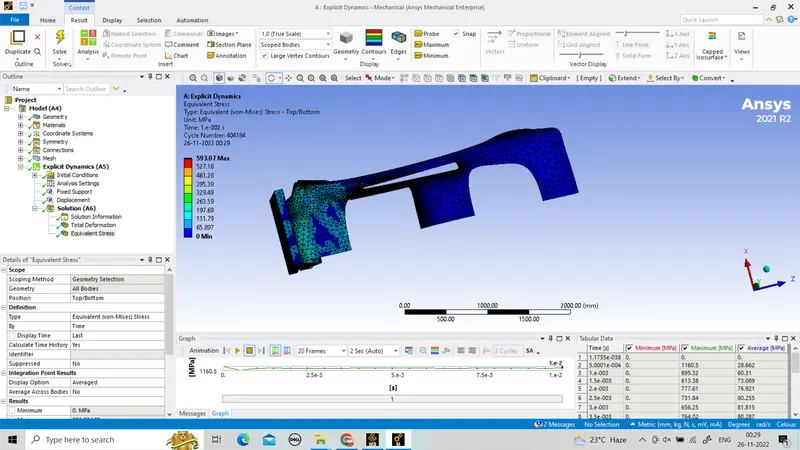

equivalent stress
parameter
3 different values of thickness for the car body. You need to apply the same conditions as mentioned in the video that corresponds to this challenge.
CASE TOTAL DEFORMATION EQUIVALENT STRESS
CASE 1
3 mm THICKNESS 787.6 MAX 641.76 MAX
CASE 2
4 mm THICKNESS 264.24 MAX 533.17 MAX
CASE 3
5 mm THICKNESS 788 MAX 593.07 MAX
