Week 11- Assembly Workbench

 AIM:

     To perform part modelling, Assembly , drafting of given drawing with report.

QUICK RETURN MECHANISM:

     A quick return mechanism is an apparatus to produce a reciprocating motion in which the time taken for travel in return stroke is less than in the forward stroke. It is driven by a circular motion source (typically a motor of some sort) and uses a system of links with three turning pairs and a sliding pair.

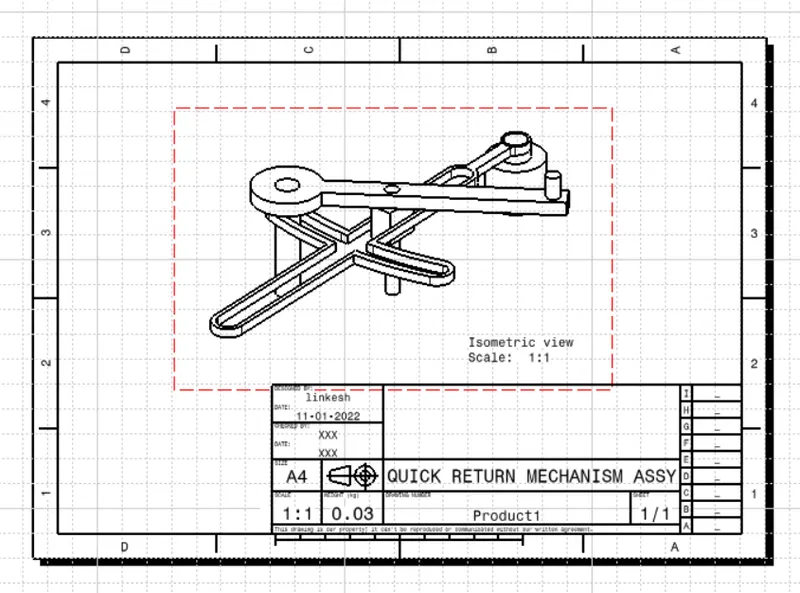

ASSEMBLY OF QUICK RETURN MECHANISM:

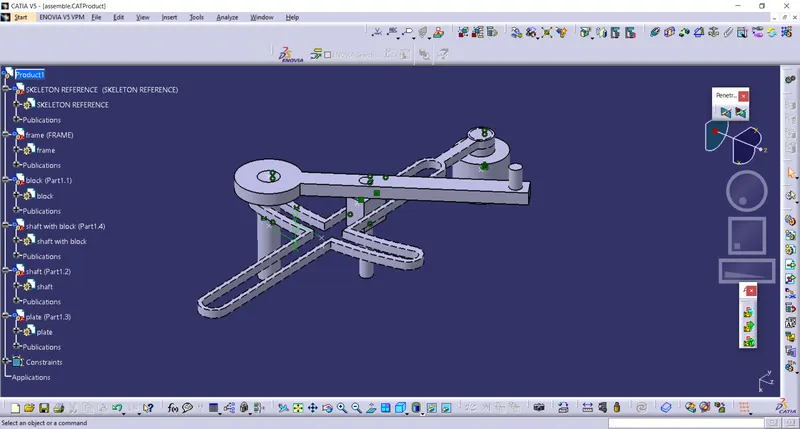

     In the below images assemble of quick return mechanism. In that we use a publication option to assemble a part more accurate. In the publication a individual point , plane, axis of each parts is placed under this. It could help us to rearrange if the assembly collapsed or any updation in the assembled parts.

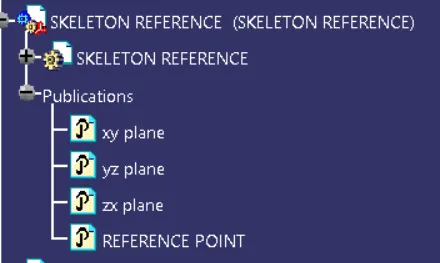

In the origin of the assemble file is named as a skeleton so with fixing this reference point we can constraint other part with this fixed reference point.

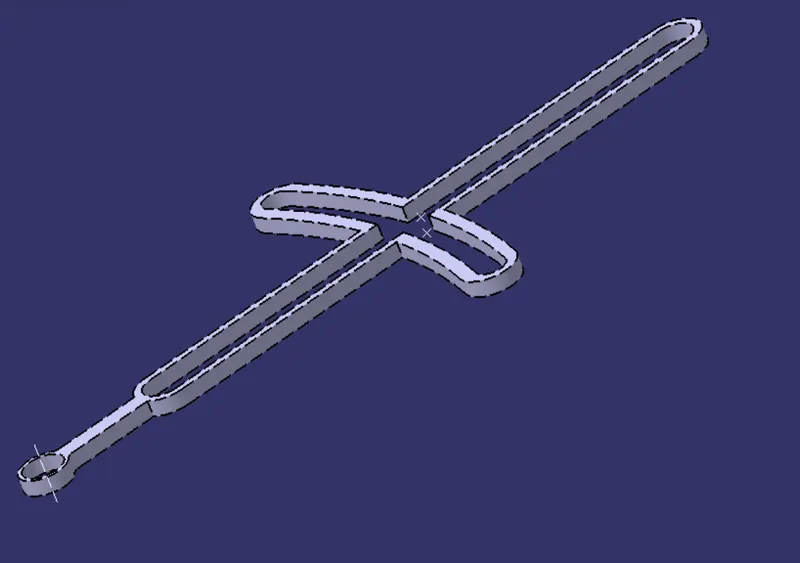

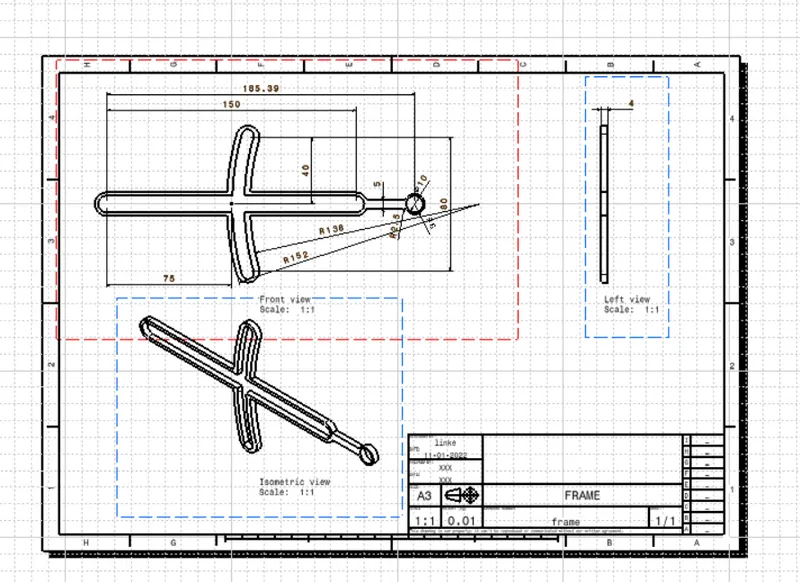

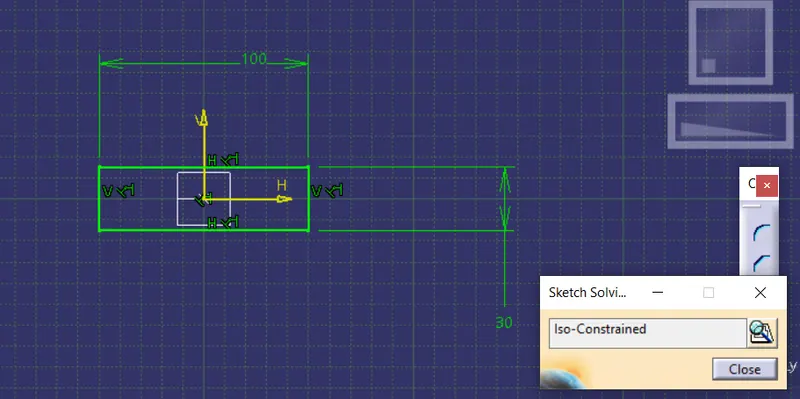

FRAME:

    In this frame, we will publish all the planes, points and axis.

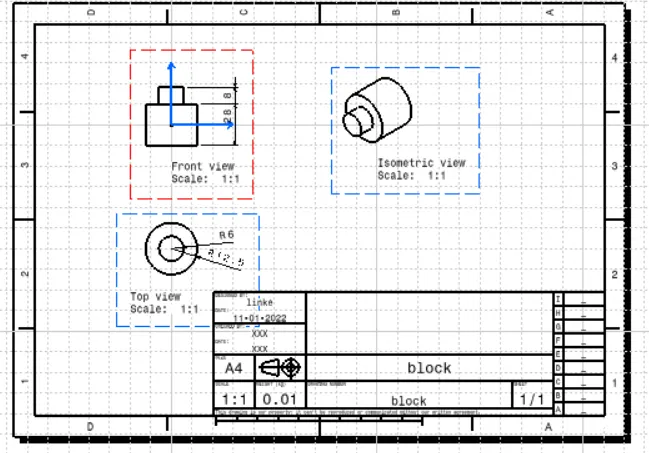

BLOCK:

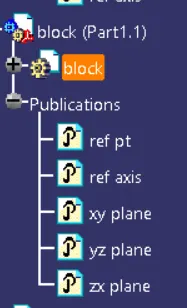

     In this block, we will publish all the planes, points and axis.

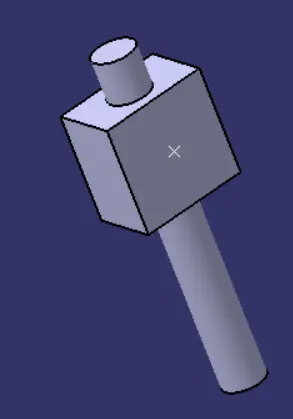

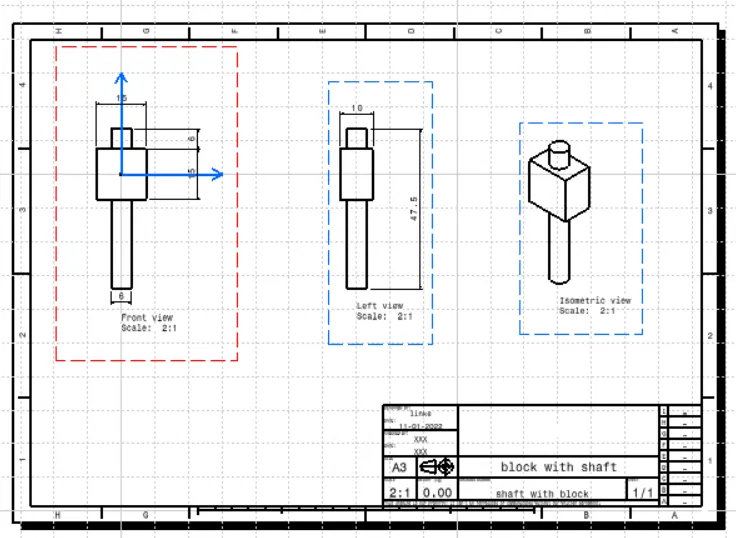

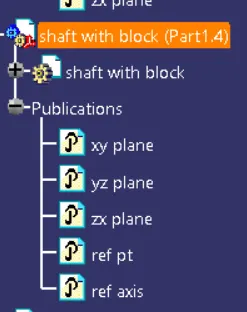

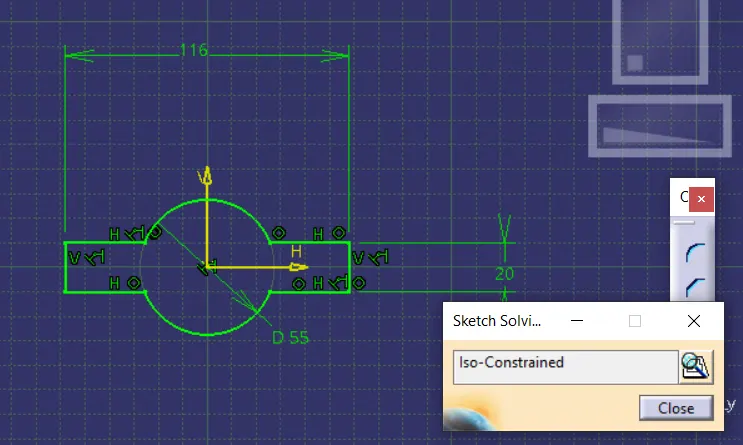

SHAFT WITH BLOCK:

     In this shaft with block, we will publish all the planes, points and axis.

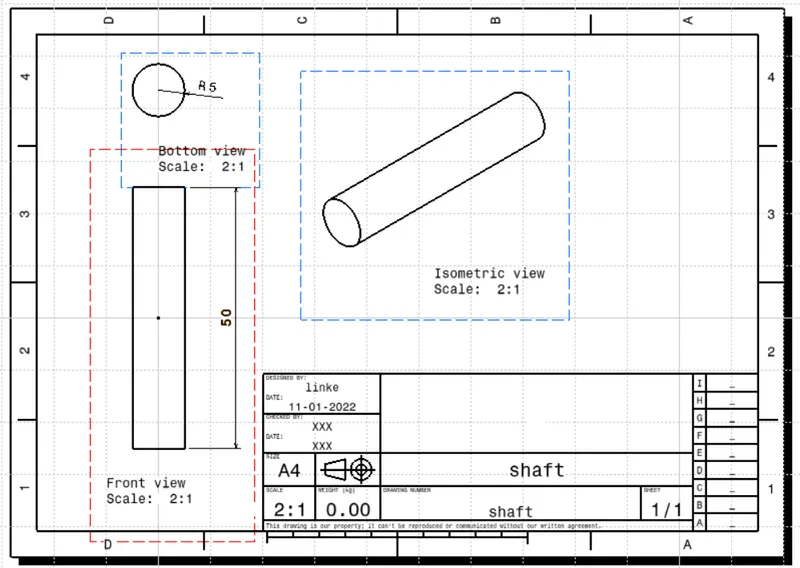

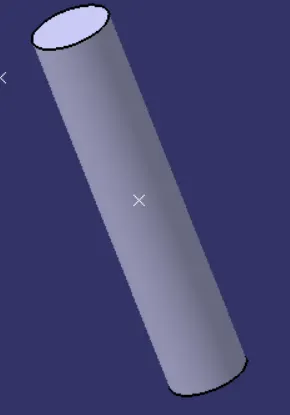

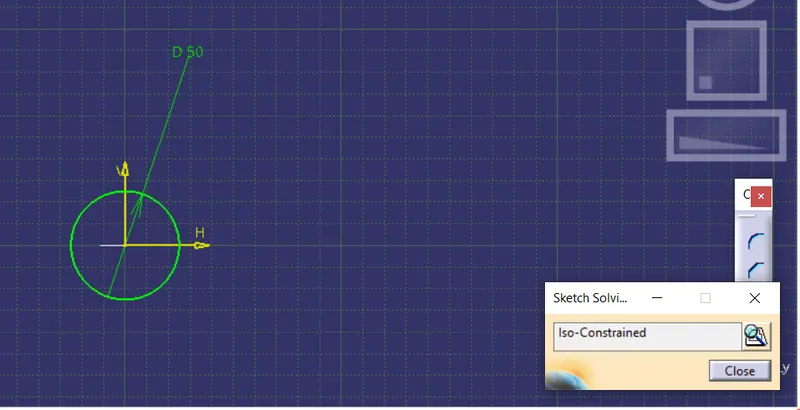

SHAFT:

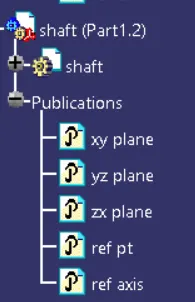

      In this shaft, we will publish all the planes, points and axis.

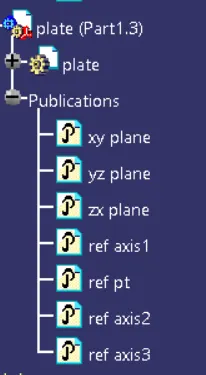

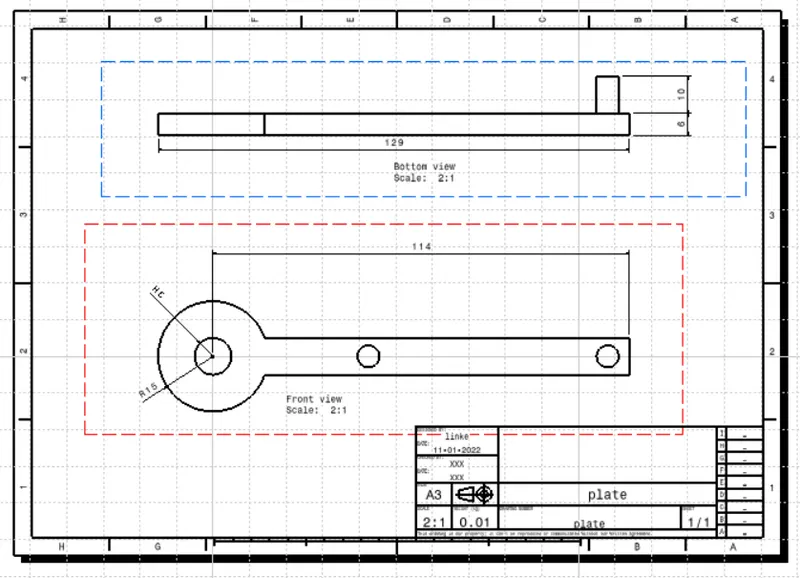

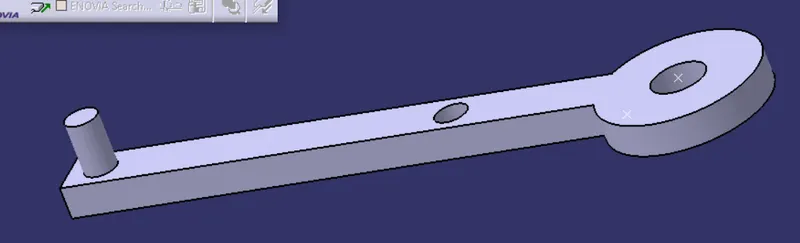

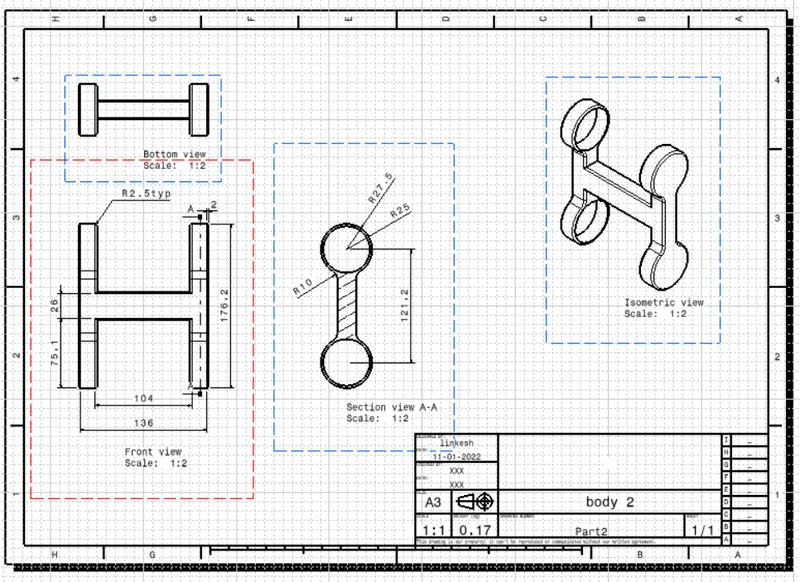

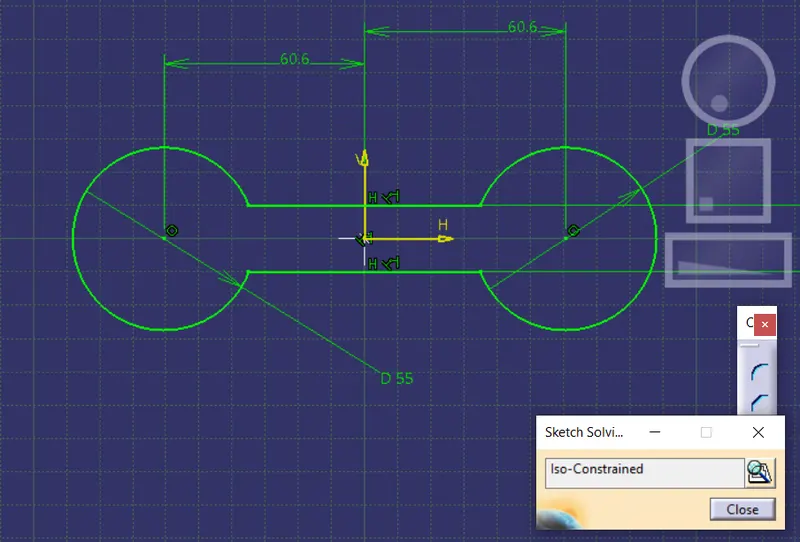

PLATE:

     In this Plate, we will publish all the planes, points and axis.

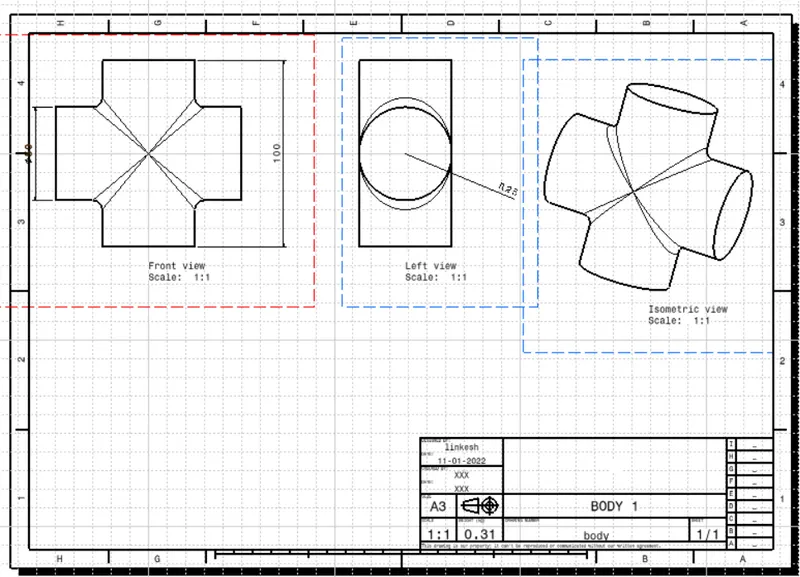

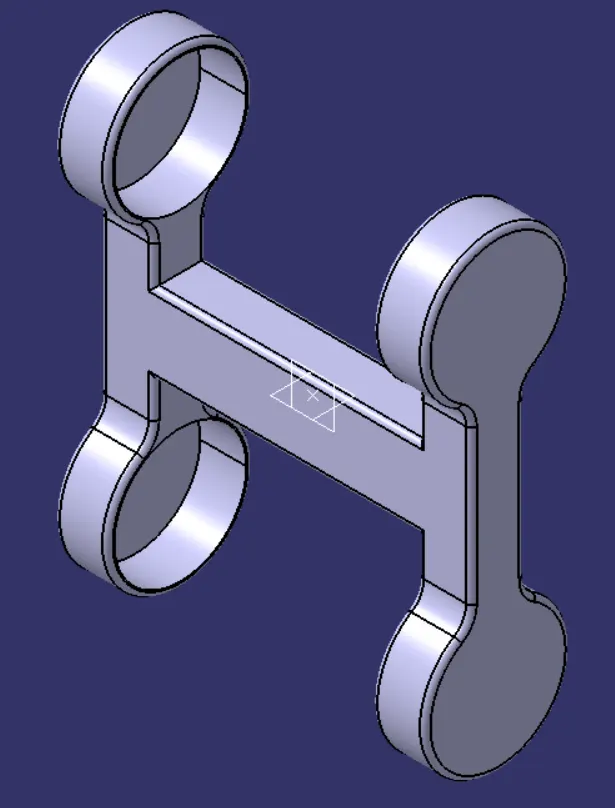

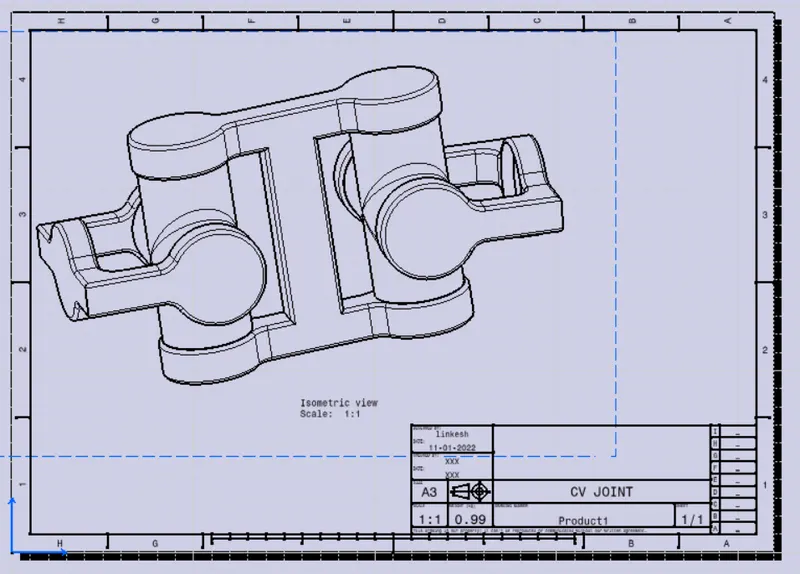

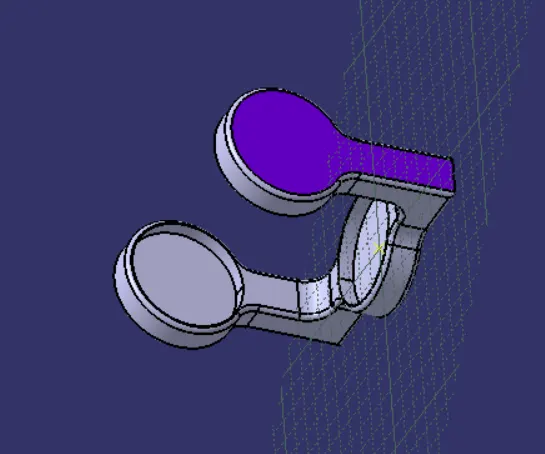

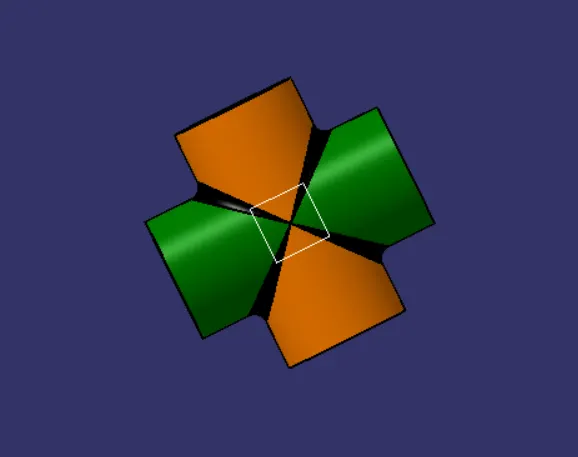

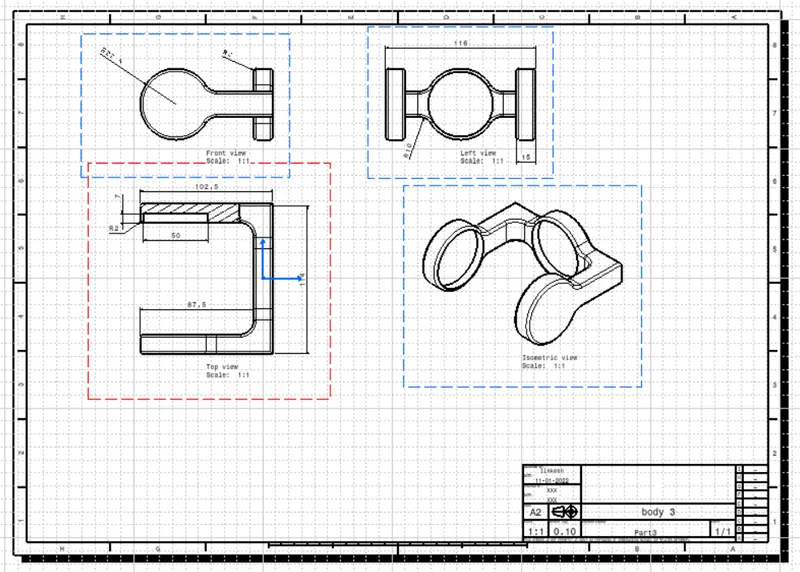

CV JOINTS:

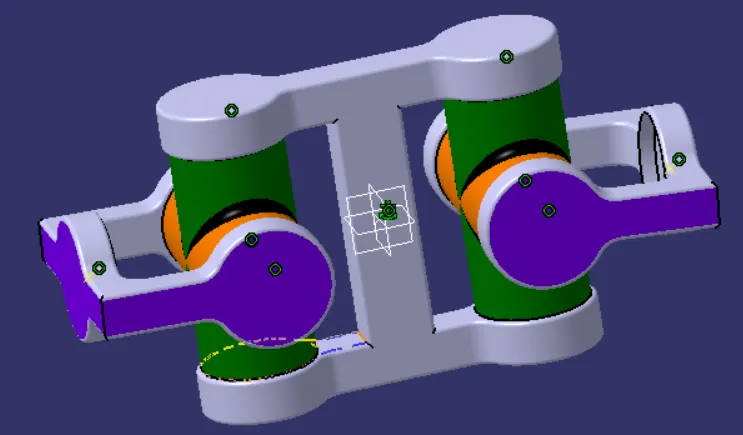

     In the assemble of this cv joints is also similiar to the quick return mechanism.

JOINT COUPLER:

     In this Joint coupler, we will publish all the planes, points and axis.



BASE:

 In this base, we will publish all the planes, points and axis.

BEARING CAP:

 In this bearing cap, we will publish all the planes, points and axis.

RESULT:

     In the challange of assemble workbench, we performed a part modelling, assembled and drafting of given product succesfully.
