Week 11- Assembly Workbench

AIM: In this challenge, I have to design part models and assemble the parts from the 2D sketches and dimensions provided to me.

SOLUTION:

QUICK RETURN MECHANISM:
• A quick return mechanism is an apparatus to produce a reciprocating motion in which the time taken for travel in return stroke is less than in
the forward stroke. It is driven by a circular motion source and uses a system of links with three turning pairs and a sliding pair. A quick return
mechanism is a subclass of a slider-crank linkage, with an offset crank.
• Quick return is a common feature of tools in which the action is performed in only one direction of the stroke, such as shapers and powered
saws because it allows less time to be spent on returning the tool to its initial position.

Now, I'll create each part separately which is shown in the above figure.

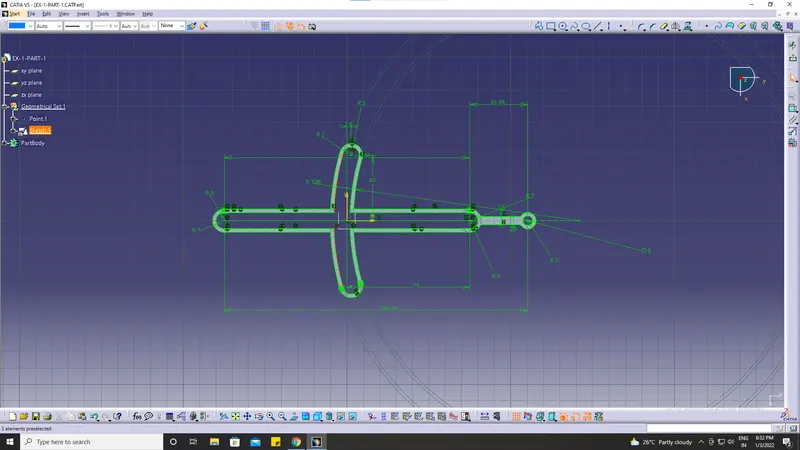

1. Quick return mechanism frame:

2. Holding of frame:

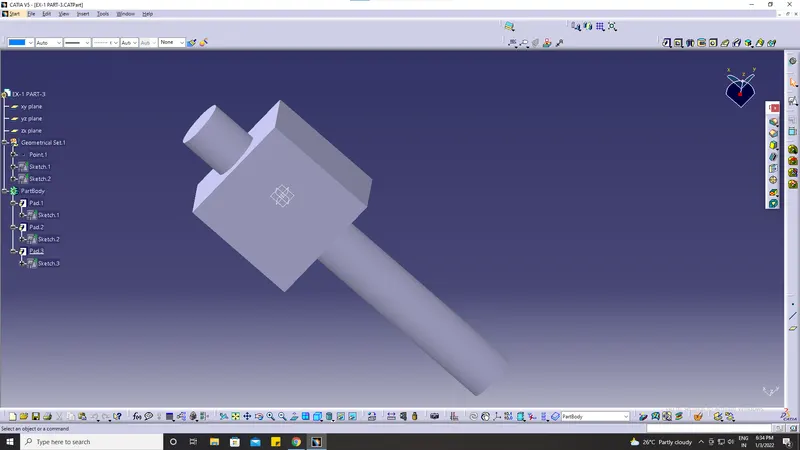

3. Slider:

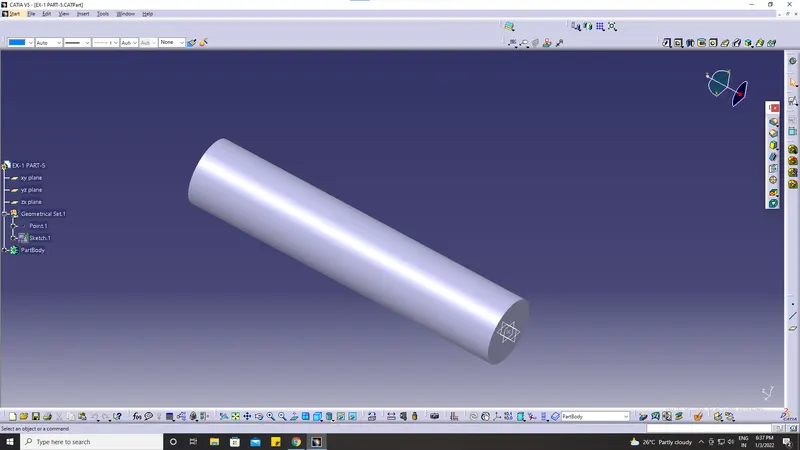

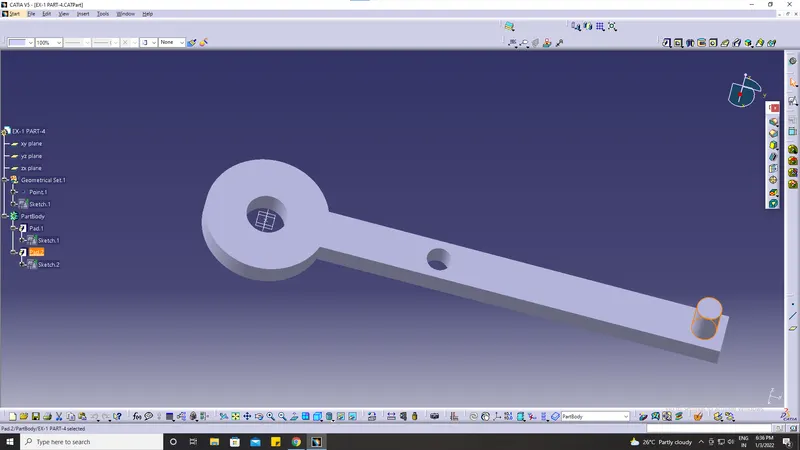

4. Crank:

5. Crank Holder:

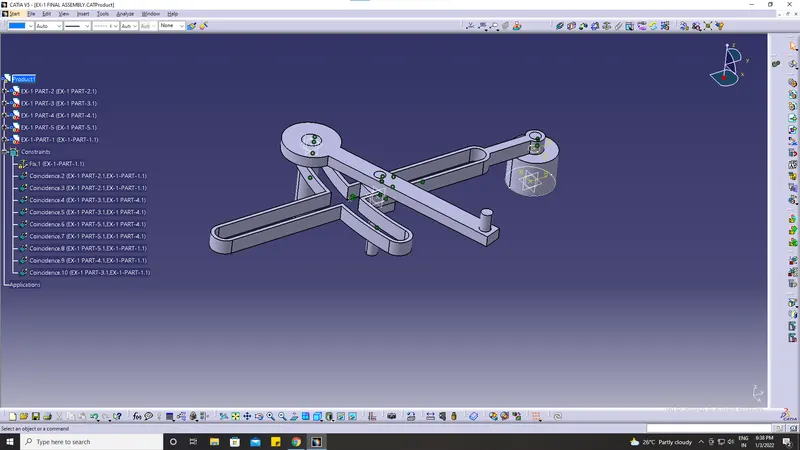

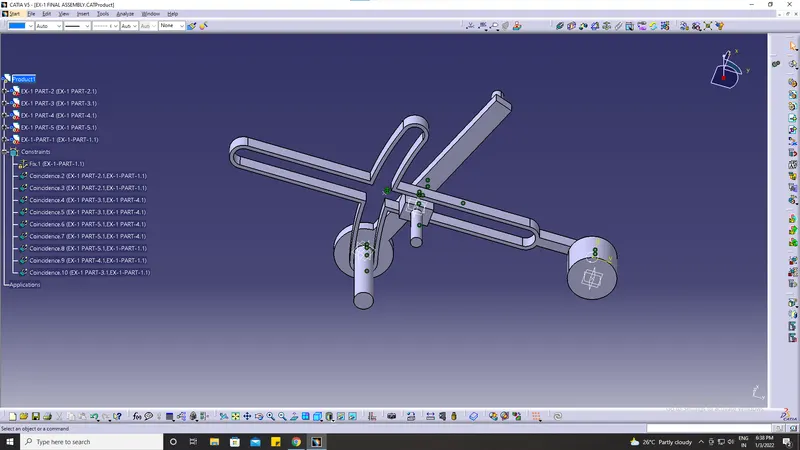

FINAL ASSEMBLY:

2. CV-JOINT:

Constant velocity joints allow a drive shaft to transmit power through a variable angle, at constant rotational speed, without an appreciable
increase in friction or play. They are mainly used in front-wheel drive vehicles. Modern rear-wheel-drive cars with independent rear suspension
typically use CV joints at the ends of the rear axle half shafts and increasingly use them on the drive shaft.

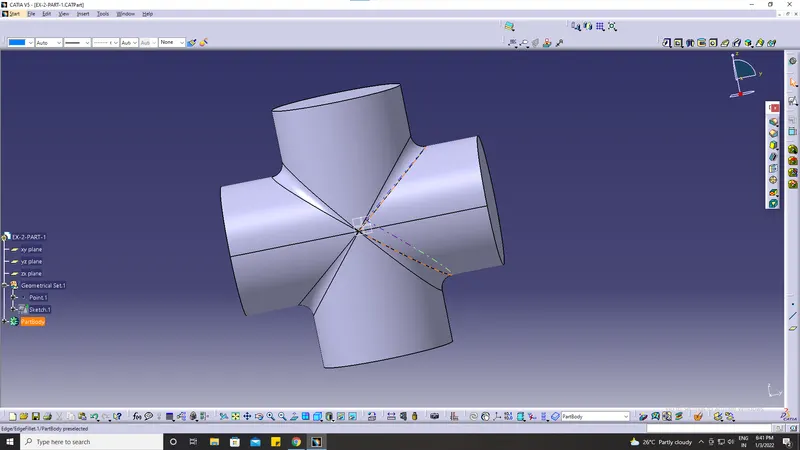

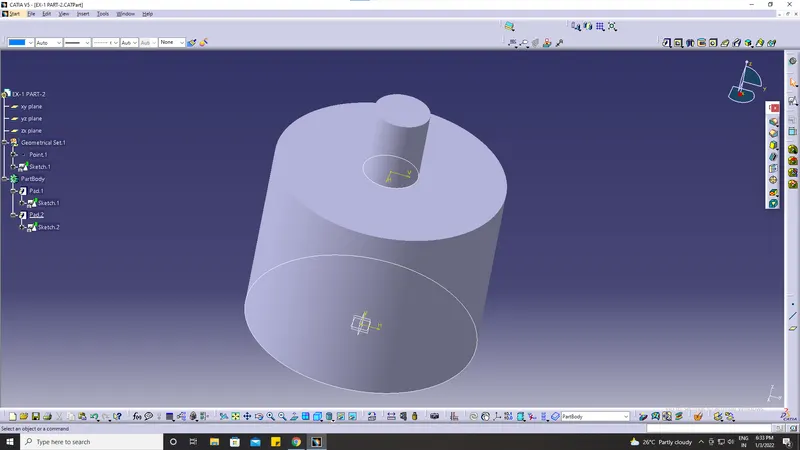

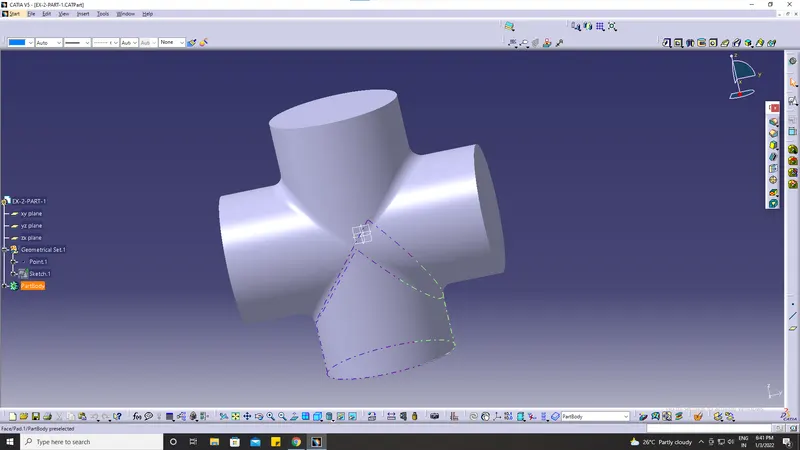

1. Circular converging part:

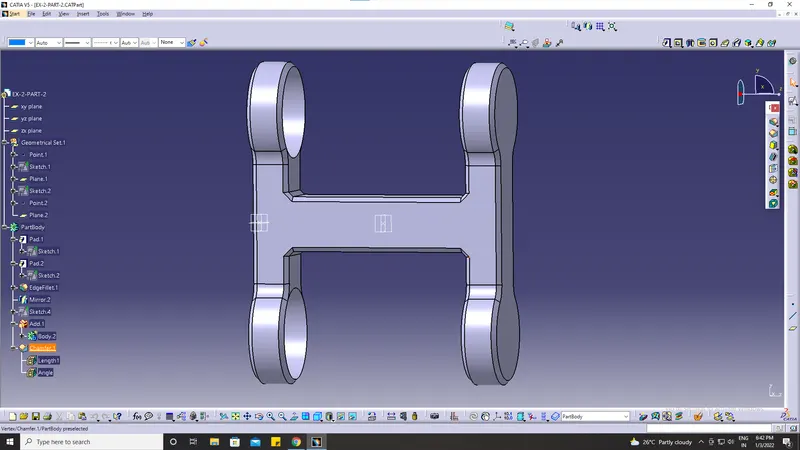

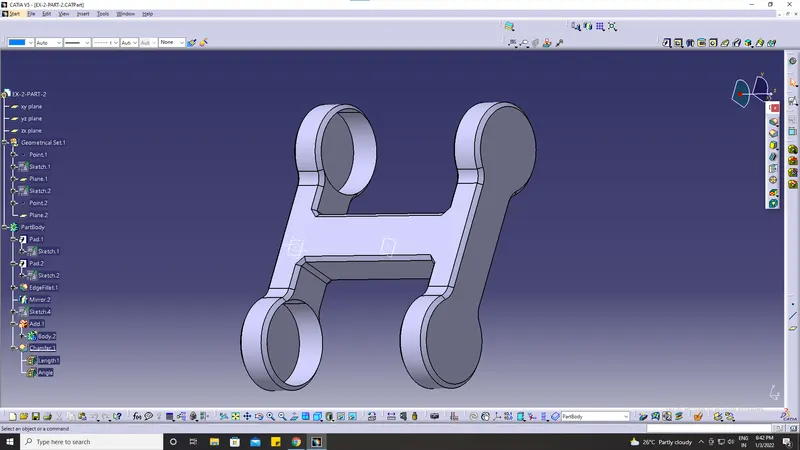

2.I type part:

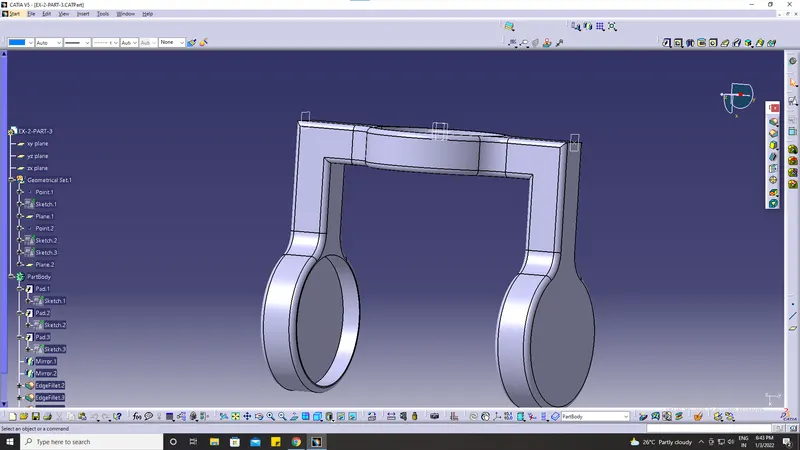

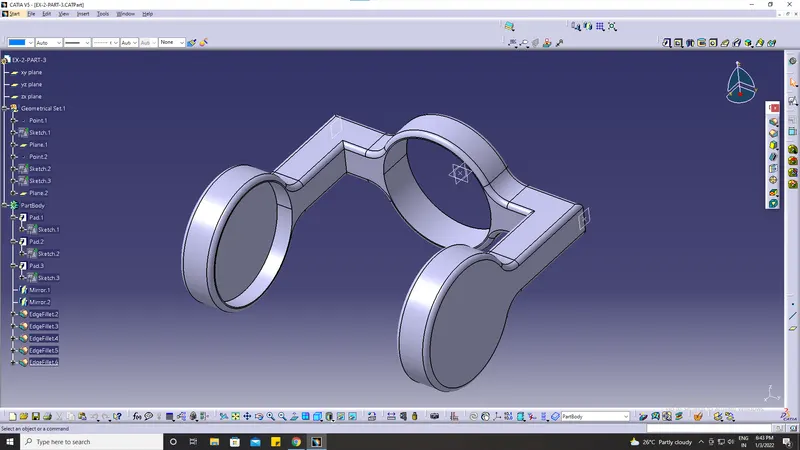

3. C Type Part:

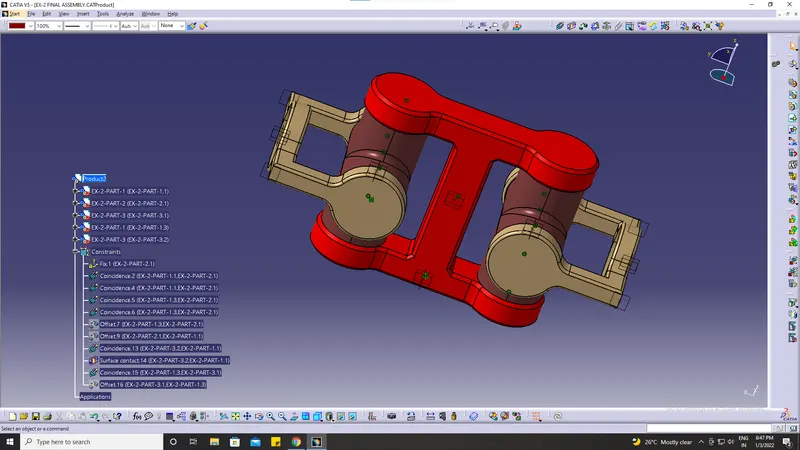

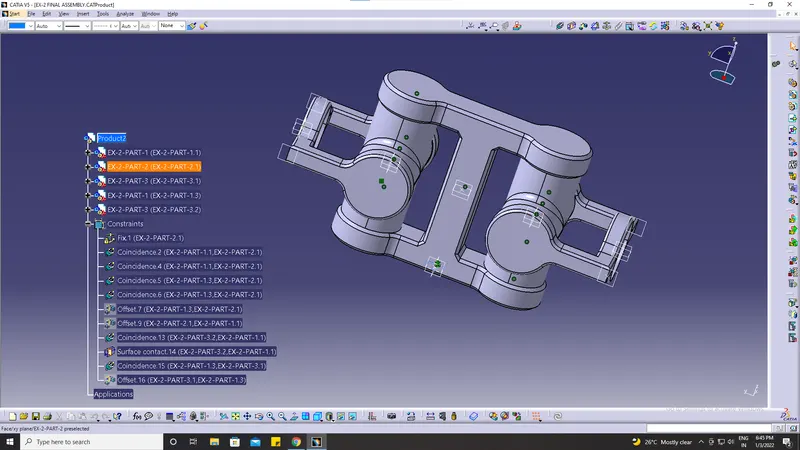

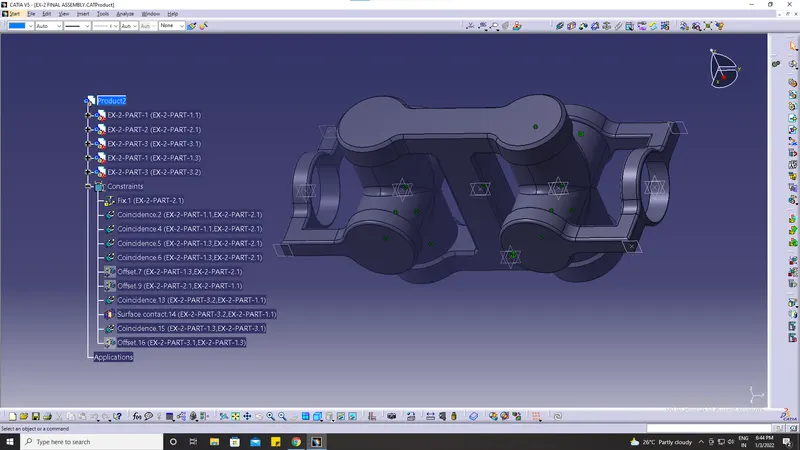

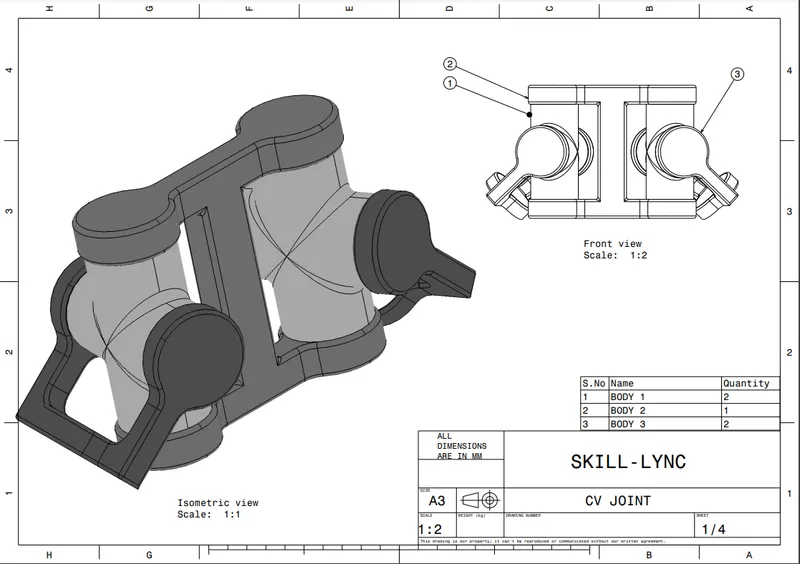

FINAL ASSEMBLY:
