Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

DOOR TRIM LOWER

Aim: To Create the Door trim lower component through the given Class-A surface.

Objectives:

• Creation of Tooling axis with appropriate draft angle.

• Creation of other surfaces (eg, B and C surfaces) for creating a solid component. • Perform Draft analysis on Class A surface and Solid model hence created.

Draft

The draft is the amount of taper for moulded or cast parts perpendicular to the parting. line. Draft angles are a design consideration that makes it much easier for a part to release cleanly from a mould. A draft angle is calculated as a degree measurement (or, less often, an inch or millimetre measurement) from the vertical axis of a mould, and it helps account for thermoplastic shrinkage, a practical reality of the injection moulding process for most materials.

Draft angles are generally a requirement of injection moulding design (though there are a select few soft materials, like nylon, that can get away with draft angles of zero). The draft should be a part of the design for manufacture, and all stakeholders and contributors should be aware of its need at the outset of the design process. This includes product designers, design engineers etc and this allows considerations for design requirements to be taken into account. Any draft is always better than no draft.

Importance of Draft:

By accounting for thermoplastic shrinkage during the cooling process, draft angles significantly reduce friction between the finished, cooled part and the side of the mould, Not only does this create a much easier release process, but it also offers several other benefits, depending on the design of the part which is as follows:

• Reduces the chance of damage to the part due to friction during the release.

• Reduces wear and tear and chances of damage to the mould

• Ensures a uniform, smooth, unscratched finish when required. • Ensures the integrity and uniformity of other surface finishes and textures.

• Reduces overall cooling time by lessening or eliminating the need for unconventional ejection setups.

• Most, if not all, of these benefits, offer either direct or indirect overall production cost reductions.

Procedure for creation of Solid model:

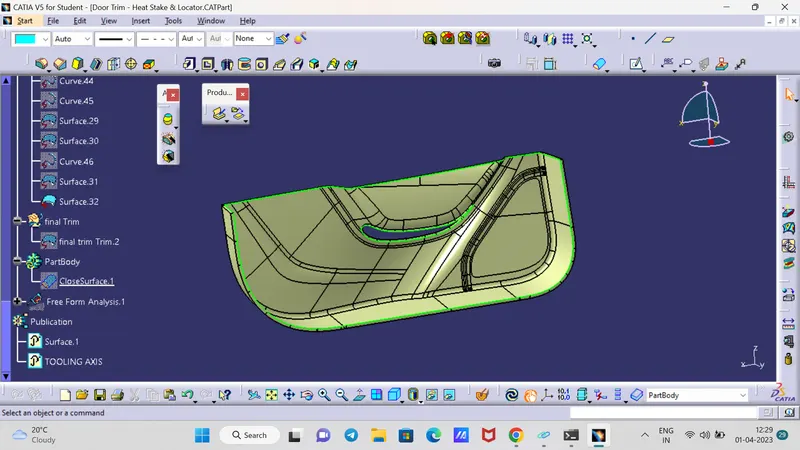

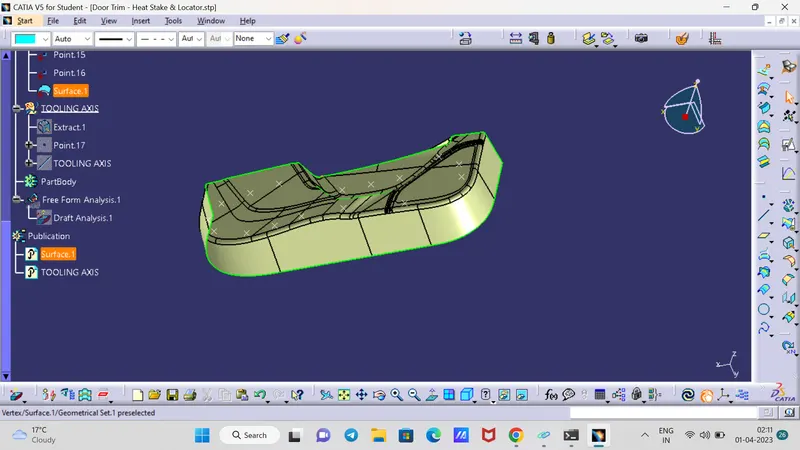

The image below shows the given class A surface for which a solid model is to be created.

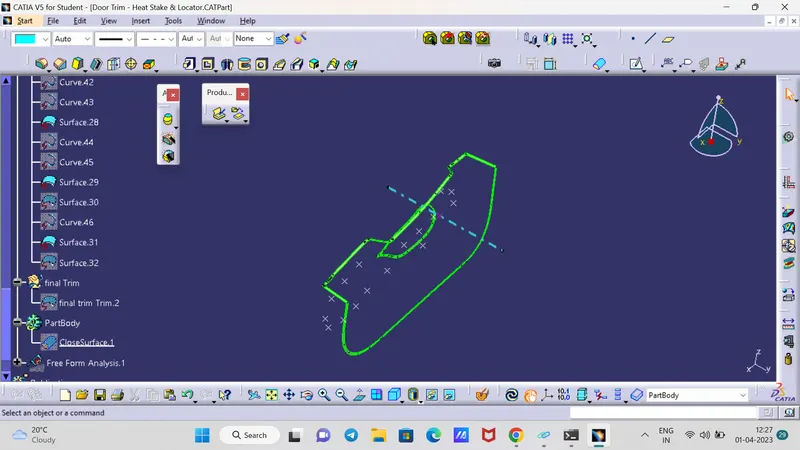

Tooling Axis creation:

It is defined as the direction in which the mould/core and cavity open. Selection of the direction of the tooling axis depends on the ease at which components can be easily ejected.

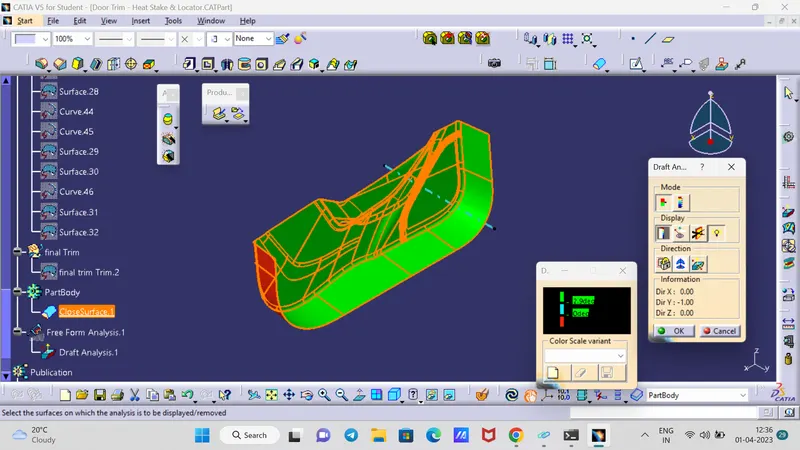

Draft Analysis of Solid Model

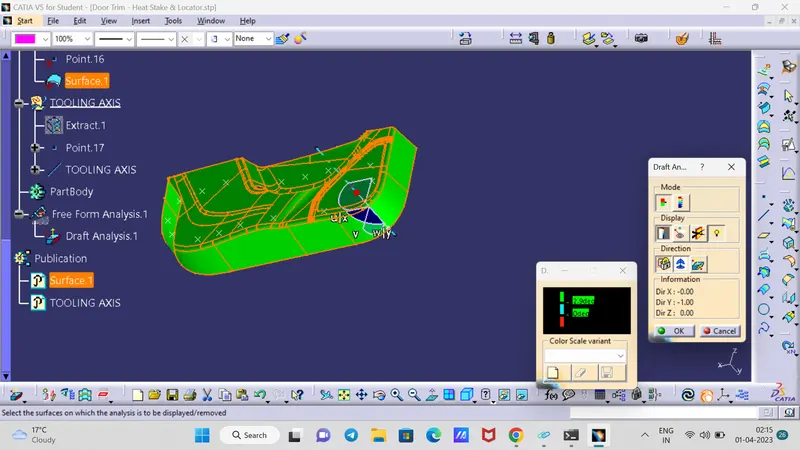

Same steps are followed to get the draft analysis of the solid part as in Class A Surface

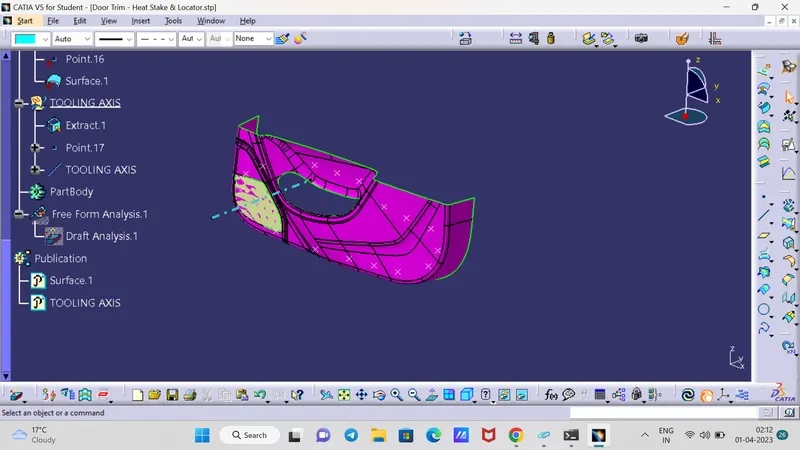

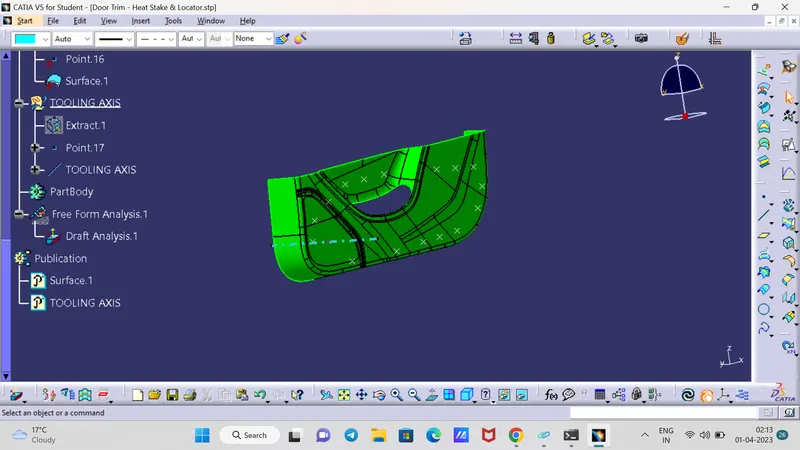

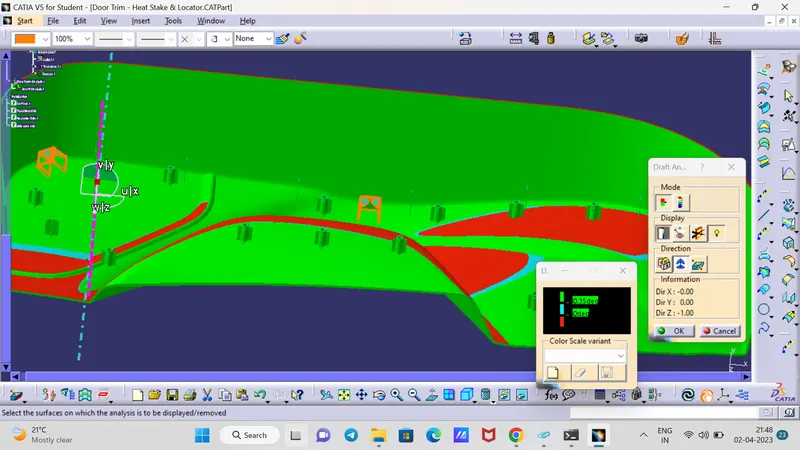

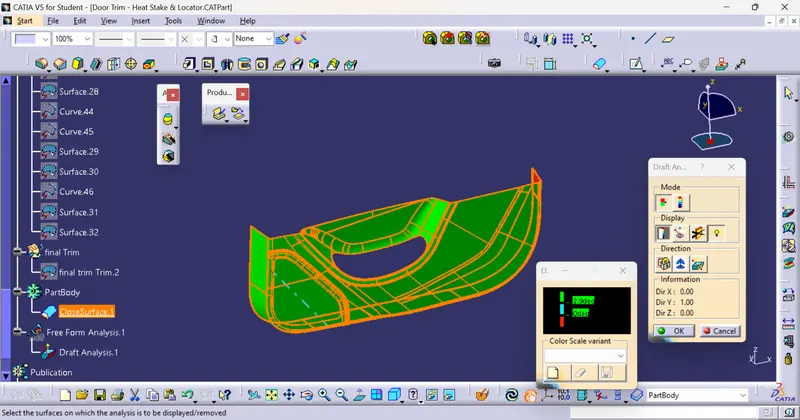

As we know minimum draft angle for the faces of the plastic component should be 3 degrees. So the value of 2.9 degrees (considering tolerance) is provided in the Draft analysis colour mode window Inside the colour scale, the GREEN bar shows the draft angle of 2.9 or above 2.9 degrees. The blue bar shows below 2.9 degrees draft angle the other limit being and the RED bar shows the negative draft angle

Create a B surface at an offset of 2.5mm with respect to the A surface given. We can notice that few of the elements will be missing after offset. Using features like the extract, extrapolate, multisection etc, fill up the missing elements.

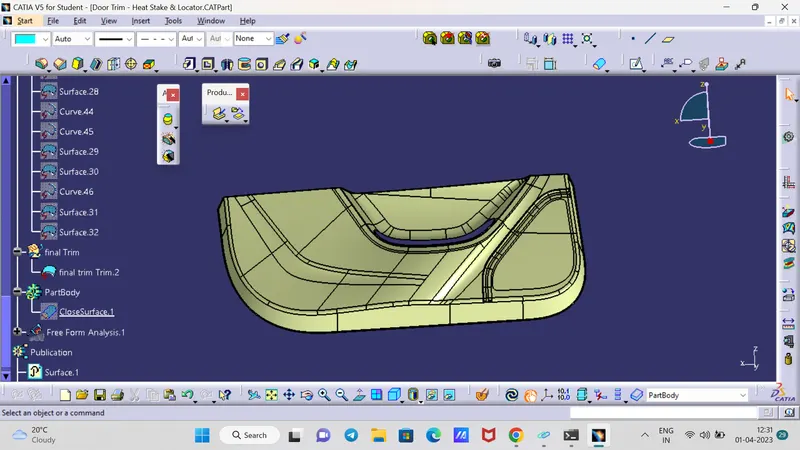

The B surface will look as below after following the above procedure.

Using Sweep option Create the C surface as shown below.

Join the C surface with the A surface.

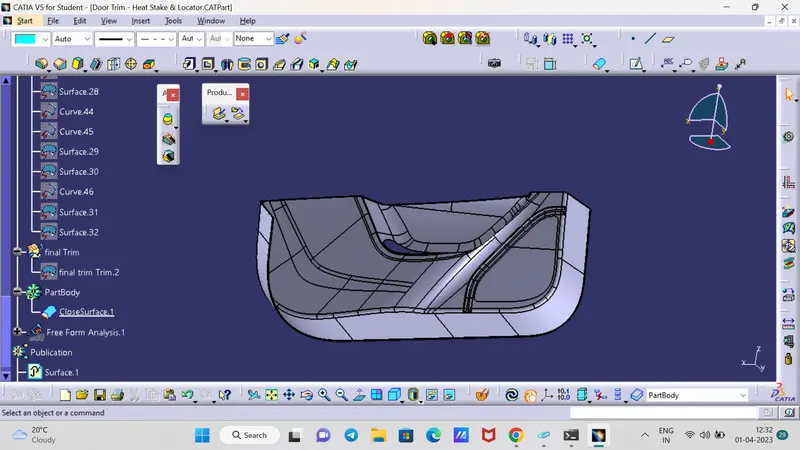

Trim the B surface with the above surface to obtain a closed hollow body using surfaces.

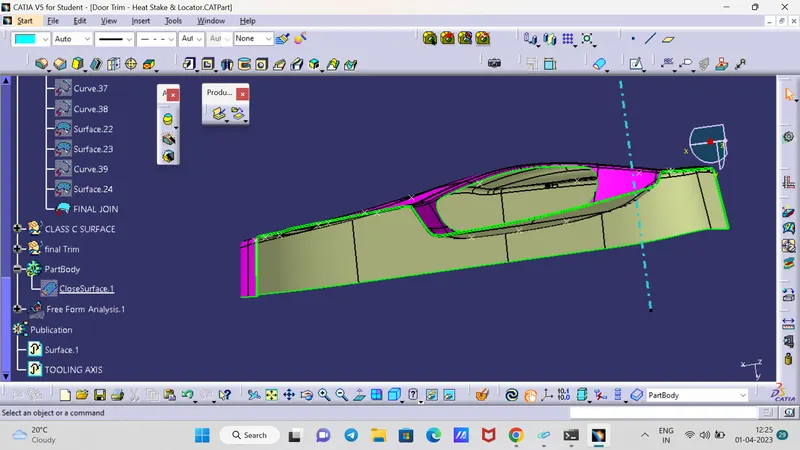

Convert the surface body into part body using the feature close surface.

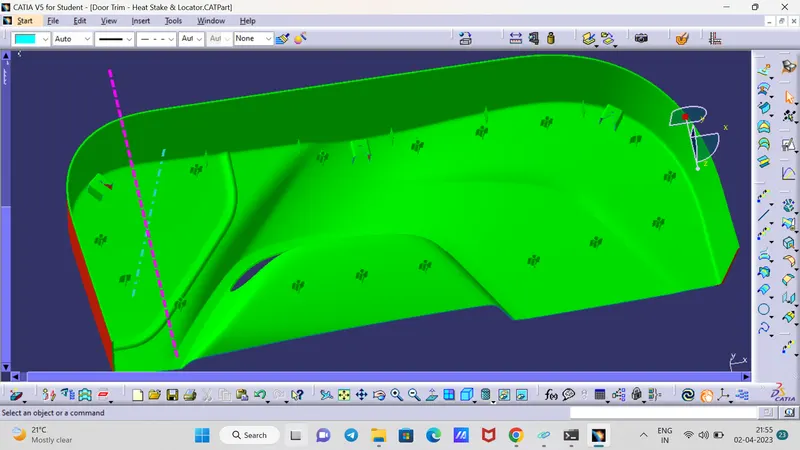

Perform Draft analaysis on the solid part.

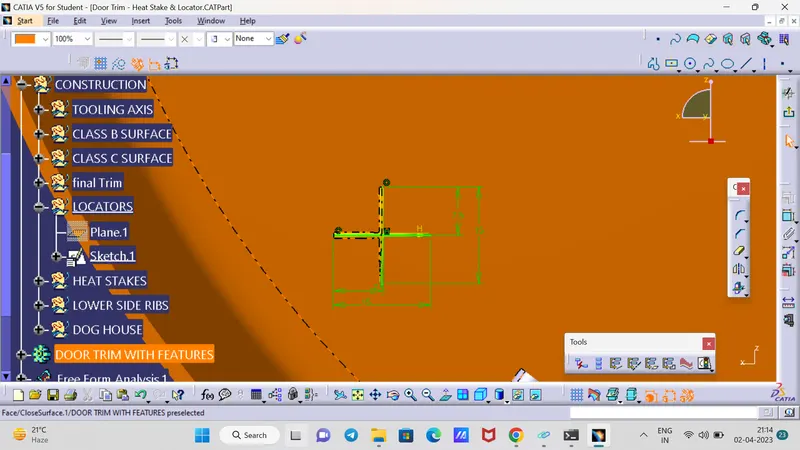

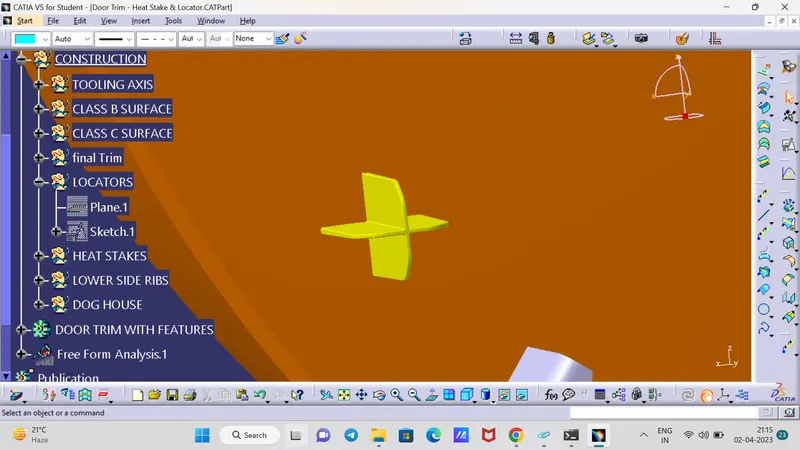

Create a 4 way locator using a sketch on the body. After creating the sketch, pad it 20mm in height and thicken it to 1.3mm and draft it with 0.5deg in the direction of the tooling axis. Give 5mm of chamfer with 45deg of inclination and a fillet of 0.20mm radius.

Use copy and paste the 2 nd 4 way locator using the translate feature.

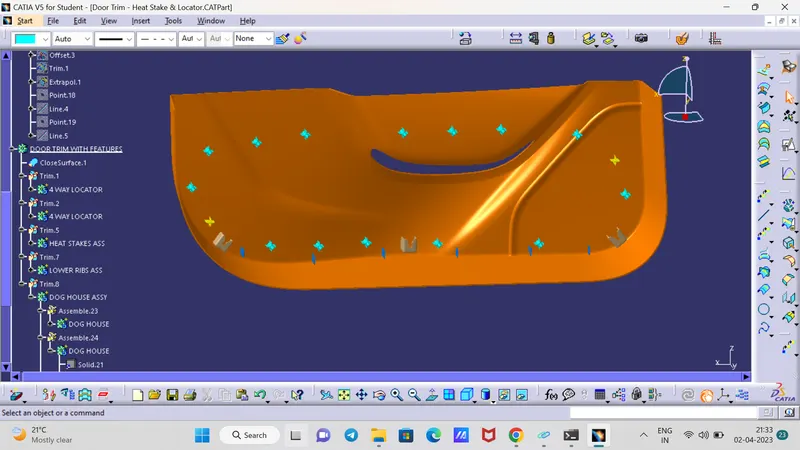

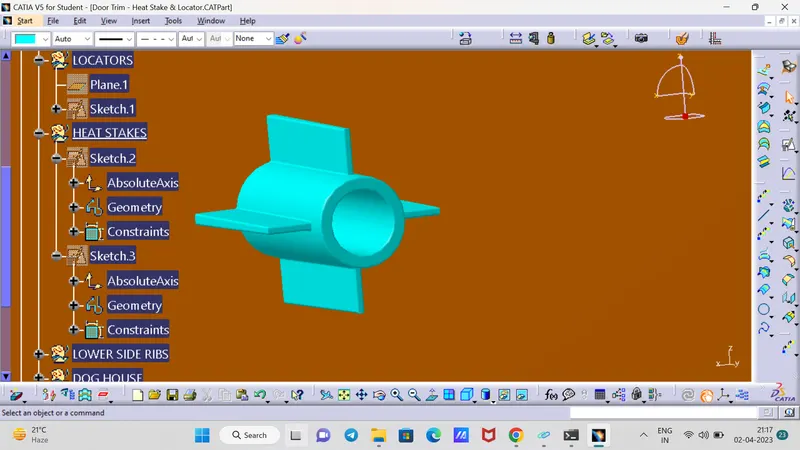

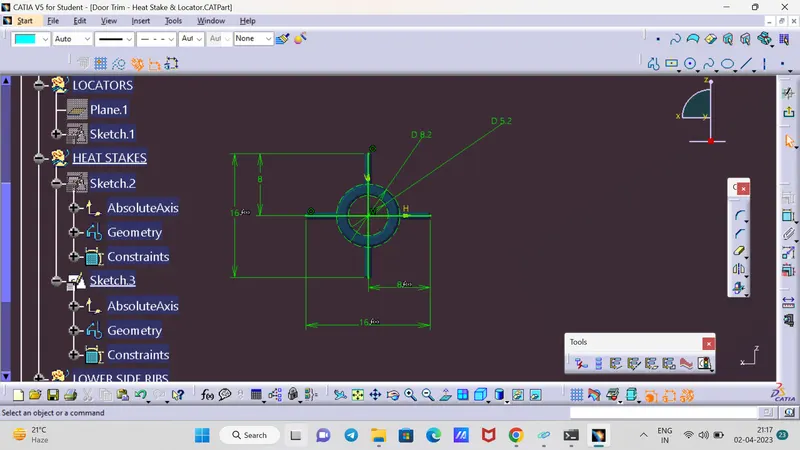

Create Heat stake. Draw a sketch on the surface. After the creation of the sketch, Pad it to 18mm height and a draft angle of 0.5deg on both sides (inside and outside) and then provide a fillet with a 0.20mm radius. After creating the heat stake, create the ribs for supporting purposes. To create the ribs, draw a sketch and padded it to height less than that of the heat stake and 1mm in thickness. After padding the ribs, drafted 0.5deg in the tooling axis direction and fillet it with a 0.20mm radius. Finally, use union trim on the ribs with a heat stake to remove the ribs as per the requirement, which are present inside the heat stakes.

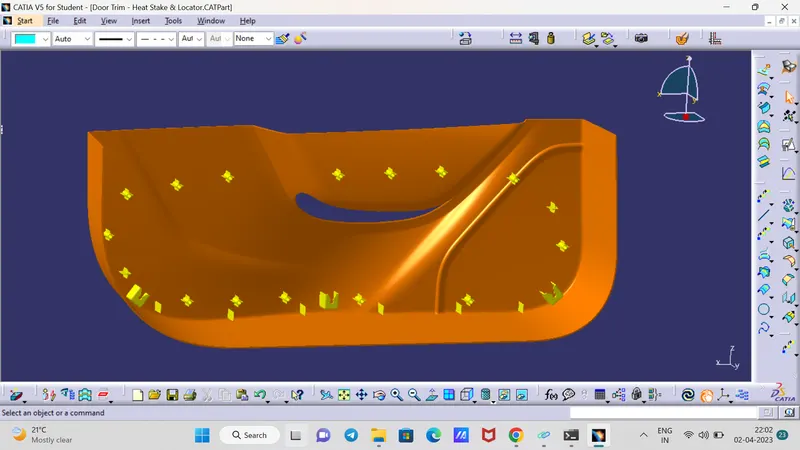

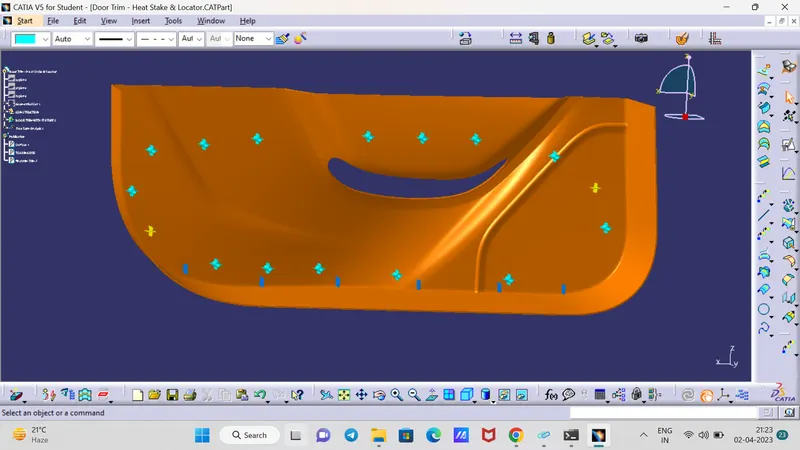

Copy and translate the heat stake to all the positions as needed.

Create ribs as shown below.

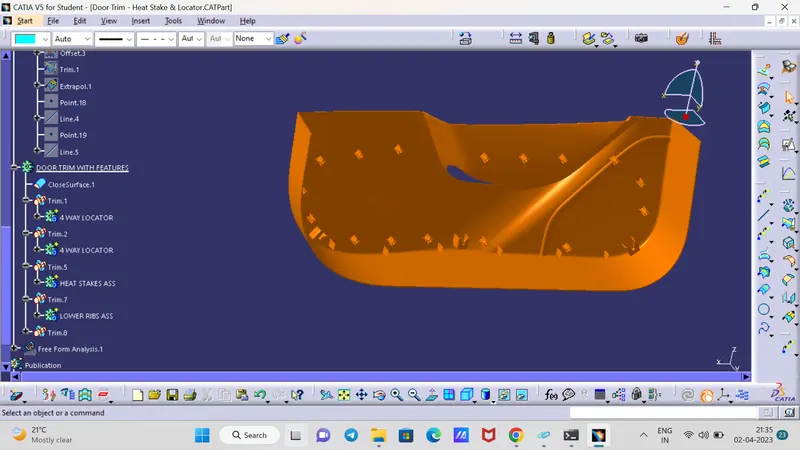

so after these operation our product is looks like

NOW WE DRAW THE DOG HOUSE AND WILL ASSEMBLED IT

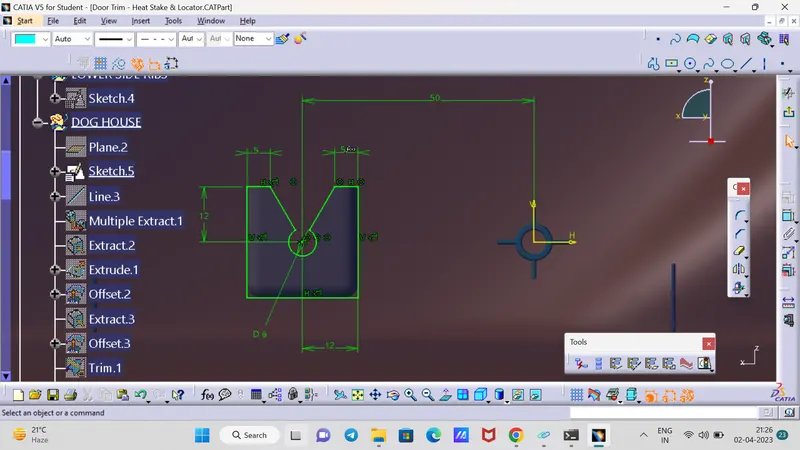

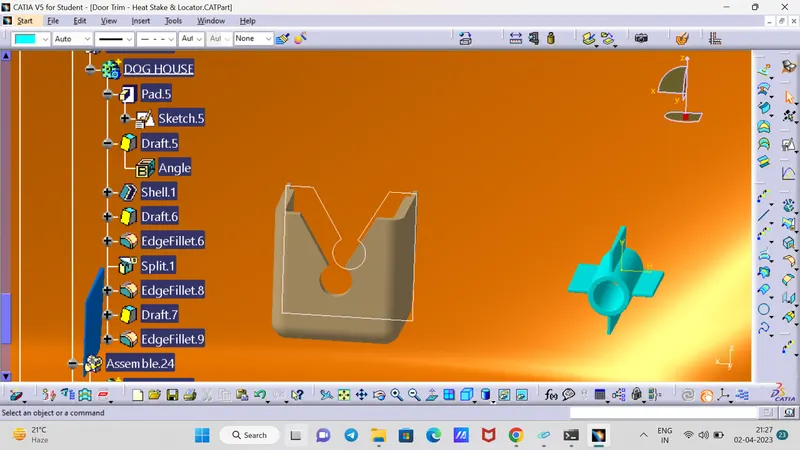

CREATING THE DOGHOUSE

The dog house is an engineering feature used in the plastic trim design. Dog houses are used as a supporting feature. Sometimes other engineering features like snaps; locators, etc. are mounded on them to increase their strength.

The doghouse is created by following the design rules.

The nominal wall thickness guide range is from 0.75 mm to 3 mm for reinforced materials and 0.5 mm to 5 mm for unreinforced materials.

Related Courses

WALL THICKNESS (W) = 0.70 (NOMINAL THICKNESS OF PLASTIC MATERIAL)

This process is usually done by Thicken surface command.

The fillets and the draft are given as per the design rules.

FOR HIGHLIGHTS we gave colours for each and every differnt assembeled link

draft analysis on inner part of dog house

0.45 degree , we took the value

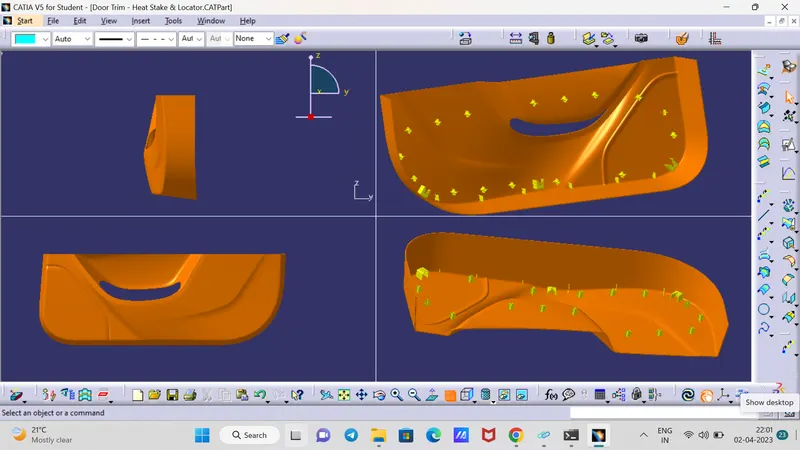

ALL VIEWS OF OUR PRODUCT
