Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

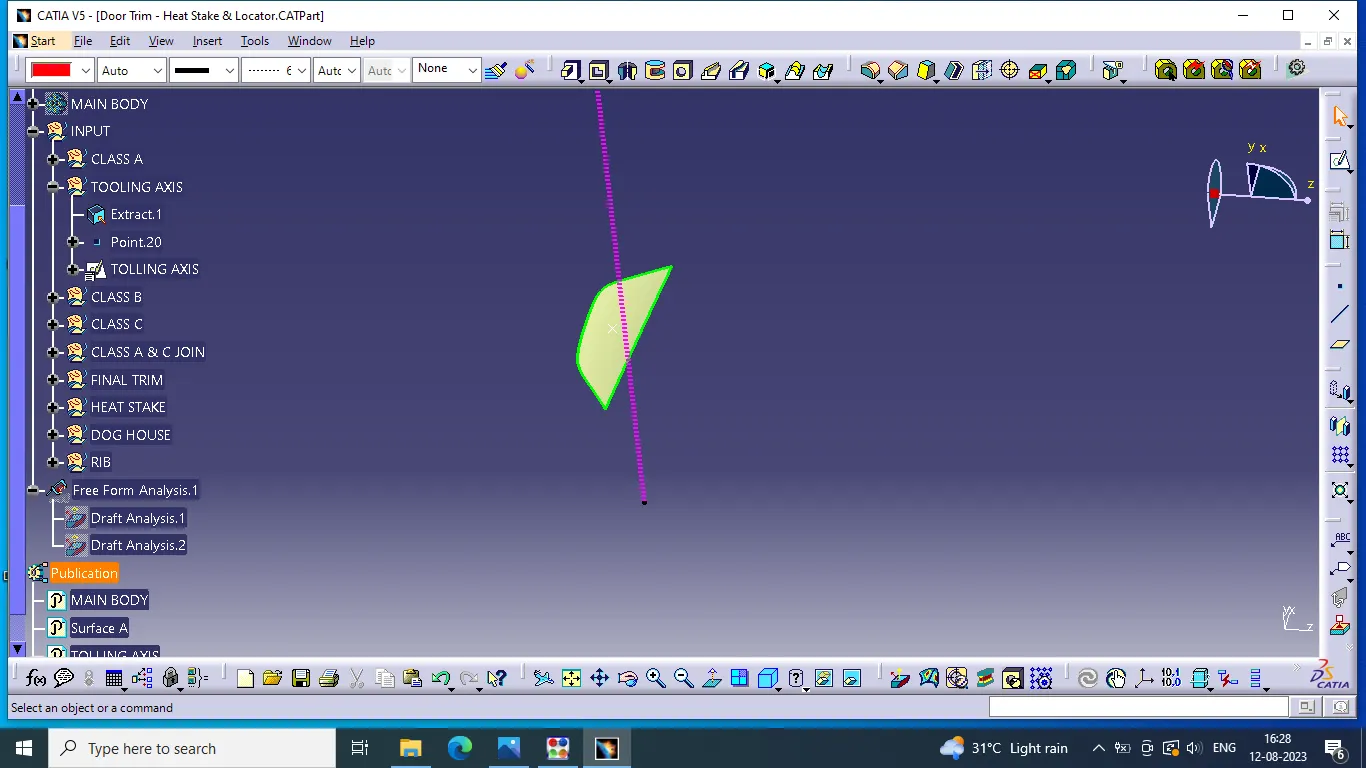

 *  TOOLING AXIS CRAETION

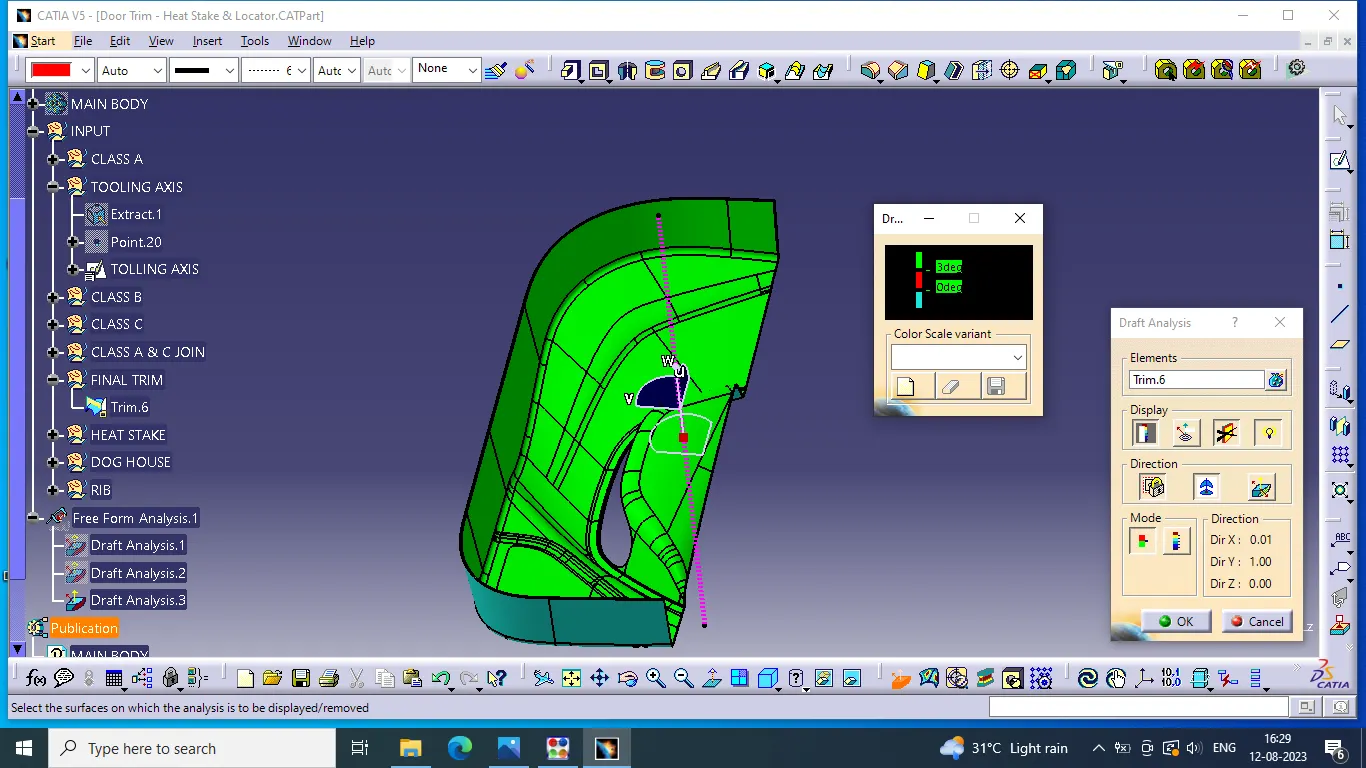

 To create the tooling axis, I extracted a surface from class A and created a point in the middle of the surface by using the point command and created a line at that point through the x-axis. Now, I performed a draft analysis check from that line whether the created tooling axis is in the correct position or not. If in the draft, analysis check the surface highlighted with green colour on both sides of the surface the tooling axis is in the correct position and direction.

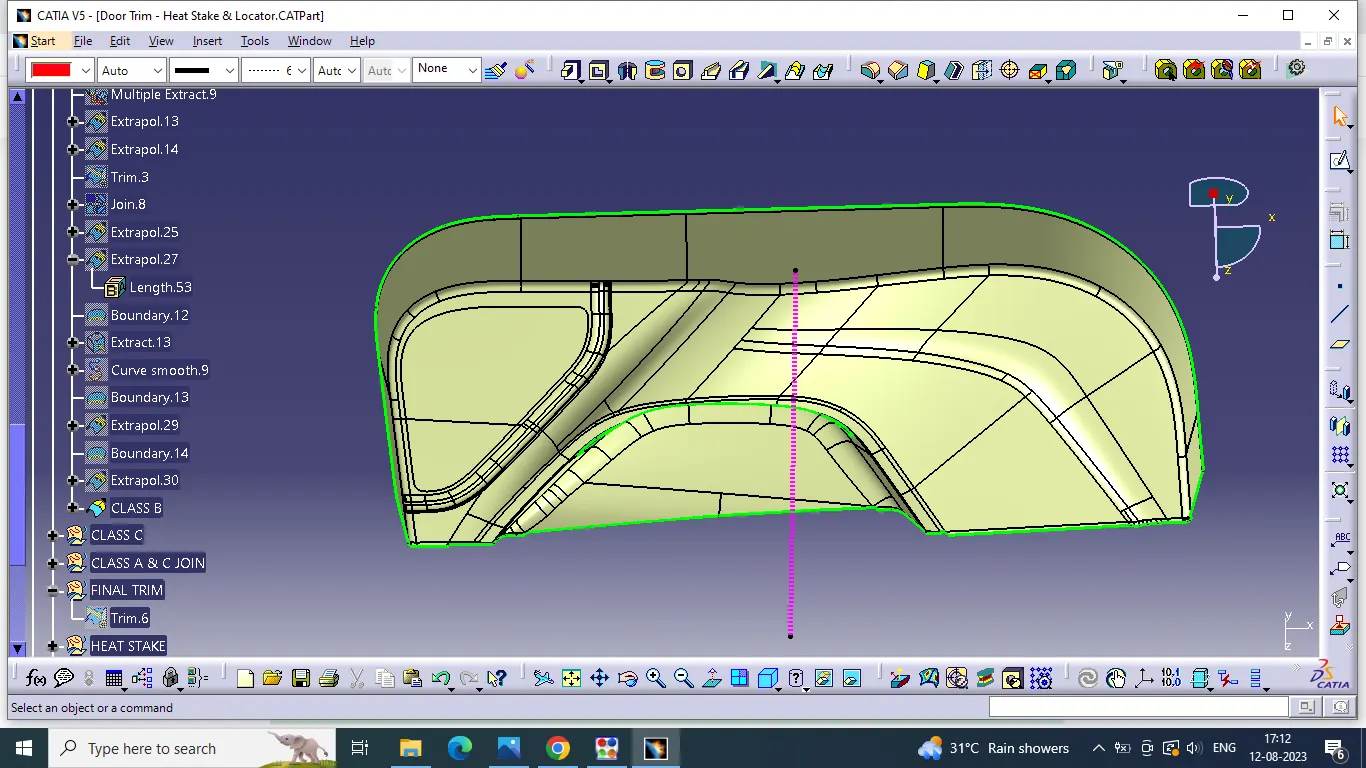

CLASS B

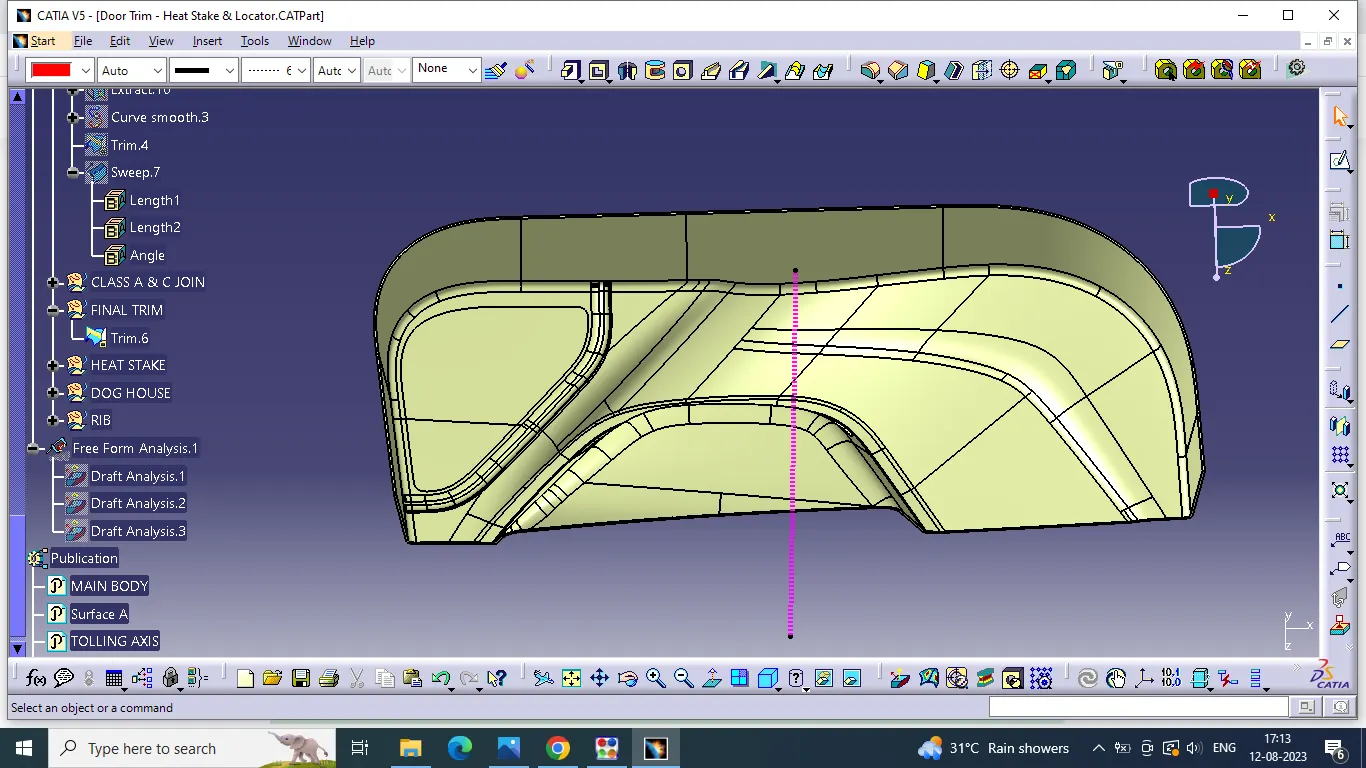

FINAL TRIM



REPORTS OF DRAFT ANALYSIS



*The  draft analysis is important to the manufacturing the plastic product.



*That the draft analysis helping to find a angle of a component.



*Component inward draft direction is minimum 3°is required.



*The draft direction is easy to pull out component outside from the manufacturing machine.

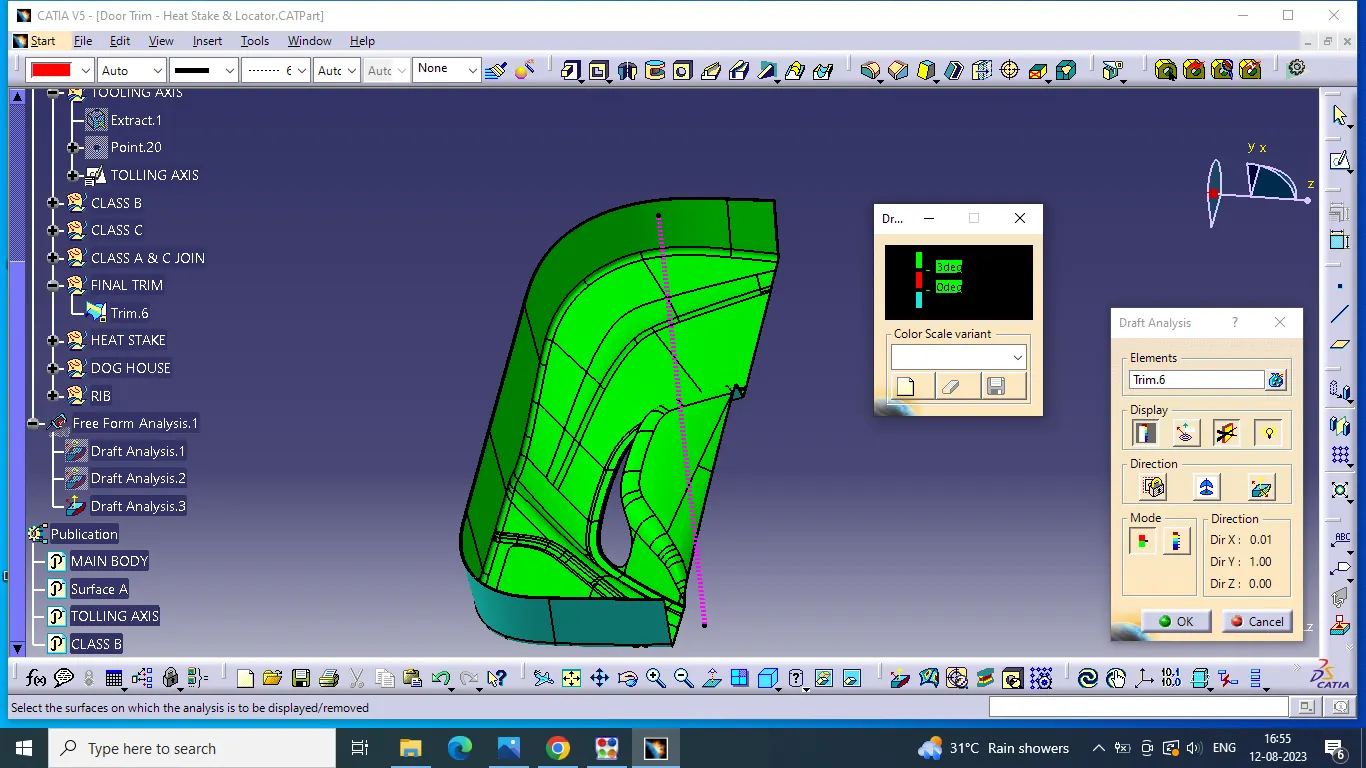

DRAFT ANALYSIS



 DRAFT ANALYSIS ON CLASS A

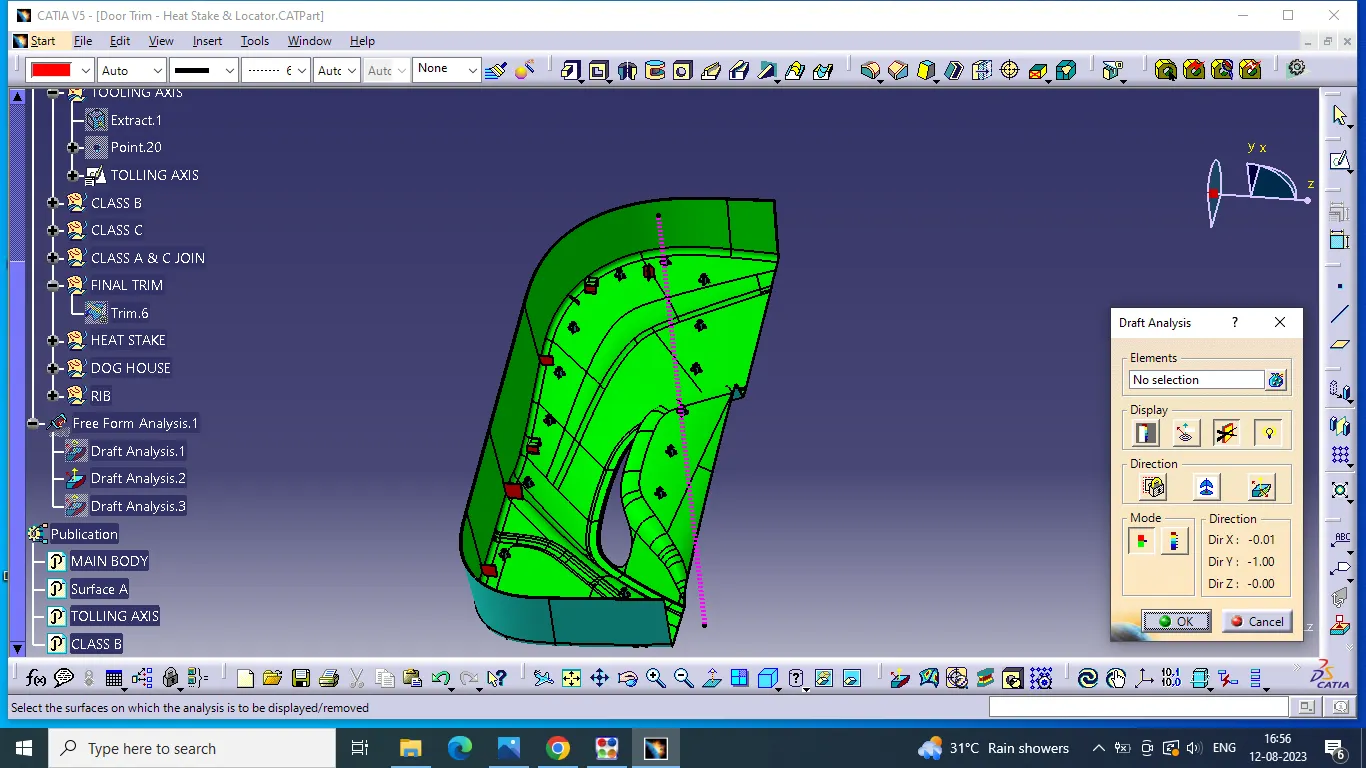

DRAFT ANALYSIS ON FINAL TRIM









DRAFT ANALYSIS ON SOLID PART





FOUR WAY LOCATOR













HEAT STAKES

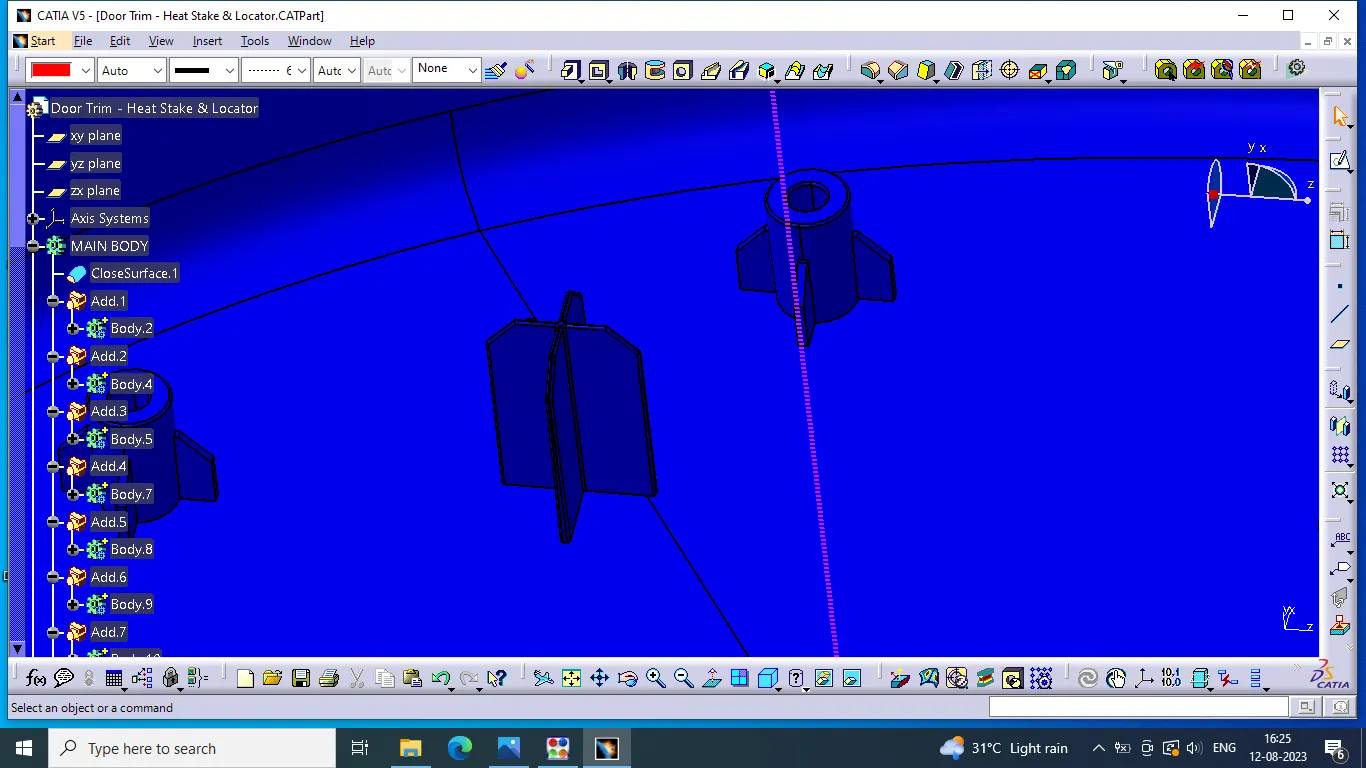

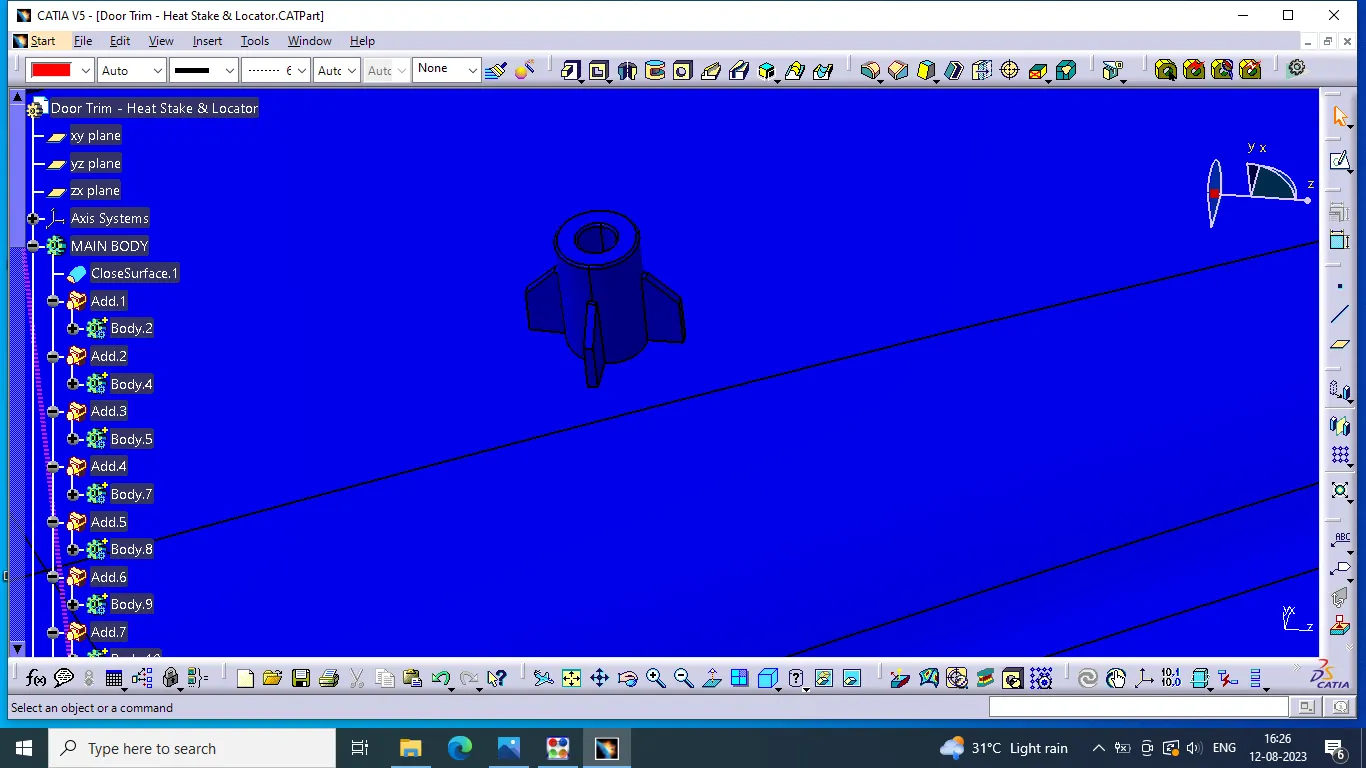

 To create the heat stakes, I draw a sketch on the surface. After the creation of the sketch, I pad it to 17mm height and I gave a draft angle of 0.5deg on both sides (inside and outside) and then I gave a fillet with a 0.25mm radius. After creating the heat stake, I created the ribs for supporting purposes. To create the ribs, I draw a sketch and padded it to 6mm in height and 1mm in thickness. After padding the ribs, I drafted 0.5deg in the tooling asix direction and filleted it with a 0.25mm radius. Finally, I union trim the ribs with a heat stake to remove the ribs, which are present inside the heat stakes.

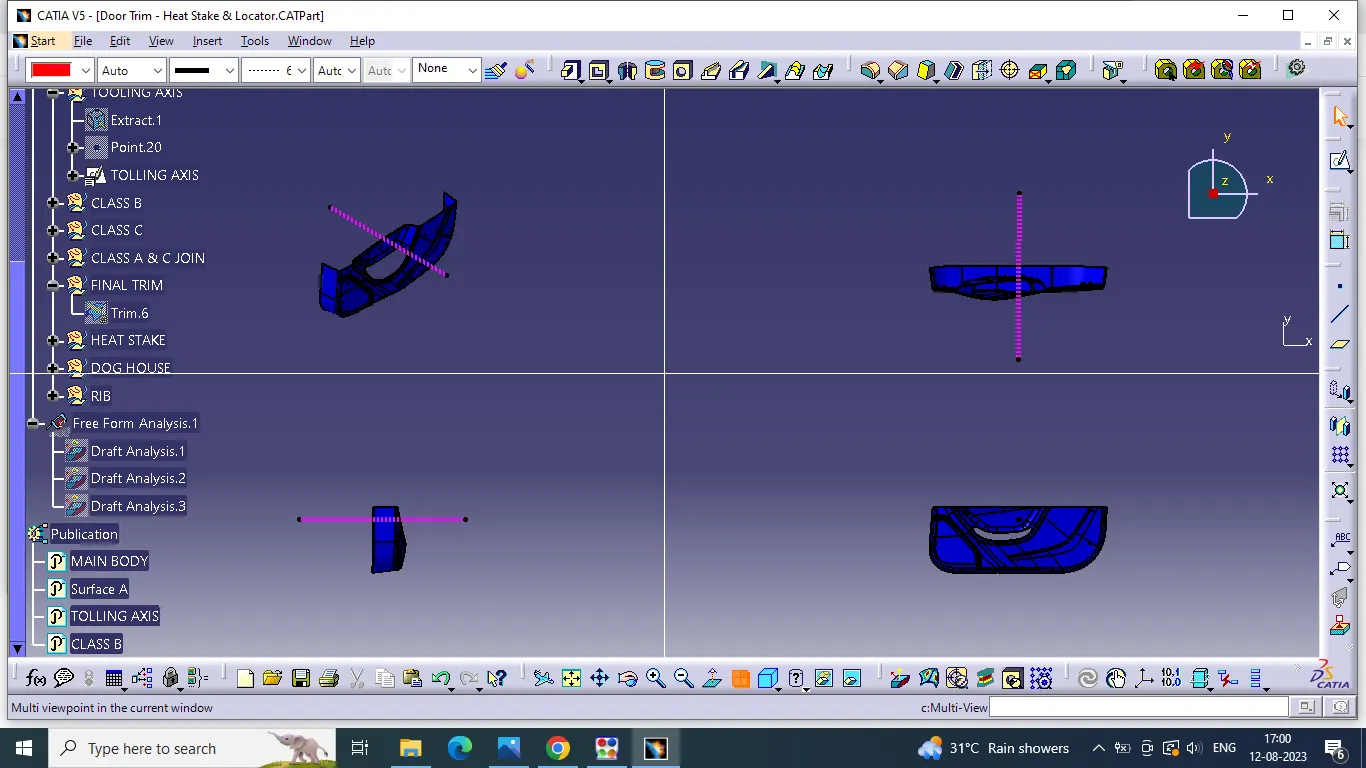

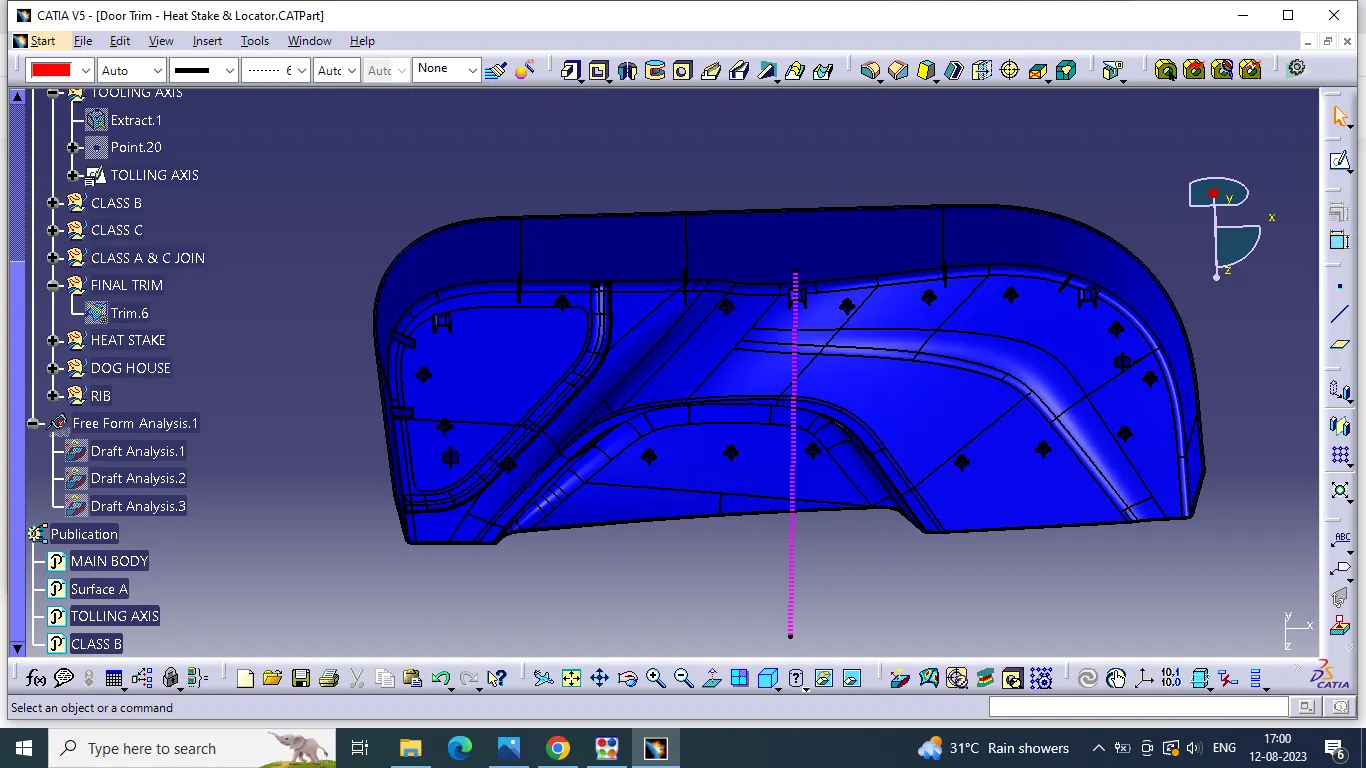

VARIOUS IMAGES OF FINAL COPONENT
