Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

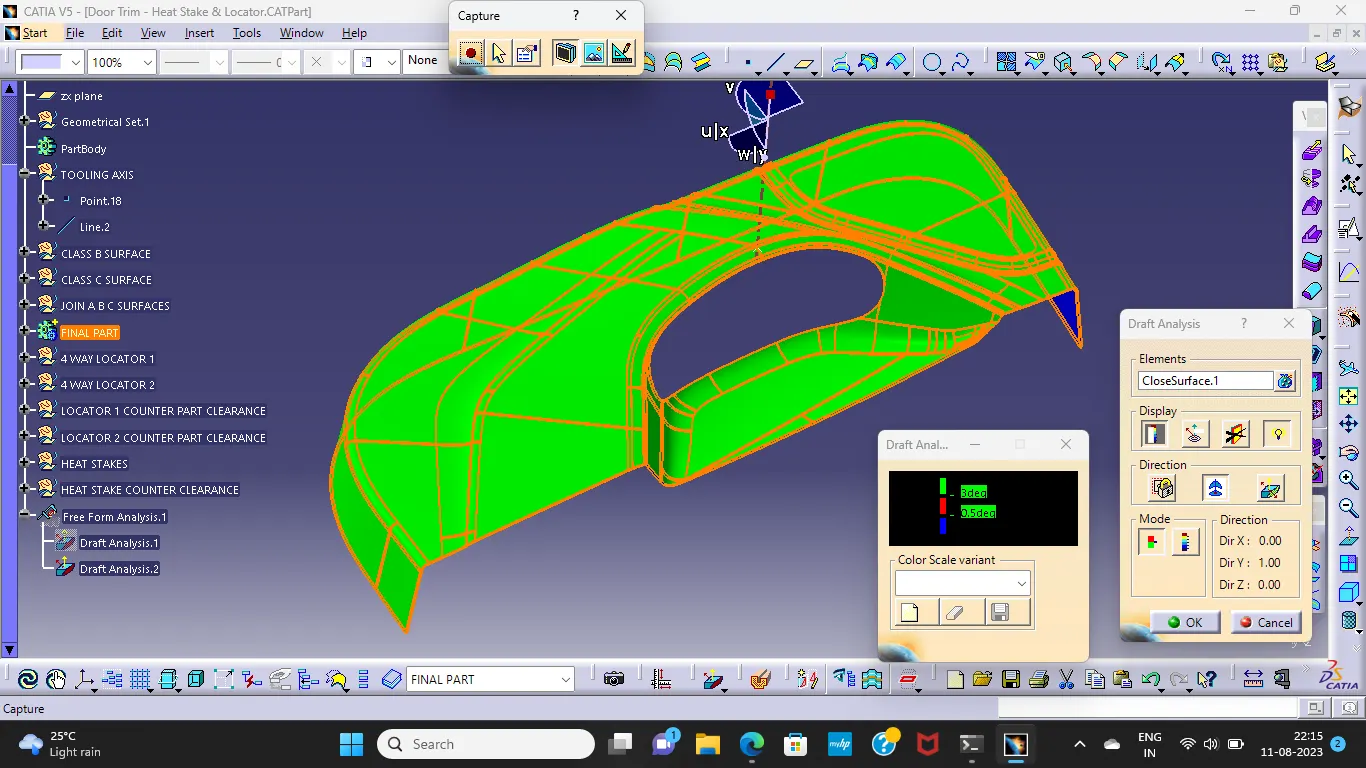

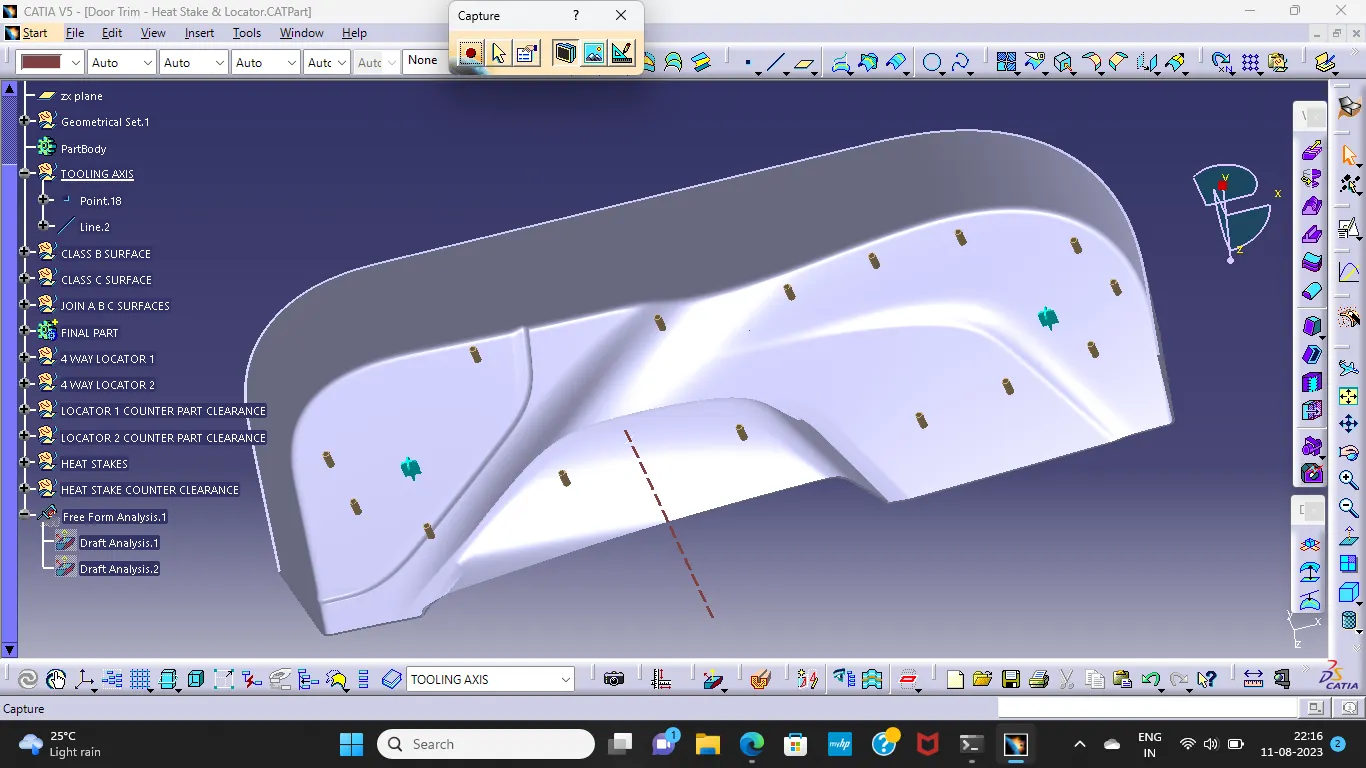

FINAL PART DRAFT ANALYSIS: Final component is clearing with 3deg draft.

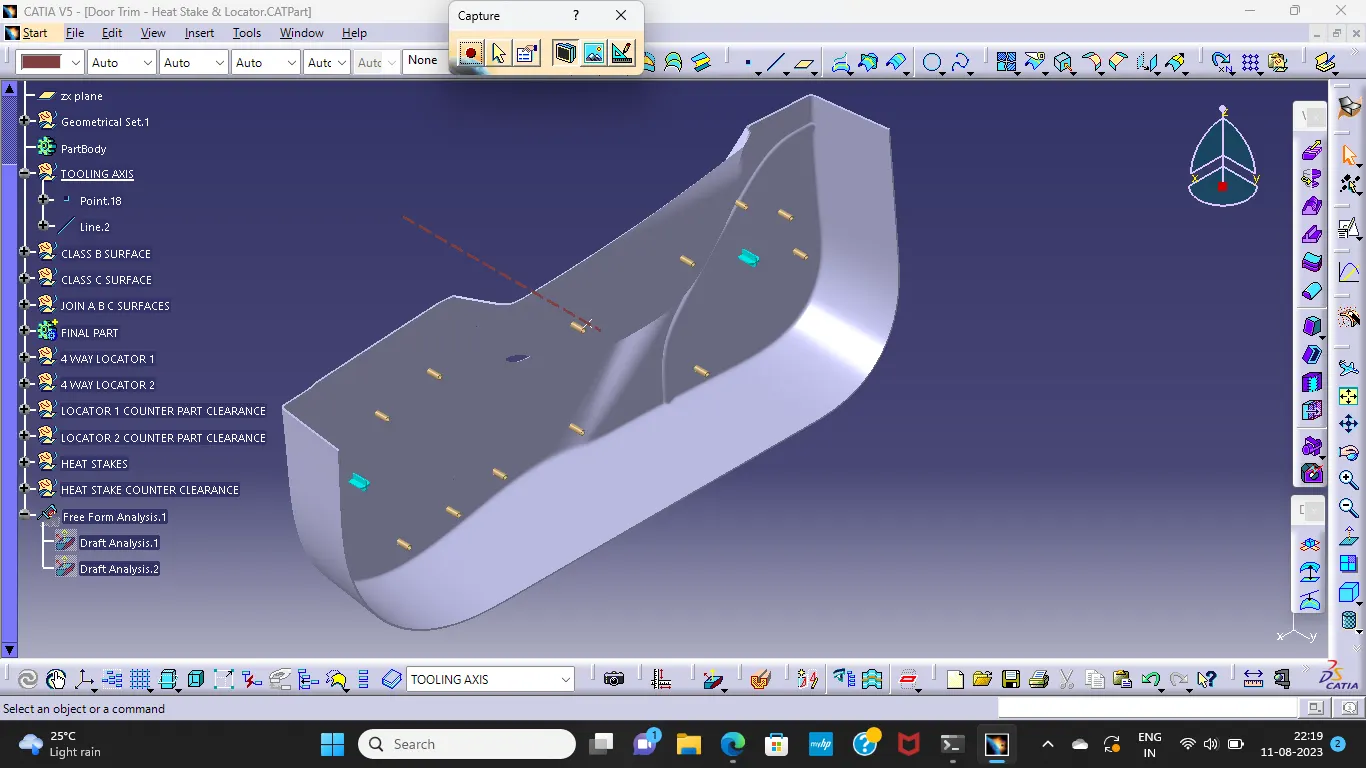

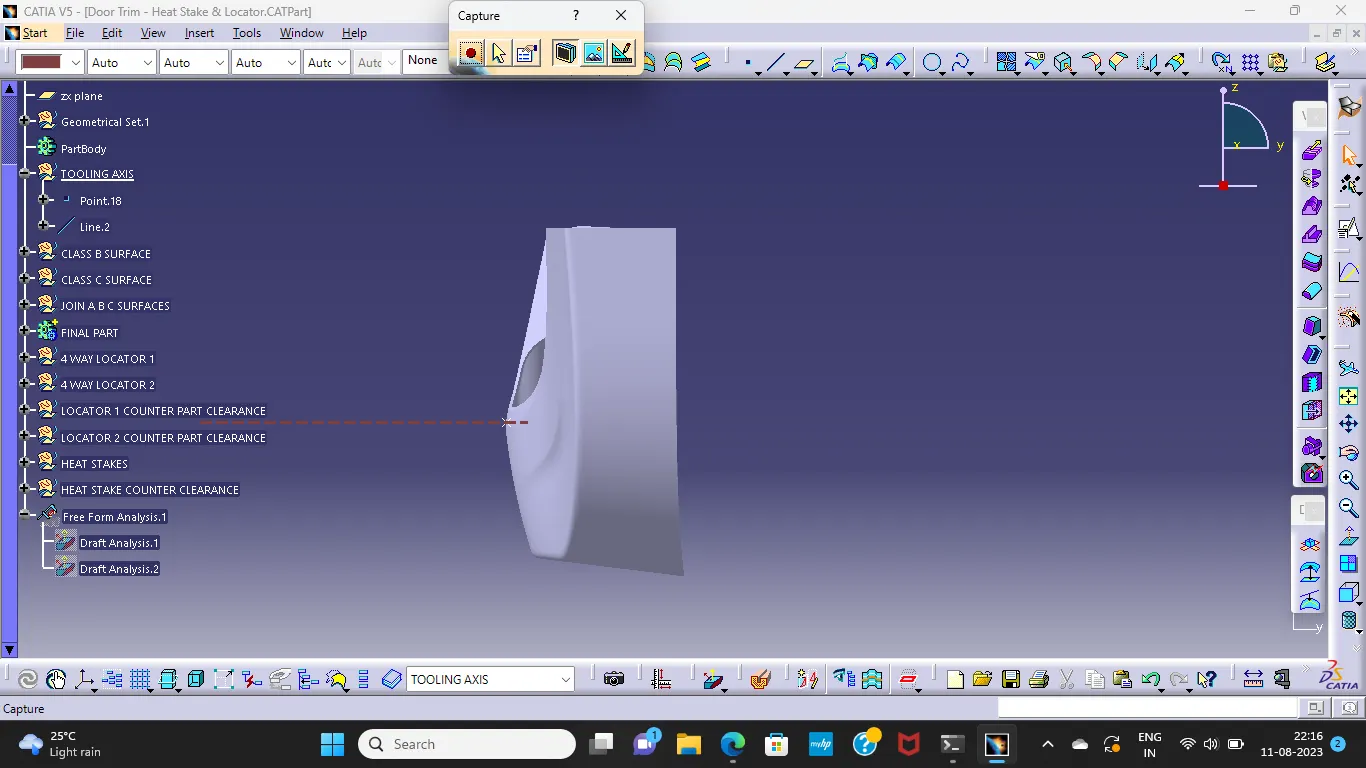

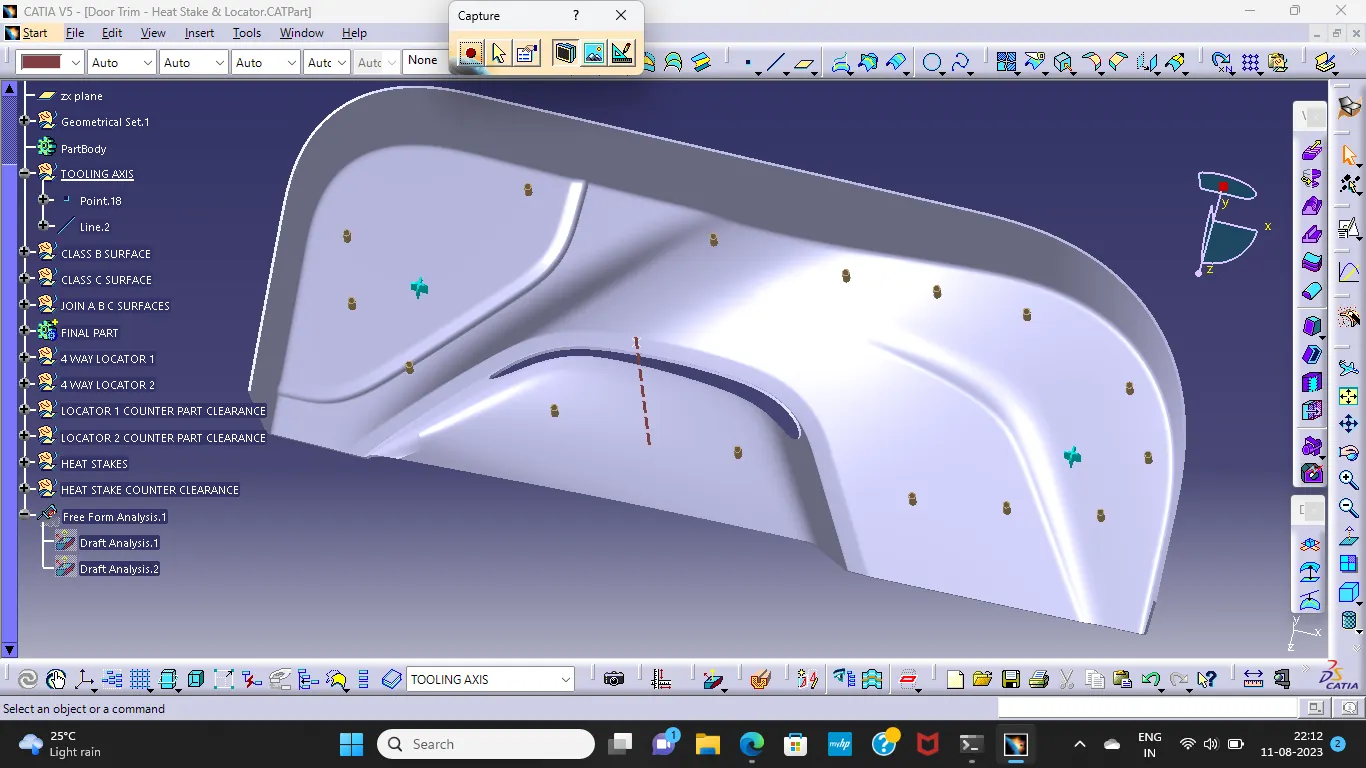

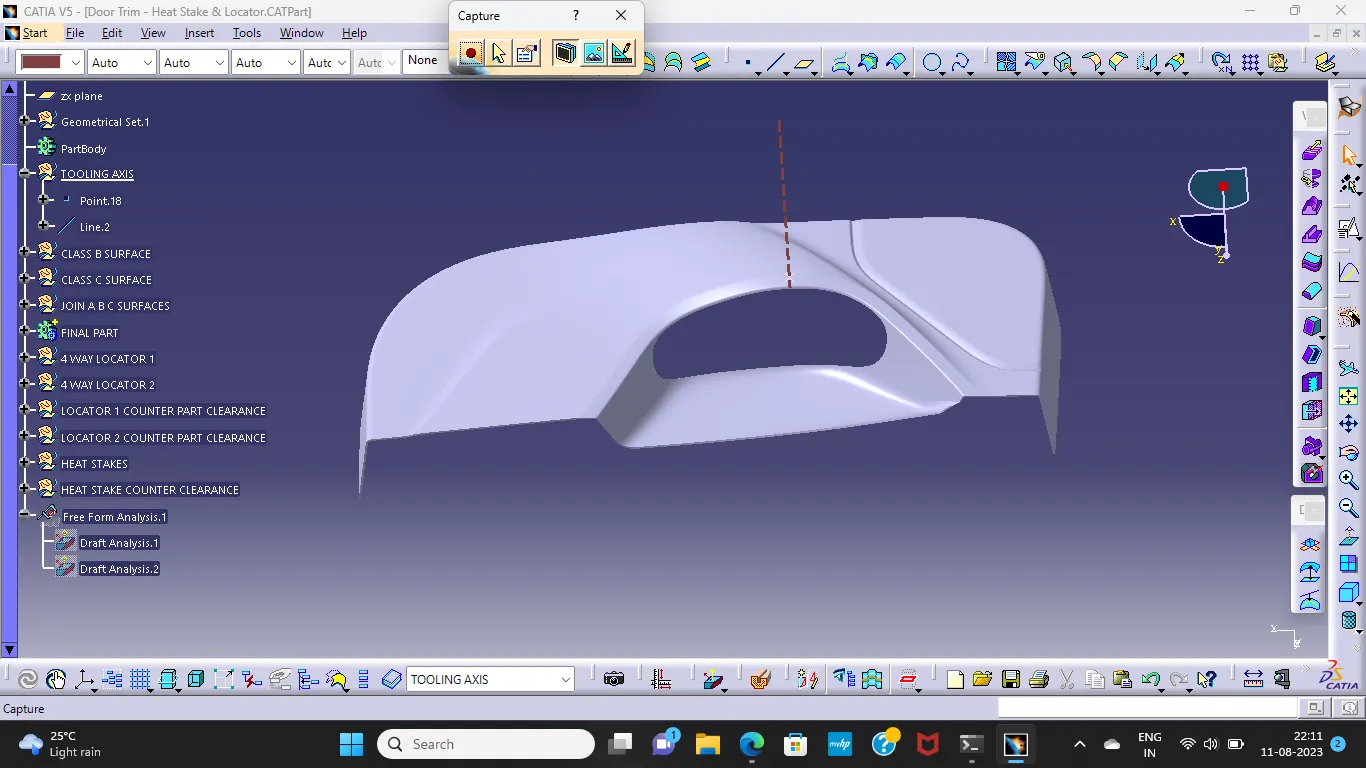

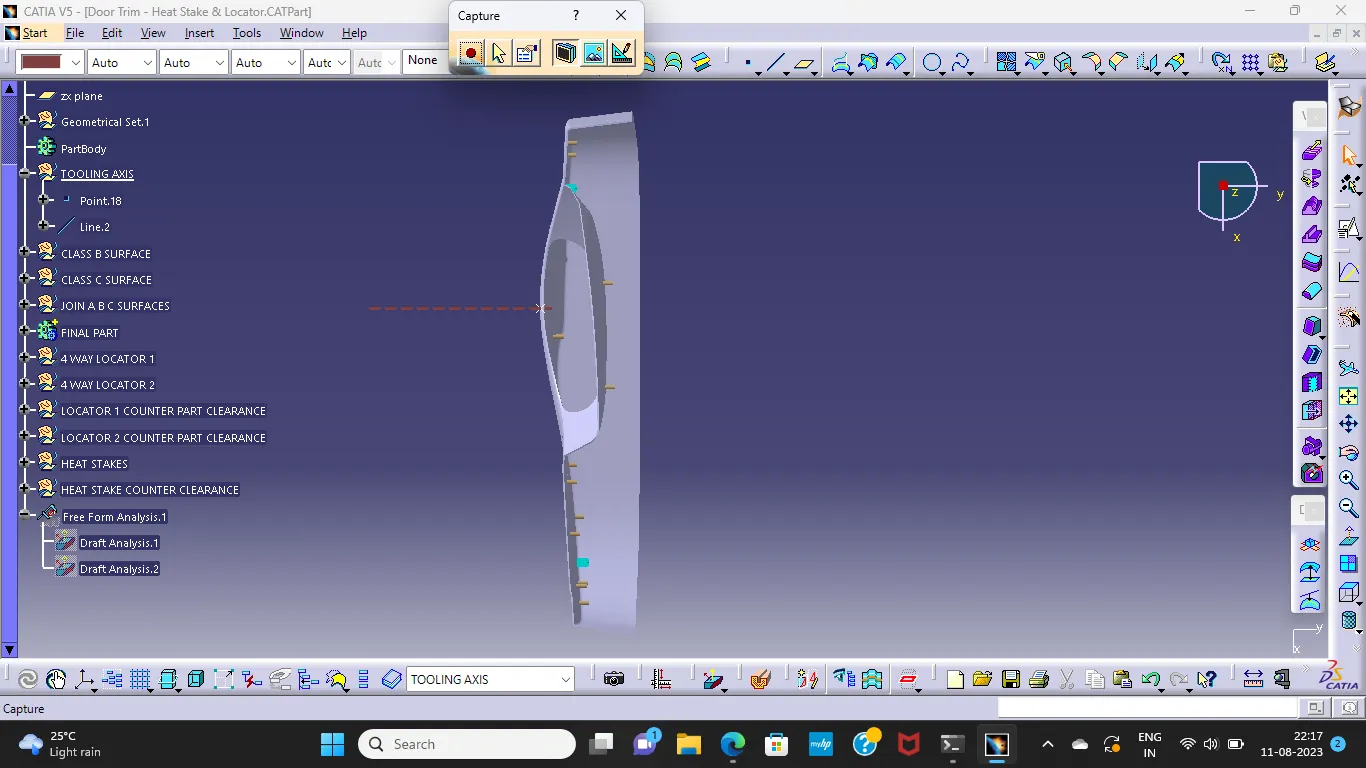

TOOLING AXIS: By taking Point command point type-on surface,direction-x component,distance- -100mm created point on given class A surface.after that i took line command line-type-point-direction,direction-y component created line for tooling axis.

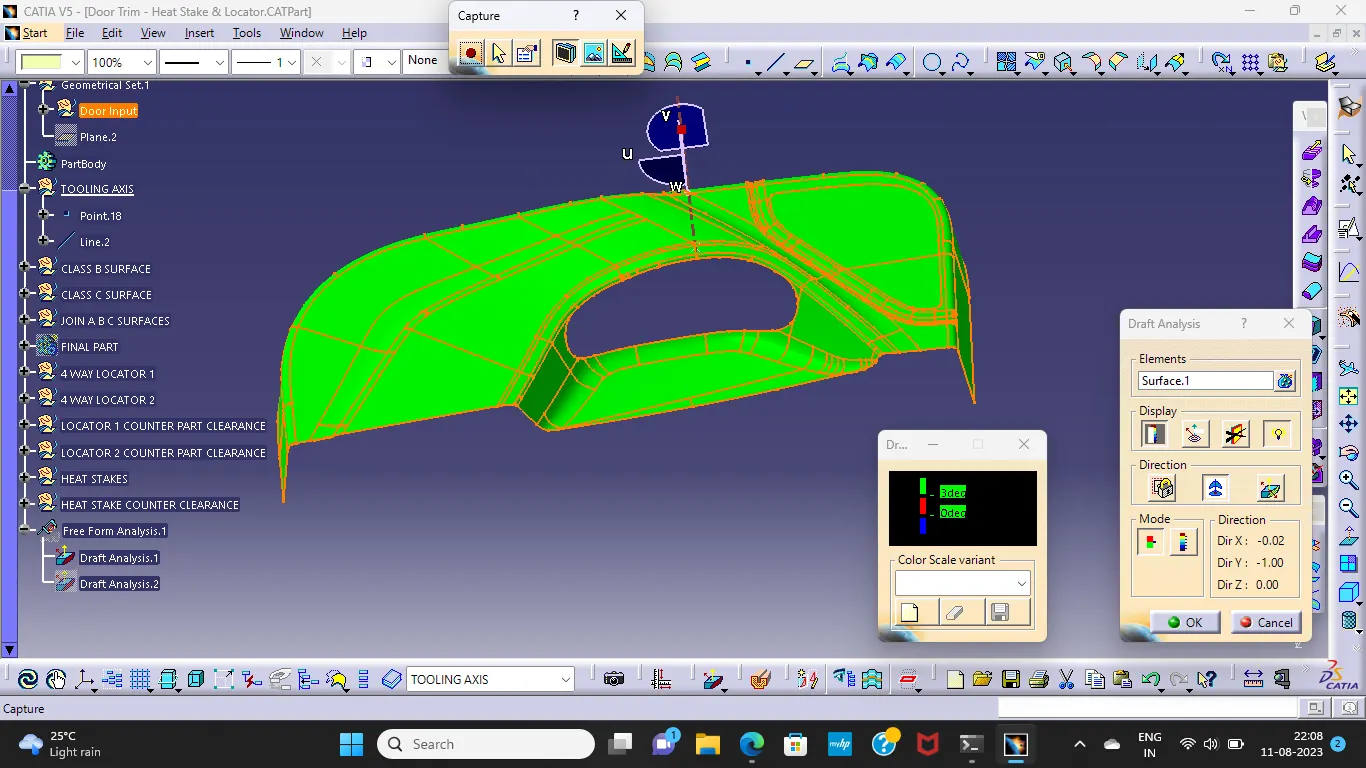

CLASS A SURFACE DRAFT ANALYSIS: Given class A surface is clearing with 3 deg draft.
