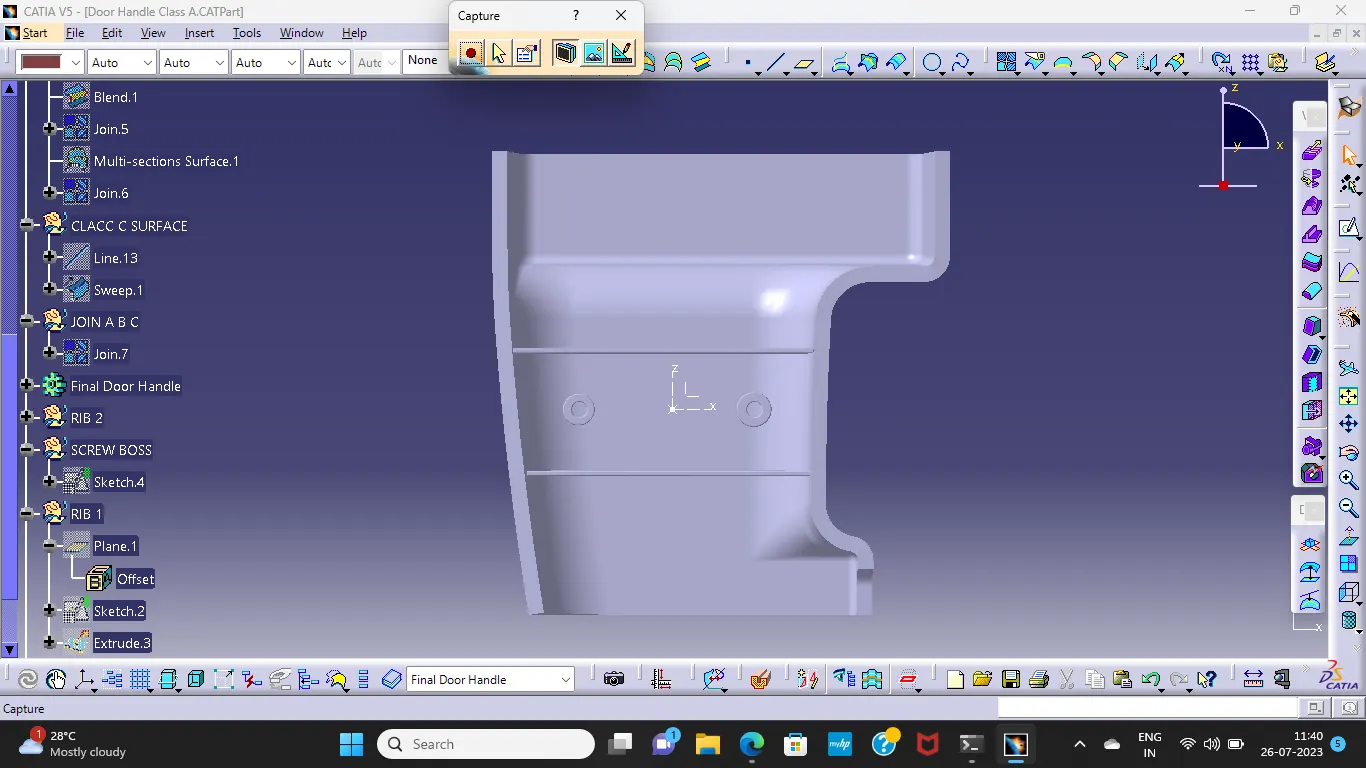

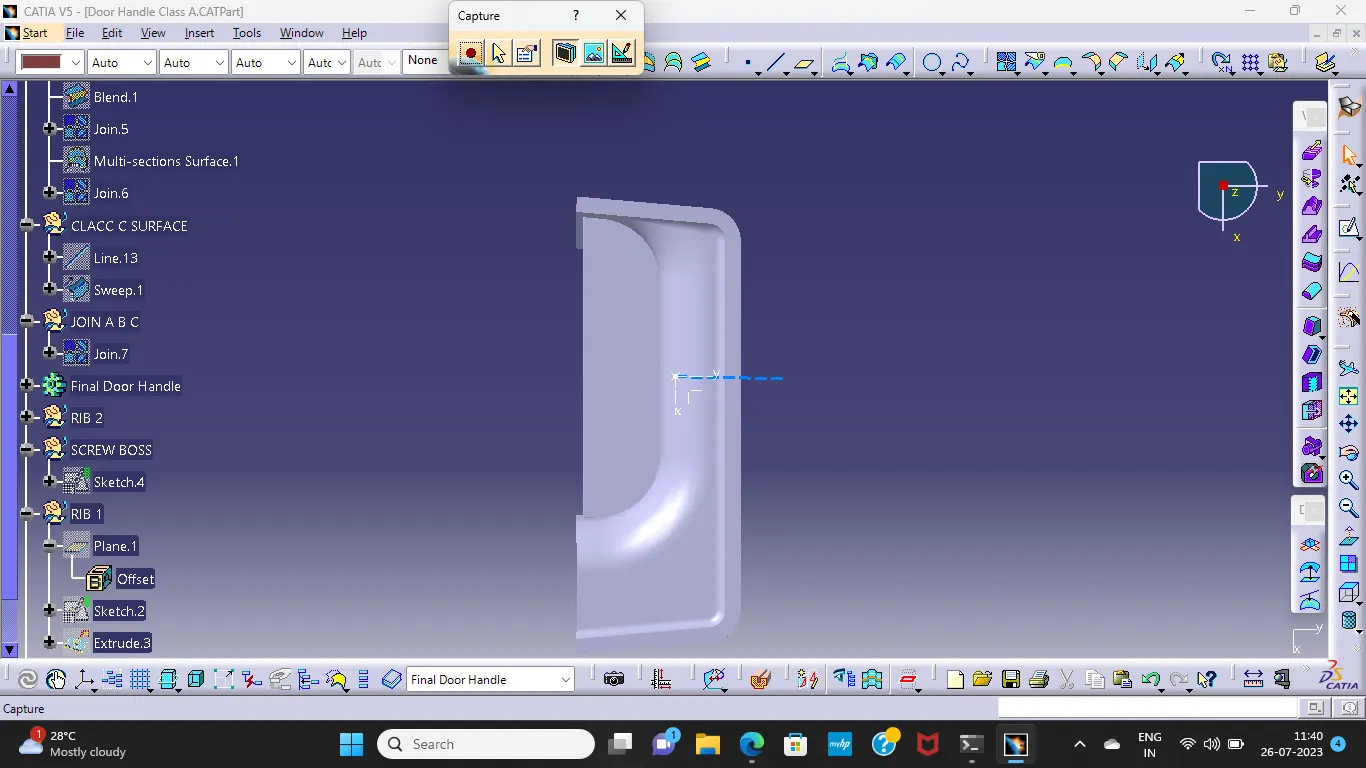

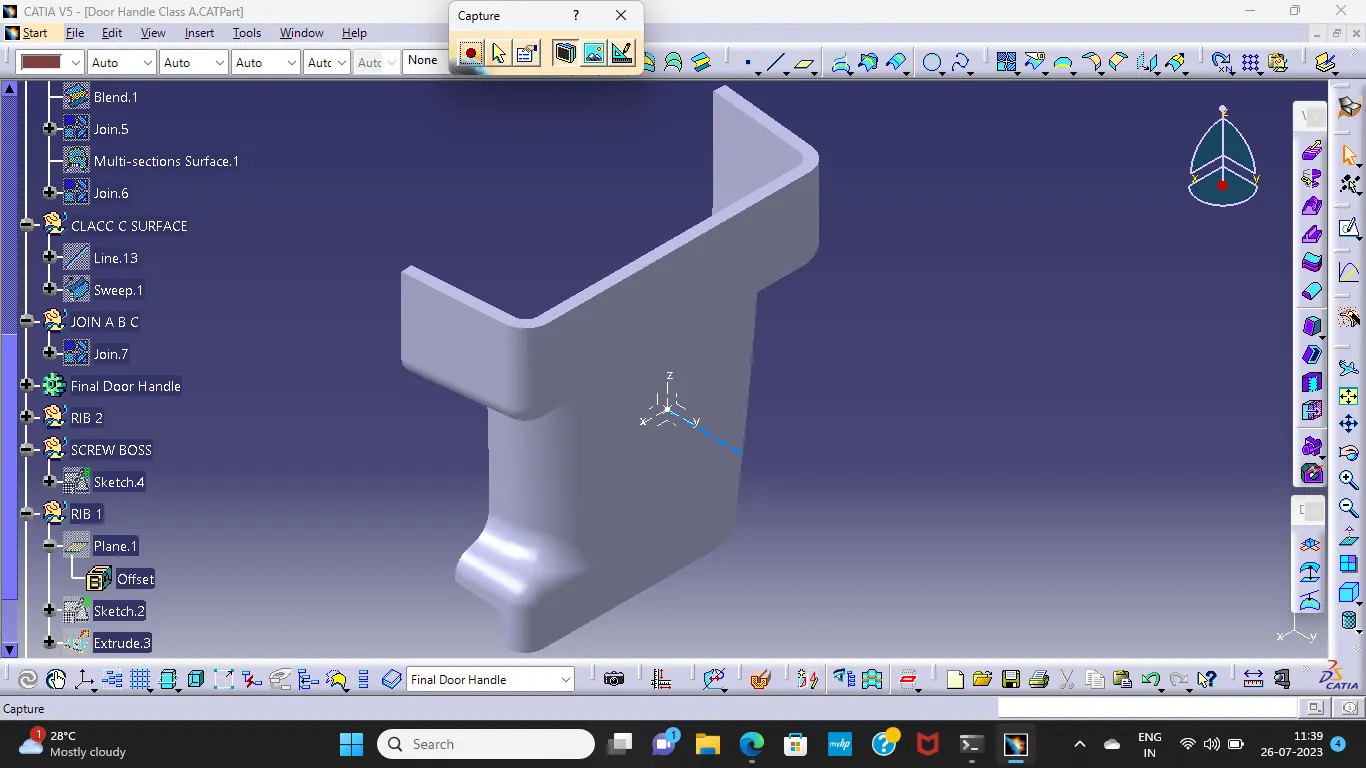

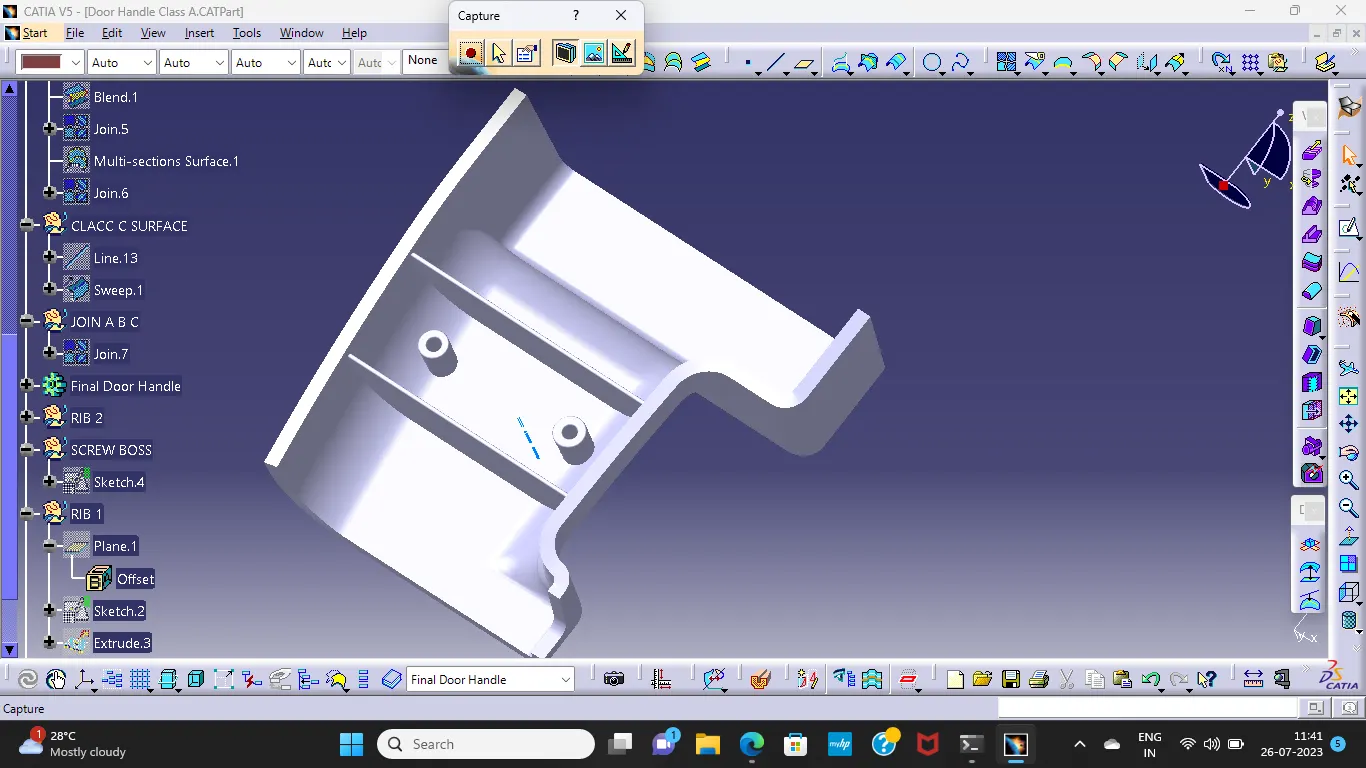

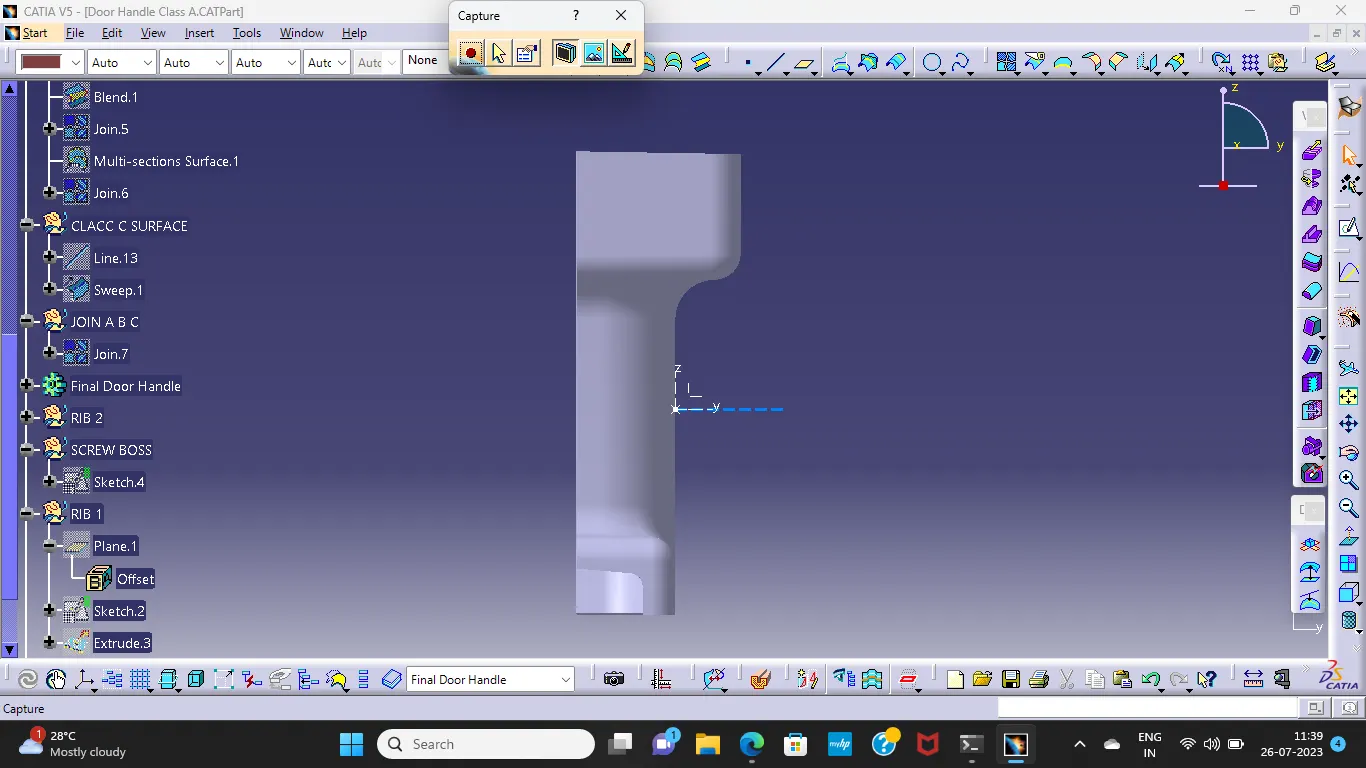

Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

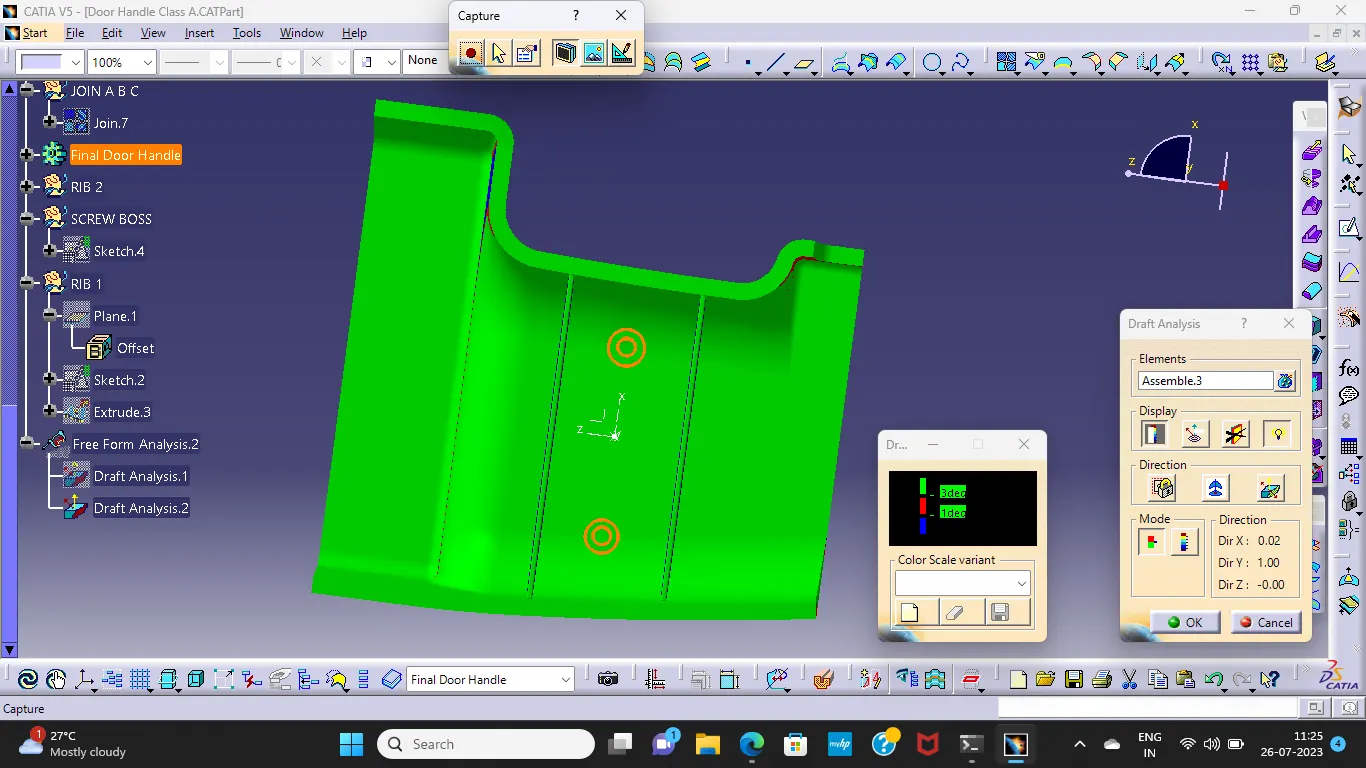

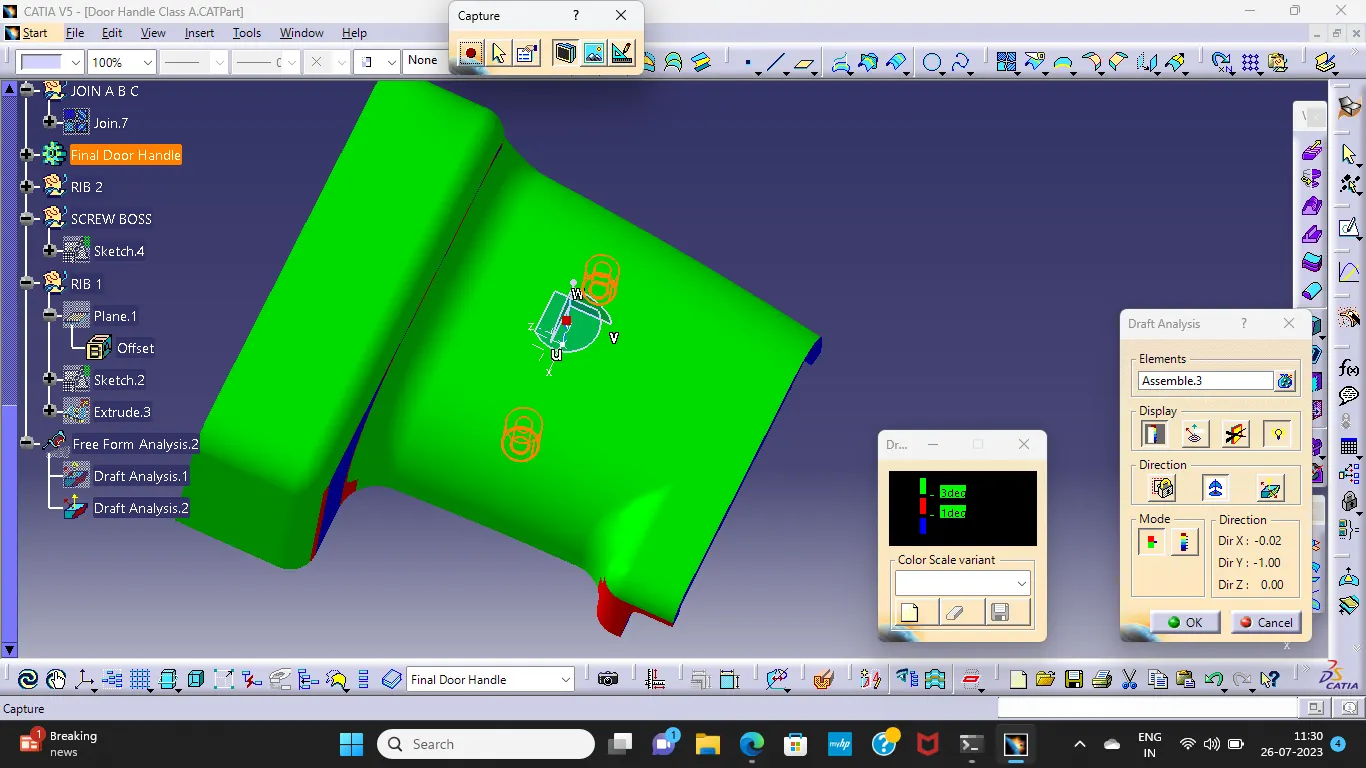

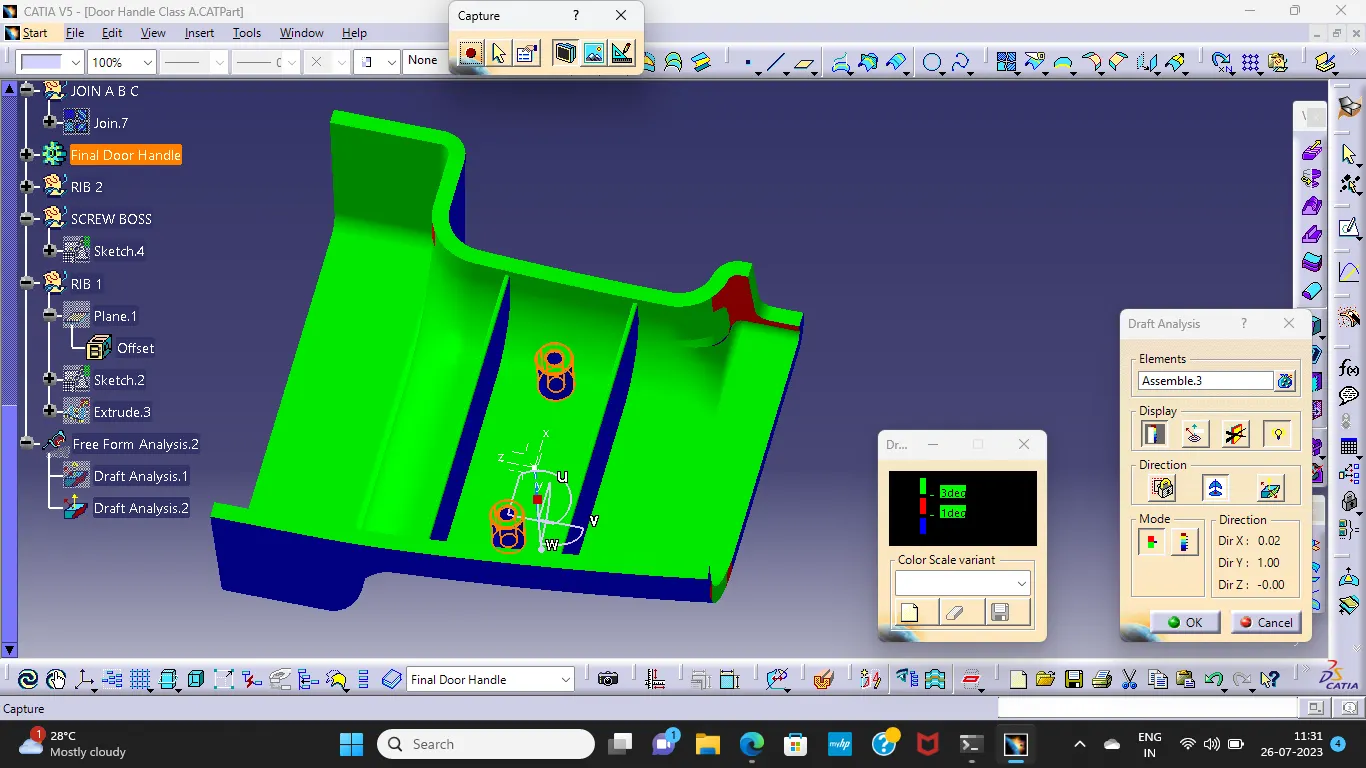

CLASS A DRAFT ANALYSIS

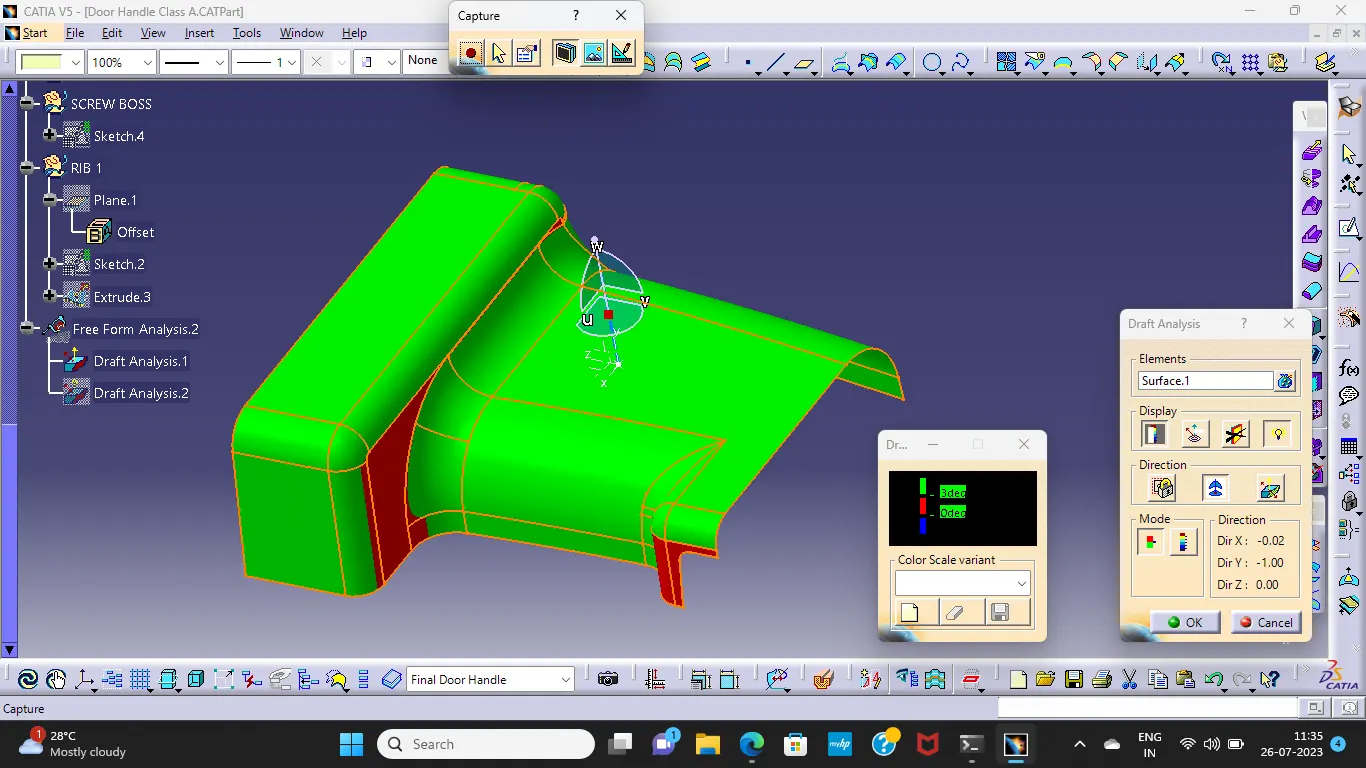

For given class A surface in draft analysis its not clearing.In this red colour shown surface is varing 1deg.

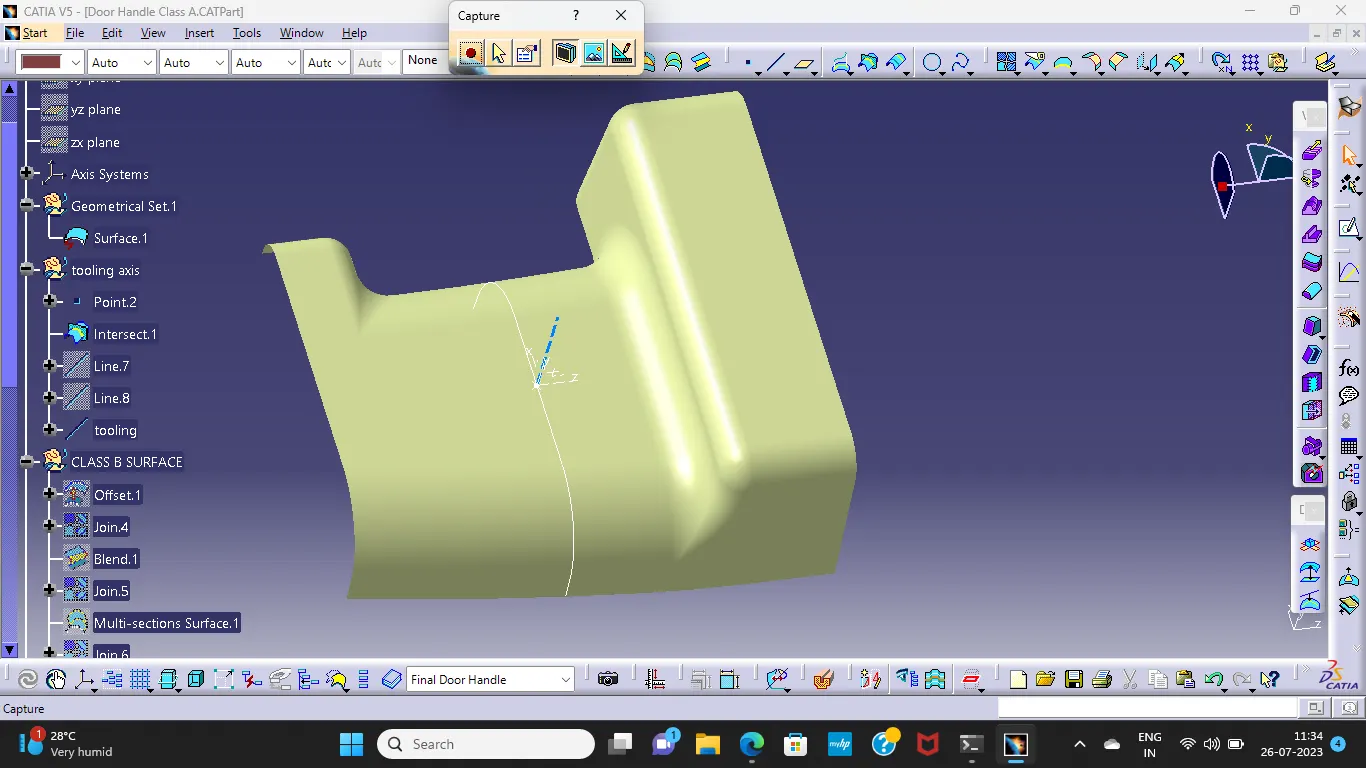

CLASS A TOOLING AXIS

For given class A surface i create intersection and 2 lines for bisecting and created tooloing axis.
