Week 10 - Challenge 2- Attachment Feature Creation (Dog House)
DOOR TRIM DOG HOUSE
Dog House
B is 3 to 6mm maintain
C - 1.0mm which is 40% T main part wall thickness 2.5
Draft Dog House outside tooling axis 1.5 degrees and inside slider draft 0.5 degree

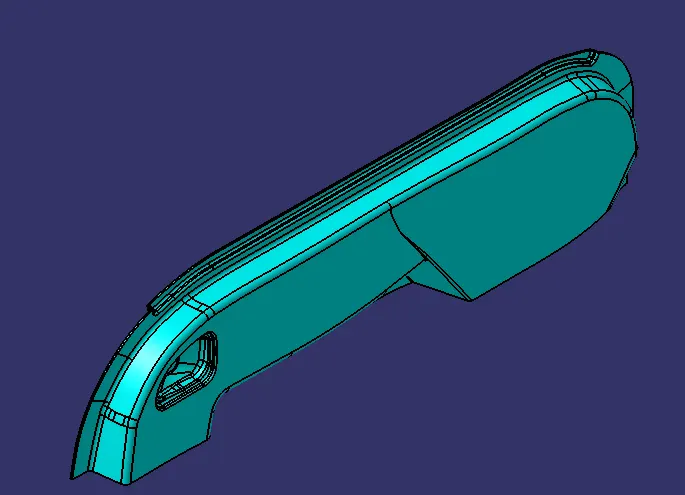

Isometric View

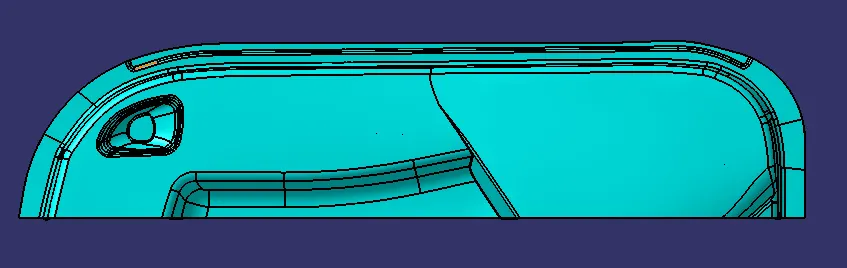

Front View

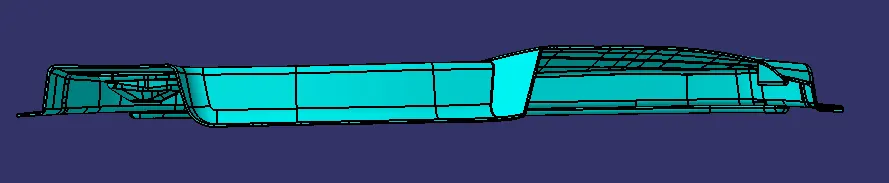

Side View
Top View

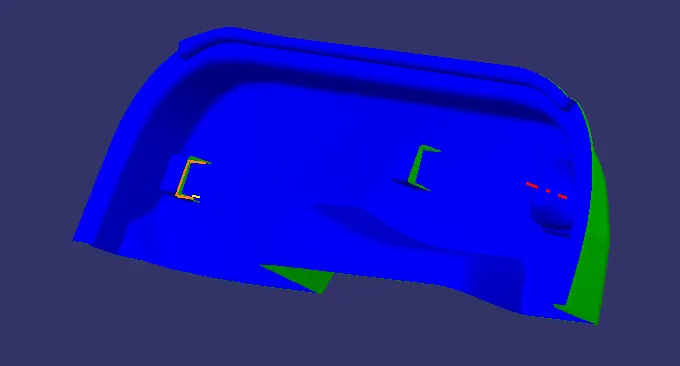

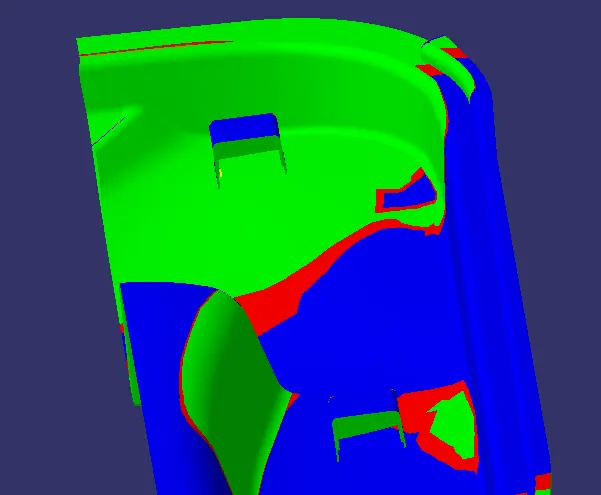

Draft Analysis
Draft Analysis Solid Part Model - Tooling Direction
Draft Analysis Solid Part Model - side core direction

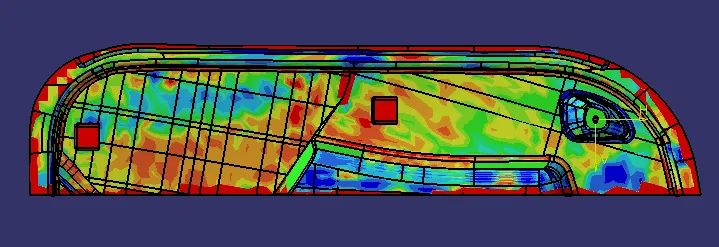

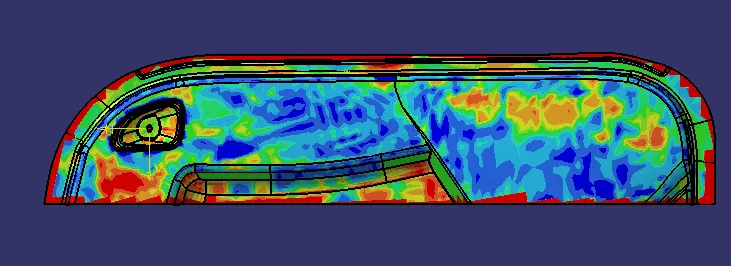

Wall thickness Analysis
Main Wall thick 2.5mm
Front view
Back View

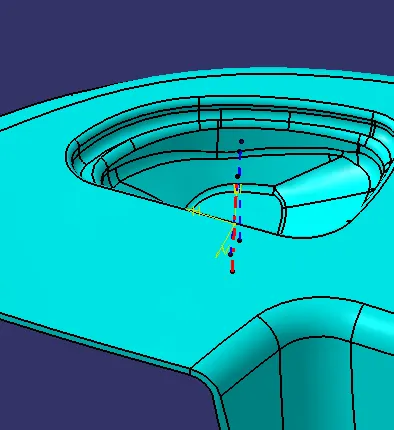

Creation of Tooling Axis
The tooling Axis is created from the bisecting line of Refer Line 01 and 02 which is highlighted in blue colour.

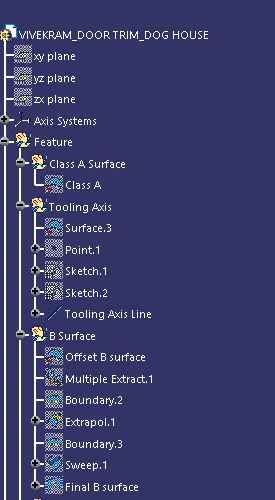

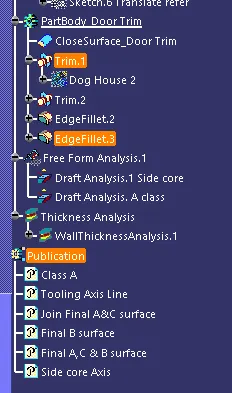

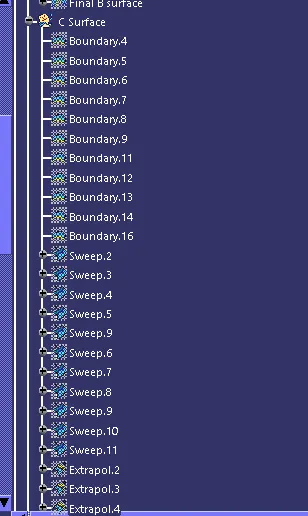

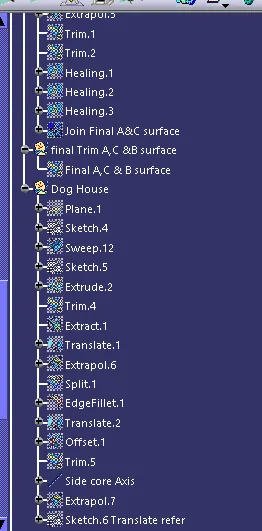

Geometrical Sets and the Part Body
