Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

                                Attachment Feature Creation (Dog House)

AIM:

           To create the dog house for the door trim considering  all the design rules and regulation with the given class-A surface.

PROCEDURE FOLLOWING:

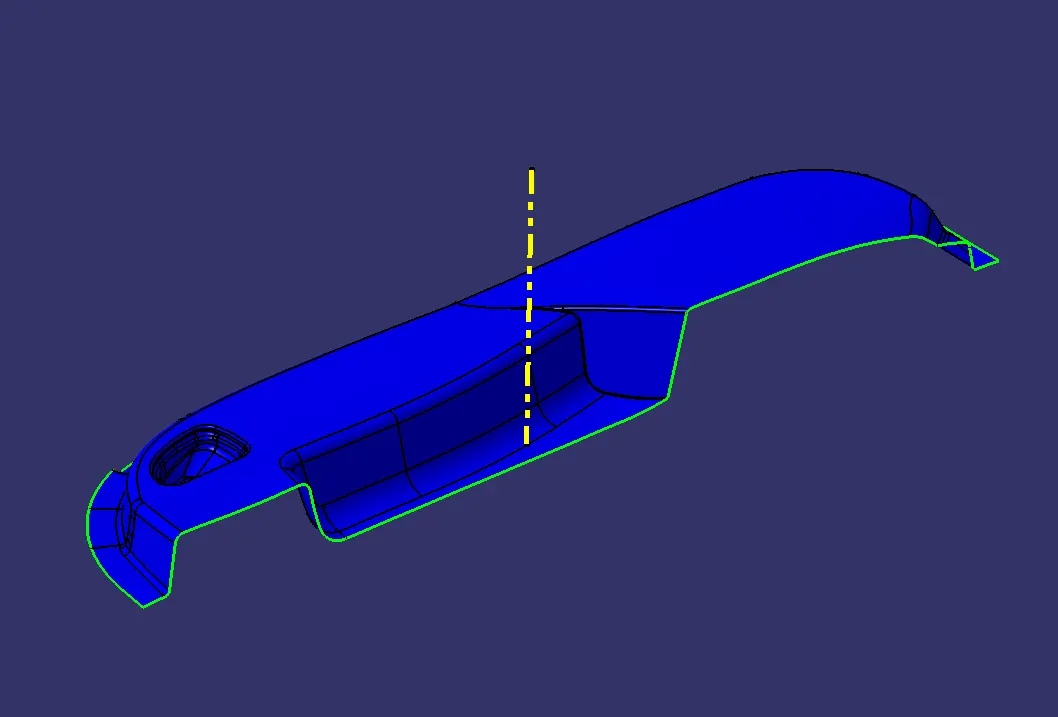

• A tooling axis has been created for the given class-A surface in the direction of the mould opening and side core axis.

• The class-B surface has been created by offsetting 3mm from the class-A surface.

• Then class-C surface has created from the class-B surface

• after that the class-A & class-C surface has joined

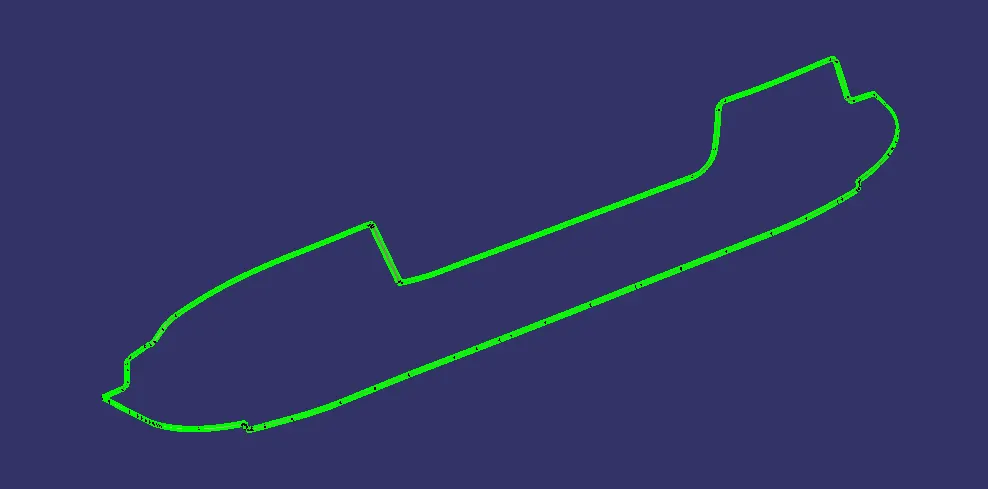

• And then final trim has done.

DOG HOUSE CREATION

• Dog house 1 & 2 has created as per the design regulation given.

Draft Analisys.

CLASS-A DRAFT ANALYSIS

CLASS-B DRAFT ANALYSIS

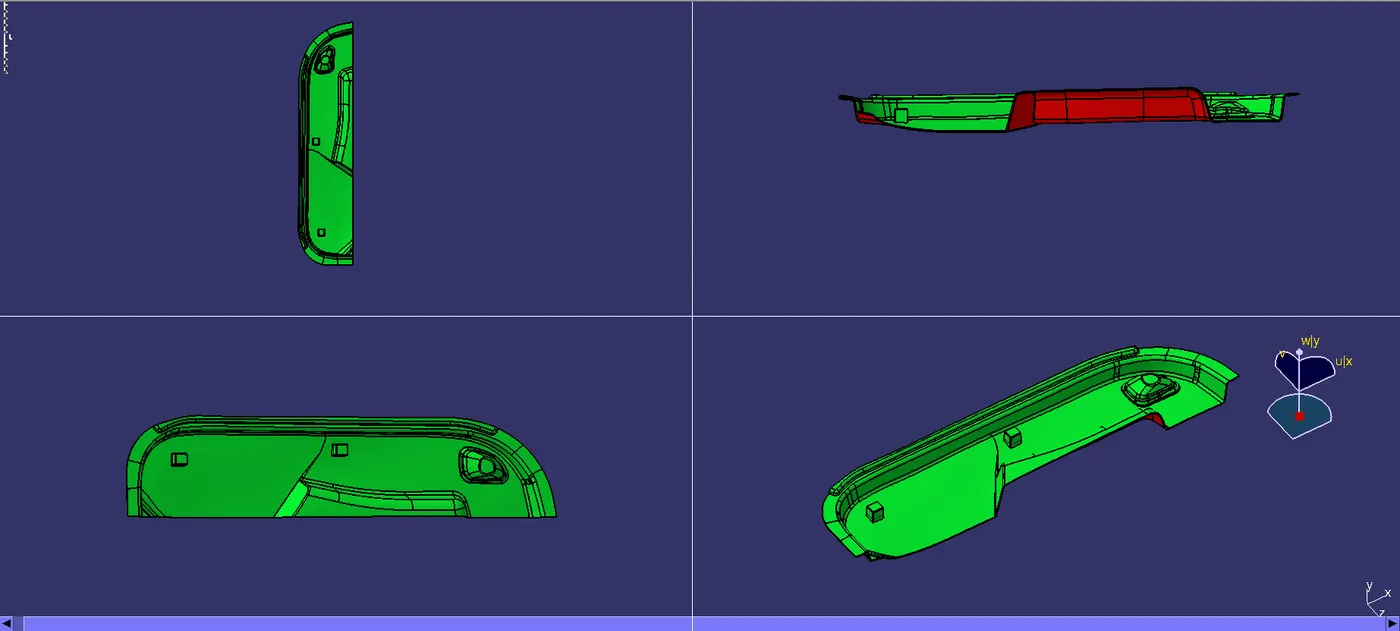

FINAL DRAFT ANALYSIS

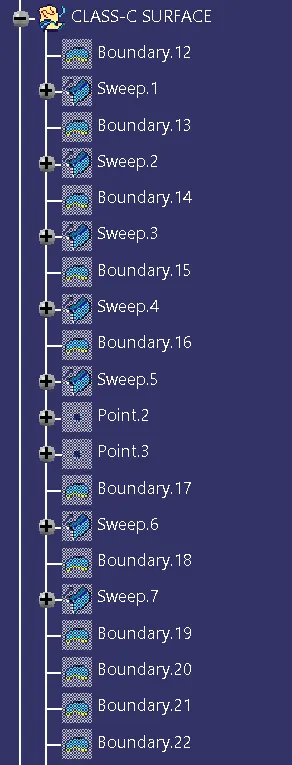

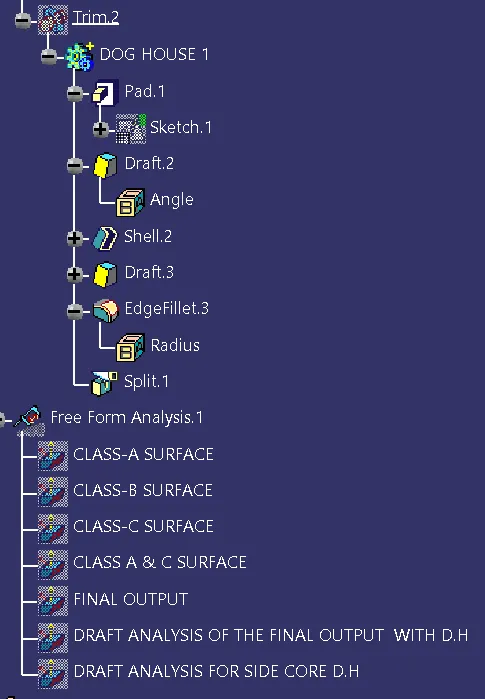

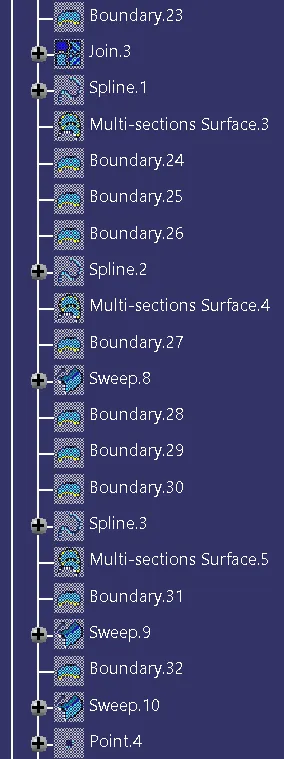

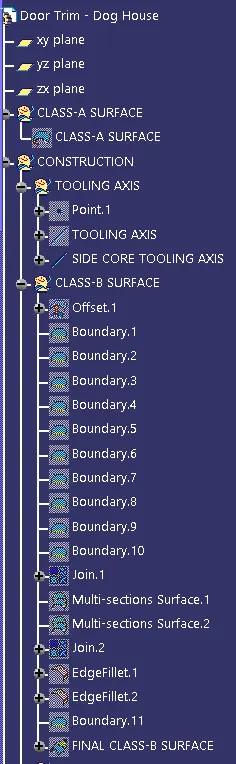

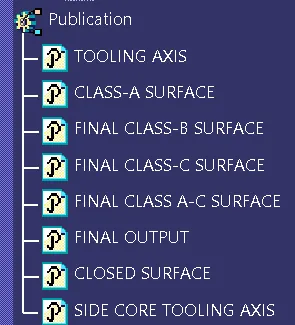

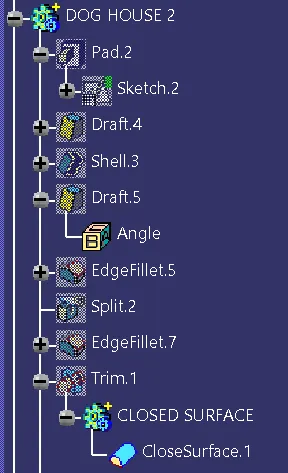

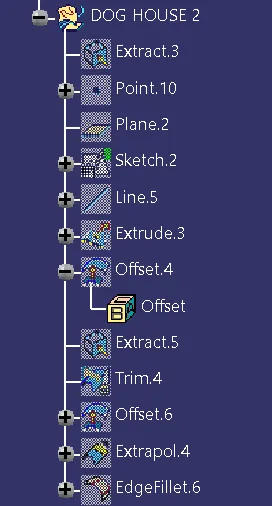

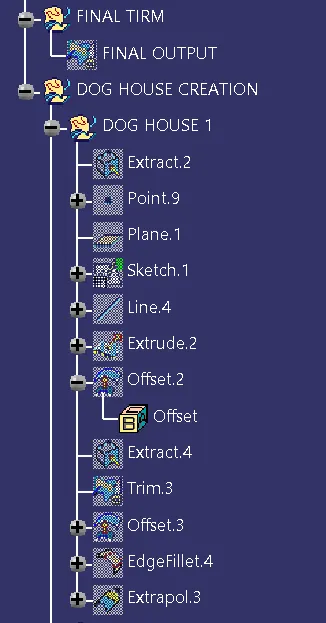

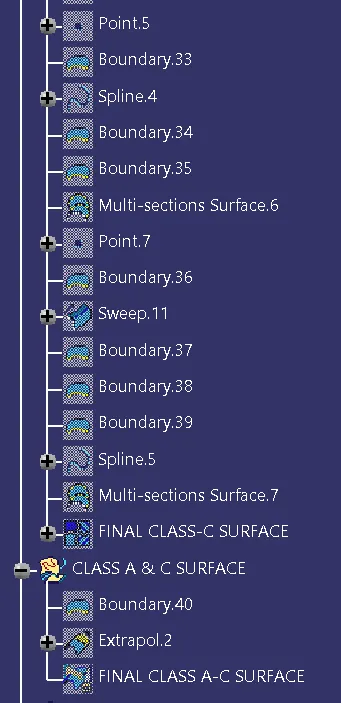

 TREE CHART

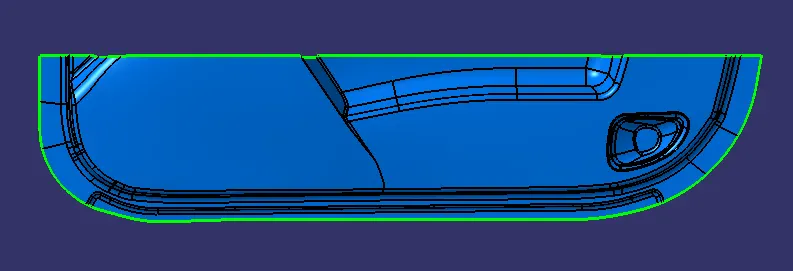

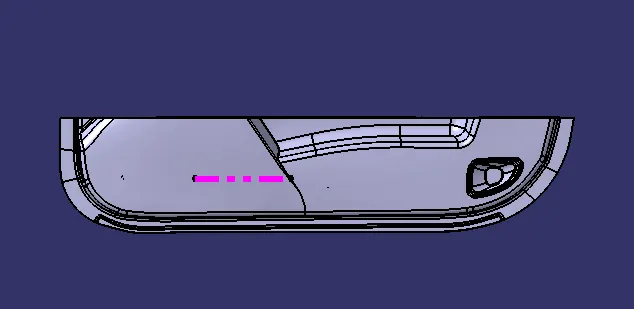

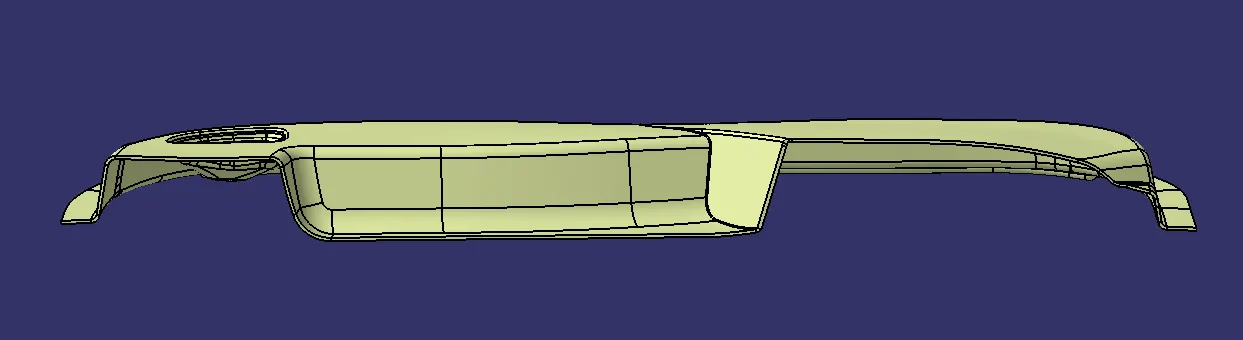

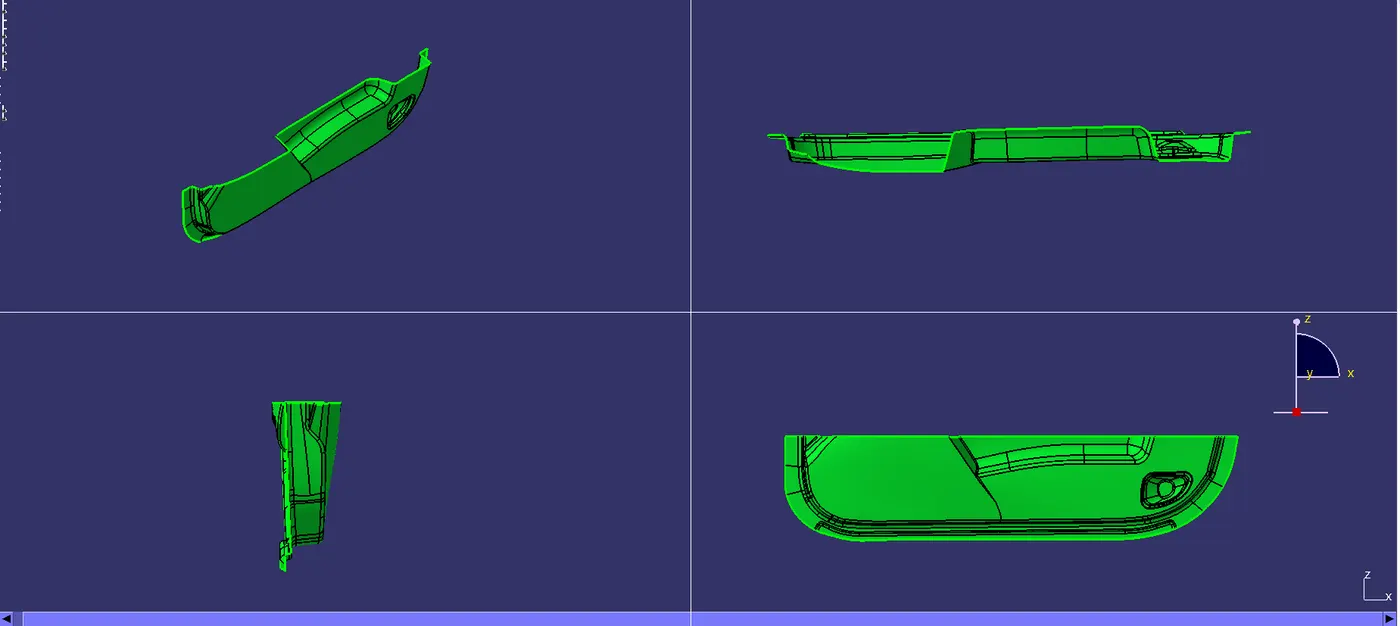

TOP VIEW

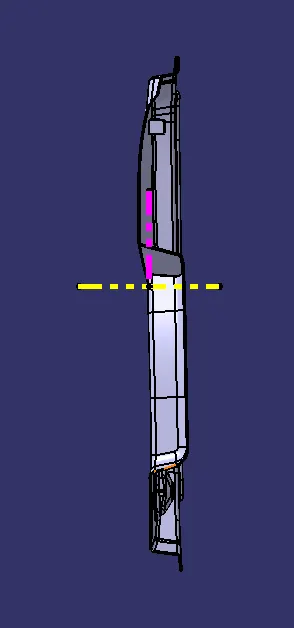

LEFT VIEW

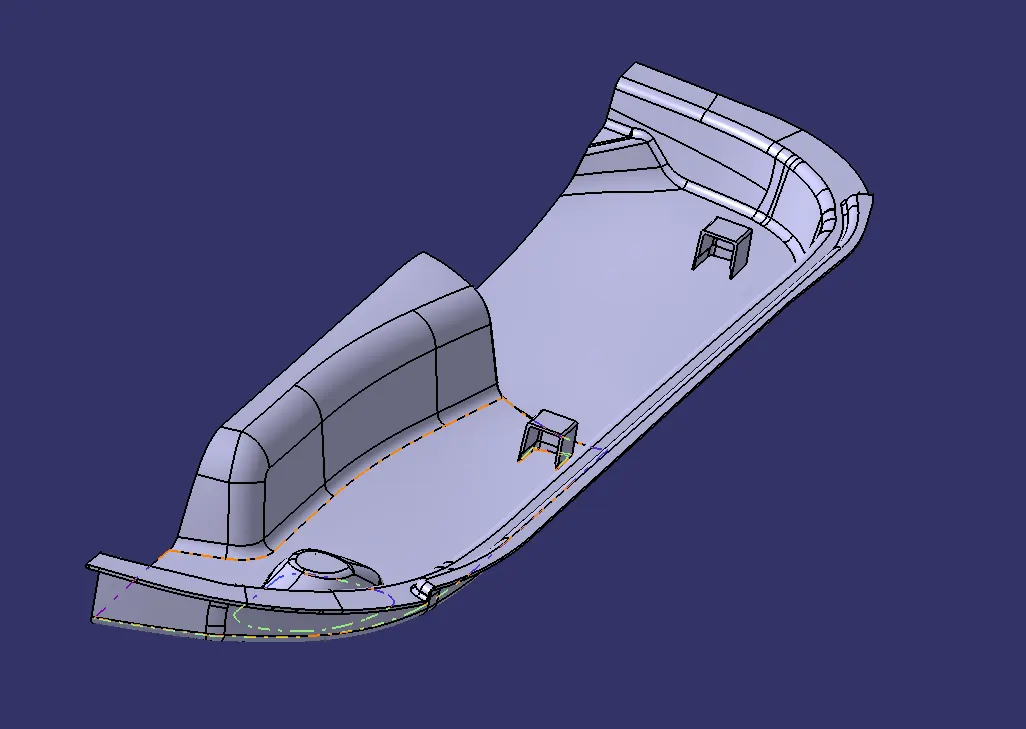

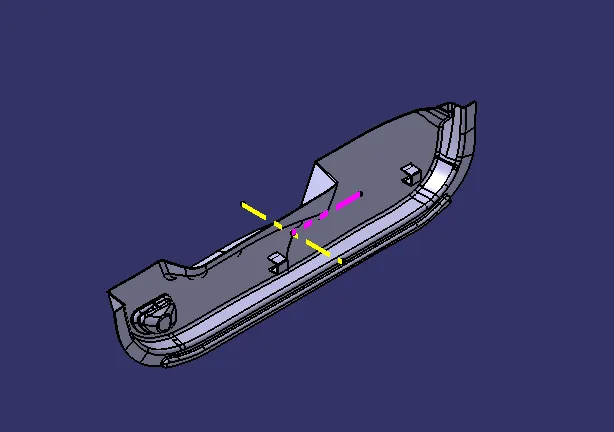

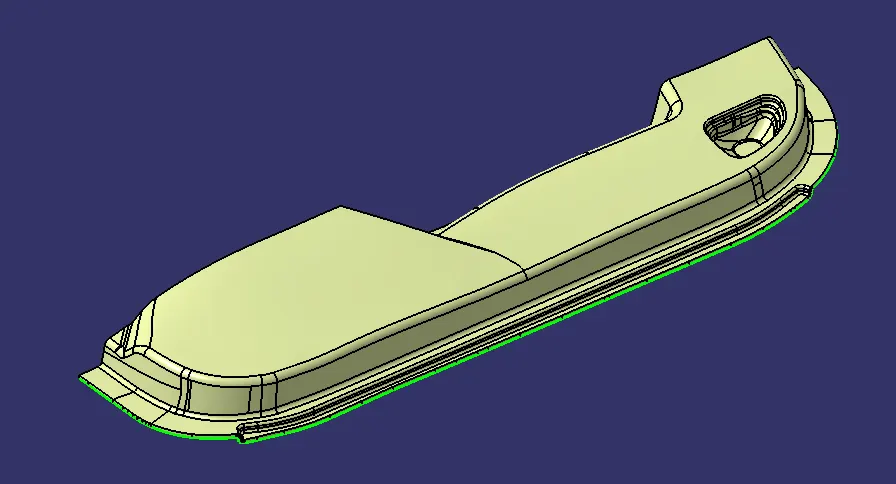

ISOMETRIC VIEW

CONCLUSION

The above given model is designed with all the design rules and regulation and maintained all the dimension correctly.
