Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

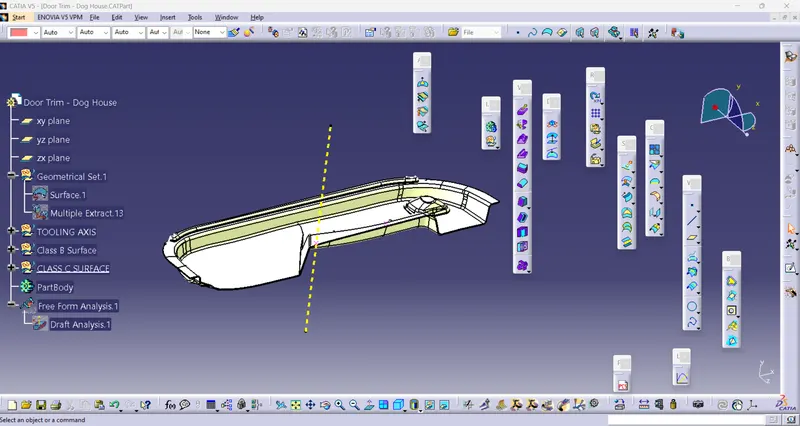

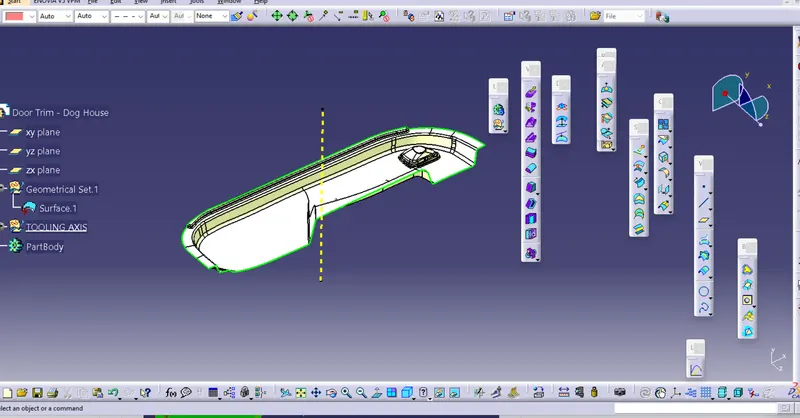

TOOLING AXIS:
The tooling axis is a direction in which the core and cavity open and close. The draft angle is provided with respect to the tooling axis.

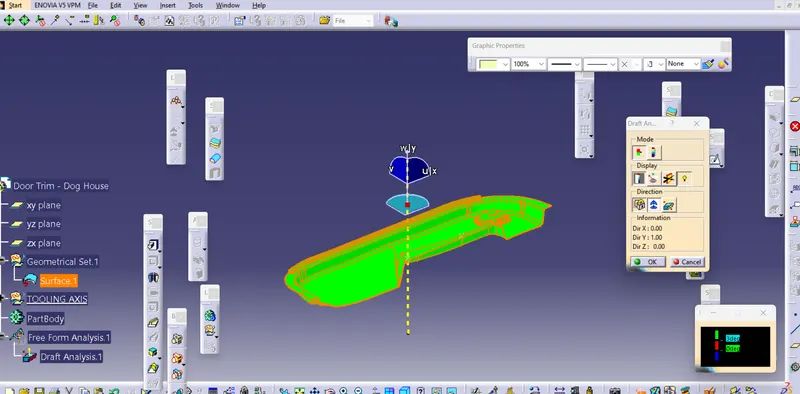

DRAFT ANALYSIS OF CLASS A SURFACE:
Green colour - above 3-degree positive draft
Red colour -between 3 and 0
blue colour- below 0 degree
The view changed to material mode

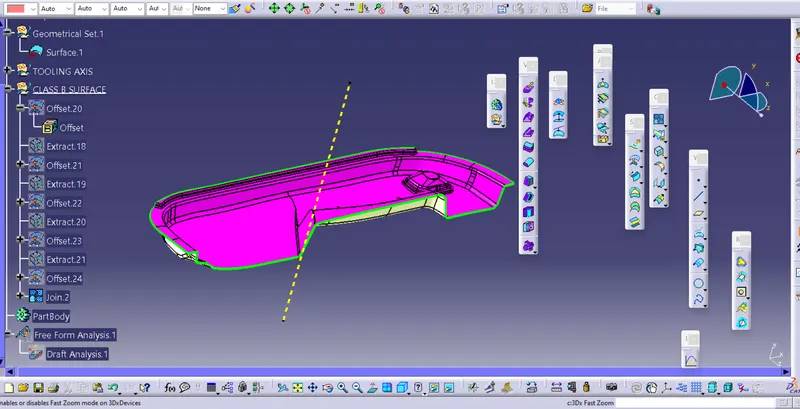

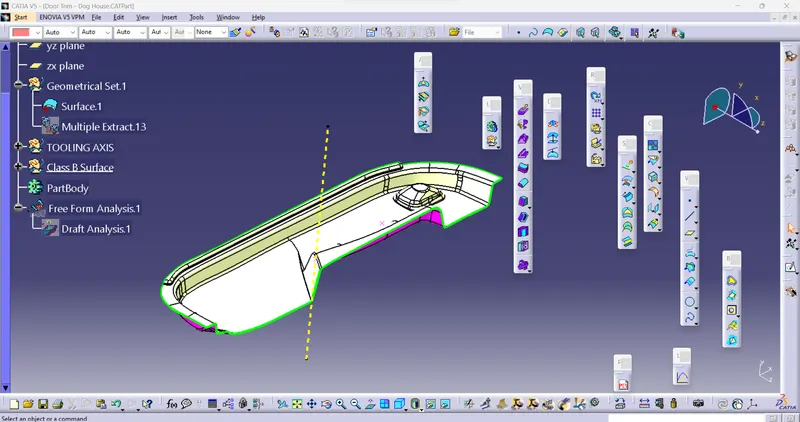

CLASS B SURFACE
B SURFACE is created by Offsetting the class-A surface to 2.5mm inward direction.

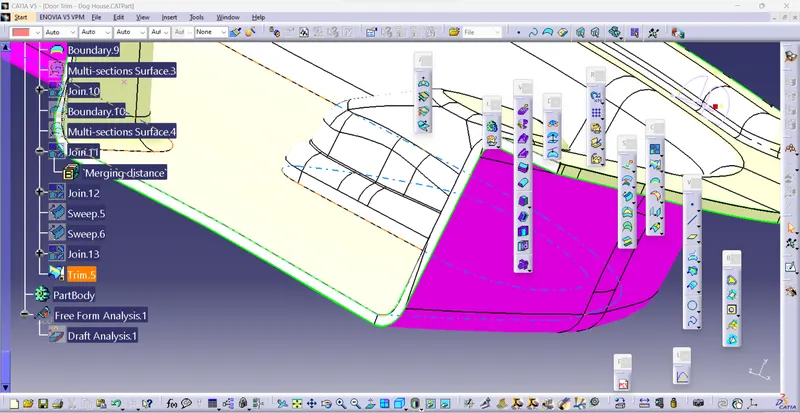

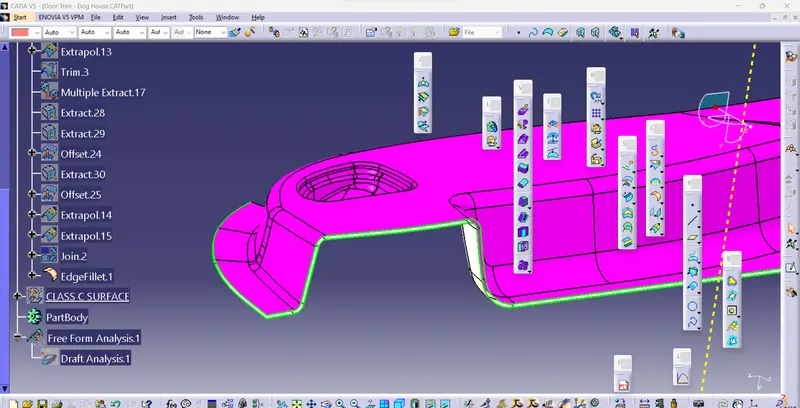

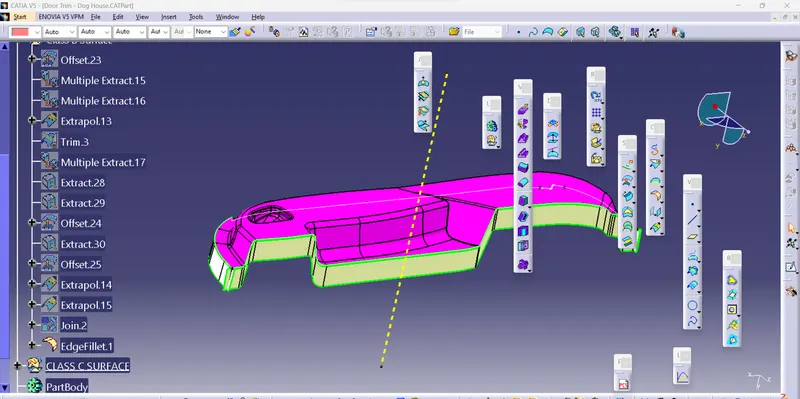

CLASS C SURFACE
The surface that joins class-A and class-B surfaces are class-C surfaces.

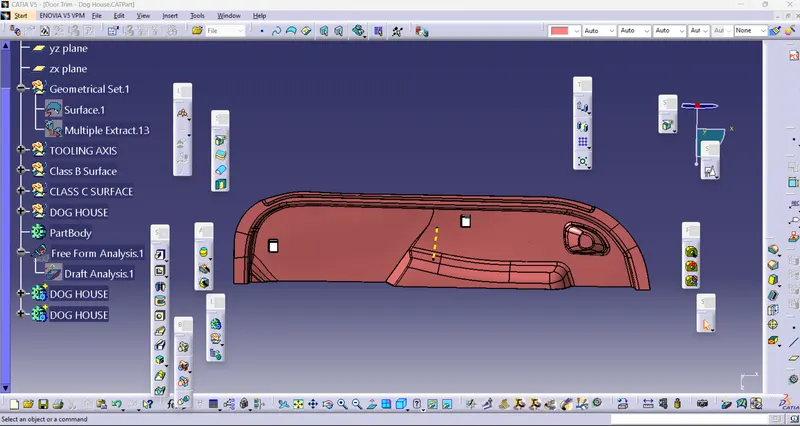

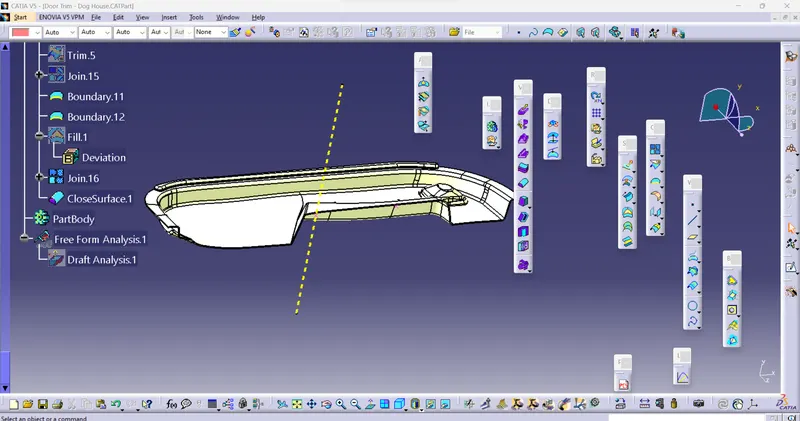

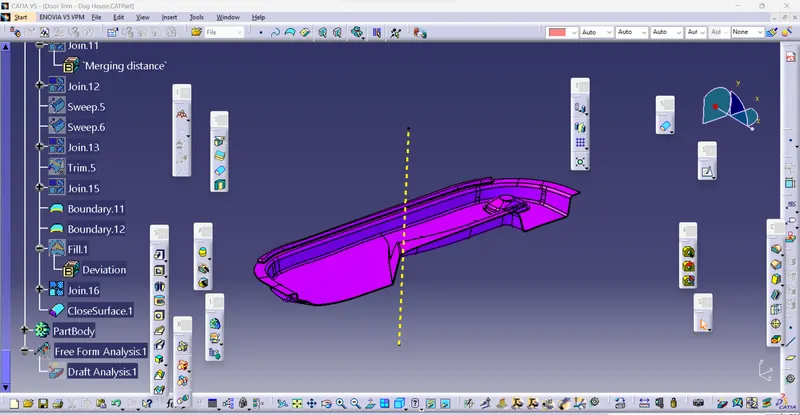

SOLID SURFACE FORMED
The close Surface feature is used to make a solid body from the surface.

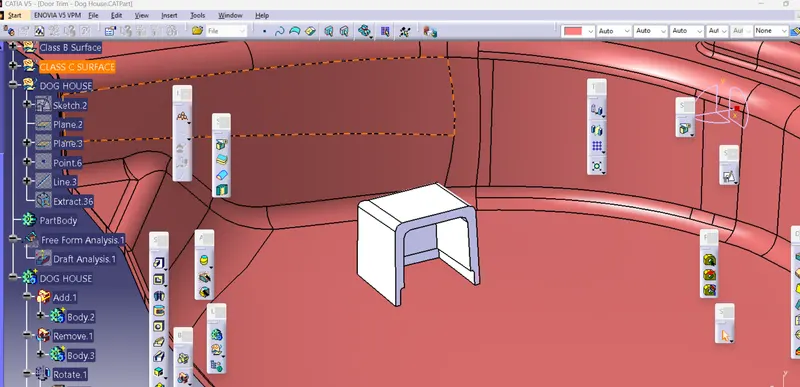

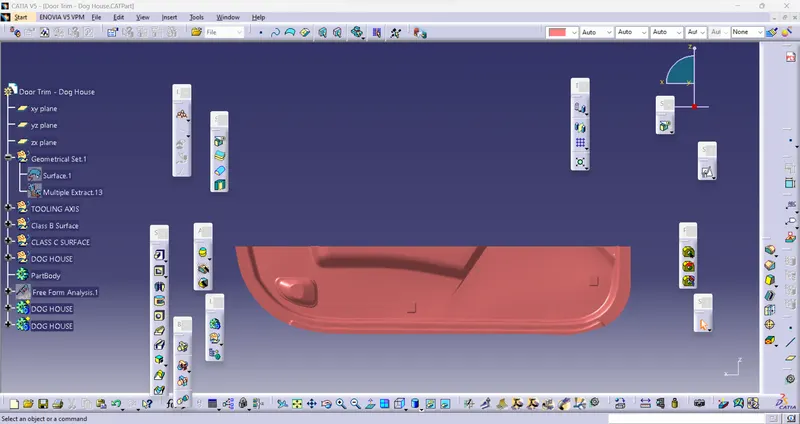

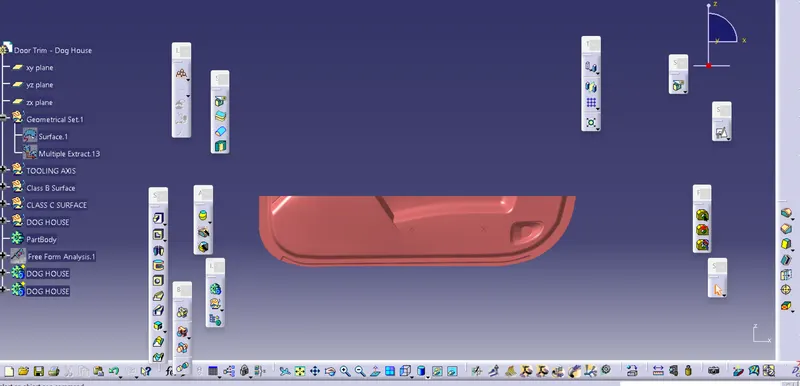

DOG HOUSE CREATION:

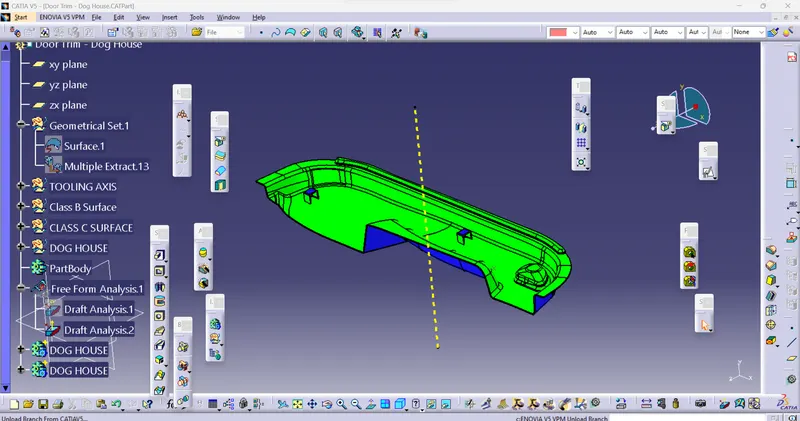

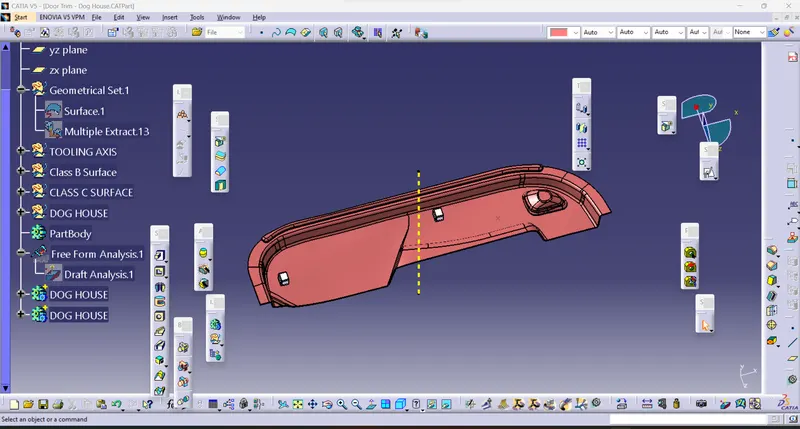

DRAFT ANALYSIS:
