Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

1. What does popt and pcov mean? (Watch the video to get some context) 2. What does np.array(temperature) do? 3. What does the * in *popt mean? 4. Write code to fit a linear and cubic polynomial for the Cp data. Explain if your results are good or bad.  5. What needs to be done in order to make the curve fit perfect?…

Data visualizer Your script should take column numbers as the input and plot the respective columns as separate images Each file should be saved by the name of the column The plot labels should be extracted from the file. If, I request for a plot between column 1 (crank angle) and column 8(volume), then the label information…

  objective:- to write a program that solves the following ODE. This ODE represents the equation of motion of a simple pendulum with damping In the above equation, g = gravity in m/s2, L = length of the pendulum in m, m = mass of the ball in kg, b=damping coefficient.   program:- import numpy as np from scipy.integrate…

                                           “AIR STANDARD CYCLE PROGRAM USING PYTHON.” AIM:- Based on the concepts you have learnt during the forward kinematics routine, go ahead and write code…

AIM:- Assemble and apply GD&T to the butterfly valve assembly drawing Softwares Used Siemens NX 12  Parts of Butterfly Valves Butterfly valve body  Shaft Disc Plate  Lever Retainer  Nut Bolt Assembly After the design, all the models should assemble with appropriate constraints. The assembly is created…

AIM:- Use the provided styling surface to come up with a back door design, use appropriate design methodologies, and provide the necessary reinforcements and embosses Types of Back door Top mounted Side mounted Bottom mounted Back Door Assembly Components: Inner Panel Outer Panel Hinge Reinforcement. Gas Stay Reinforcement.…

AIM / OBJECTIVE:  For the given roof styling. Create an ASSEMBLY by developing the essential flanges for the outer roof and creating the reinforcements. Provide appropriate dimensions and check for Draft analysis. Do a curvature study on the roof and perform calculations to determine the position of the Bow-roofs.…

  MASTERSECTION OF FENDER:-                                       FENDER:-                 The part of a car that protects and frames its wheels and keeps mud from splashing it. Most…

Calculate the Wheel Arch gap at required points and check whether the car passes the European standard. Wheel Arc Verification Using European Standards:                      Wheel Arc is the part of the fender and semicircular part positioned above the wheel. It protects the wheel from unwanted particles and entering of…

OBJECTIVE:- S = I/y   S = Section Modulus I = Moment of Inertia y = distance between the neutral axis and the extreme end of the object    SECTION MODULAS:-   Ratio of minimum moment of inertia of componant to the distance between the neutral axis and the extreme end of the object is called as…

AIM:- A detailed report about the Hood Design which includes a detailed explanation about hood and its components, Latch Trajectory, Mastic Data, Emboss Definitions, Manufacturing process like Deep-Drawing and Hemming, and all the parameters followed in the design.The report should be well-formatted and should…

AIM:- Development of a Door Trim panel   Creation of CAD model considering following inputs as like in OEM and tier1 companies a) Class A surface b) Nominal thickness : Refer master sections c) Attachment strategy :  Find a attachment strategy for the door panel complete work. Use Push pin with Dog house for…

Underbody: Underbody parts are mainly structure elements and panels placed in the lower part of the vehicle including the whole vehicle's platform. Figure: 1 Underbody parts (Toyota Land Cruiser) If you live in an area of the world that sees a significant amount of snow, or are located in a coastal region, it's quite possible…

OBJECTIVE :-  I am Going to Suggest a Big Car for Mr.D.S. Pughazhyendhii Under 8 to 10 Lakhs on Road for Official and Family Purpose Traveling Distance Around 500km and daily use in city . SUGGESTION OF BIG CARS:-    Price  ₹ 7.46 - 13.13 Lakh  Fuel Type Petrol, CNG  Mileage 20.01 to…

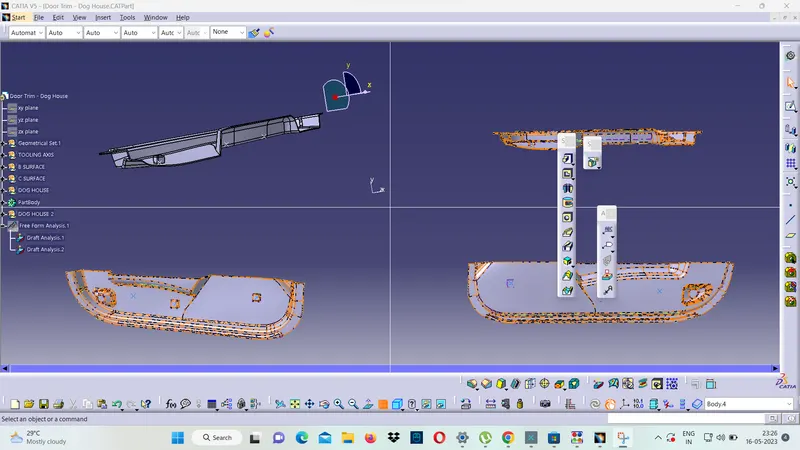

TOOLING AXIS -                        in this componant tooling is made by simple method . first make draft analysis and then select a plane surface and crate o point on centre and made line this line is the tooling axis.  DRAFT ANALYSIS:-      …

TOOLING AXIS -                        in this componant tooling is made by simple method . first make draft analysis and then select a plane surface and crate o point on centre and made line this line is the tooling axis.  DRAFT ANALYSIS:-      …

  TOOLING AXIS -                        in this componant tooling is made by simple method . first make draft analysis and then select a plane surface and crate o point on centre and made line this line is the tooling axis.  DRAFT ANALYSIS:-    …

  TOOLING AXIS -                        in this componant tooling is made by simple method . first make draft analysis and then select a plane surface and crate o point on centre and made line this line is the tooling axis.  DRAFT ANALYSIS:-    …

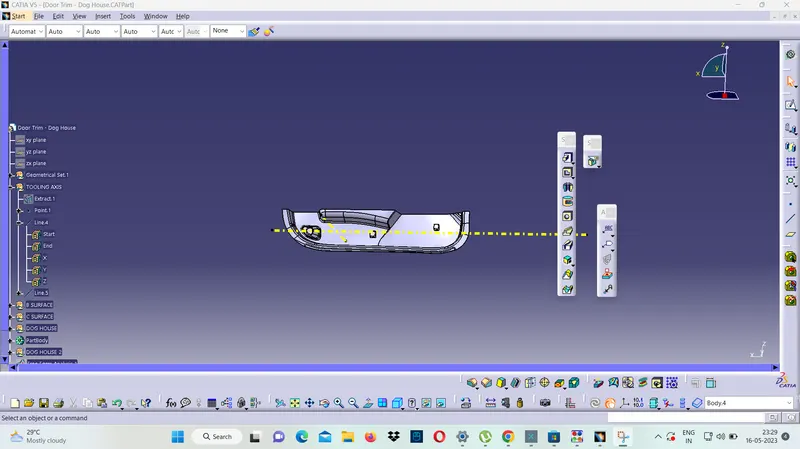

SWITCH BEZAL CORE AND CAVITY  TOOLING AXIS CONSTUCTION                                   Tooling axis for this componants is already made by bisecting methode in some week ago`s challenge. in this bisecting method first of all take…
