Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)
Door Handle_ Rib and Screw Boss

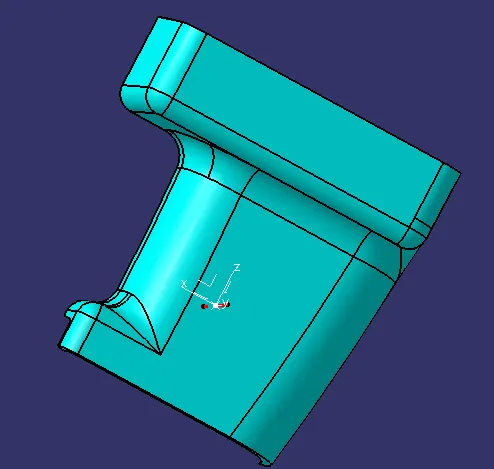

Isometric View

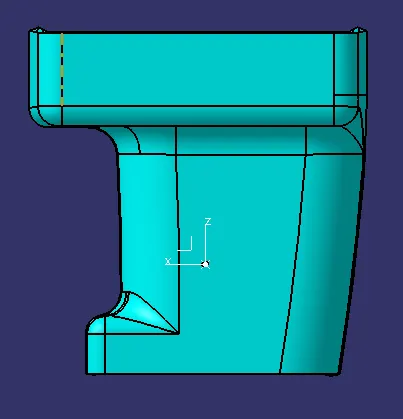

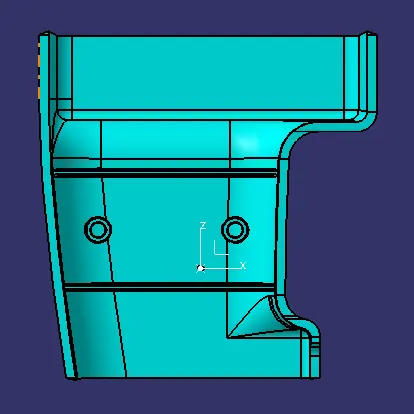

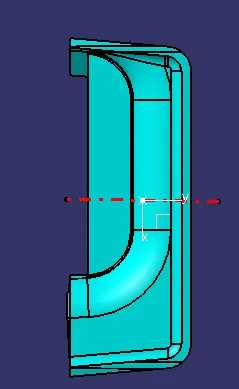

Front View
Back View

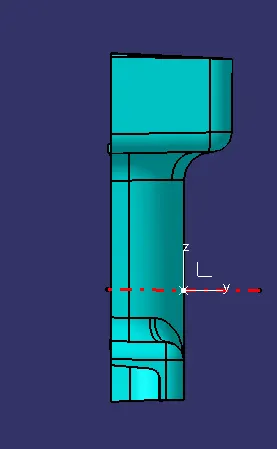

Side View
Top View

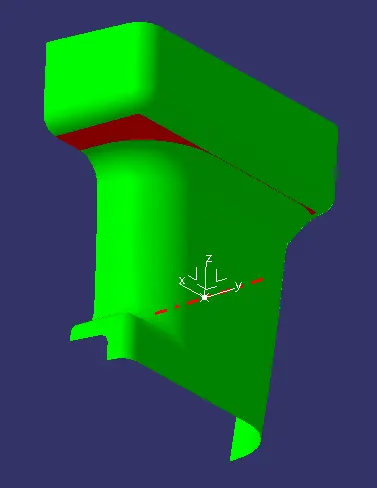

Draft Analysis of A class Surface

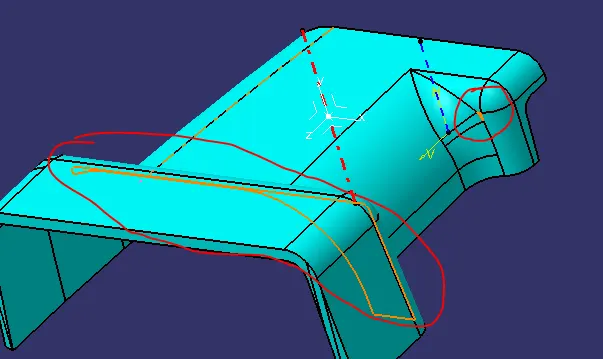

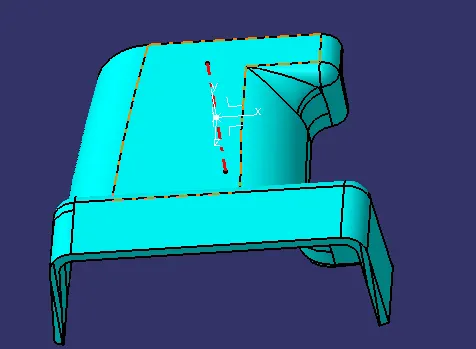

The tooling Axis is Created from the Bisecting line of Refer Line 01 and 02

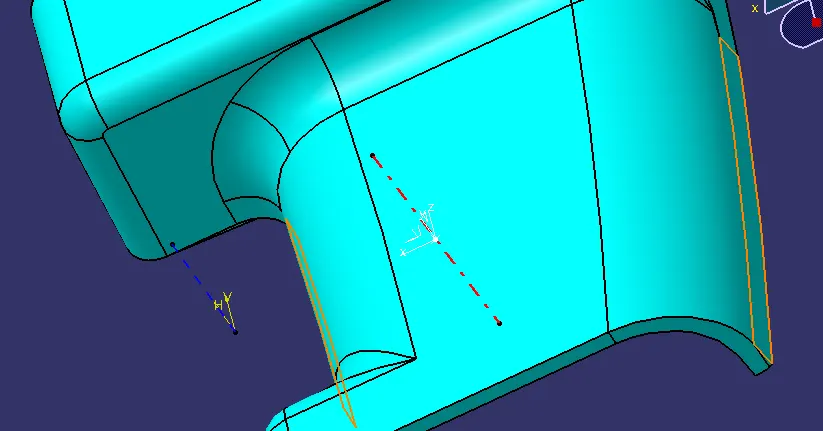

Refer line 01 is the Bisecting line from the of highlighted two side surface
Refer line 01 is the Bisecting line from the of highlighted two side surface

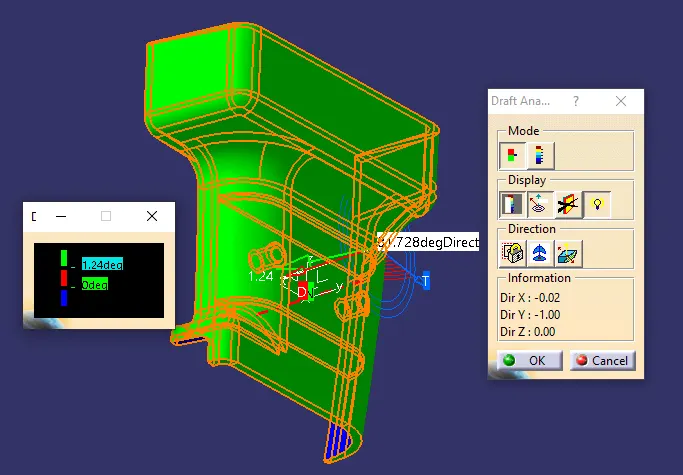

Draft Analysis Solid Part Model
1.24 degree Draft is all around based on the provided A class Surface

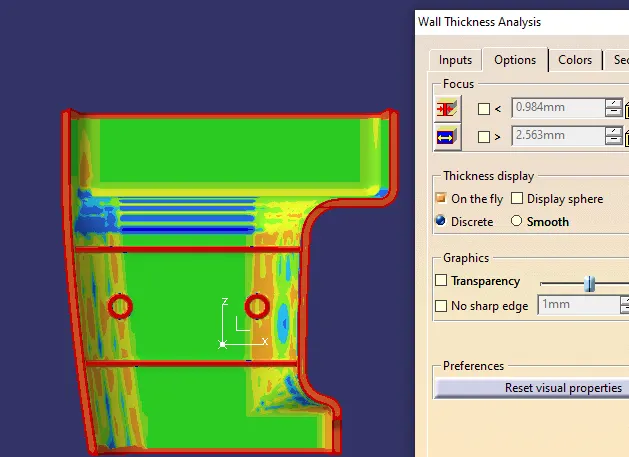

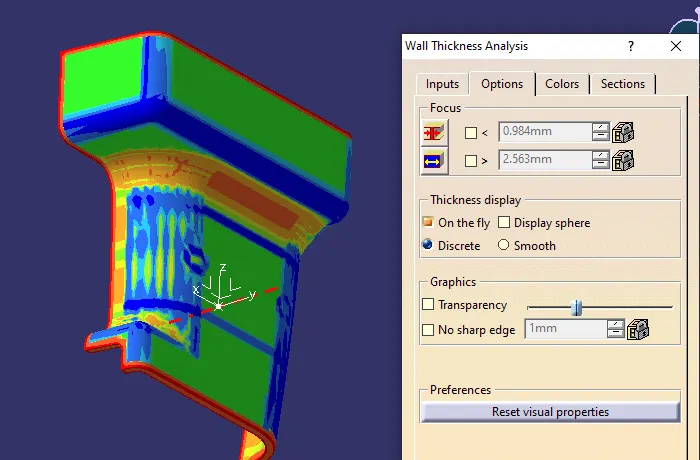

Wall thickness Analysis
Main Wall thick 2.5mm
Rib wall thick 0.90mm
Creation of Tooling Axis

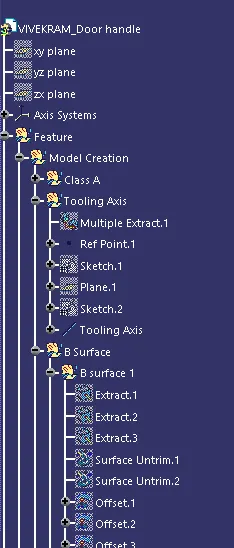

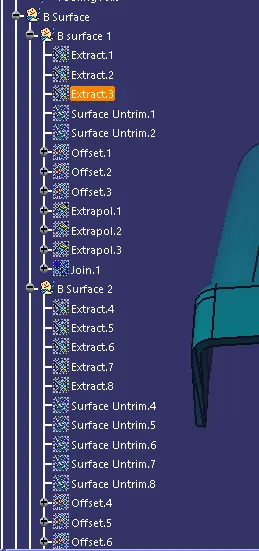

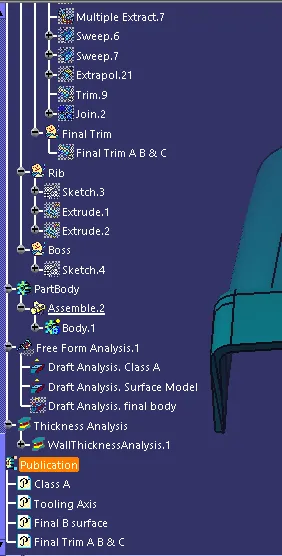

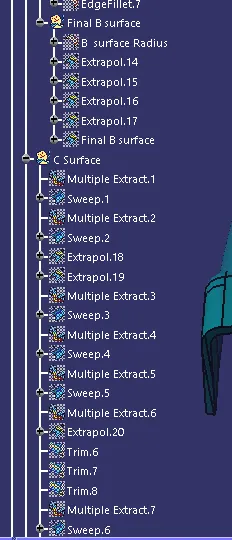

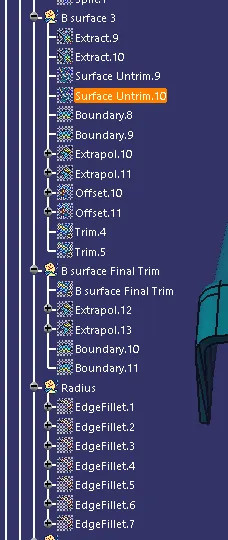

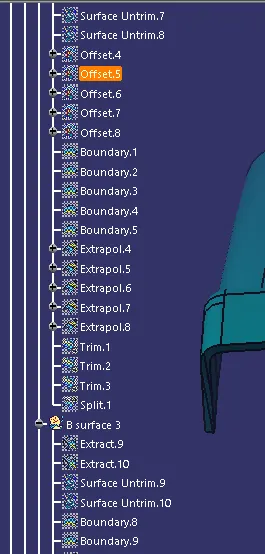

Geometrical Sets and the Part Body

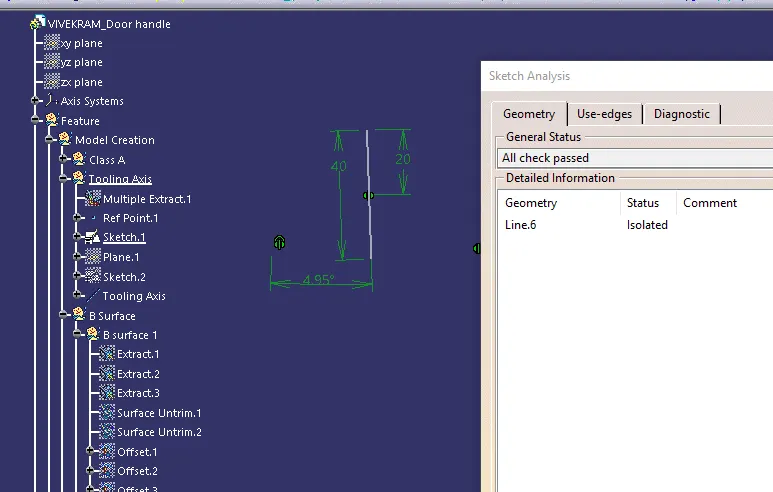

Sketch 01

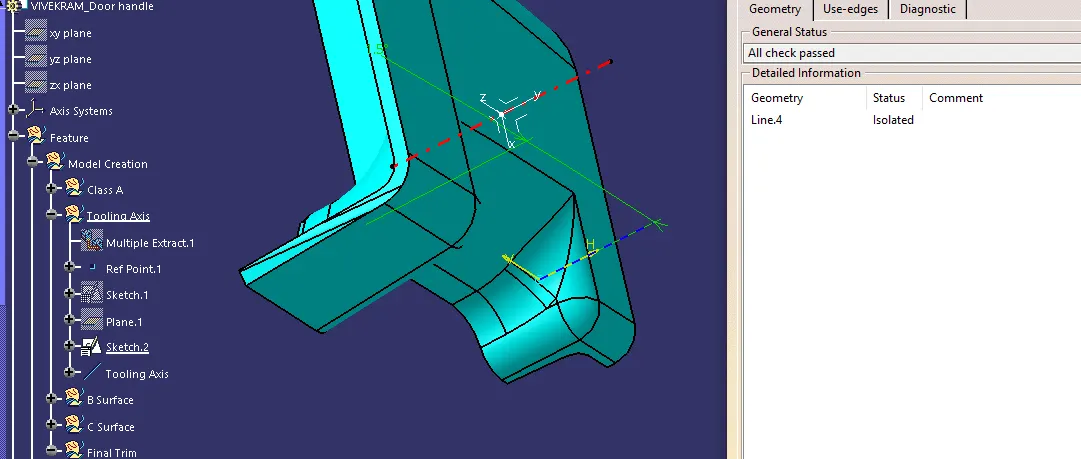

Sketch 02
