Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

FIRST STEP:

WE HAVE TO FIND THE PERFECT AXIS FOR THE TOOLING AXIS.
THEN WE HAVE TO CREATE A TOOLING AXIS FOR THE COMPENENT , BY USING TOOLING AXIS RULE .

SECOND STEP:

WE HAVE TO CHECK THE DRAFT ANALYSIS FOR THE GIVEN 'CLASS - A' BY USING THE TOOLING AXIS.
AND WE ALSO CHECK ALL THE SURFACE EDGES CAREFULLY

THIRD STEP:

CREATING CLASS - B:

FIRST WE HAVE TO CREATE A NEW GEOMETRICAL SET FOR CLASS - B CREATION.
IN THIS BUMBER WE ARE USING THE DIRECT OFFSET METHOD ,BY SELECTING THE PROPER SURFACE AND SELECTING PROPER DIRECTION.
AND THEN WE HAVE TO GIVE "3 MM " AS A OFFSET DISTANCE.
WHEN WE DO THE DIRECT OFFSET METHOD ,WE ARE FACING SOME WARNING .SOME SUB ELEMENTS ARE MISSING.
WE HAVE B-SURFACE WITH SOME SURFACE PATCHES ARE MISSING
SO WE HAVE TO FILL THE SURFACE PATCH BY USING DIFFERENET TOOLS SETS
IN THIS METHOD, WE ARE USING DIFFERENT TOOLS LIKE , MULTIPLE EXTRACT ,BOUNDRY,EXTRAPOLATE , TRIM ,SPLIT ,JOIN (SUB ELEMENT TO REMOVE ) , SURFACE UNTRIM AND FILLETS.

FORTH STEP :

CREATING CLASS - C:

INSERT A NEW GEOMETRY SET AS A CLASS - C SURFACE.
FIRST WE HAVE TO CHECK THE CLASS - C DIRECTION TO MAKE.
BY USING DIFFERENT TOOLS .
AND WE EXTRECT ALL THE SURFACE BOUNDRIES AND THE EXTRAPOLATE TO THE REACHABLE DISTANCE TO THE CLASS -A SURFACE AND THEN TRIM IT.

RIN CREATION :

CREATING RIB ,UNDER THE DESIGN RULES

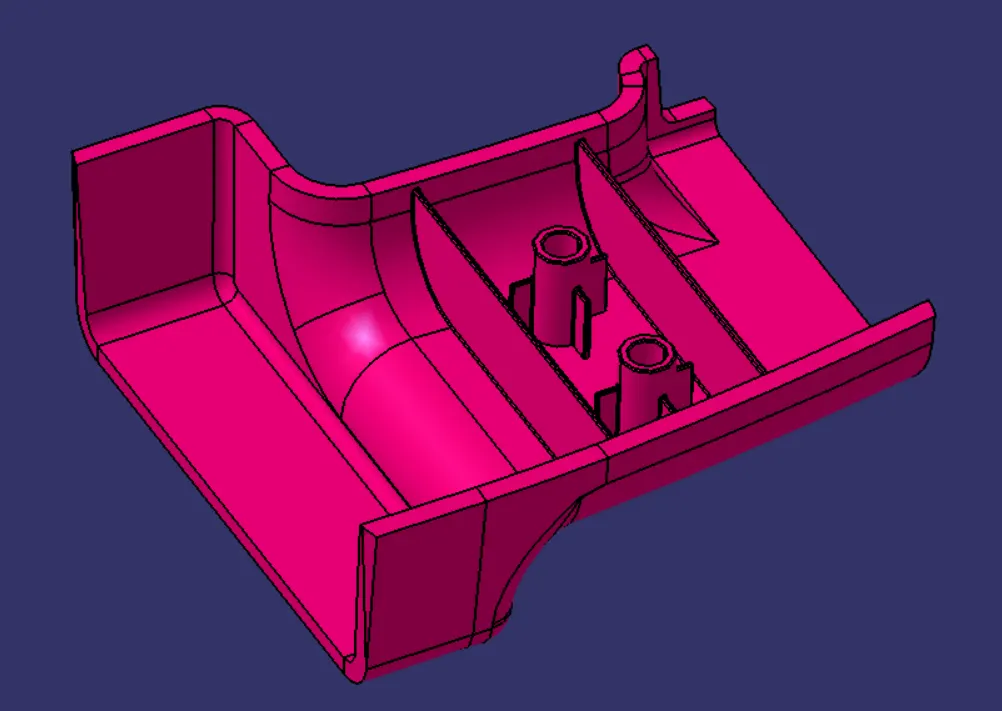

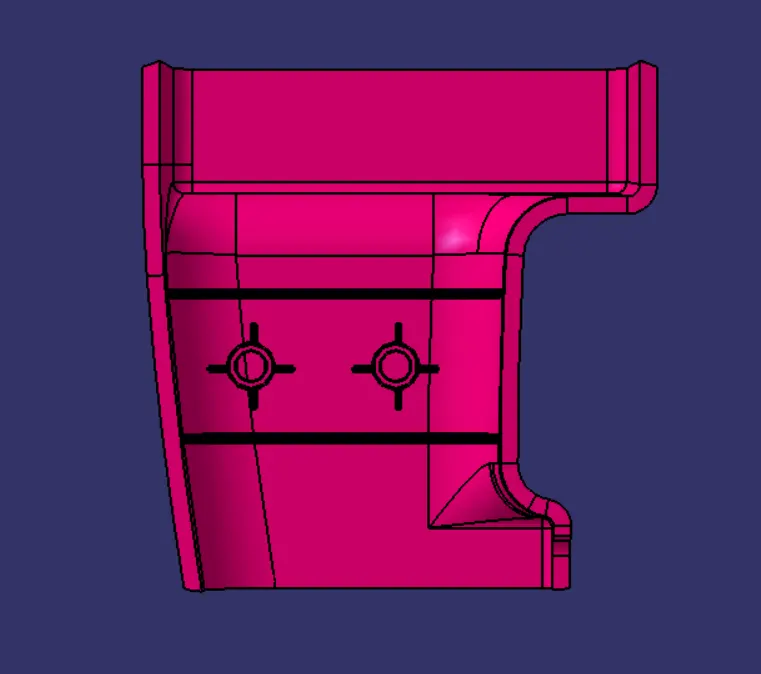

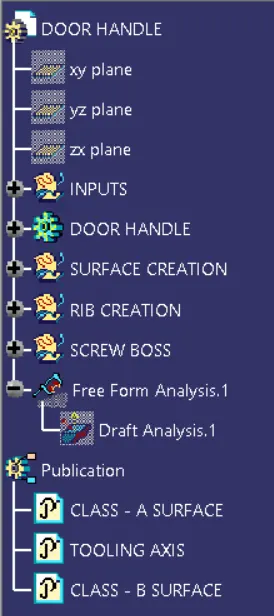

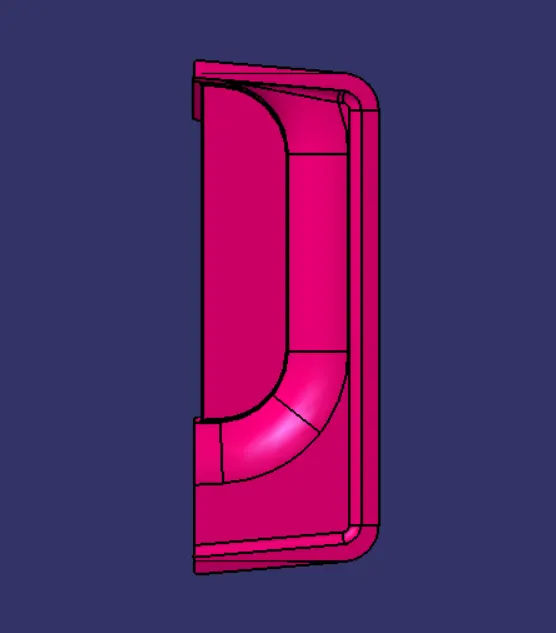

IMAGE :
