Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)
Report on the process followed to complete this challenge

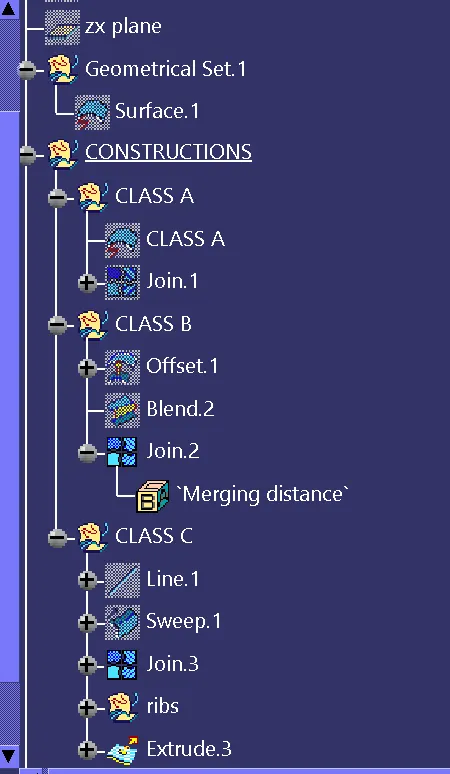

- We received Class A surface. Then we created Tooling Axis for Class A using intersection method where we created two lines and from those lines we created a bisecting line which was our Tooling Axis.
- Further we created Class B surface surface by using offset, blend and join command.
- For Class C surface we used sweep and join commands.

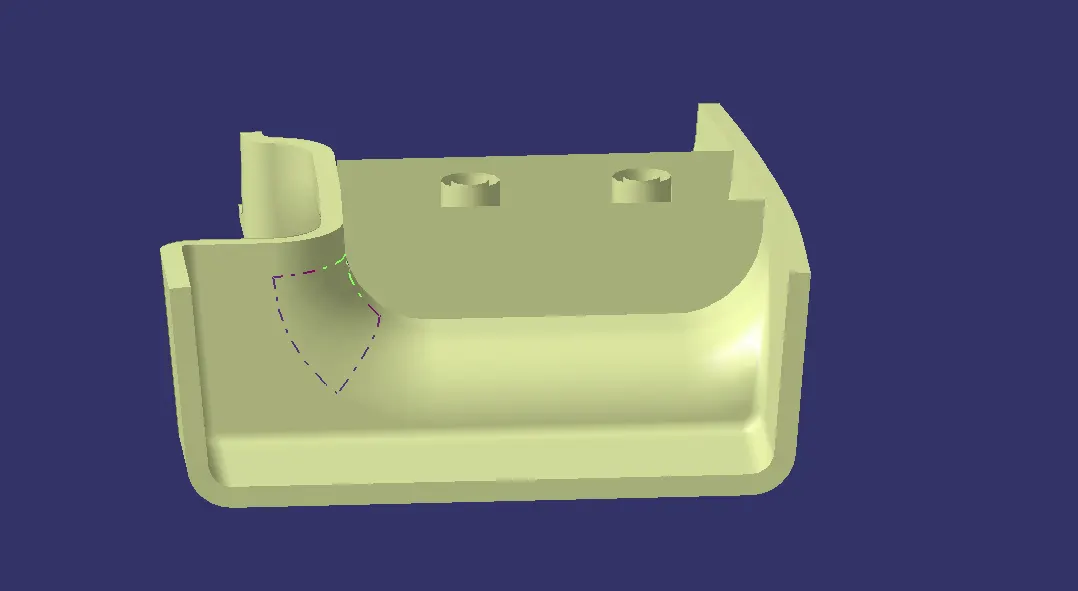

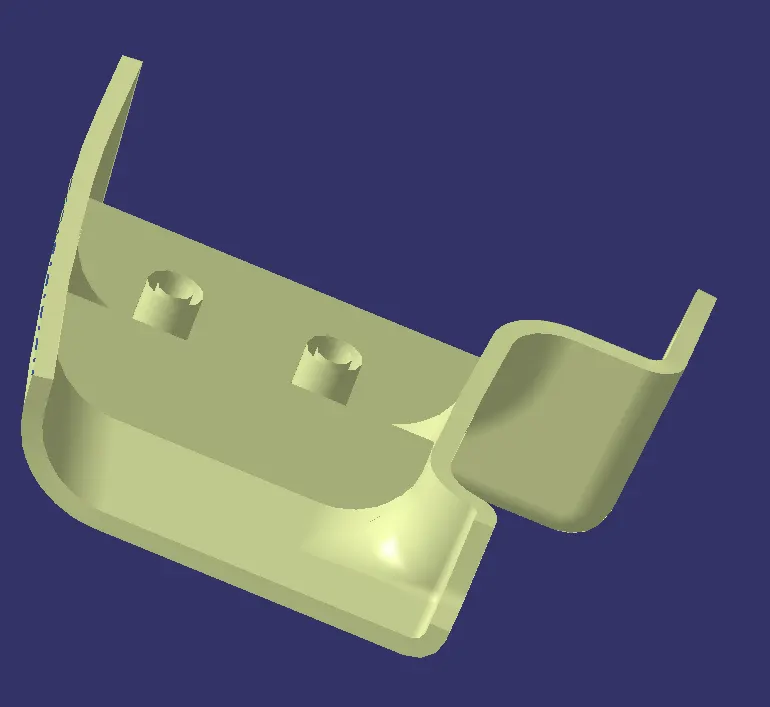

- Further we created ribs and screw boss.
