Objective :-

Create the rib for the Drill Handle considering the design rules mentioned in the video

Tooling Creation

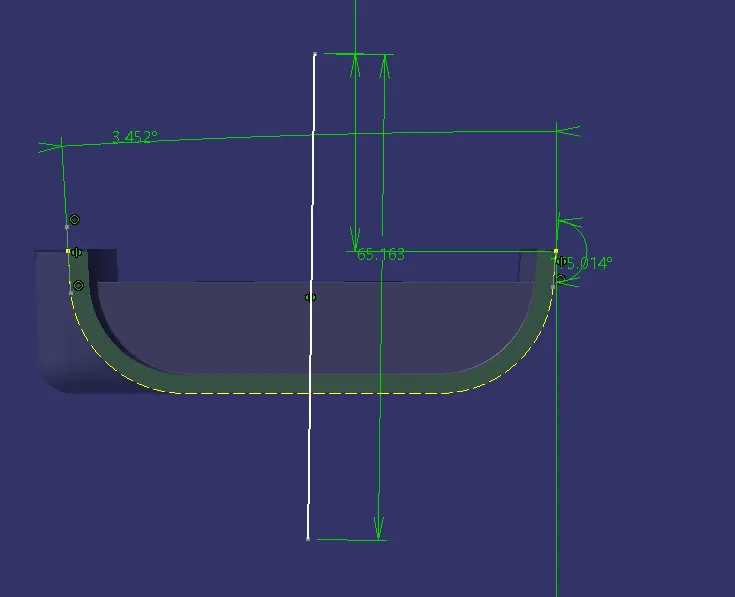

Creating the tooling axis by the bisecting method

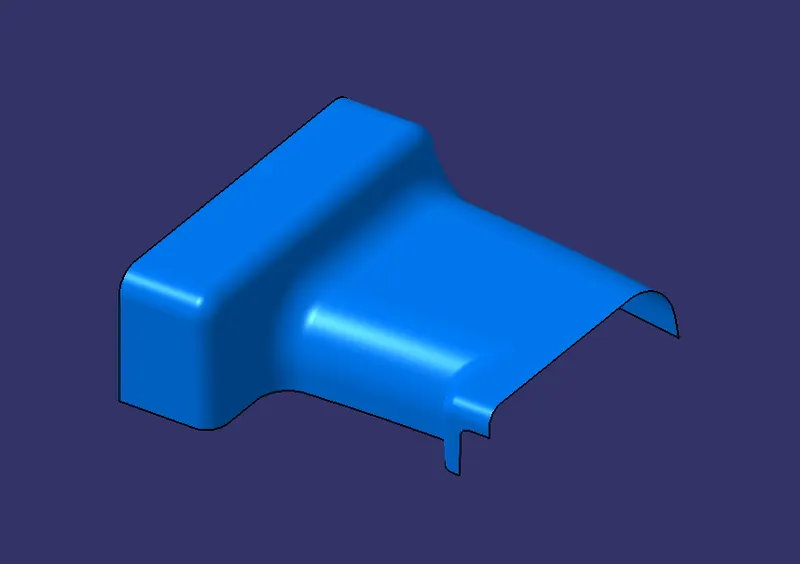

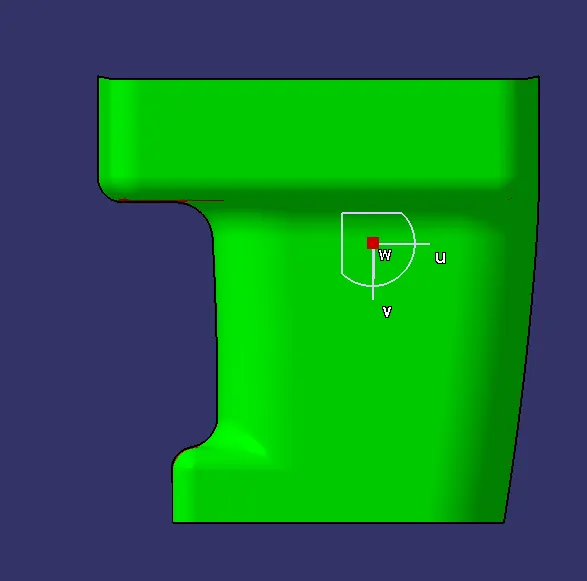

Given Surface

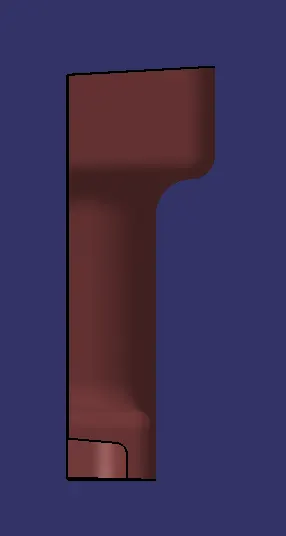

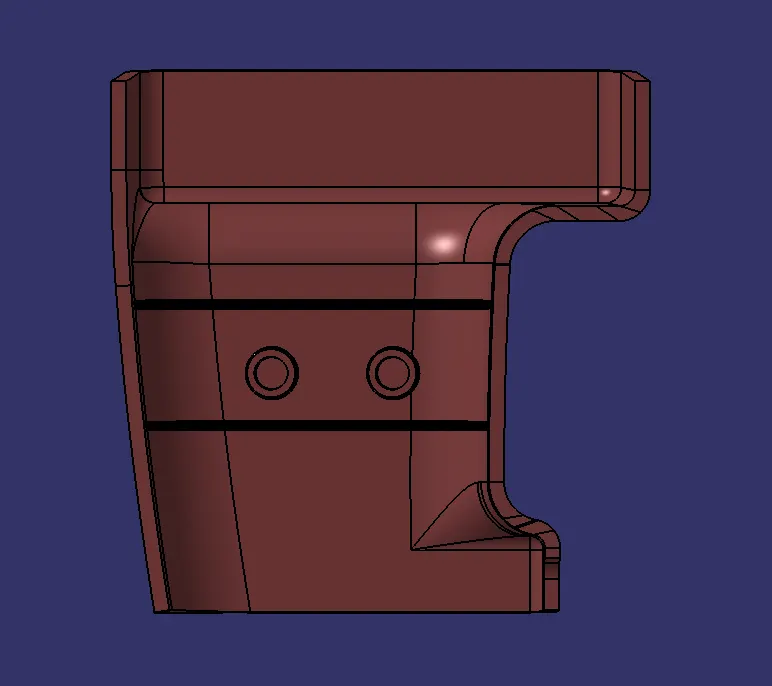

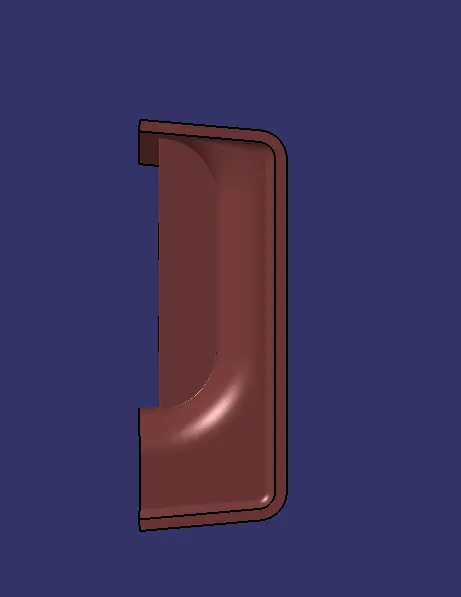

Solid Body

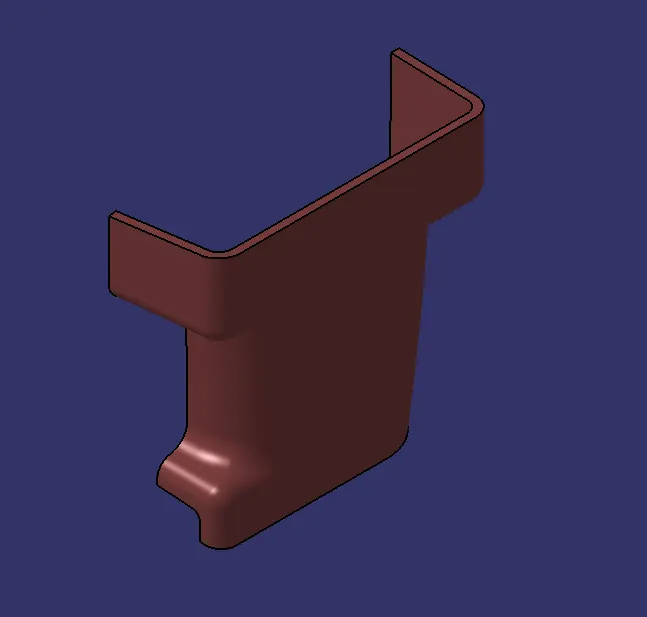

Isometric View

Front View

Side View

Top View

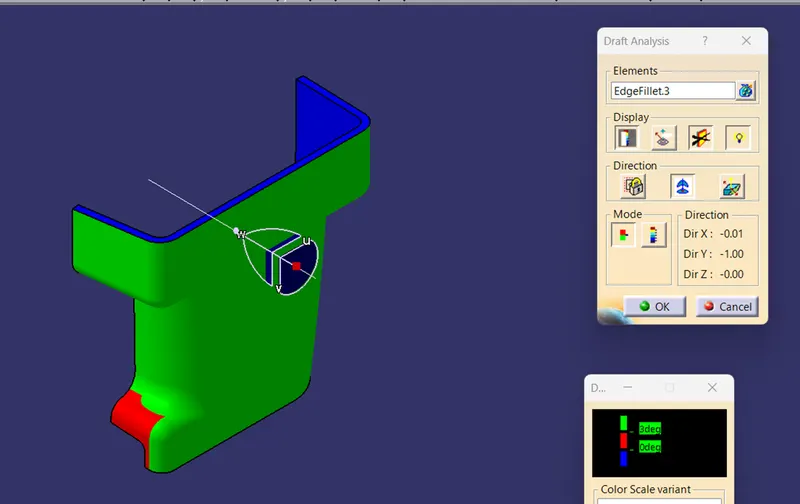

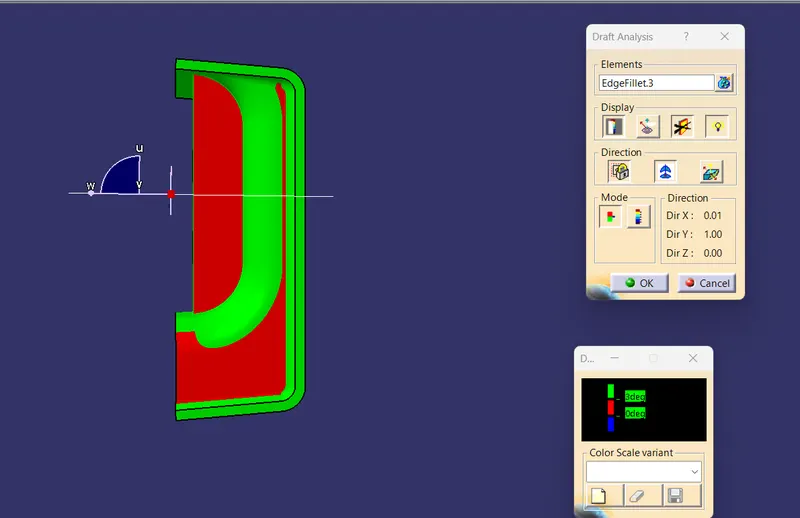

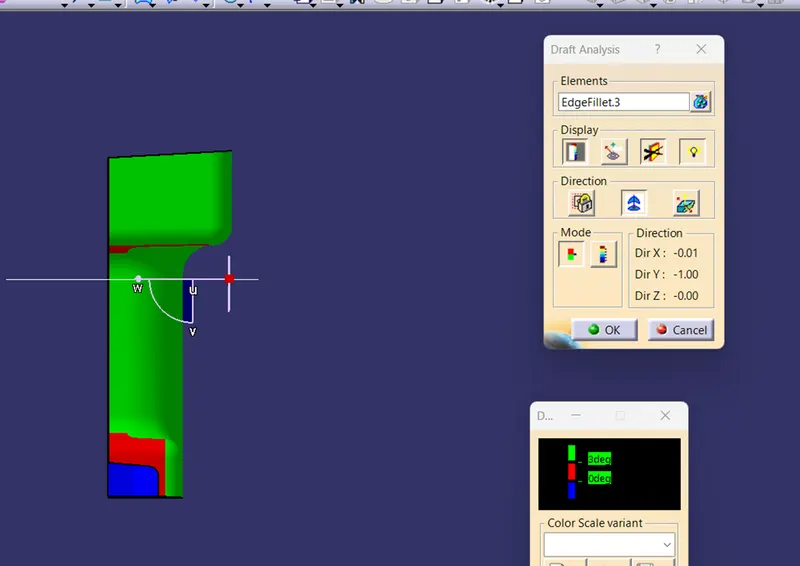

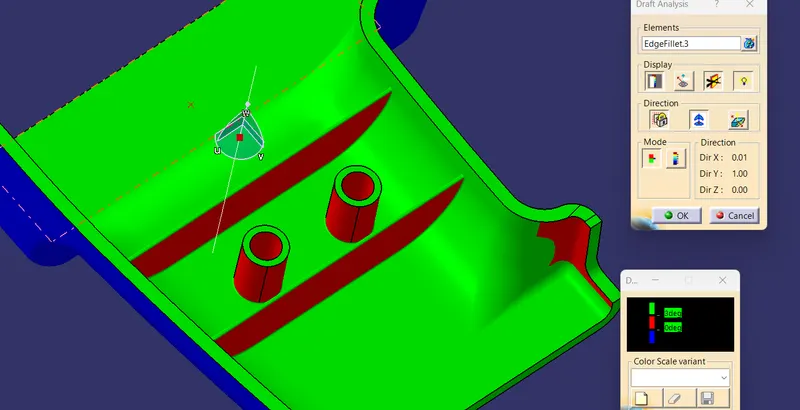

Draft Analysis For The Solid Body

Isometric View

Front View

Side View

Top View

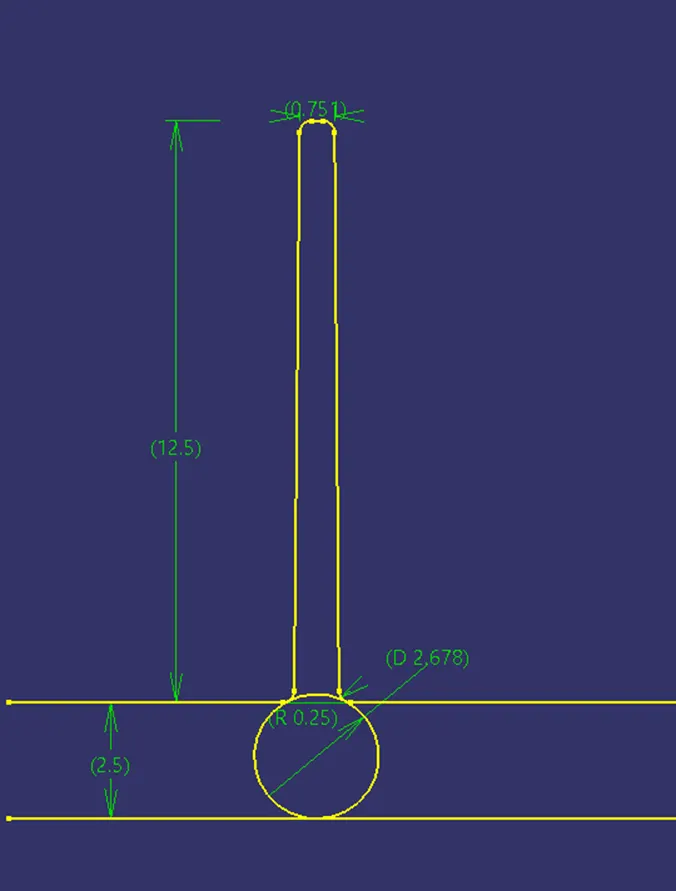

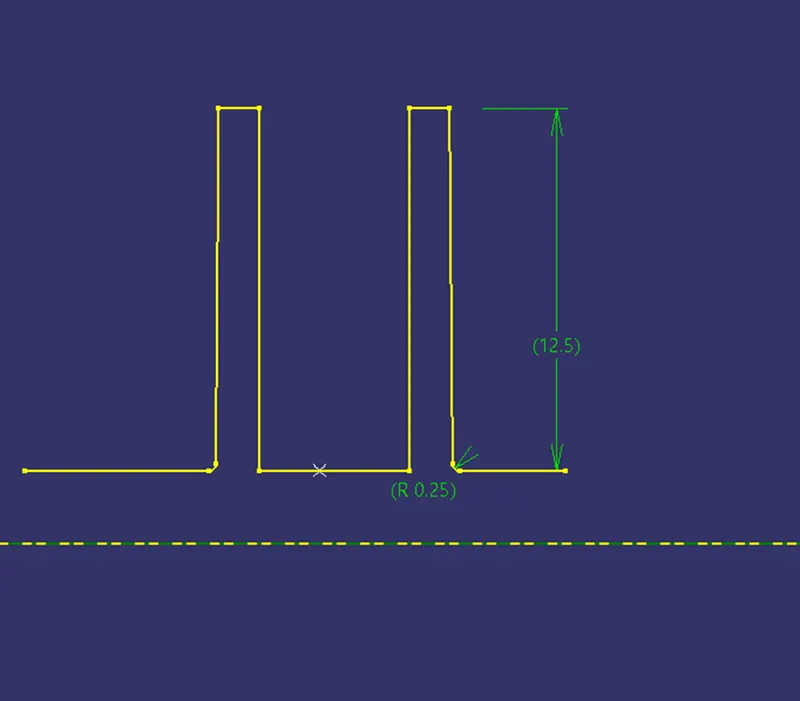

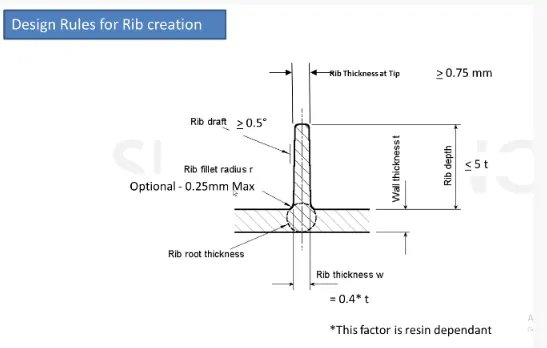

Rib Creation

Rib Thickness 0.4*2.5 = 1mm

Height of the rib 5*2.5 = 12.5mm

Draft = 0.5 each side

Base Radius = 0.25mm

Top Thickness = 0.75mm

Rib root thickness 30% of the thickness 2.5*0.3= 1.3mm

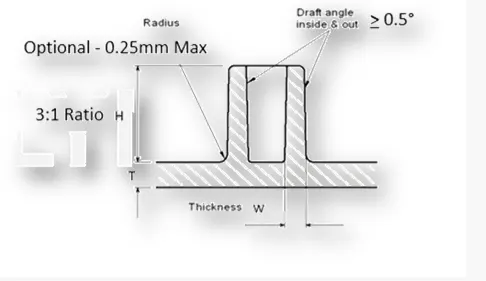

Scew Boss Creation

Considering M6 screw

Inner Dia 2.5mm

Thickness per side 0.6*2.5 =1.5mm

Out dia = 1.5*2=3+5.2 = 8.2mm

Draft = 0.5mm

Height of the screw boss 5*2.5 =12.5

Fillet = 0.25

ConClusion

Rib and Srew Boss is created as per the given Guidlines
