Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

"This is a challenge about making RIBS and SCREW BOSS on a surface. First, I have to create a Tooling Axis by extracting a surface and creating a line through a point. Then, I have to convert the Class A Surface to a Class B Surface.

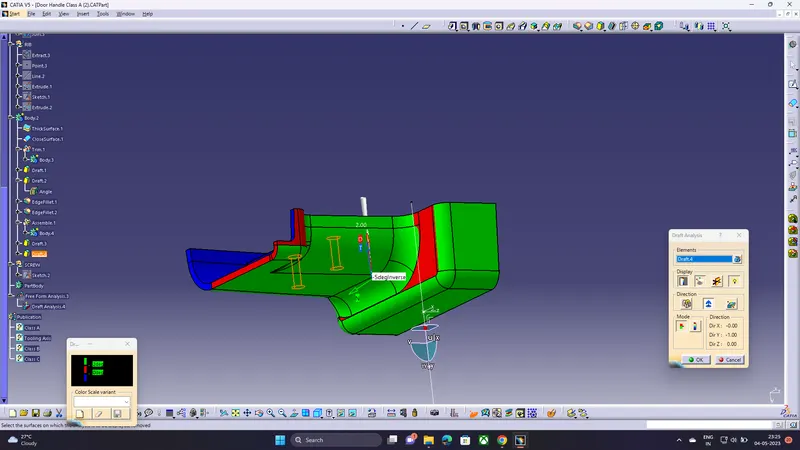

Next, I need to create the Ribs. To do so, I must extract another surface, create a line, and extrude it. Following all the design rules for ribs, I can create them. Additionally, I must use Boolean Operations to union trim the outer surface. Finally, I need to draft it by 0.5 degrees and fillet it by 0.25.

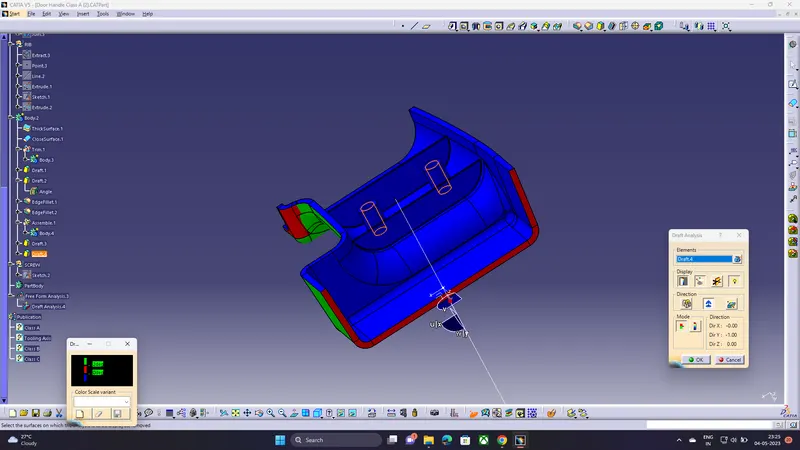

Moving on to the Screw Boss, I need to use the surface we extracted earlier. From that surface, I have to create two circles and pad them. Once again, I have to draft both the inner and outer circles by 0.5 degrees and fillet them by 0.25.
