Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

Objective: I have Created Ribs and Screw bosses on the given Door Handle plastics part as a design guideline.

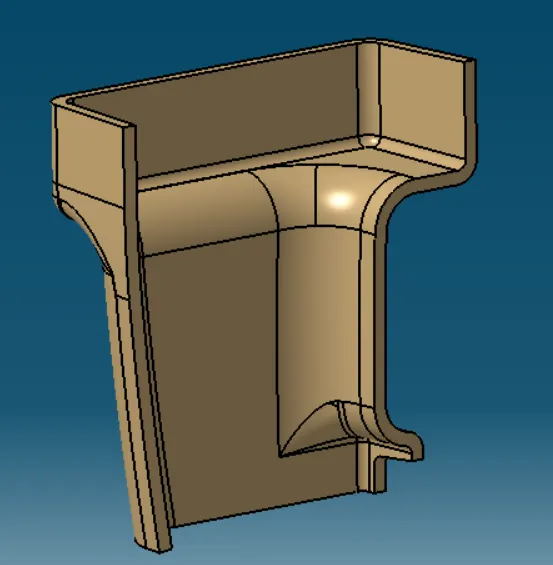

Door Handle Plastics Part at Ribs and screw bosses creation

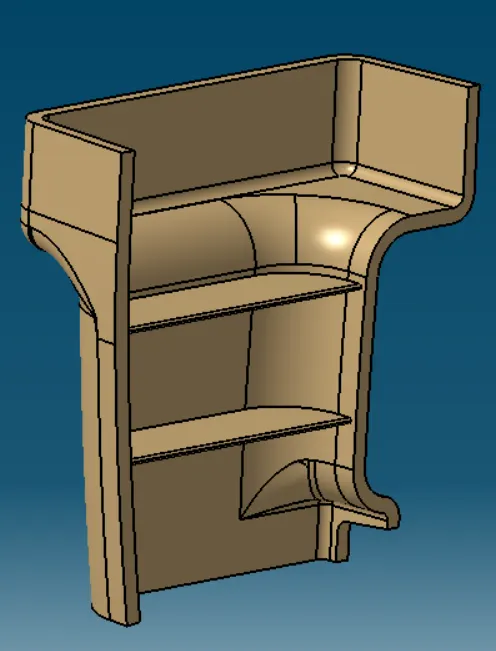

01. Ribs Creation

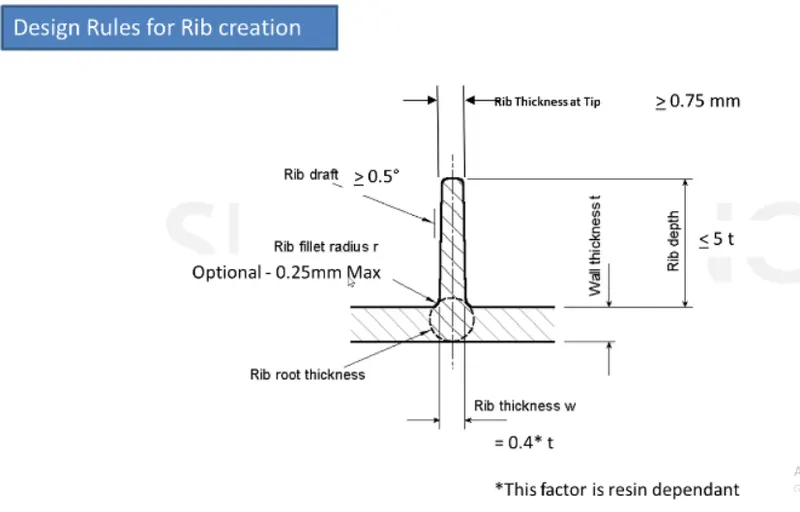

Design of Ribs:

Purpose of ribs: To prove the structural strength of the plastics part

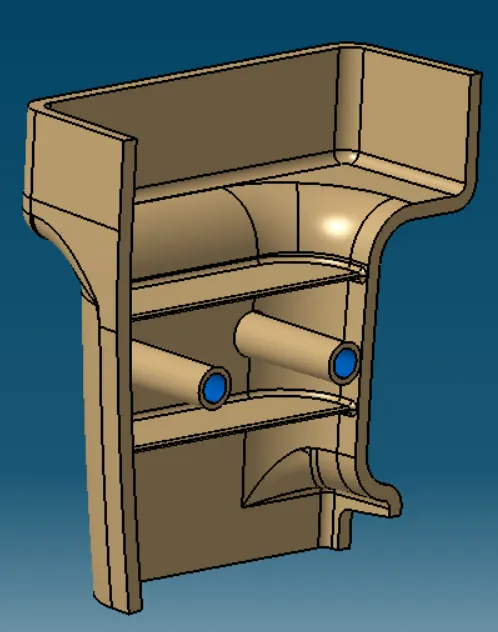

02. Screw bosses

Purpose of ribs: To use join the two-part with a screw fixation

Conclusion: I have created ribs and bosses on the Door Handle plastics par according to plastics design guidelines
