Week 10 Bullet penetrating a Bucket Challenge
Aim: To see the structural bevahior when bucket with different non linear mateial goes under test with bullet
Observation:
1. Aluminium NL material.
a. Total deformation

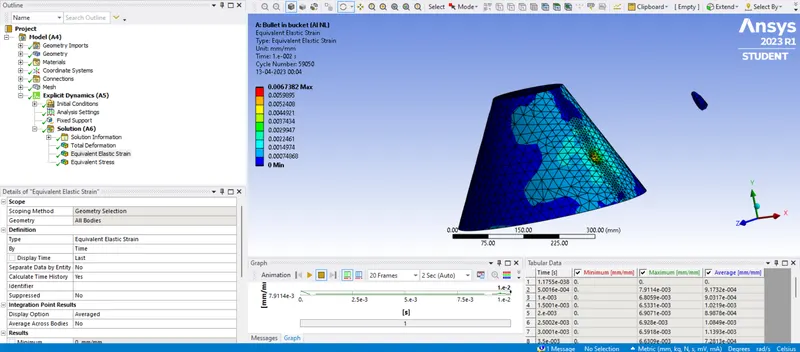

b. Equivelant Strain

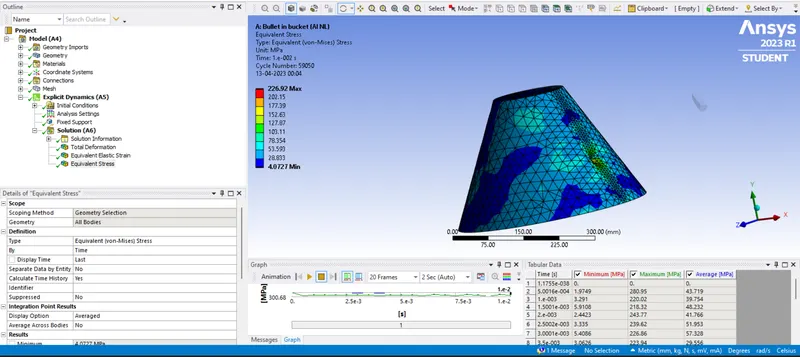

c. Equivelant Stress
2. Stainless Steel NL:
a. Total deformation

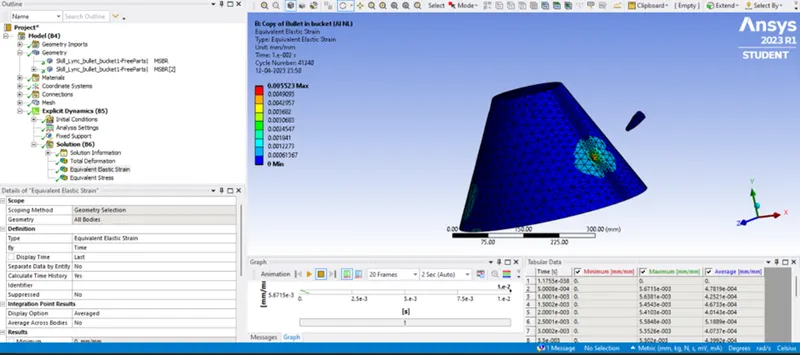

b. Equivelant Strain

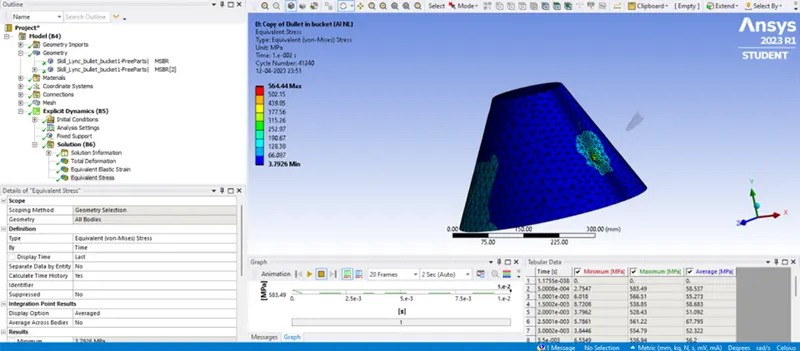

c. Equivelant Stress
3. Structural Steel NL:
a. Total deformation
b. Equivelant Strain
c. Equivelant Stress
Result:
| # | Result | Aluminium NL | Stainless Steel NL | Structural Steel NL |
| 1 | Total Deformation | 303.43 mm | 117.04 mm | 121.32 mm |
| 2 | Equivelant Elastic Strain | 0.006 mm | 0.0053 mm | 0.004 mm |
| 3 | Equivelant Stress | 226.9 Mpa | 564.44 Mpa | 495.24 Mpa |
