Week 10- Assembly Workbench

PROCEDURE REPORT:

• First of all, i studied the given input data and as per instructions. i made part dwg of each individual component.
• Afterwards, i create a new product file and insert all the components one by one.

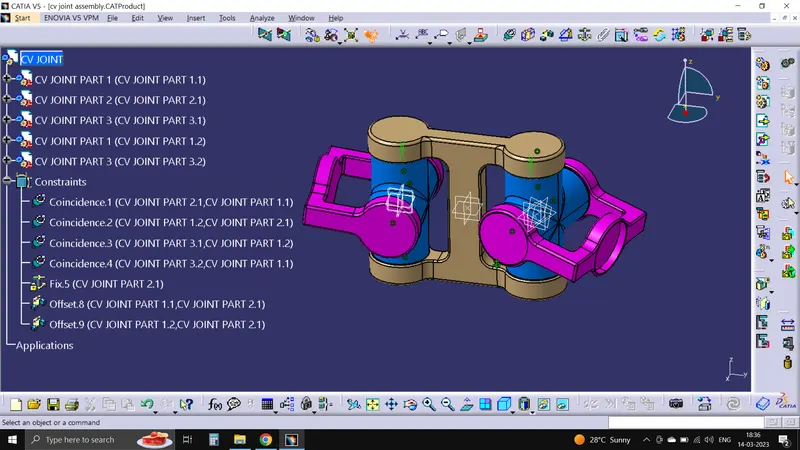

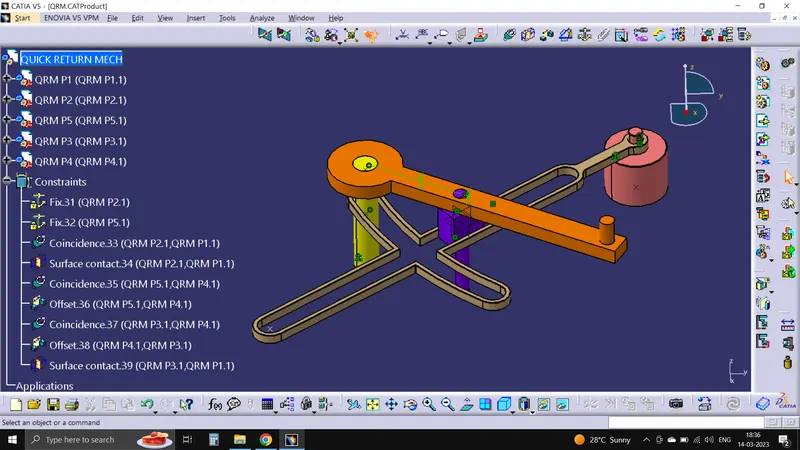

• then, i create constraints between each part as per their working.

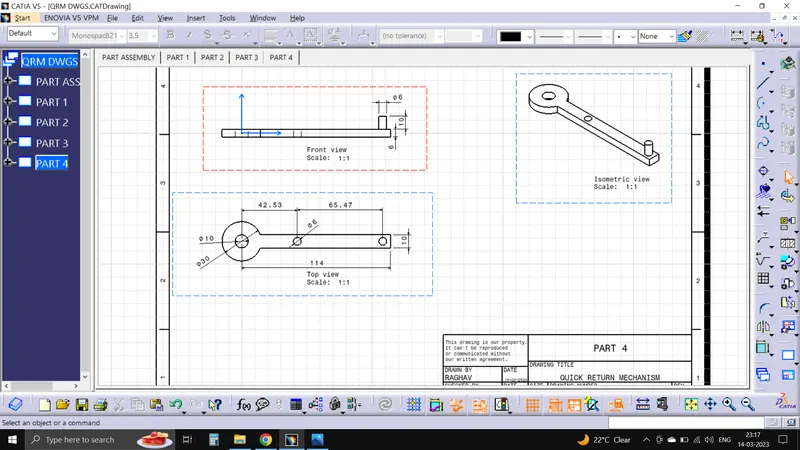

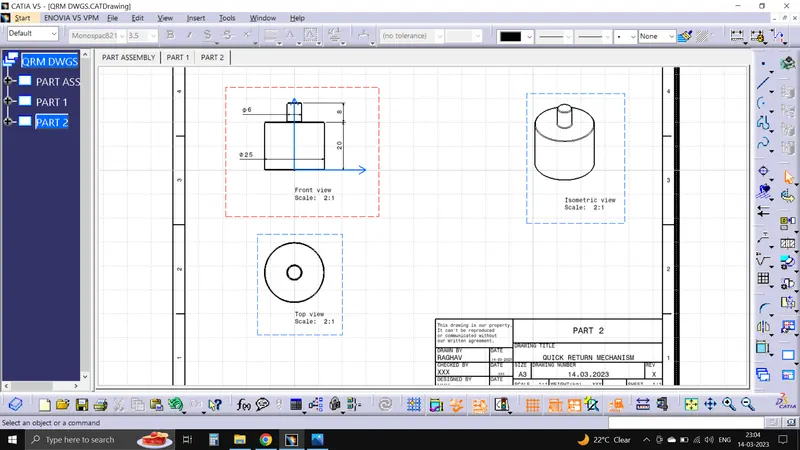

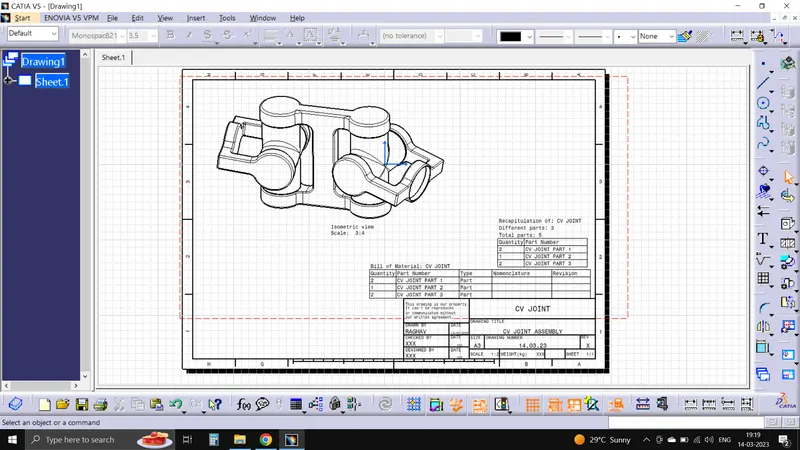

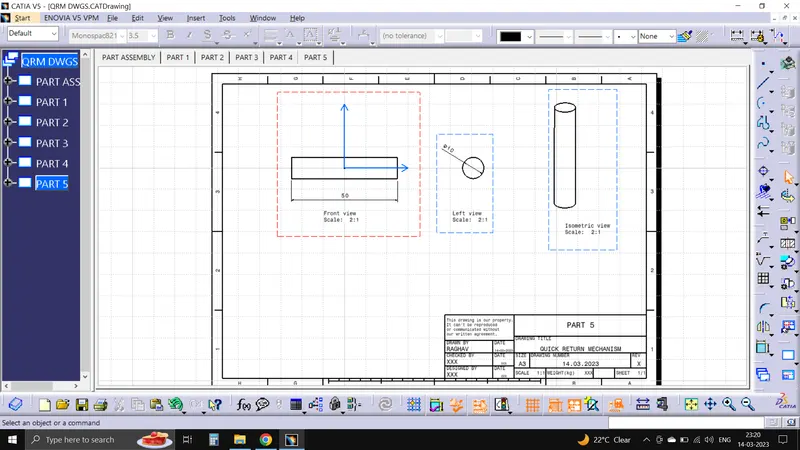

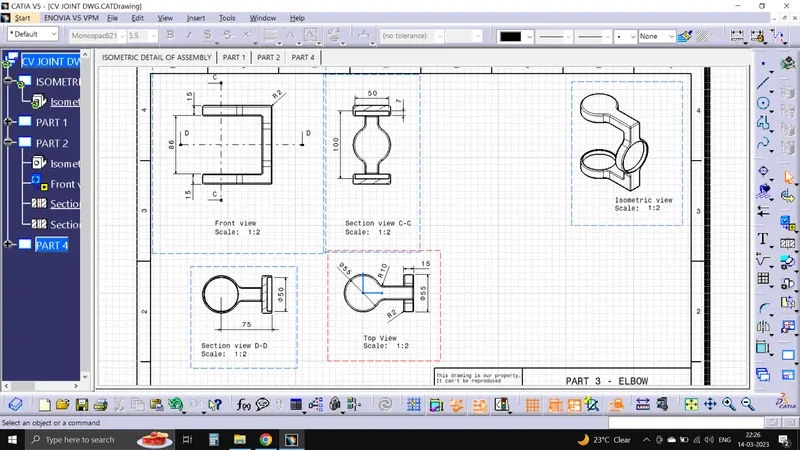

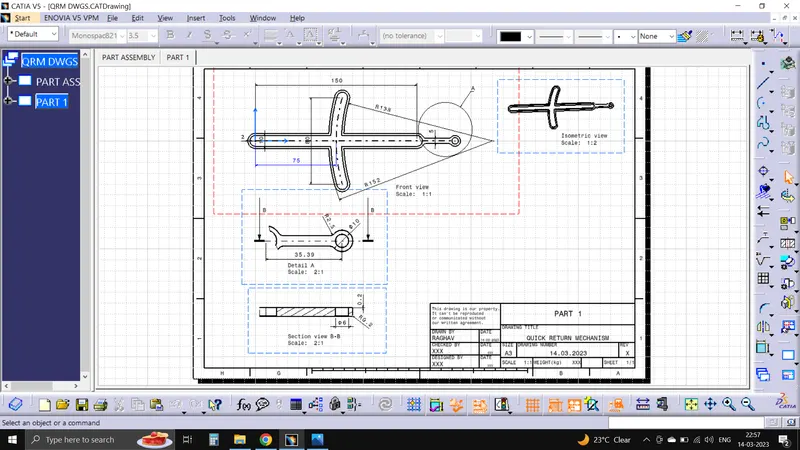

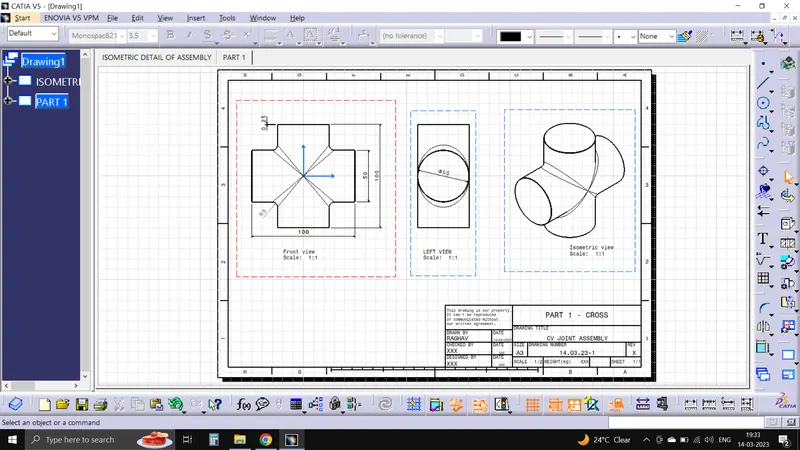

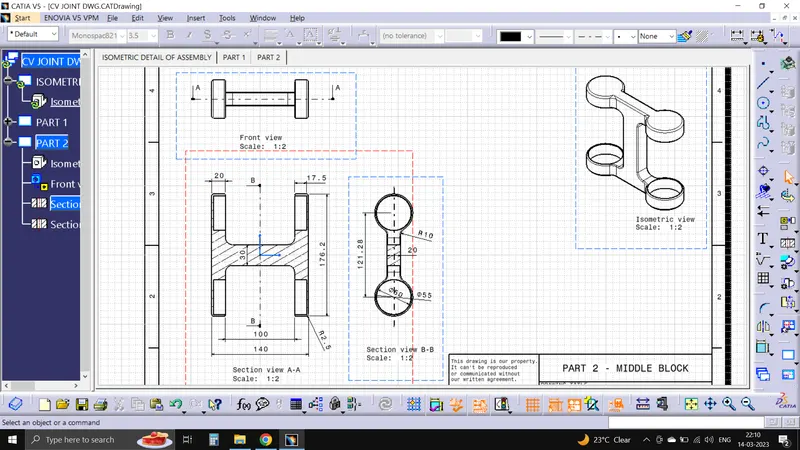

• at last i checked my model and create Drawings of complete assembly.
• Details are attached hereafter below:

NOTE: Catpart, catdrawing, catproduct files of both assemblies are attached in zip file.
