Week 10:- 2D Detailing Challenge
PROJECT_B DRAFTING

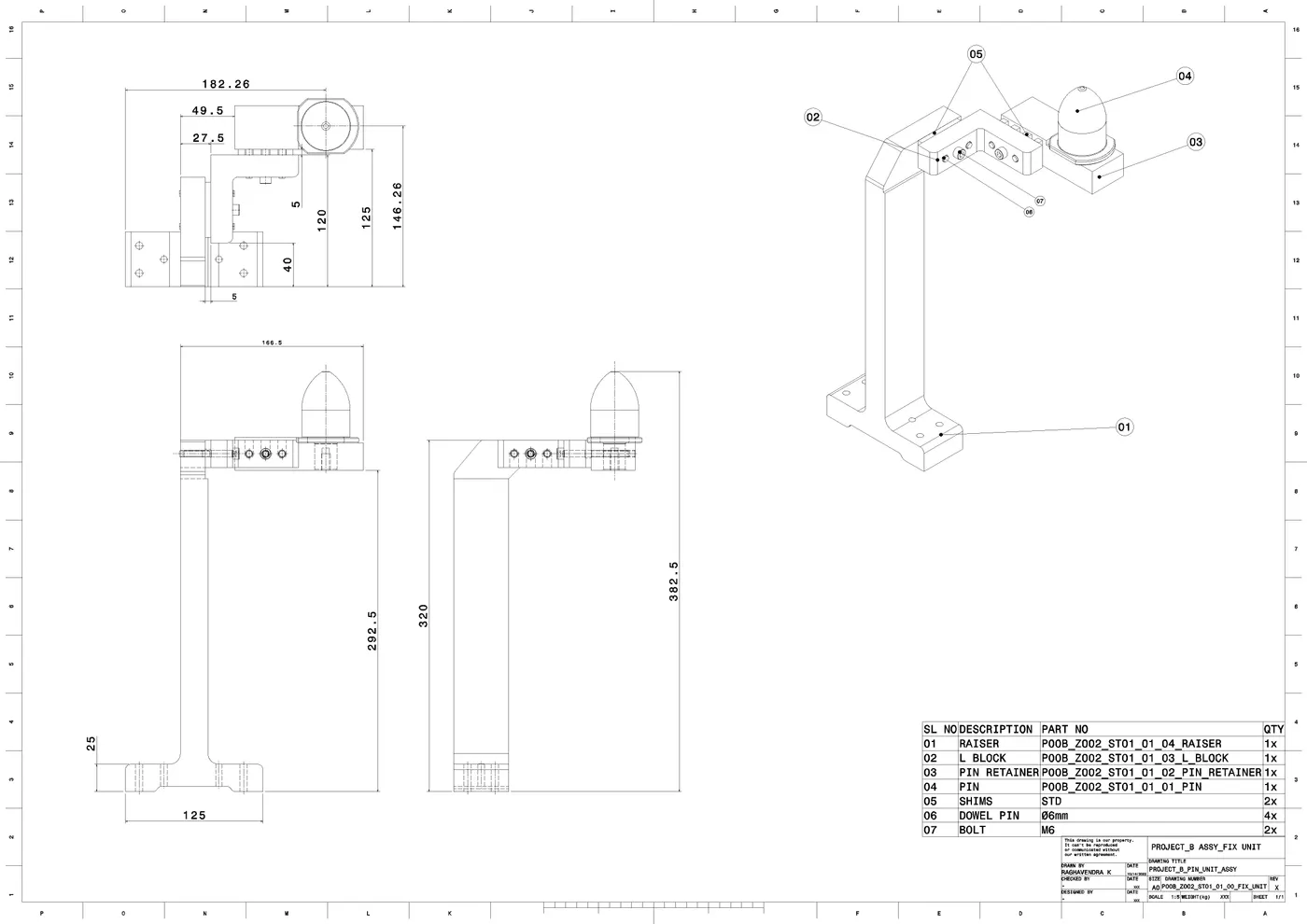

FIX PIN UNIT ASSY

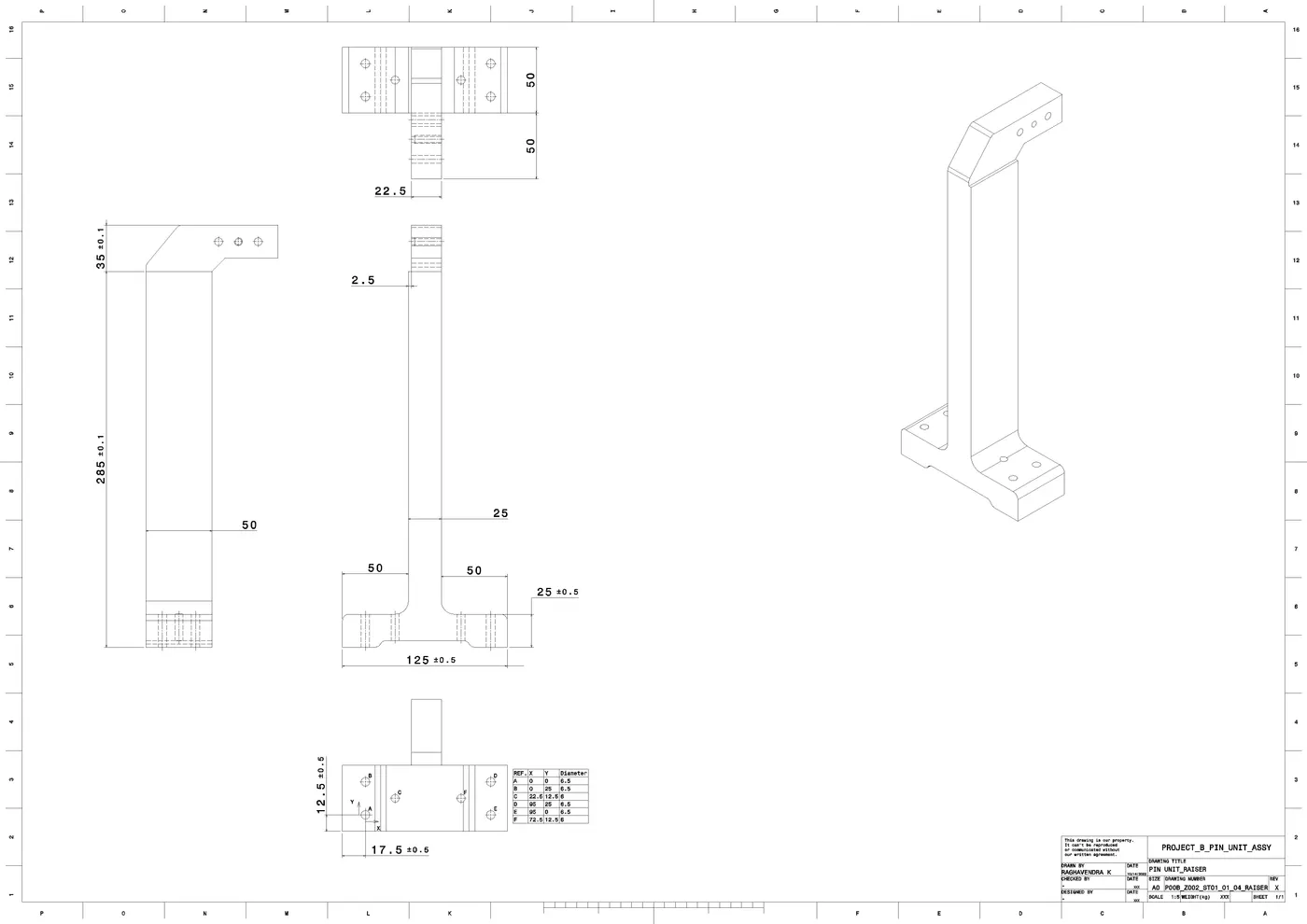

RAISER

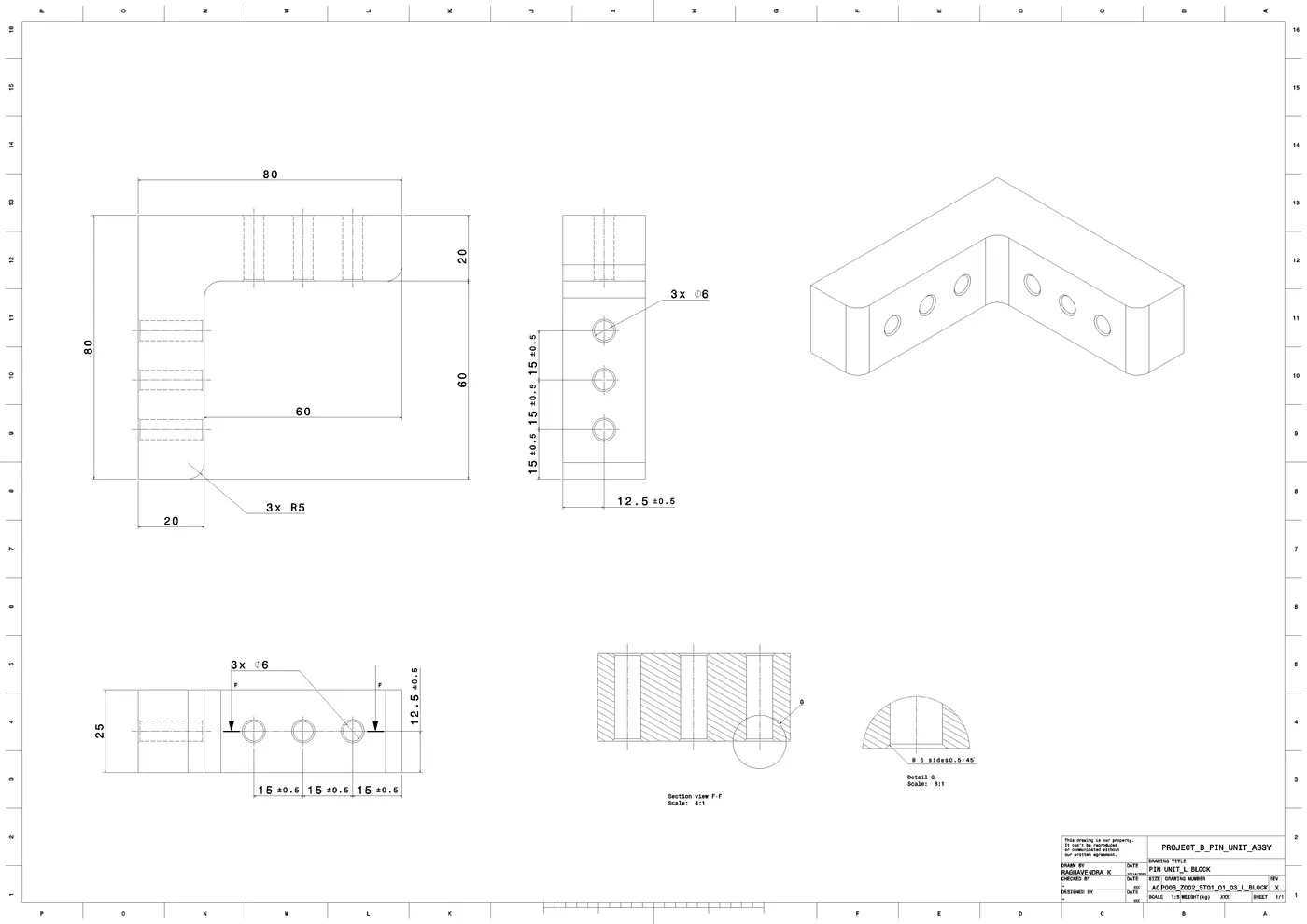

L BLOCK

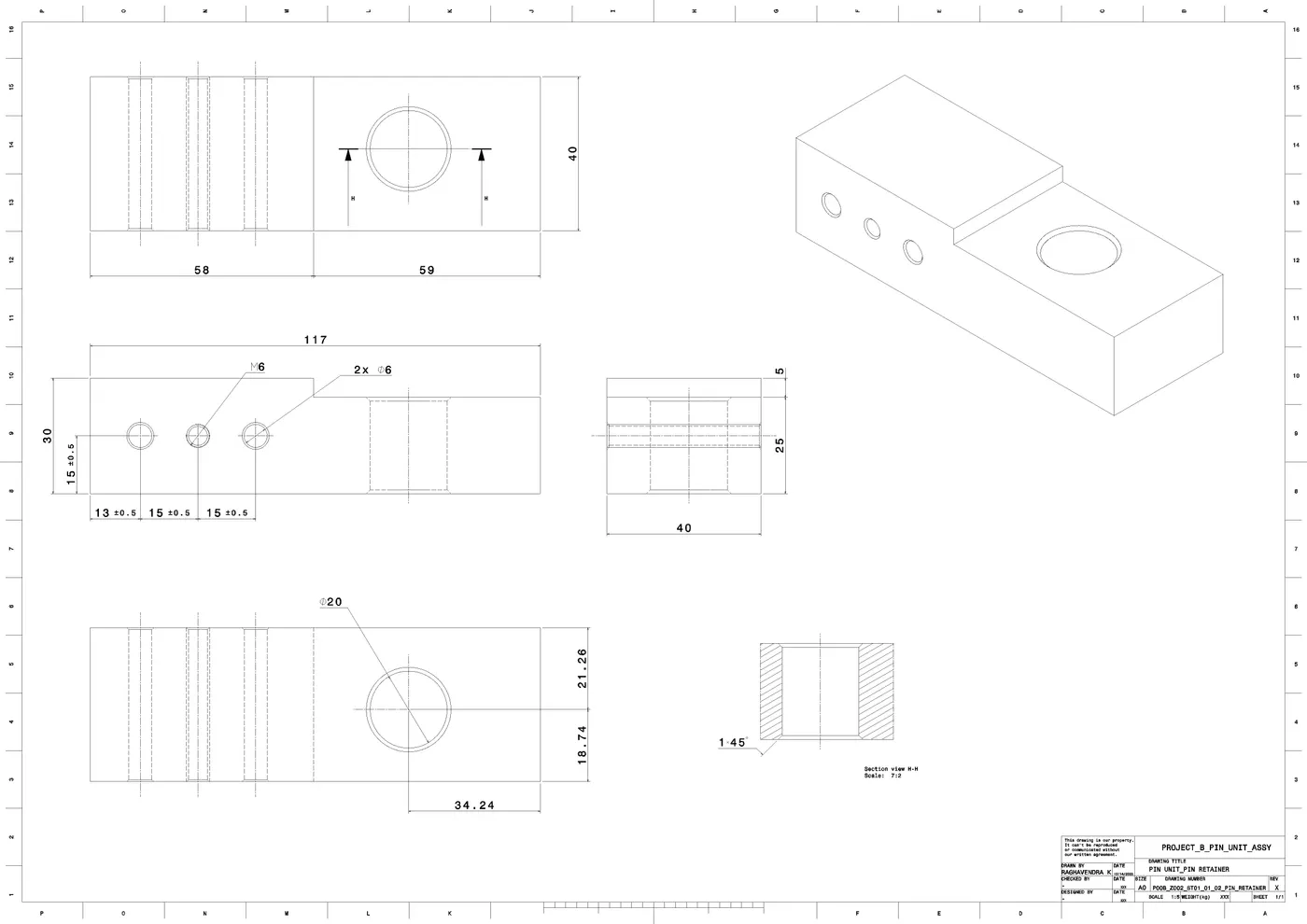

PIN RETAINER

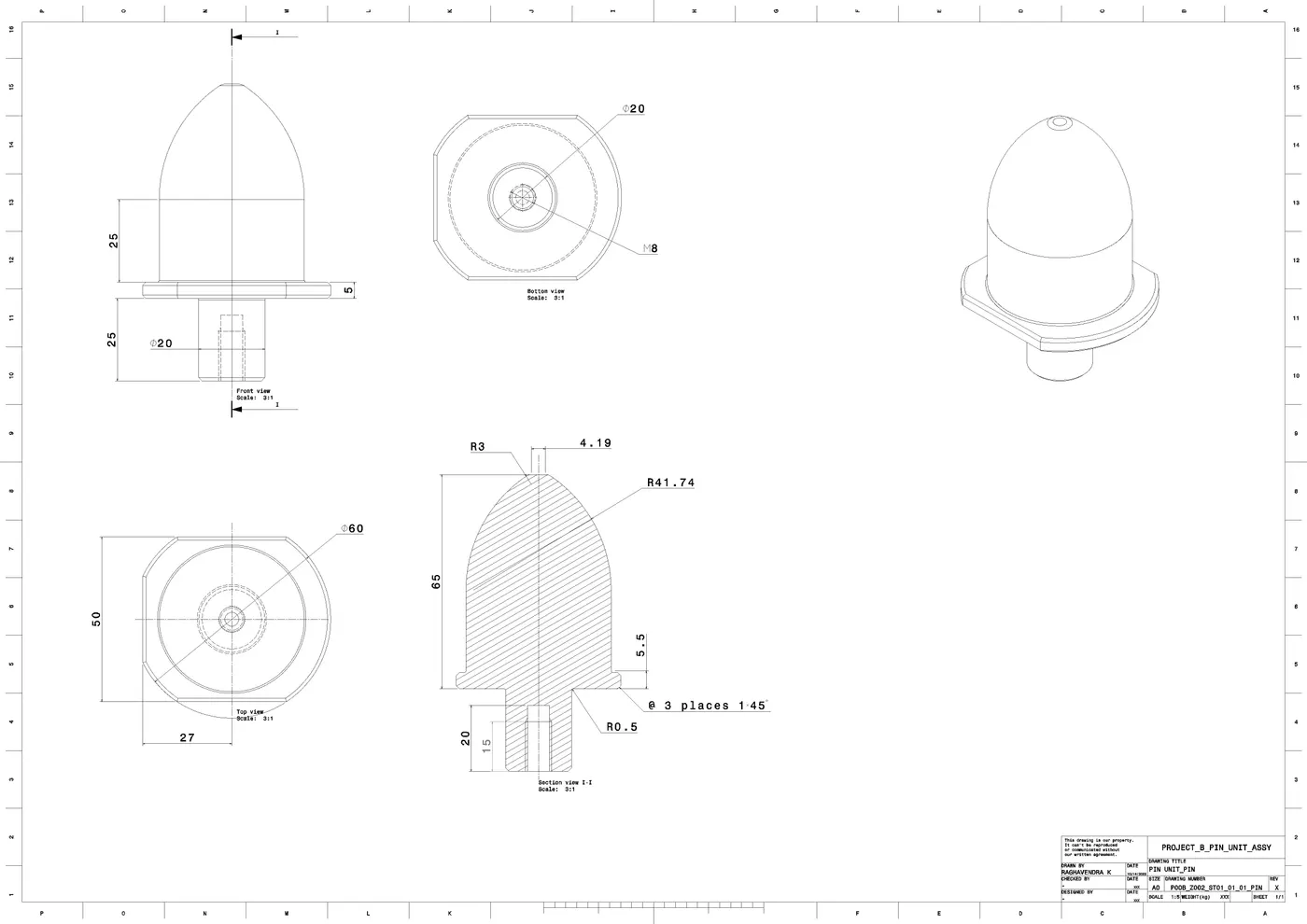

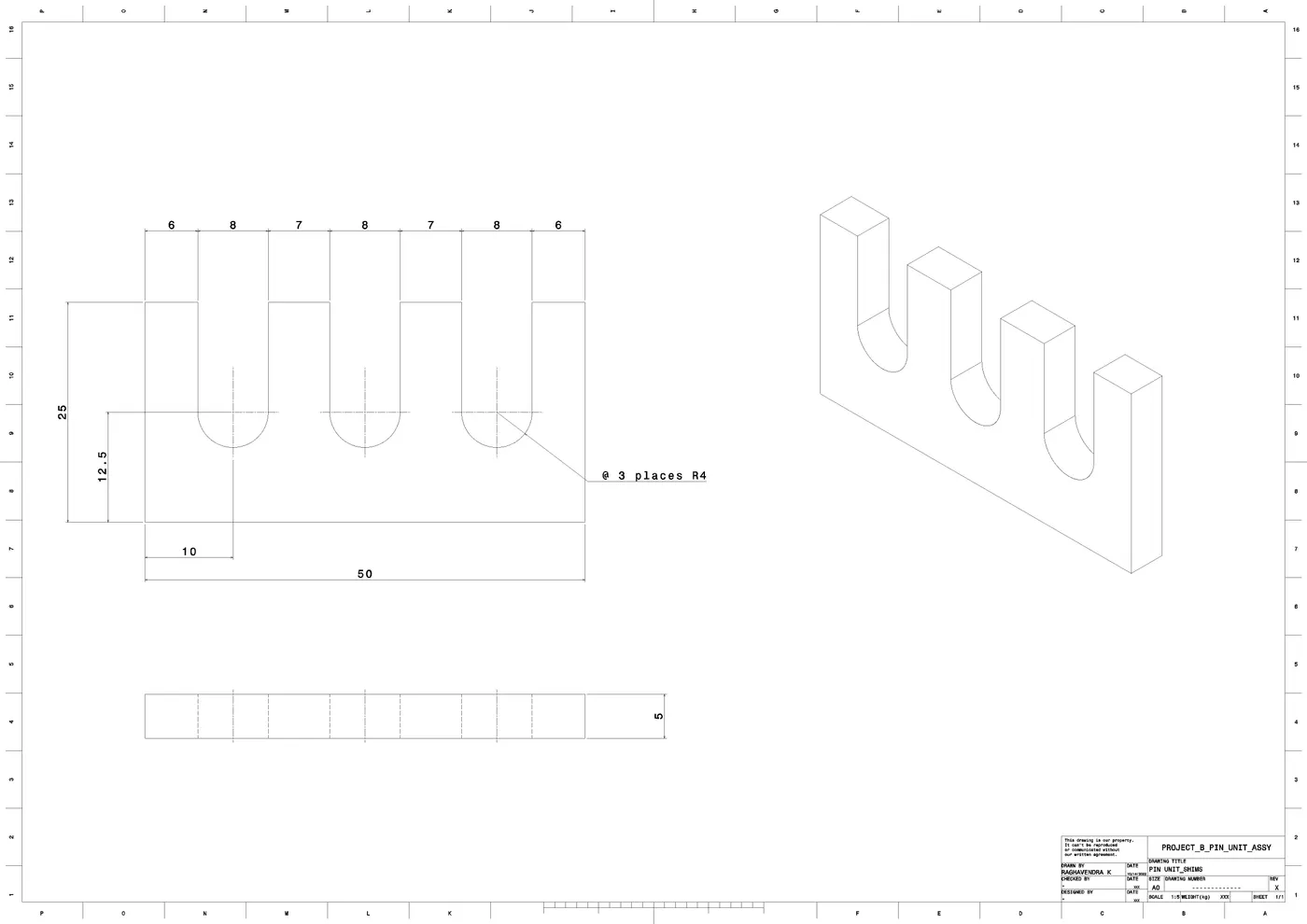

PIN
SHIMS
CONCLUSION

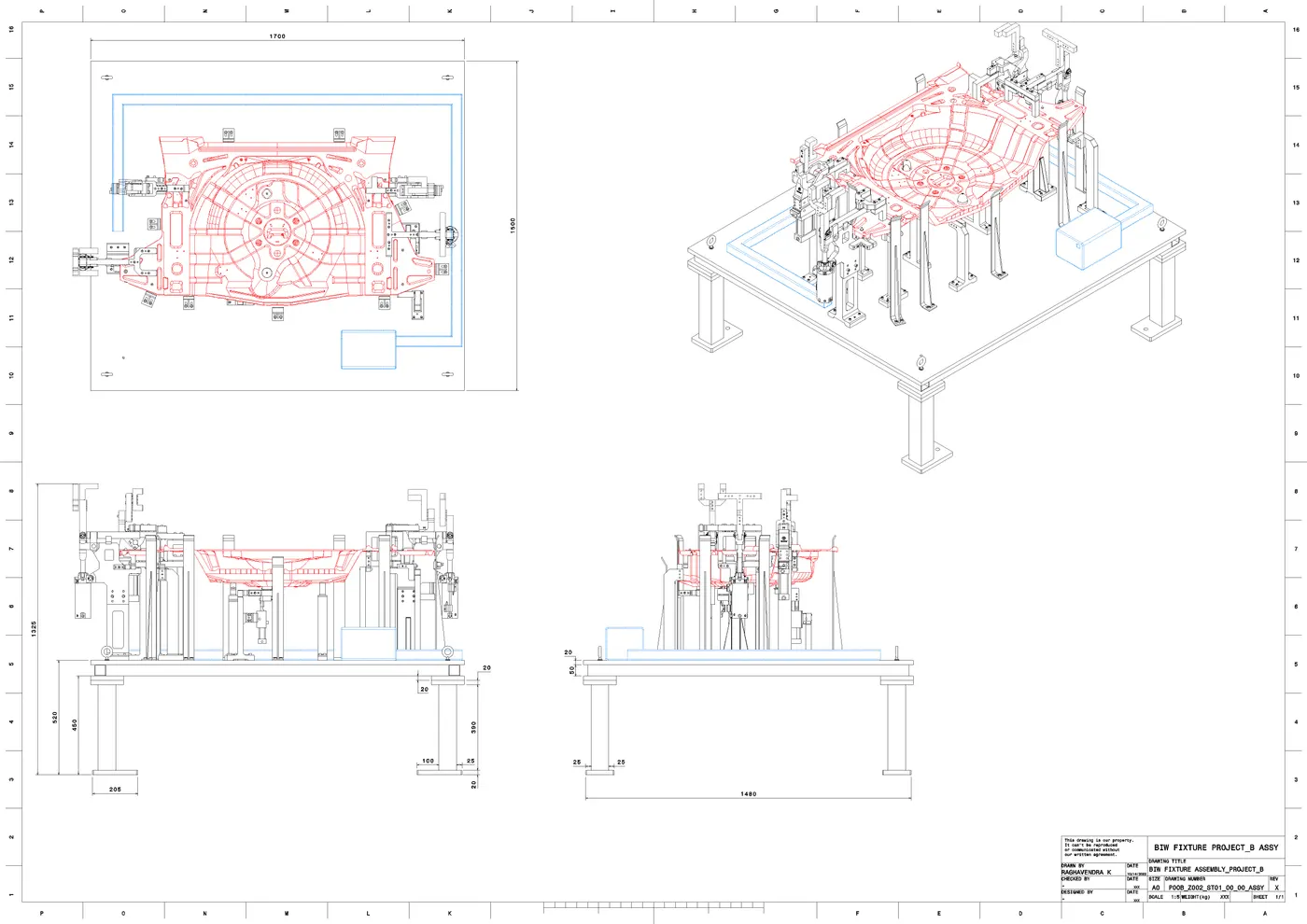

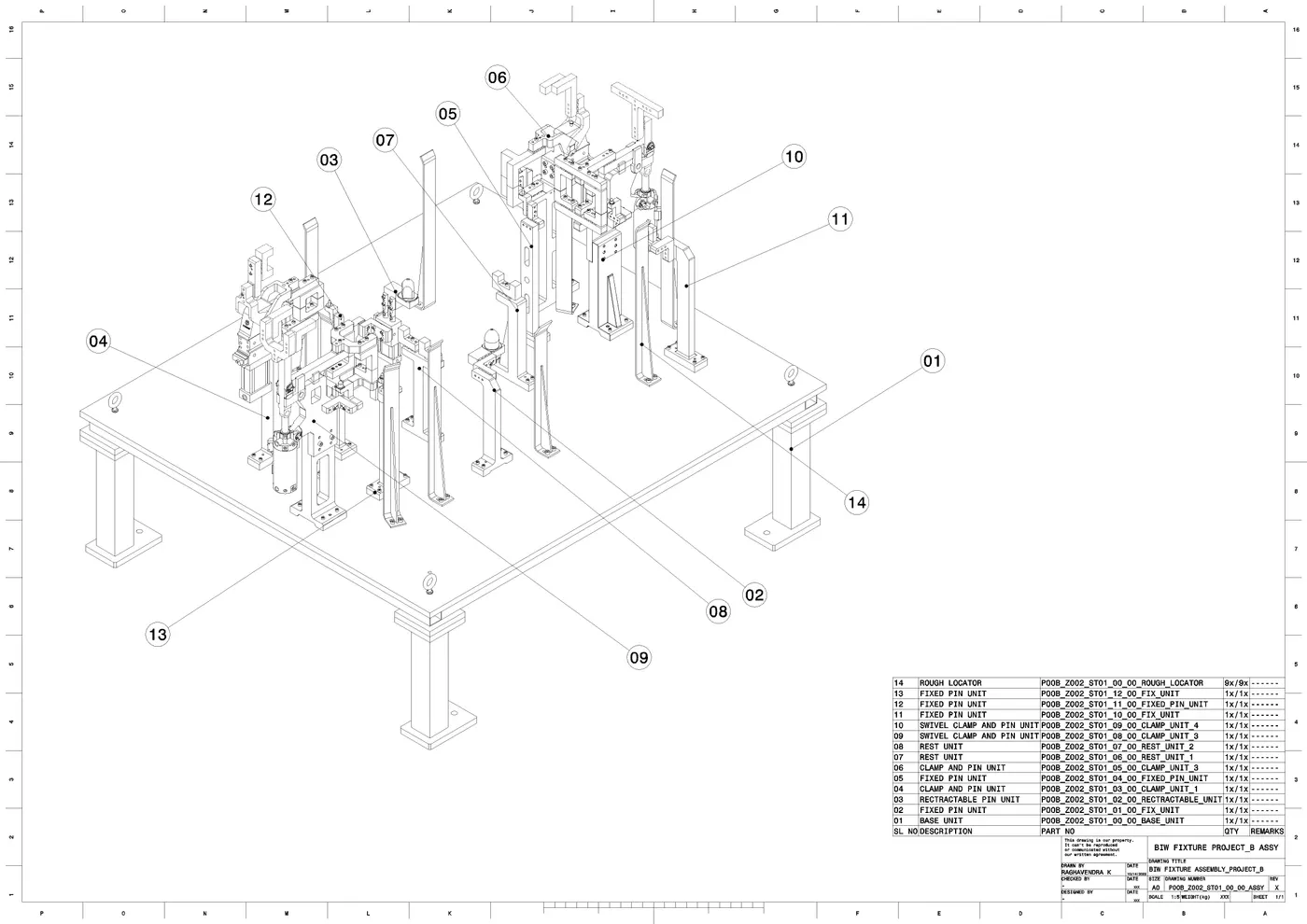

- Draft a Key Sheet for the Complete Fixture assembly created in challenge 8.

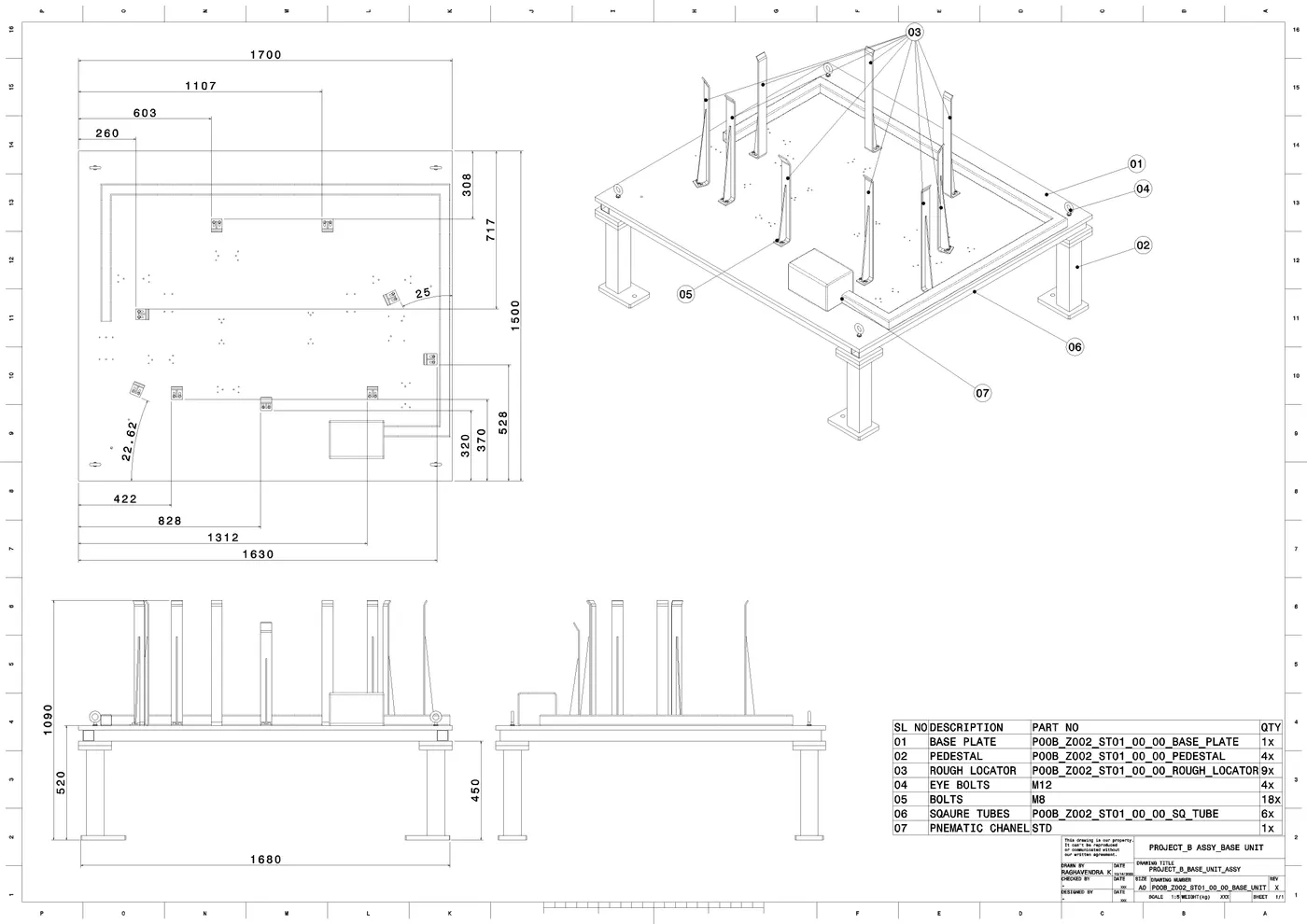

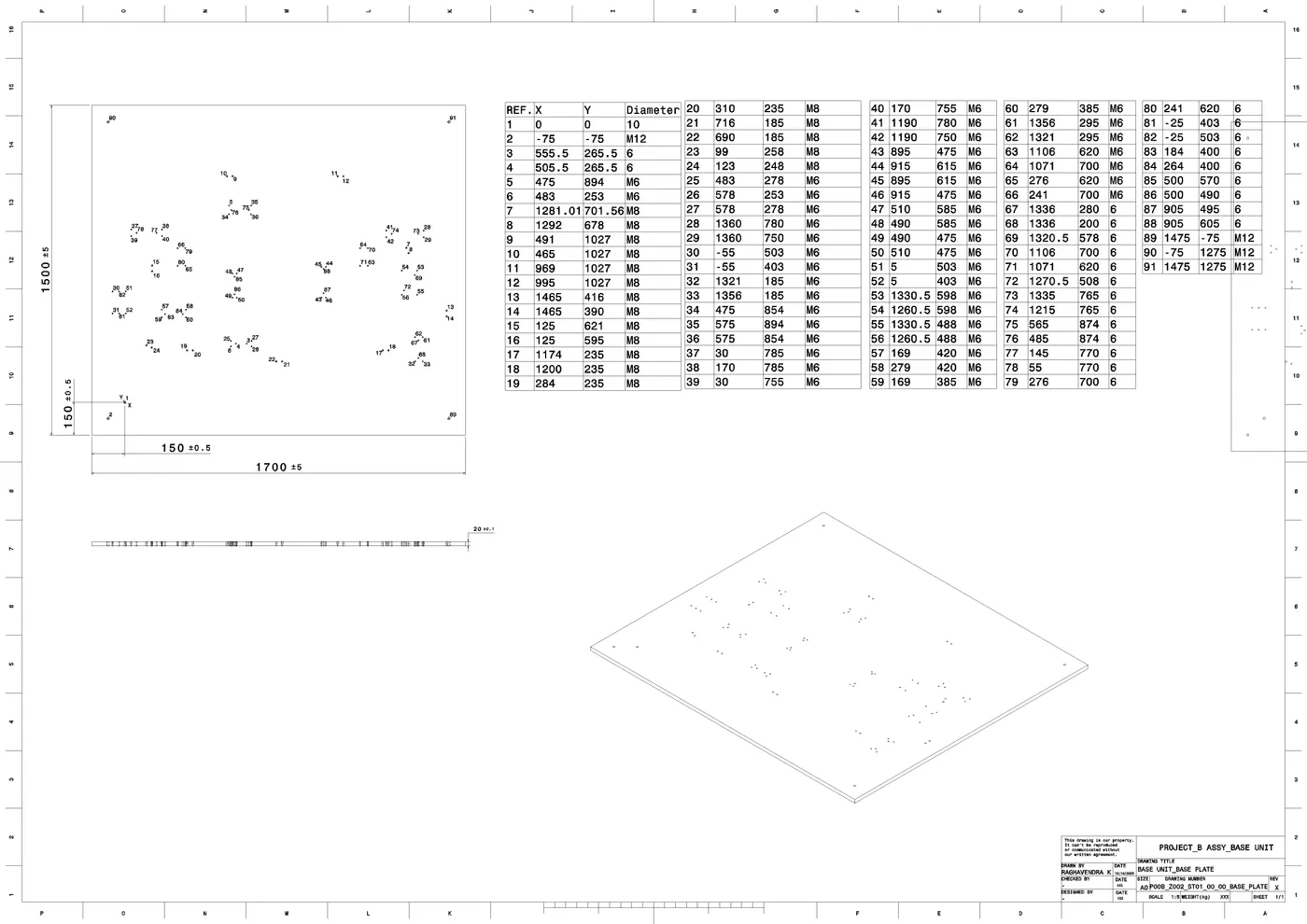

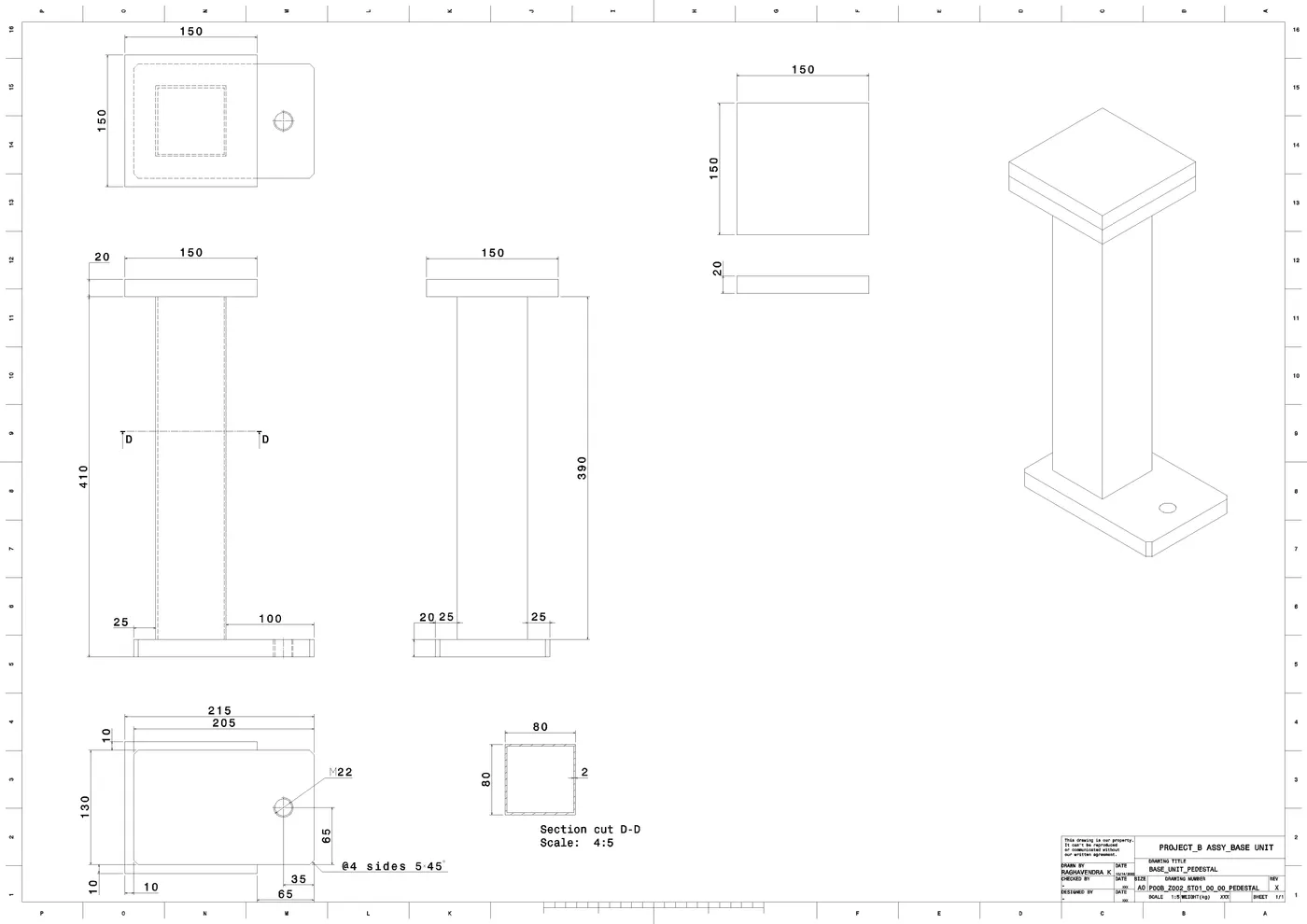

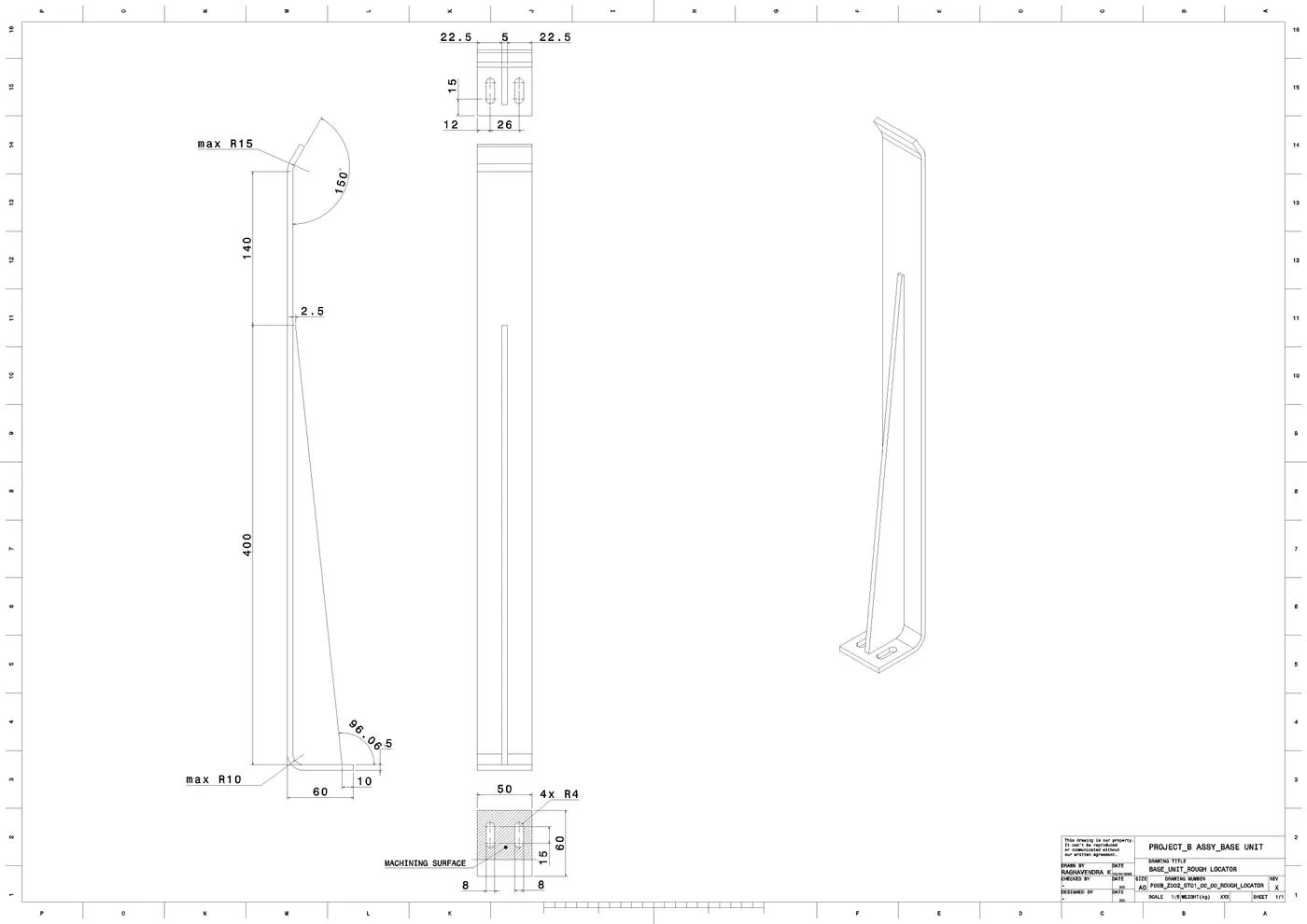

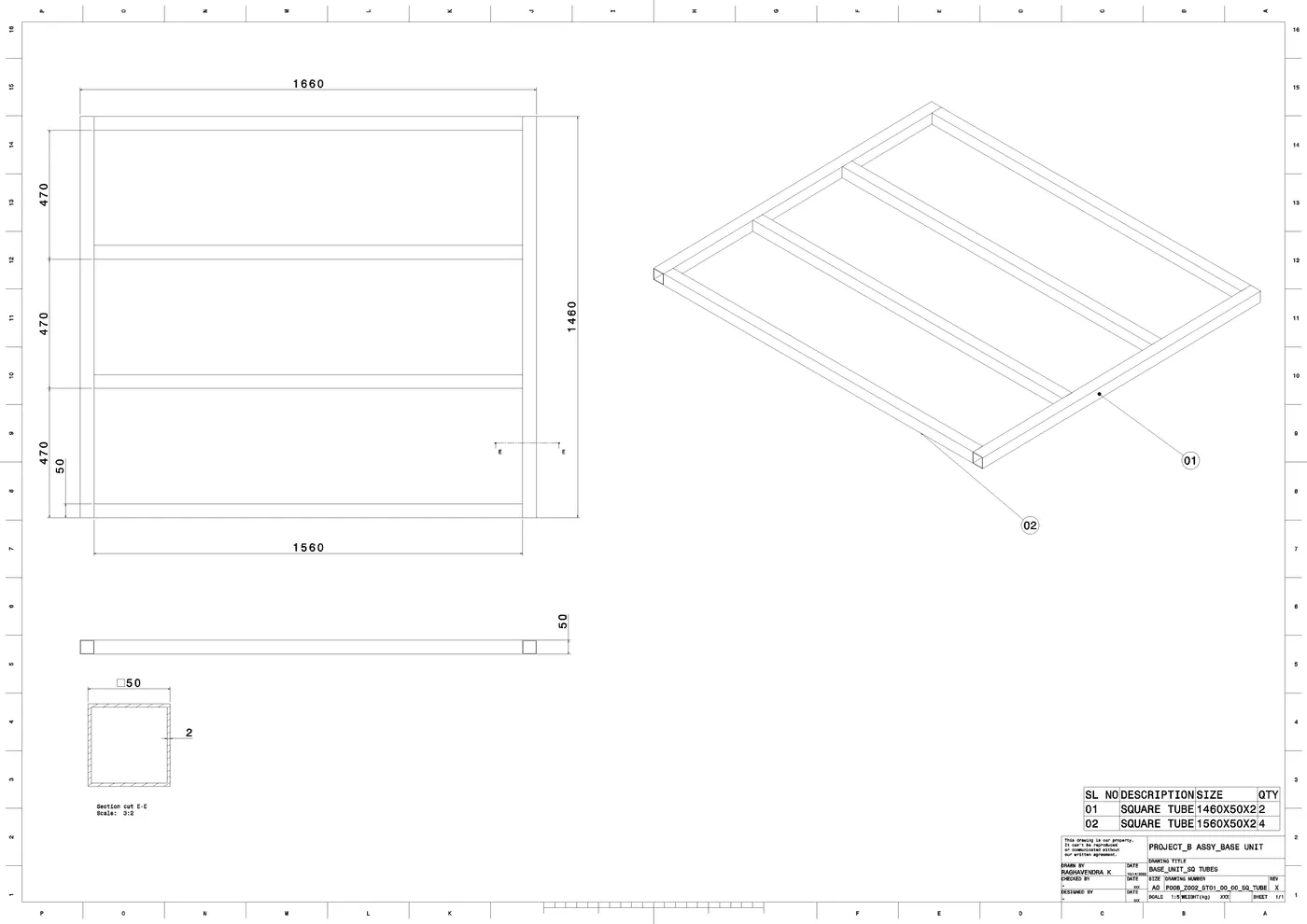

- Draft a Base Unit and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly from challenge 8
