Week 10:- 2D Detailing Challenge

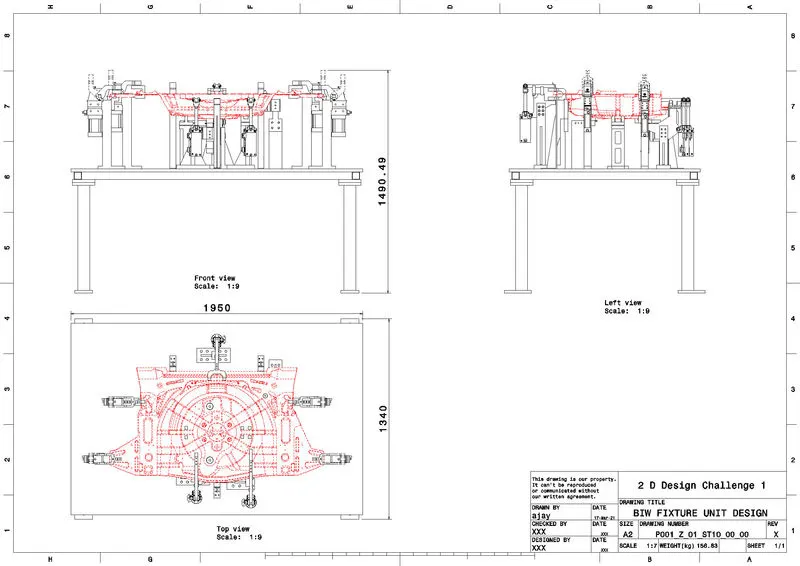

Key Sheet for the Complete Fixture assembly in orthogonal projections

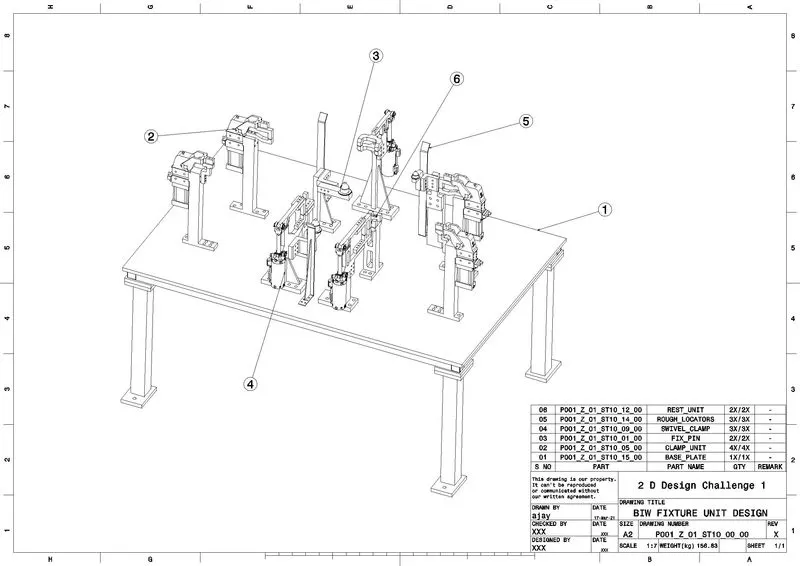

Key Sheet for the Complete Fixture assembly in isometric view

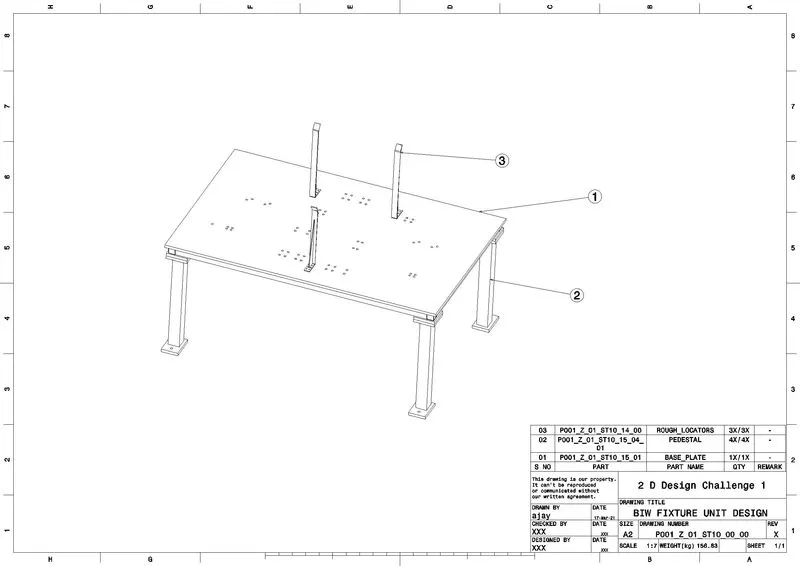

BIW Fixture base unit design in isometric view

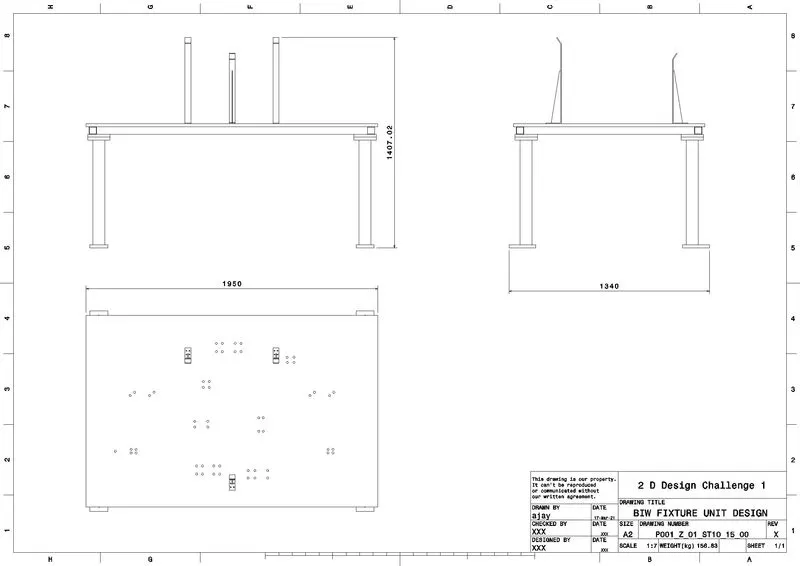

BIW Fixture base unit design in orthographic projection

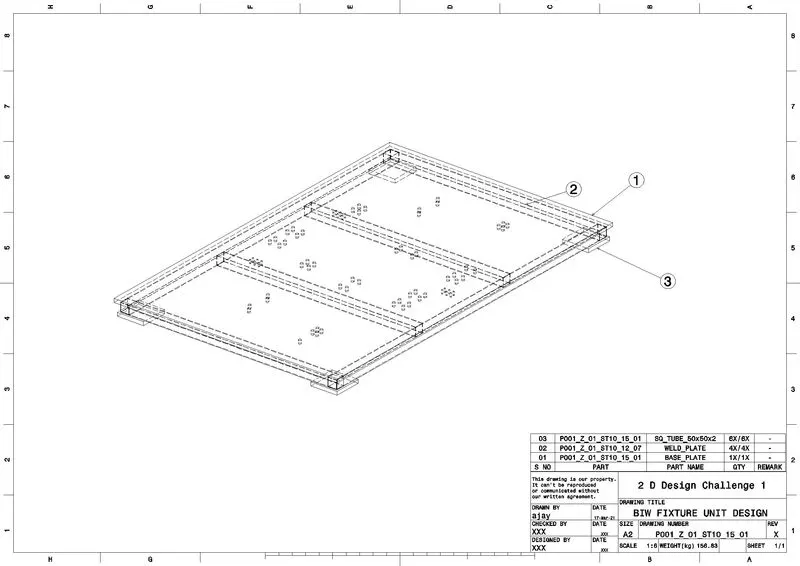

Base plate design in isometric view

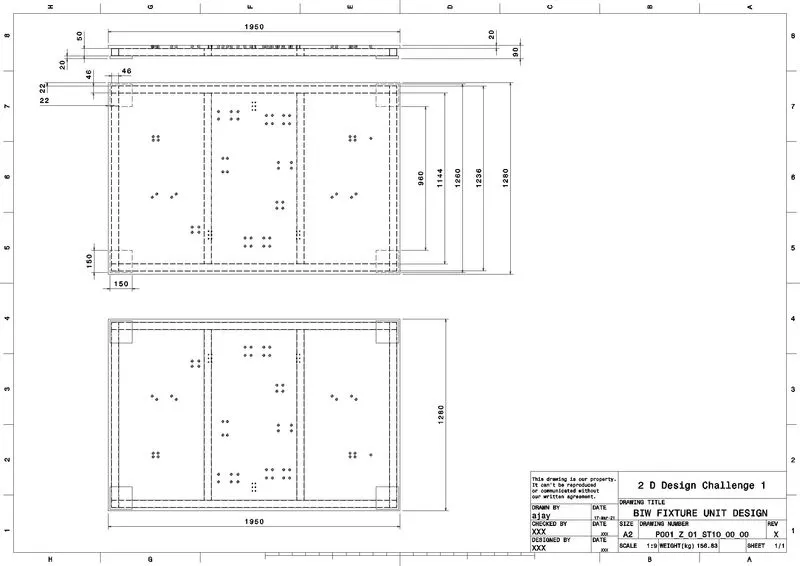

Base plate design in orthographic projection

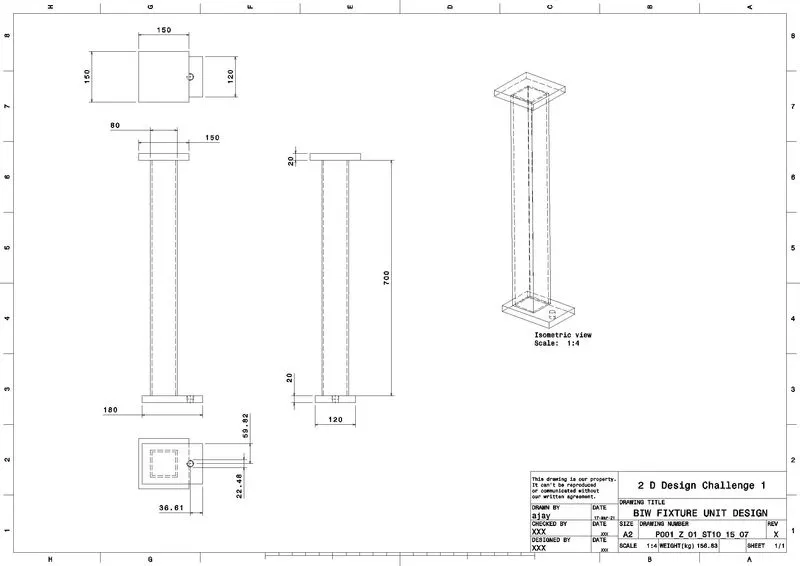

Pedestal

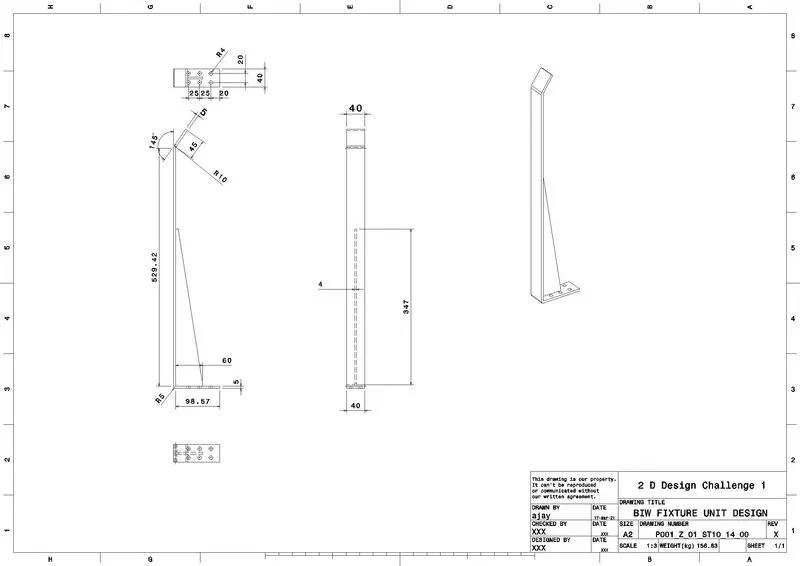

Rough locators

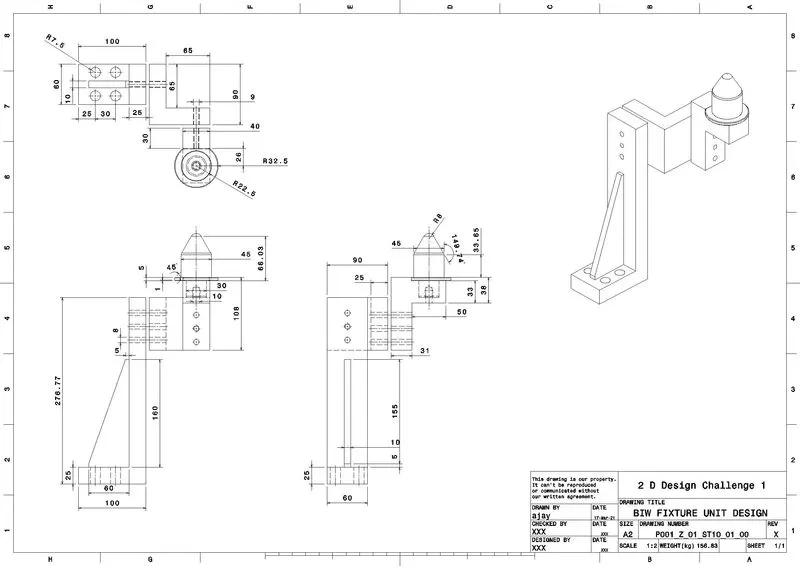

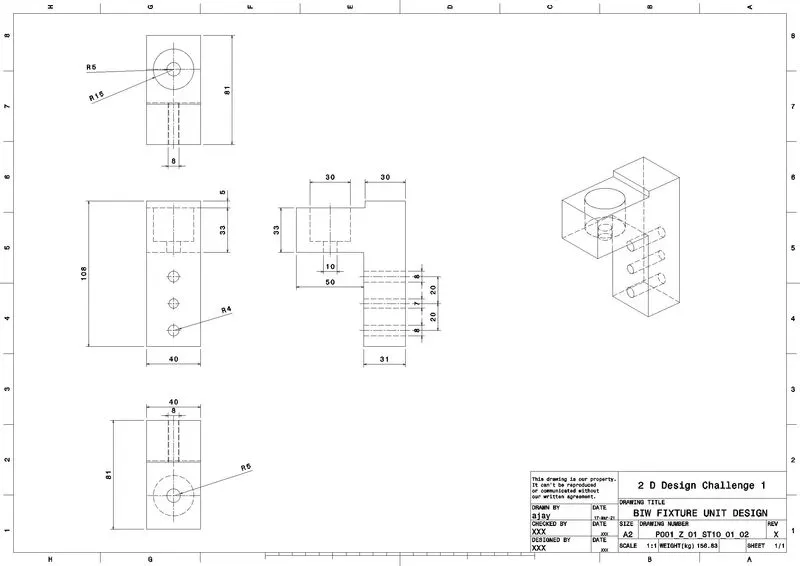

Fixed pin unit

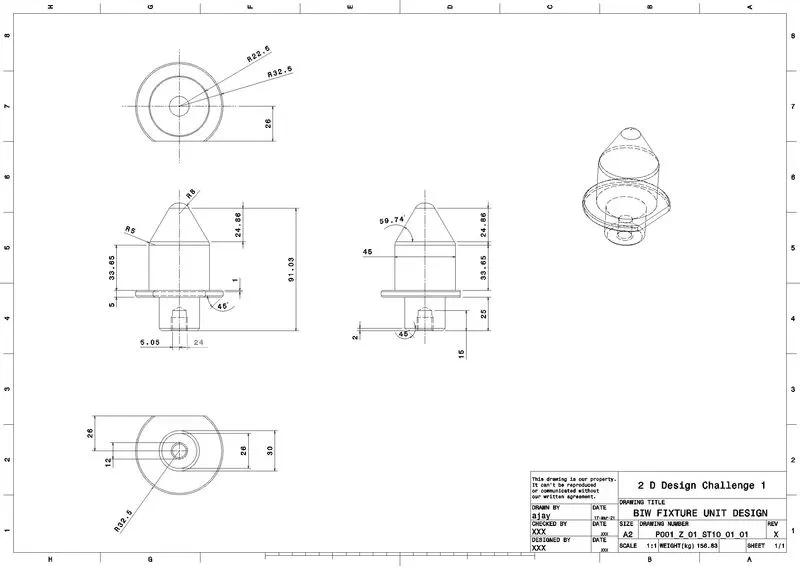

Pin
Pin retainer

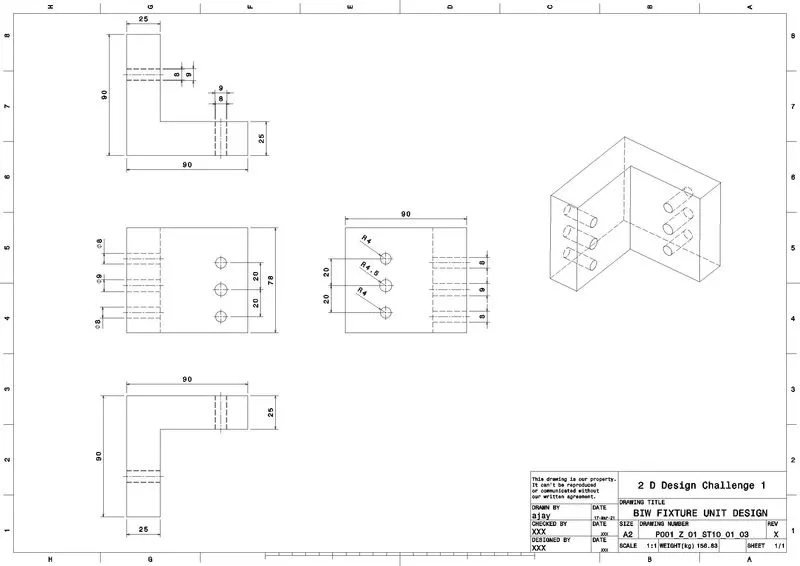

Block

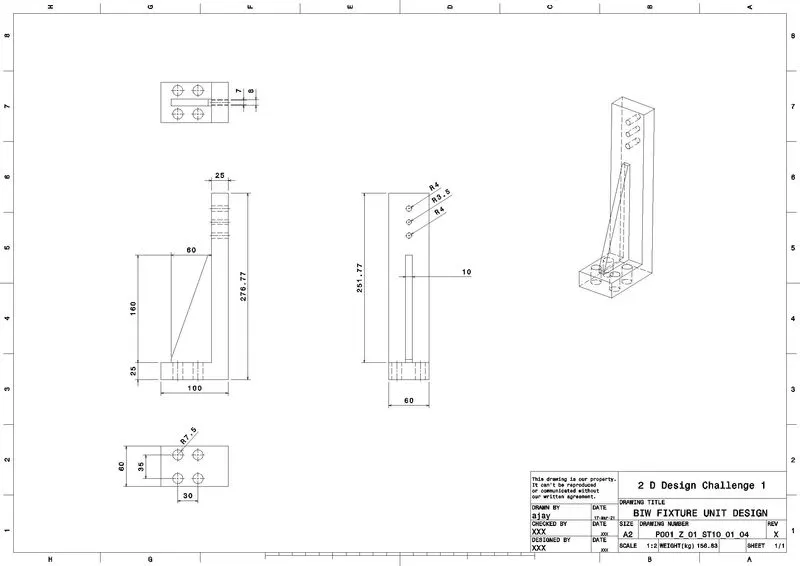

Riser
