Week 10:- 2D Detailing Challenge

Objectives:

Draft a Key Sheet for the Complete Fixture assembly created in challenge 8.

Draft a Base Unit and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly from challenge 8.

Report:

1. Key Sheet for the Complete Fixture assembly. ( P001_Z01_ST006_00_00).

• Key sheet: an index of units & their placement on the tool base. Key sheet shows placement & location of that particular unit on tool base where exactly & exact position of tool base. Key sheet is showing orthogonal or isometric view of that entire component.

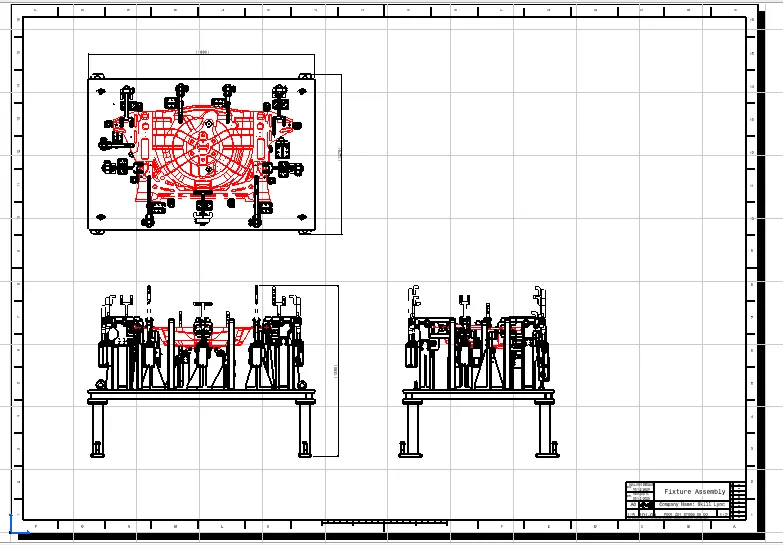

Below figure shows orthographic projection view of fixture assembly.

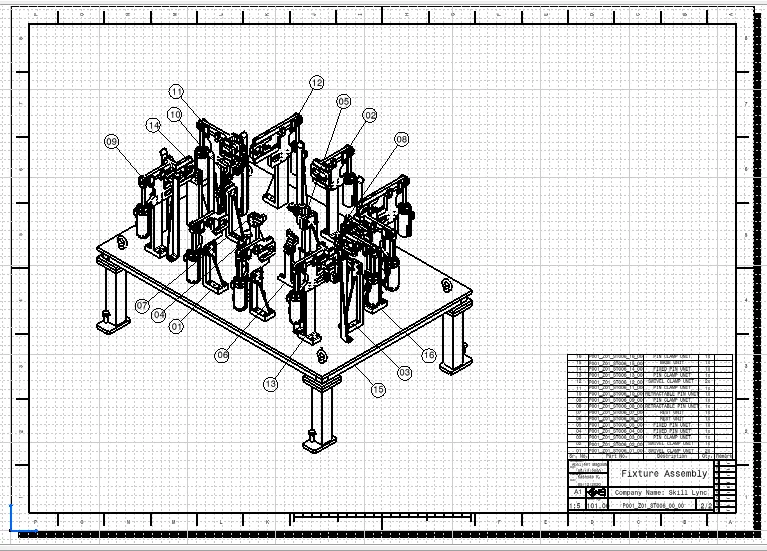

Below figure shows ISO view of fixture assembly.

2. Drafting a Base Unit and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly.

• In fixture assembly there are three kinds of parts majorly manufactured, bought out parts & hardware’s.
• Manufactured parts are those which taken from supplier or vendors. Here we are detailing each & every child part of unit which is manufactured. Some manufactured parts are repeatedly used in multiple units. This reduces designing & drafting time drastically.
• Bought parts are those which are purchased from catalogue. These are standard parts universally accepted. & manufacture in bulk & stored. It has required less lead time. Also use of std. parts/ bought out parts also reduces drafting time as there no need to detail.
• Hardwares are standard parts & same STD followed every where. So no detailing required

Detailing:

• Detailing of base unit (P001_Z01_ST006_15_00_BASE_UNIT)

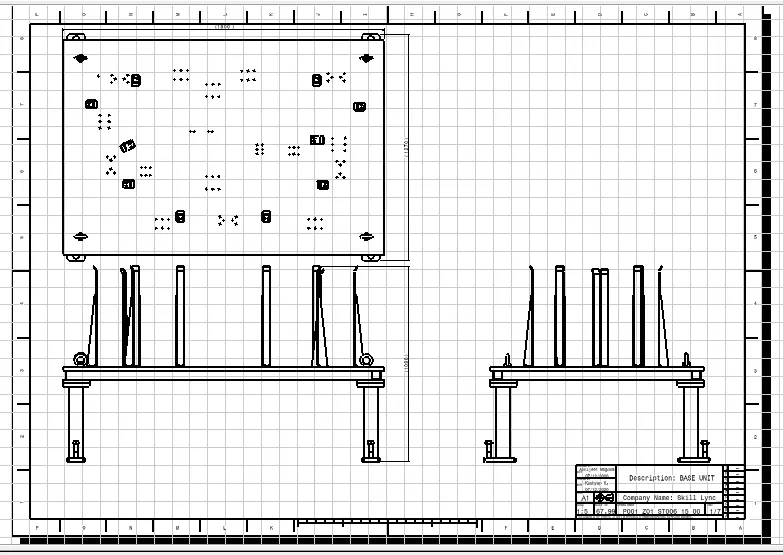

Below figure shows ortho view of Base unit.

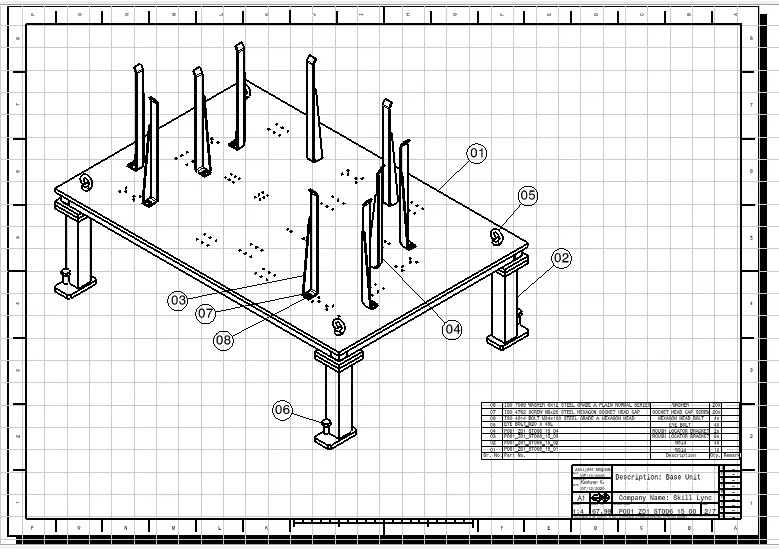

Below figure shows ISO view of Base unit

• Detailing of base plate (P001_Z01_ST006_15_01_WELD):

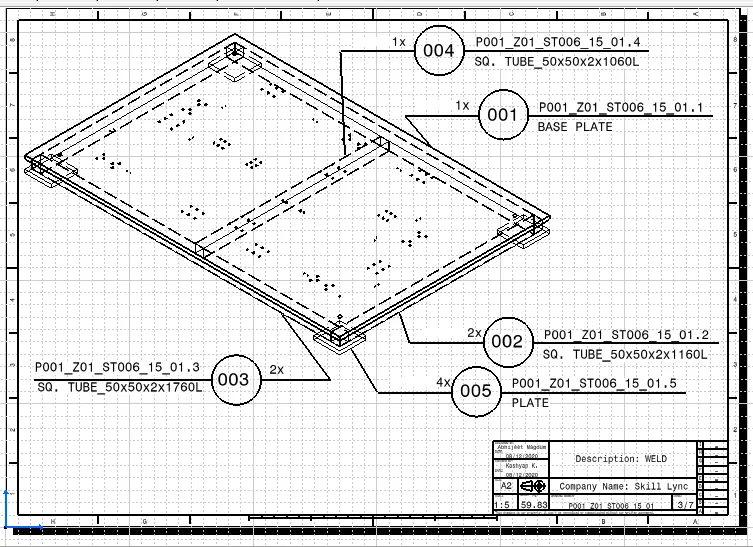

Below figure shows ISO view of Base plate with child parts.

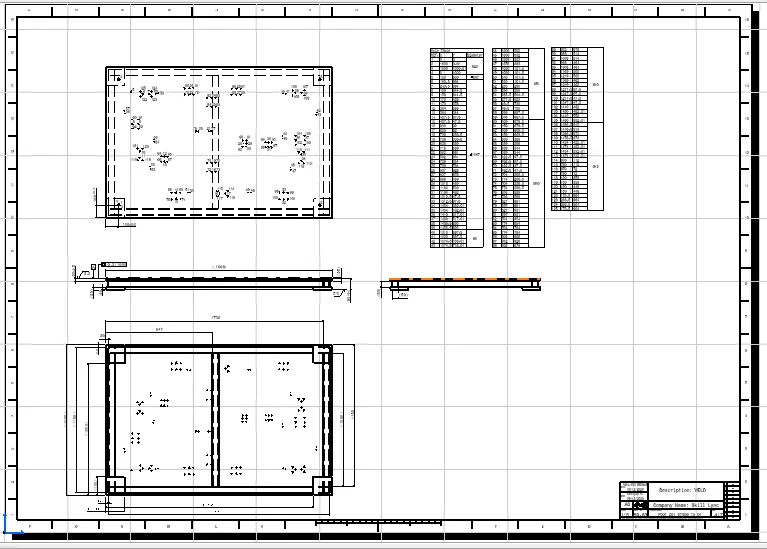

Below figure shows orthographic view of Base plate with dimension.

• Detailing of base plate support (P001_Z01_ST006_15_02_WELD):

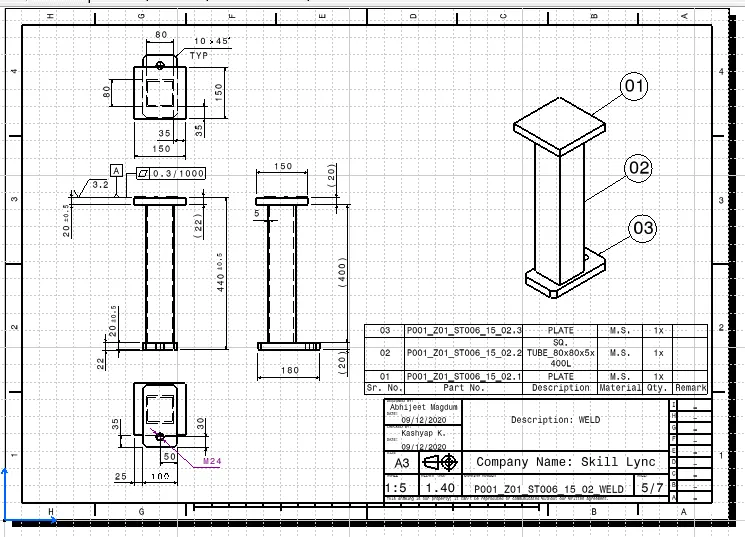

Below figure shows detailed drawing of base plate support.

• Detailing of rough locator bracket (P001_Z01_ST006_15_03_ROUGH_LOCATOR_BRACKET):

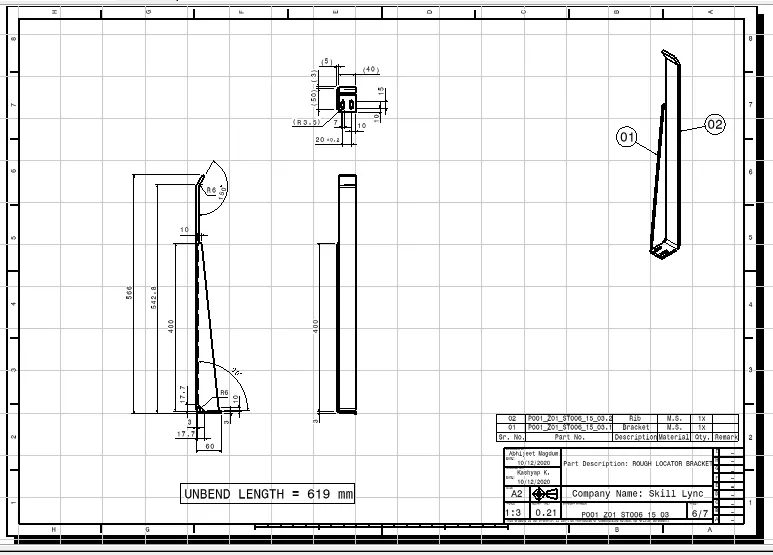

Below figure shows detailed drawing of Rough locator bracket.

• Detailing of rough locator bracket (P001_Z01_ST006_15_04_ROUGH_LOCATOR_BRACKET):

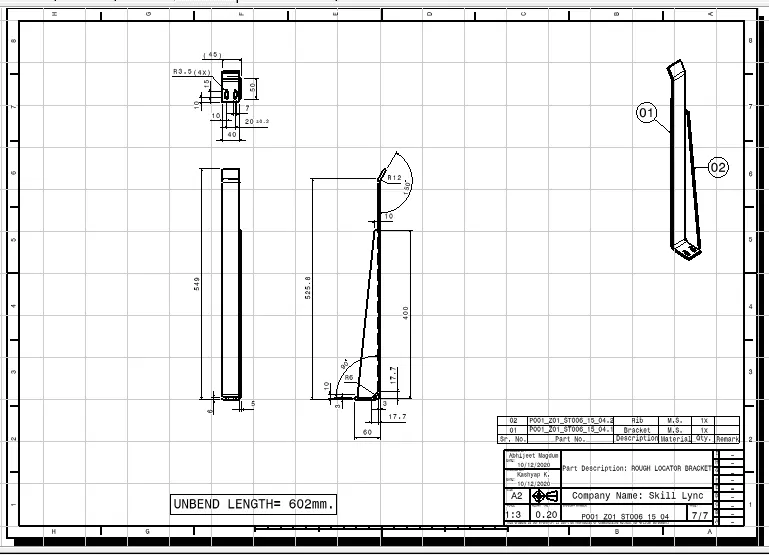

Below figure shows detailed drawing of Rough locator bracket.

• Detailing of fix pin unit (P001_Z01_ST006_04_00_FIXED_PIN_UNIT):

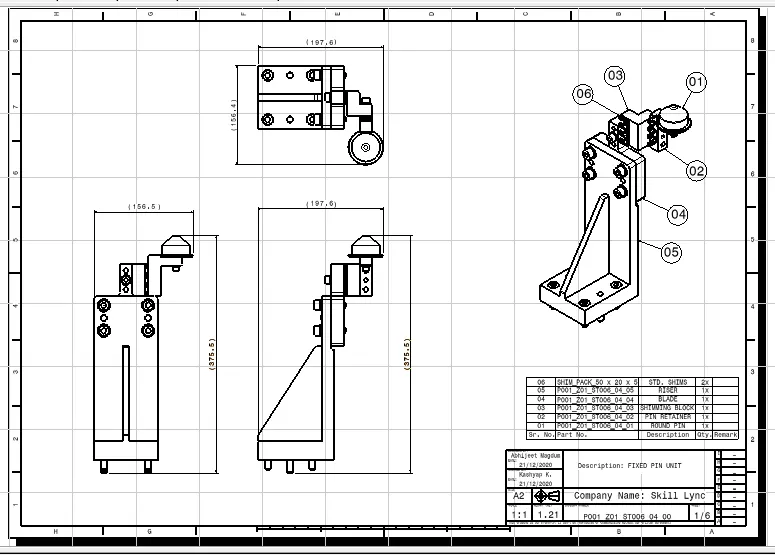

Below figure shows detailed drawings of fix pin units with child parts.

• Drawing of Round pin (P001_Z01_ST006_04_01_ROUND_PIN):

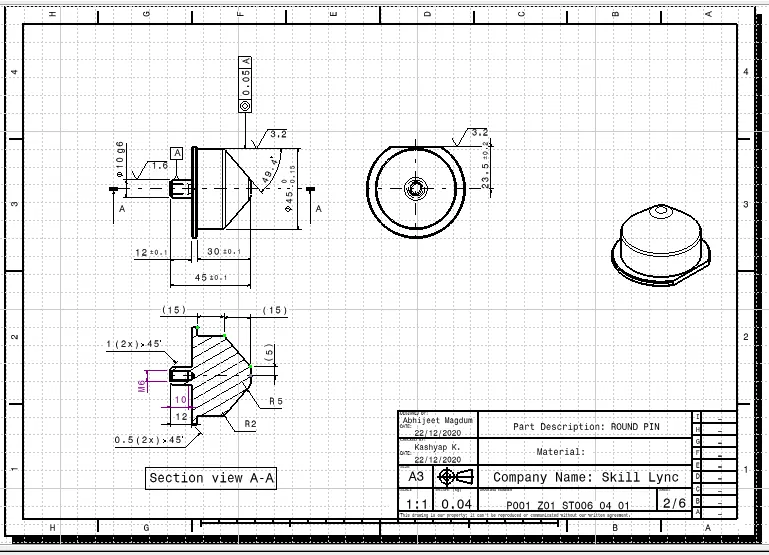

Below figure shows detailed drawing of round pin.

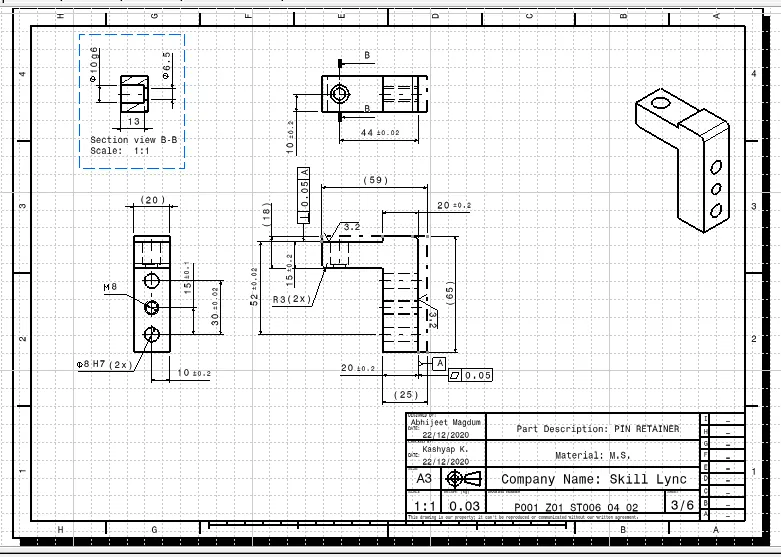

• Drawing of pin retainer (P001_Z01_ST006_04_02_PIN_RETAINER):

Below figure shows detailed drawing of pin retainer.

• Drawing of Shimming Block (P001_Z01_ST006_04_03_SHIMMING_BLOCK):

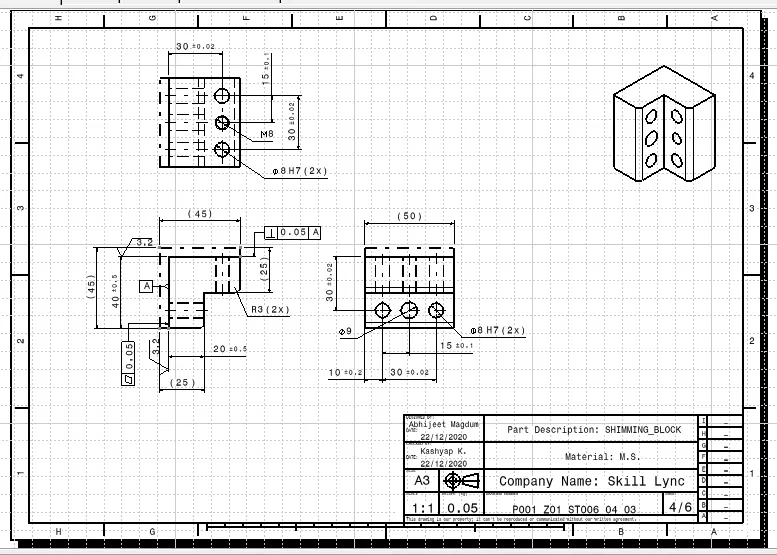

Below figure shows detailed drawing shimming Block.

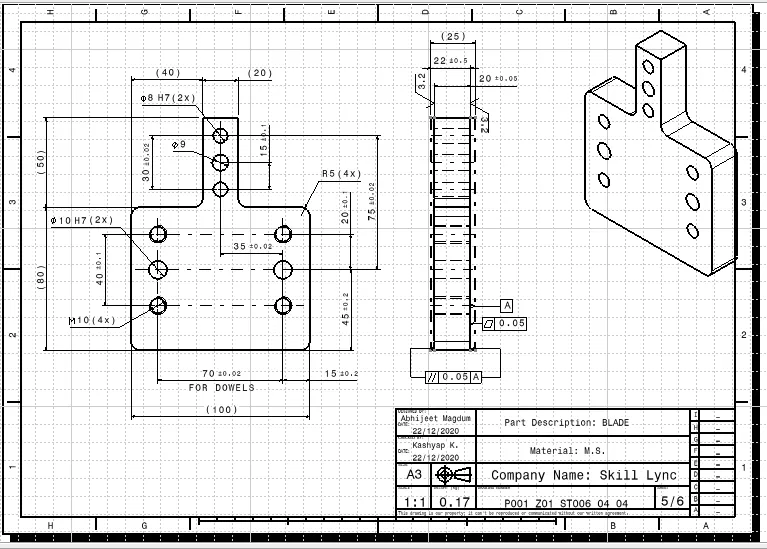

• Drawing of Blade (P001_Z01_ST006_04_04_BLADE):

Below figure shows detailed drawing of blade.

• Drawing of Riser (P001_Z01_ST006_04_05_RISER):

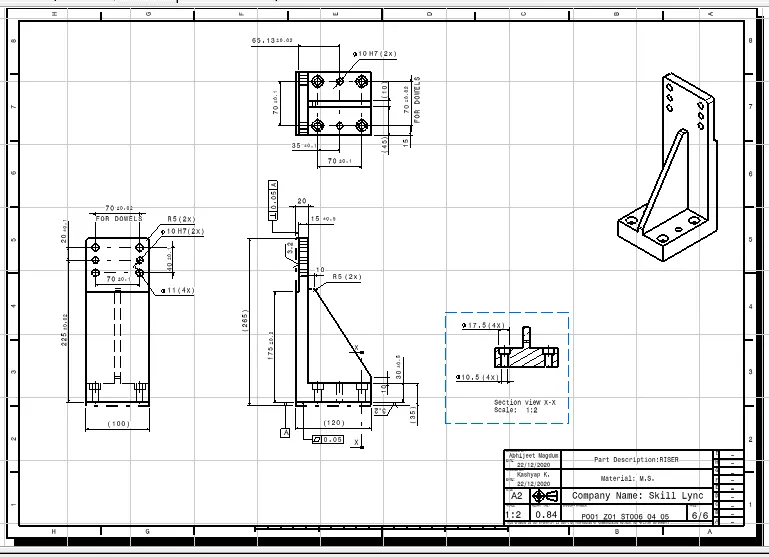

Below figure shows detailed drawing of riser.

• Detailing of fix pin unit (P001_Z01_ST006_05_00_FIXED_PIN_UNIT):

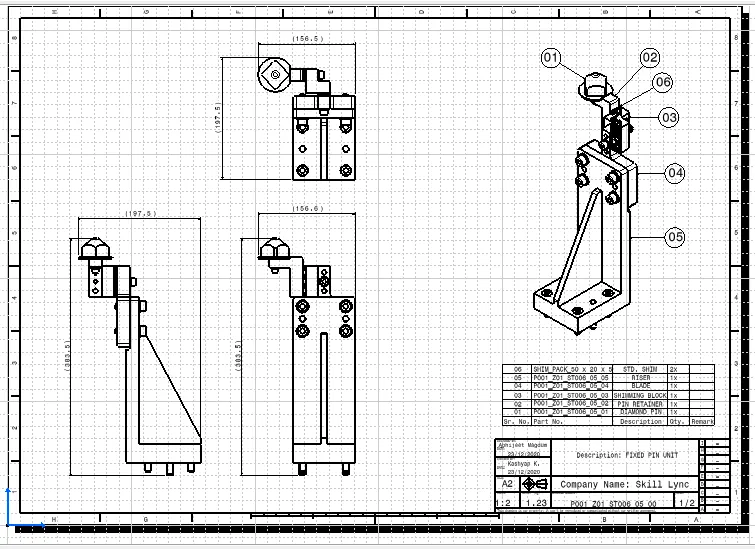

Below figure shows detailed drawings of fix pin units with child parts.

• Drawing of diamond pin (P001_Z01_ST006_05_01_DIAMOND_PIN):

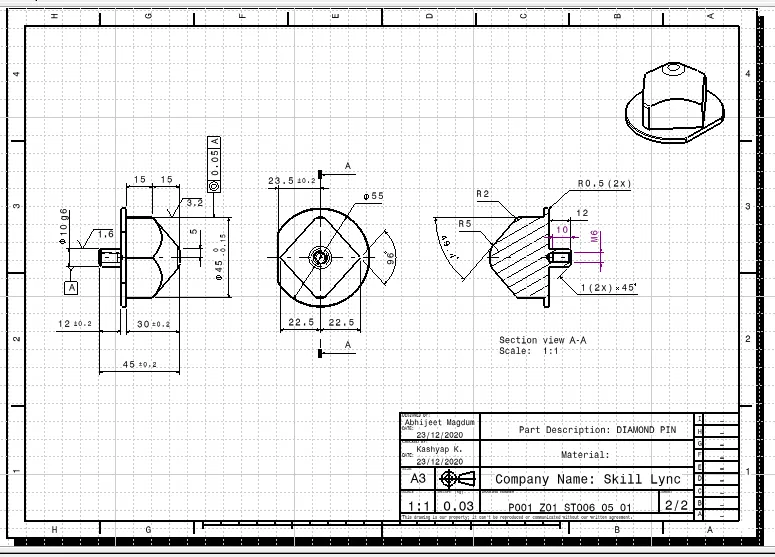

Below figure shows detailed drawing of diamond pin.

For all other part drawing of this unit like pin retainer, Shimming block, blade, riser refer fix pin unit child parts drawing (P001_Z01_ST006_04_00_FIXED_PIN_UNIT).

• Detailing of fix pin unit (P001_Z01_ST006_14_00_FIXED_PIN_UNIT):

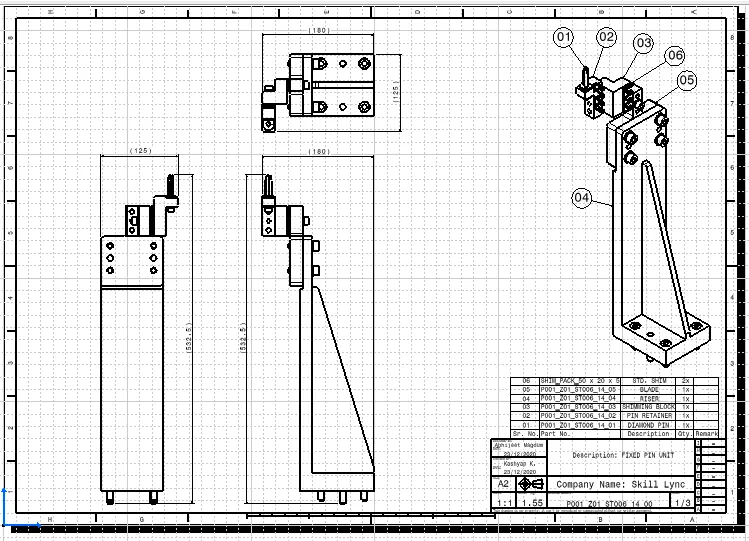

Below figure shows detailed drawings of fix pin units with child parts.

• Drawing of diamond pin (P001_Z01_ST006_14_01_DIAMOND_PIN):

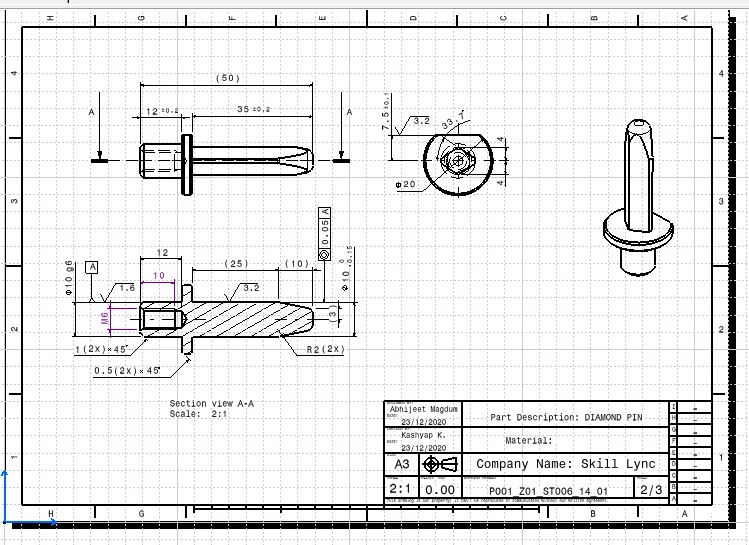

Below figure shows detailed drawing of diamond pin.

• Drawing of Riser (P001_Z01_ST006_14_04_RISER):

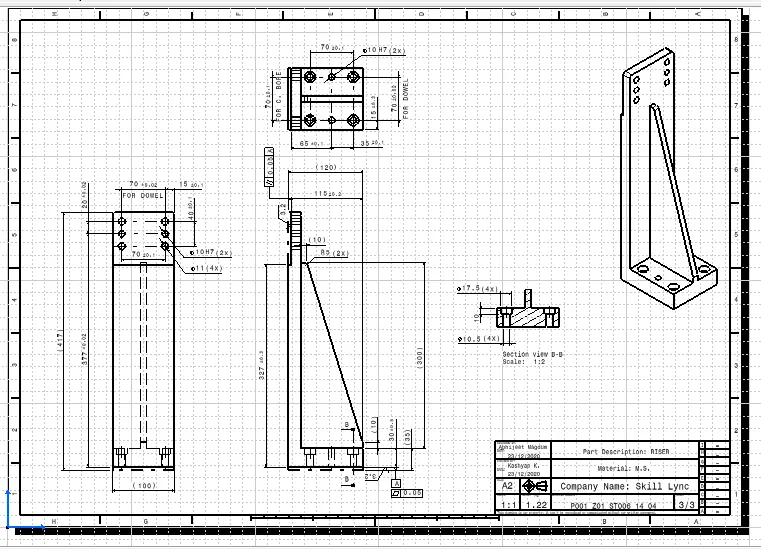

Below figure shows detailed drawing of riser.

For all other part drawing of this unit like pin retainer, Shimming block, blade refer fix pin unit child parts drawing (P001_Z01_ST006_04_00_FIXED_PIN_UNIT).
