Week 1 Understanding Different Battery Chemistry
1) Li-ion Batteries:-
A lithium-ion battery or Li-ion battery is a type of rechargeable battery. Lithium-ion batteries are commonly used for portable electronics and electric vehicles and growing in popularity for military and aerospace applications.

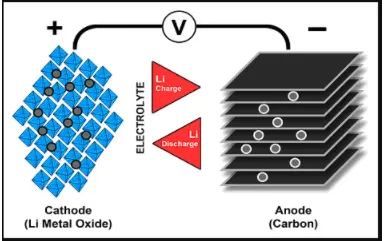

similar to the lead- and nickle- based architecture, lithium-ion uses a cathode(positive electrode), an anode(negative electrode) and electrolyte as conductor. The cathode is a metal oxide and the anode consist of porous carbon. During discharge, the ions flow from the anode to the cathode through the electrolyte and separator, charge reverses the direction and the ions flow from the cathode toi the anode.
Types of Li-ion cells:-
Lithium Cobalt Oxide(LiCoO2)-LCO
Its high specific energy makes Li-cobalt the popular choice for mobile phones, laptops and digital cameras. The battery consist of a cobalt oxide cathode and a graphite carbon anode. The cathode has a layered structure and during discharge, lithium ions move from the anode to the cathode. The flow reverses on charge. The drawback of Li-cobalt is a relatively short life span,low thermal stability and limited load capabilities(specific power).
Lithium Manganese Oxide(LiMn2O4)-LMO
Li-ion with manganese spinel was first published in the materials Research Bulletin in 1983. In 1996, Moli Energy commercialized a Li-ion cell with lithium manganese oxide as cathode materisal. The architecture forms a three dimensional spinel structure that improves ion flow on the electrode,which results in lower internal resistance and improved current handling.A further advantage of spinal is high thermal stability and enhanced safety, but the cycle and calendar life are limited.
Lithium Nickel Cobalt Aluminium Oxide (LiNiCoALO2)-NCA
Lithium nickel cobalt aluminium oxide battery or NCA, has been around since 1999 for special applications. It shares similarities with NMC by offering high specific energy, reasonably good specific p[ower and a long life span. Less flattering are safety and cost. NCA is a further development of lithium nickel oxide, adding aluminium gives the chemistry greater stability.
Lithium Nickel Managanese Cobalt Oxide(LiNiMnCoO2)-NMC
One of the most successful Li-ionbsystems is a cathode combination of nickel-manganese-cobalt(NMC). Similar to Li-maganese, these systems can be tailored to serve as Energy Cells or Power Cells. For example,NMC in an 18650 cell for moderate load condition has a capacity of about 2,800mAh and can deliver 4A to 5A, NMC in the same cell optimized for specific power has a capacity of only about 2000mAh but delivers a continuous discharge current of 20A.
Lithium Iron Phosphate(LiFePO4)-LFP
Li-phosphate offers good electrochemical performance with low resistance. This is made possible with nano-scale phosphate cathode material. The key benefits are high current rating and long cycle life, besides good thermal stability,enhanced safety and tolerance if abused. Li-phosphate is more tolerant to full charge conditions ans is less stressed than other lithium-ion systems if kept at high voltage for a prolonged time. As a trade-off,its lower nominal voltage of 3.2V/cell reduces the specific energy below that of cobalt-blended lithium-ion.
Lithium Titanate(Li2TiO3)-LTO
Batteries with lithium titanate anodes have been known since the 1980s. Li-titanate replaces the graphite in the anode of a typical lithium-ion battery and the material forms into a spinel structure. The cathode can be lithium manganese oxide or NMC. Li-titanate has a nominal cell voltage of 2.40V, can be fast charged and delivers a high discharge current of 10C or 10 times the rated capacity. The cycle count is said to be higher than that of a regular Li-ion. Li-titanate is safe, has excellent low-temperature discharge characteristics and obtains a capacity of 80 % at -30degree celcius.

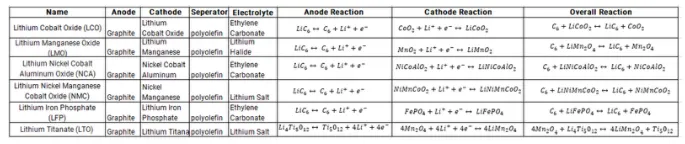

The material and chemical reactions occuring at the anode,cathode and overall reactions of all the types of Li-ion cells are given in the Table below:-

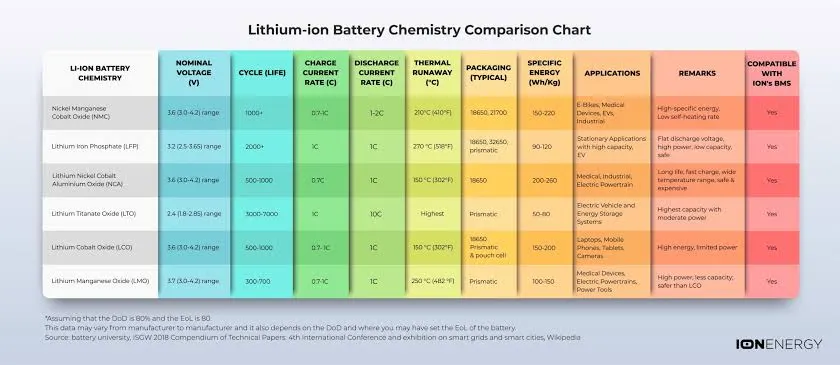

2) Differences between each type of Li-ion Batteries based on their characteristics:-
