Week 1 Spur Gear Challenge
Aim- To carry out the static-structural analysis on the pair of spur gear with 3 different materials. And to conclude which material is best for the spur gear based on the results.
Common Specifications of the Analysis:-
1) Meshing Element Size - 0.001m
2) No. of Nodes - 17860
3) Elements - 3088
4) Type of Joint - Revolute
5) Connection Type - Body to Ground
6) Right Gear - Rotating
7) Left Gear - Moment (10 N.m)
8) No. of Steps - 6 each of 30 degrees
| CASE 1 | CASE 2 | CASE 3 |
| Material:- Grey Cast Iron (Ductile) | Material:- Cast Steel | Material:- Cast Bronze |
|

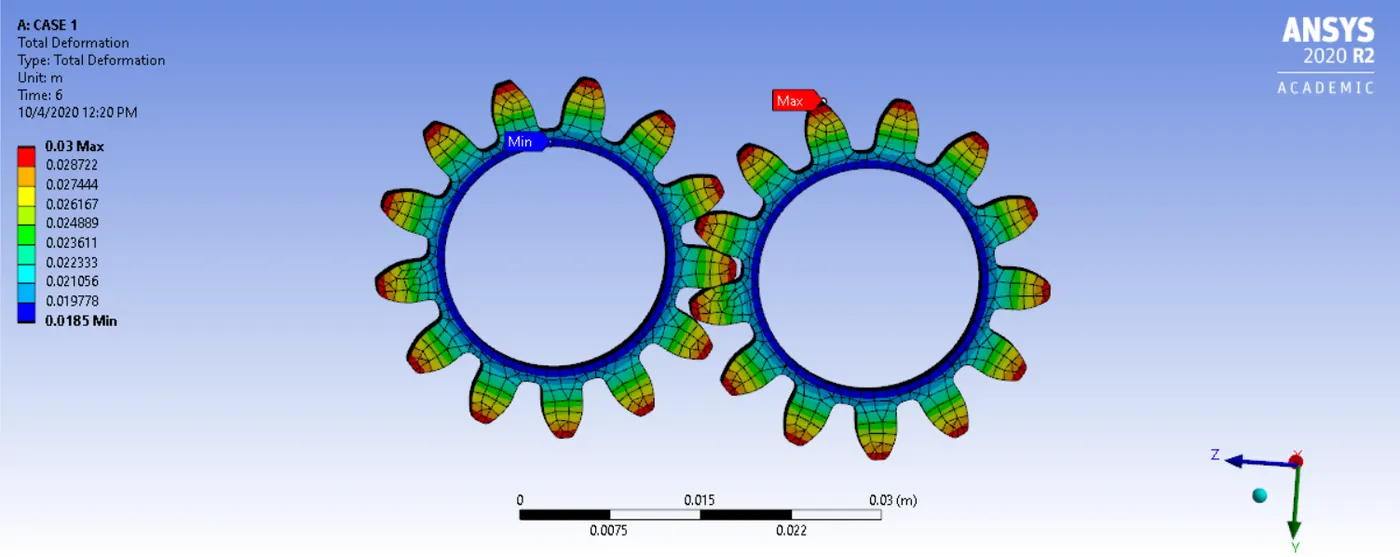

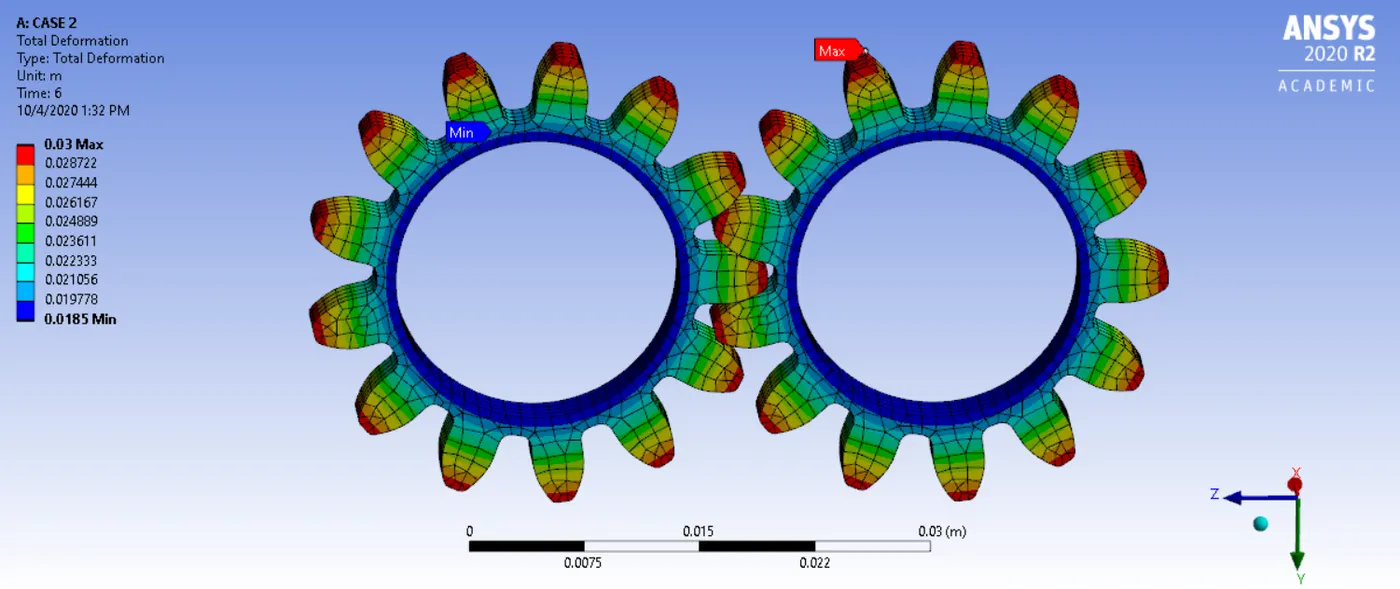

Total Deformation:- Max. Deformation - 0.03 m Min. Deformation - 0.0185 m
|
Total Deformation:- Max. Deformation - 0.03 m Min. Deformation - 0.0185 m
|

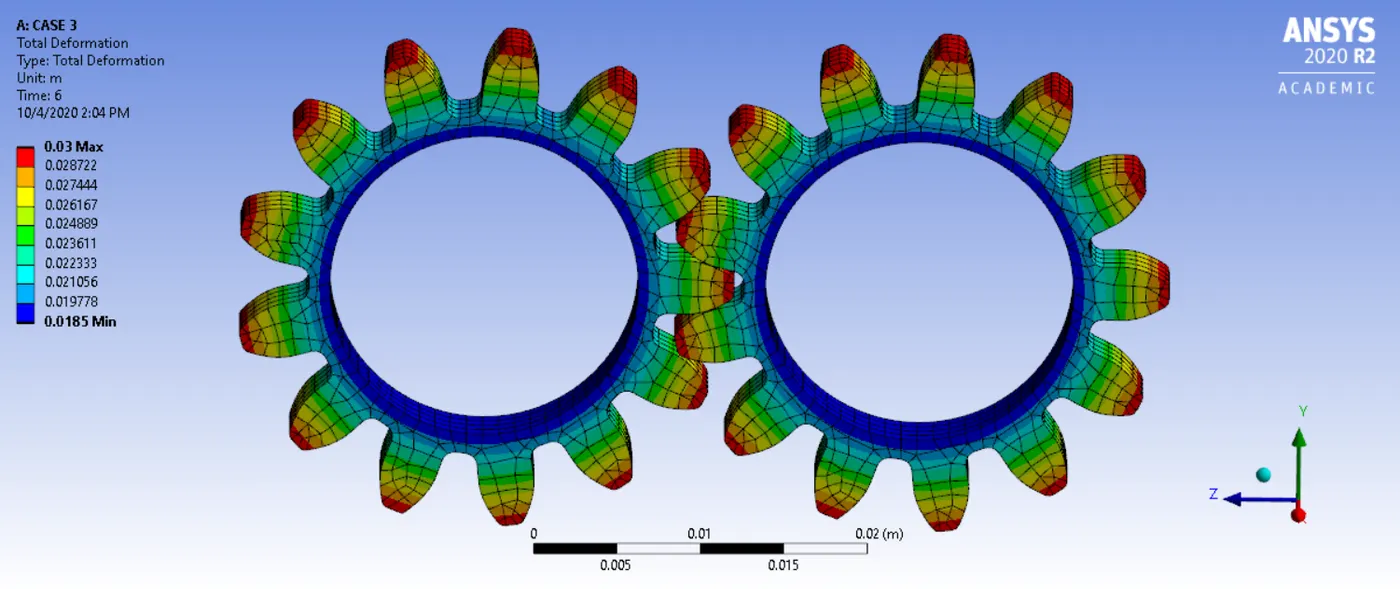

Total Deformation:- Max. Deformation - 0.03 m Min. Deformation - 0.0185 m
|
|
Equivalent Stress:- Max. Stress - 3.385e8 Pa Min. Stress - 4.8853 Pa
|

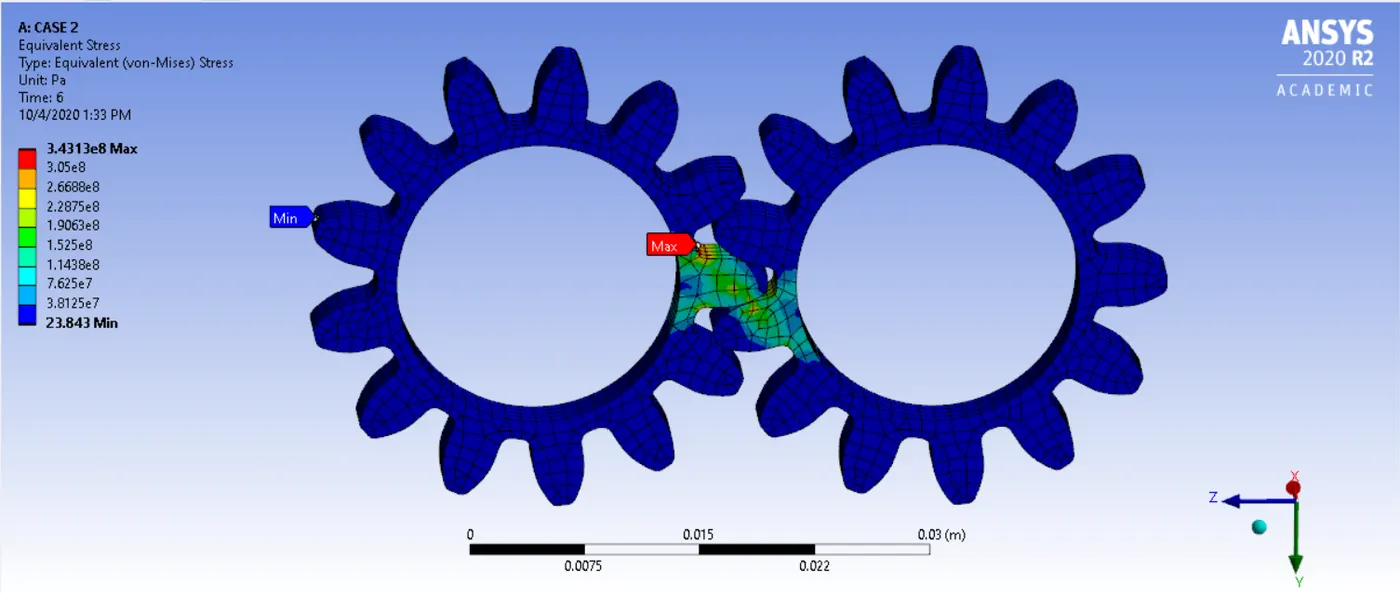

Equivalent Stress:- Max. Stress - 3.431e8 Pa Min. Stress - 23.843 Pa
|

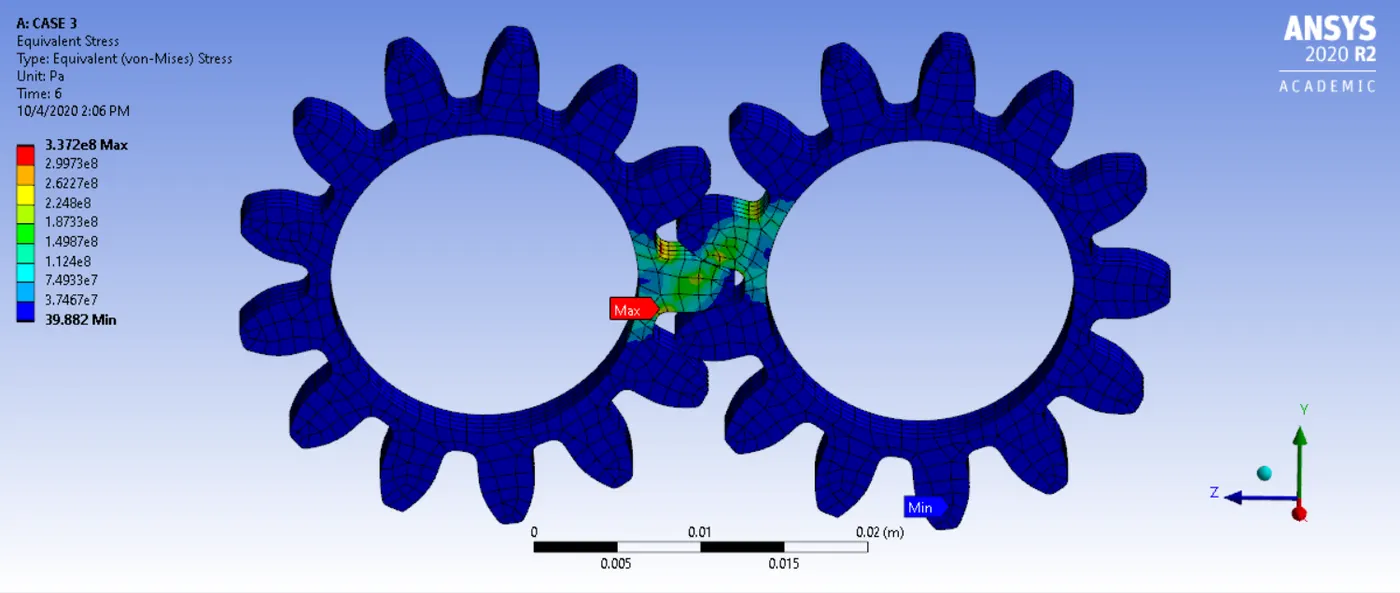

Equivalent Stress:- Max. Stress - 3.372e8 Pa Min. Stress - 39.882 Pa
|
|

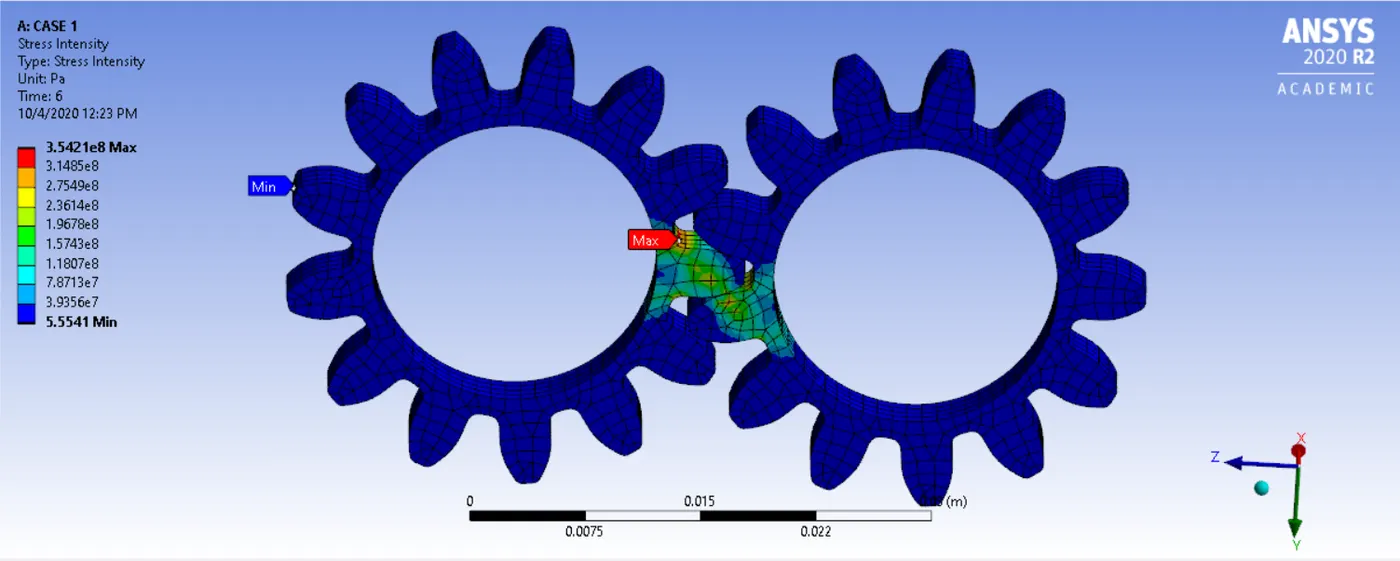

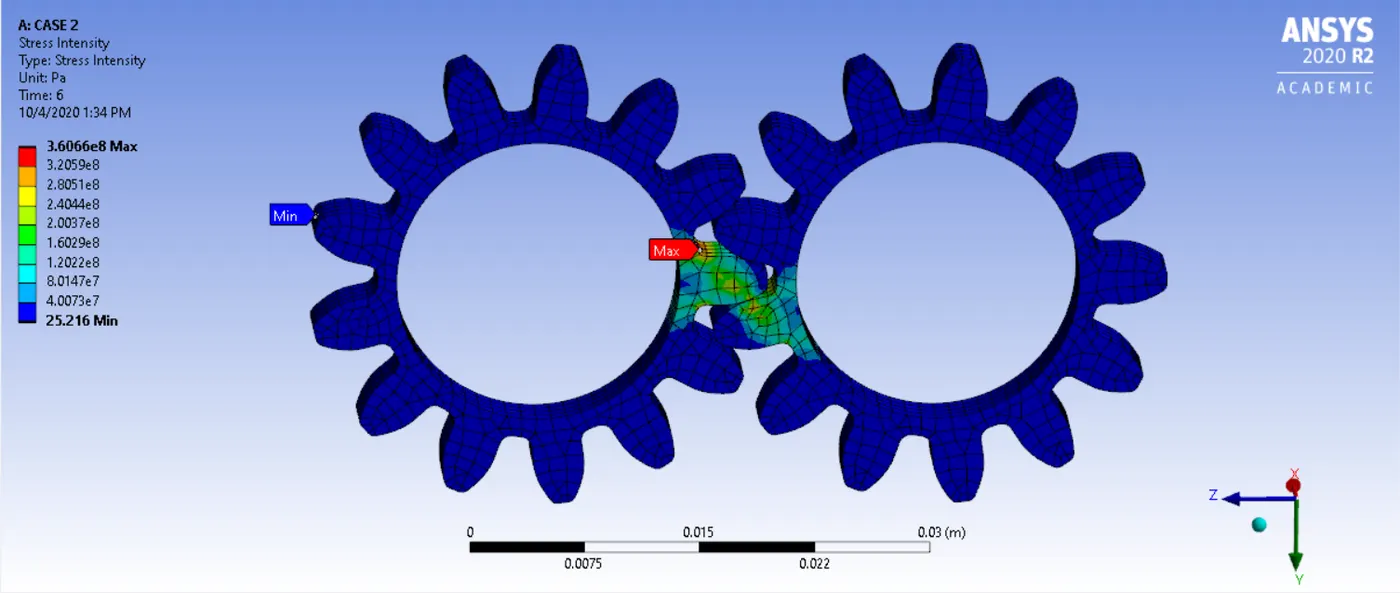

Stress Intensity:- Max. Stress Intensity - 3.5421e8 Pa Min. Stress Intensity - 5.5541 Pa
|
Stress Intensity:- Max. Stress Intensity - 3.6066e8 Pa Min. Stress Intensity - 25.216 Pa
|
Stress Intensity:- Max. Stress Intensity - 3.5771e8 Pa Min. Stress Intensity - 41.364 Pa
|
|

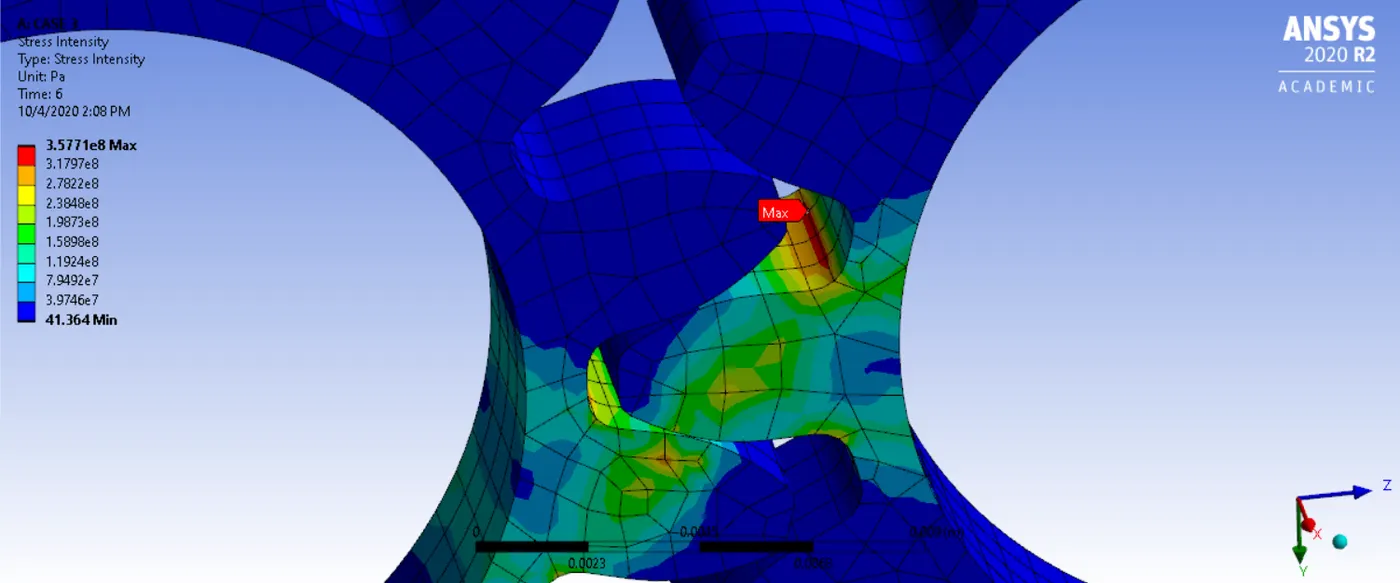

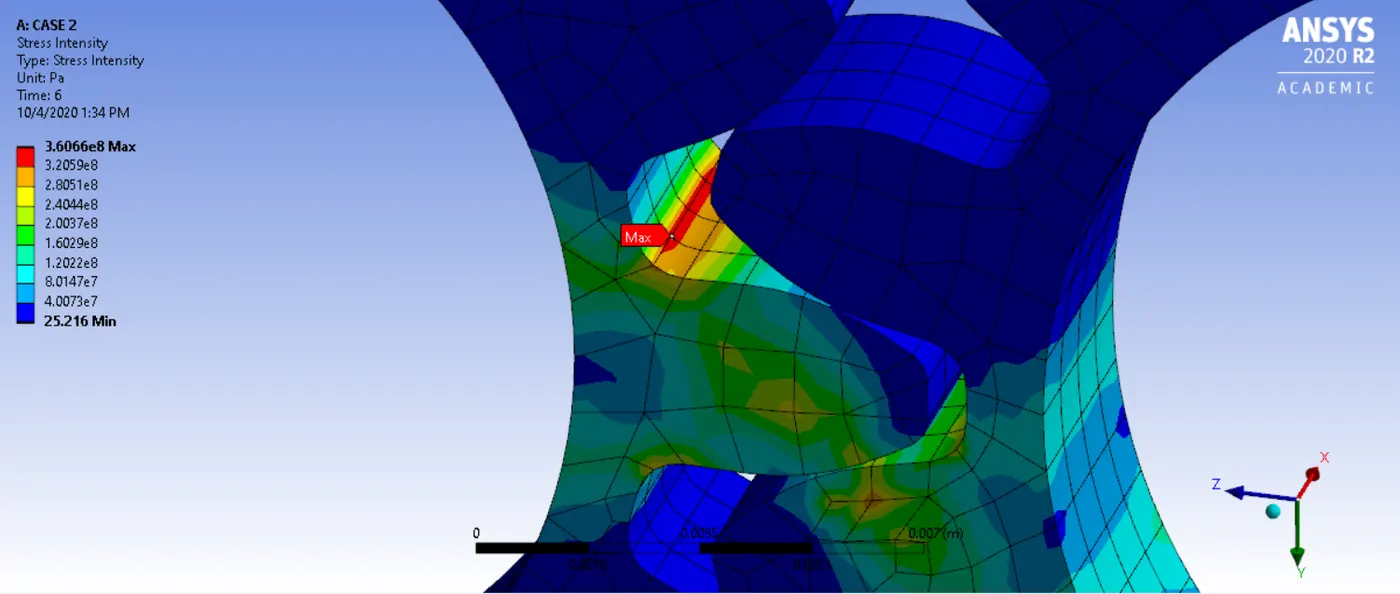

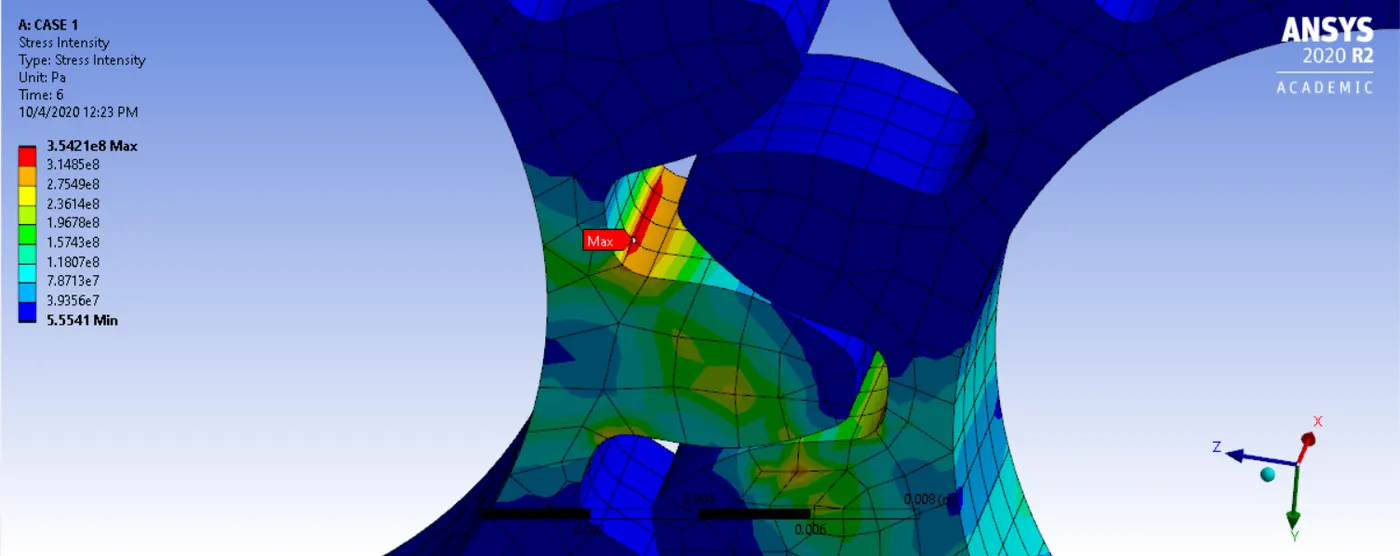

Possible Fracture Location:-
|
Possible Fracture Location:-
|
Possible Fracture Location:-
|
|

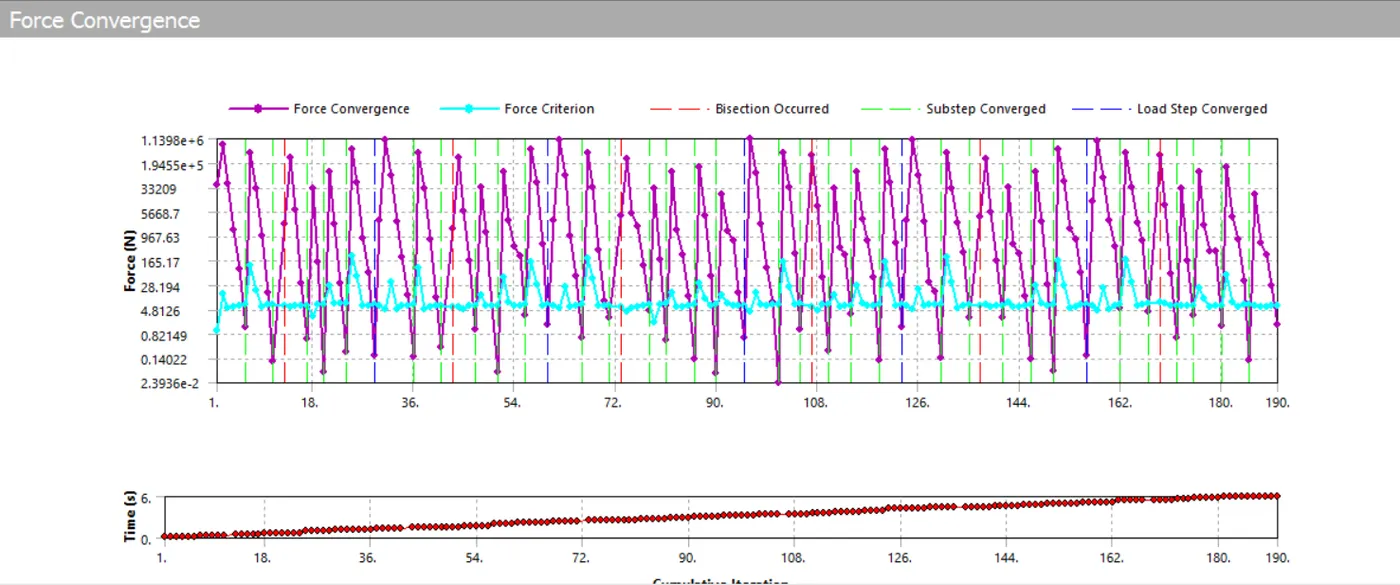

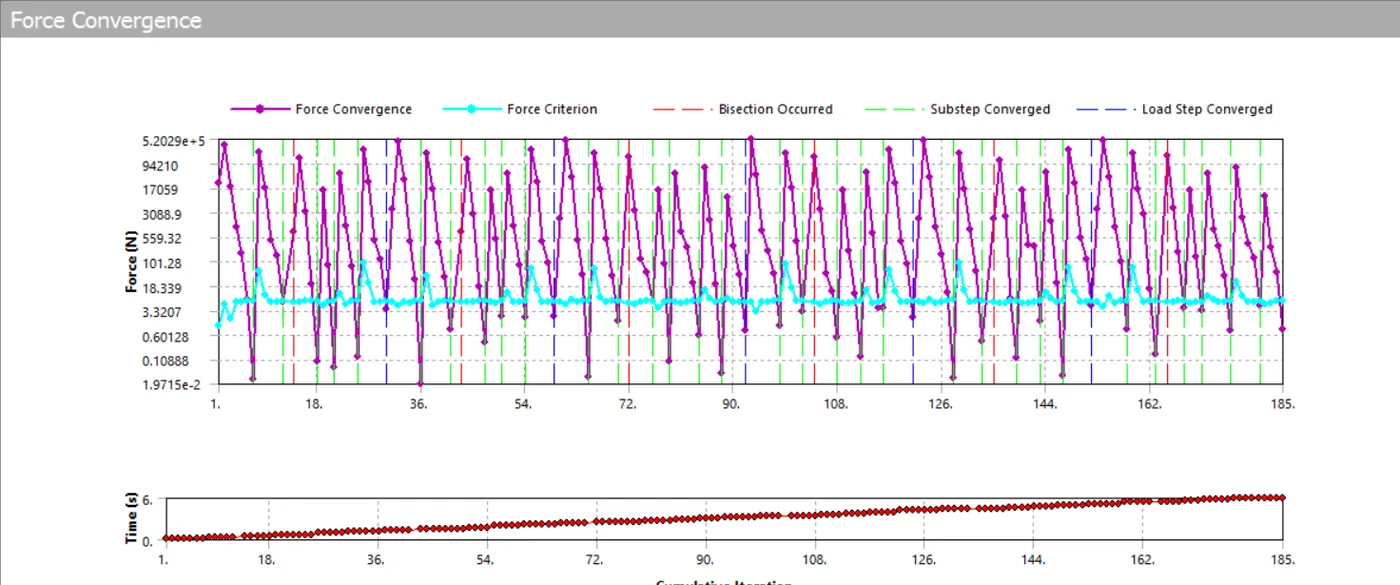

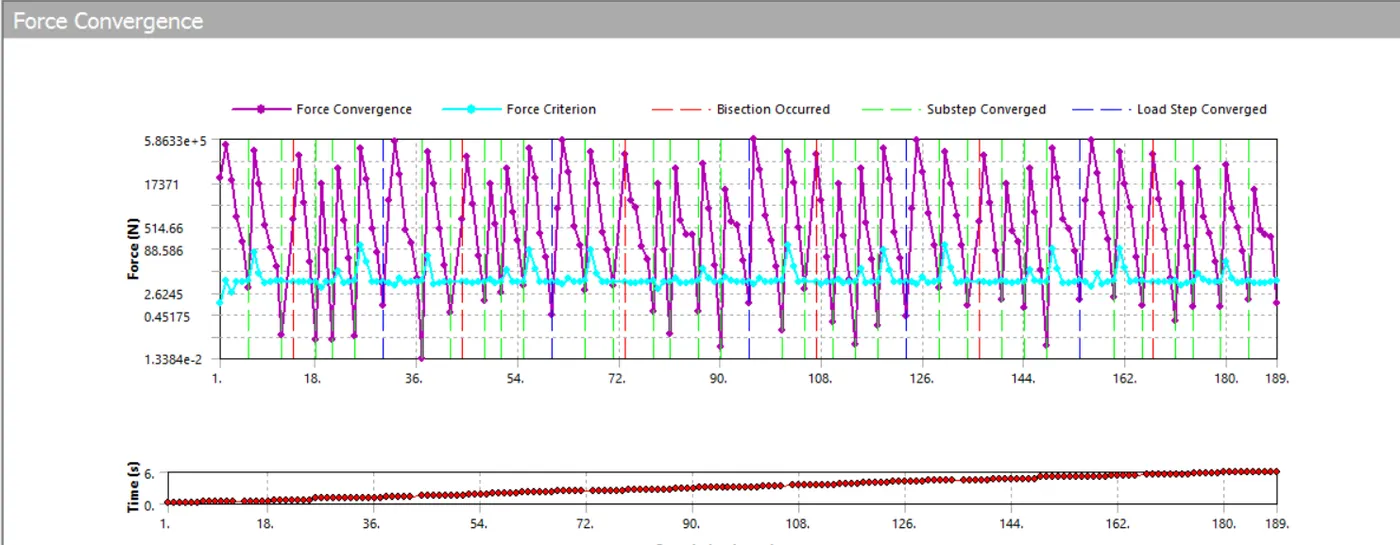

Force Convergence Graph:-
|
Force Convergence Graph:-
|
Force Convergence Graph:-
|
|

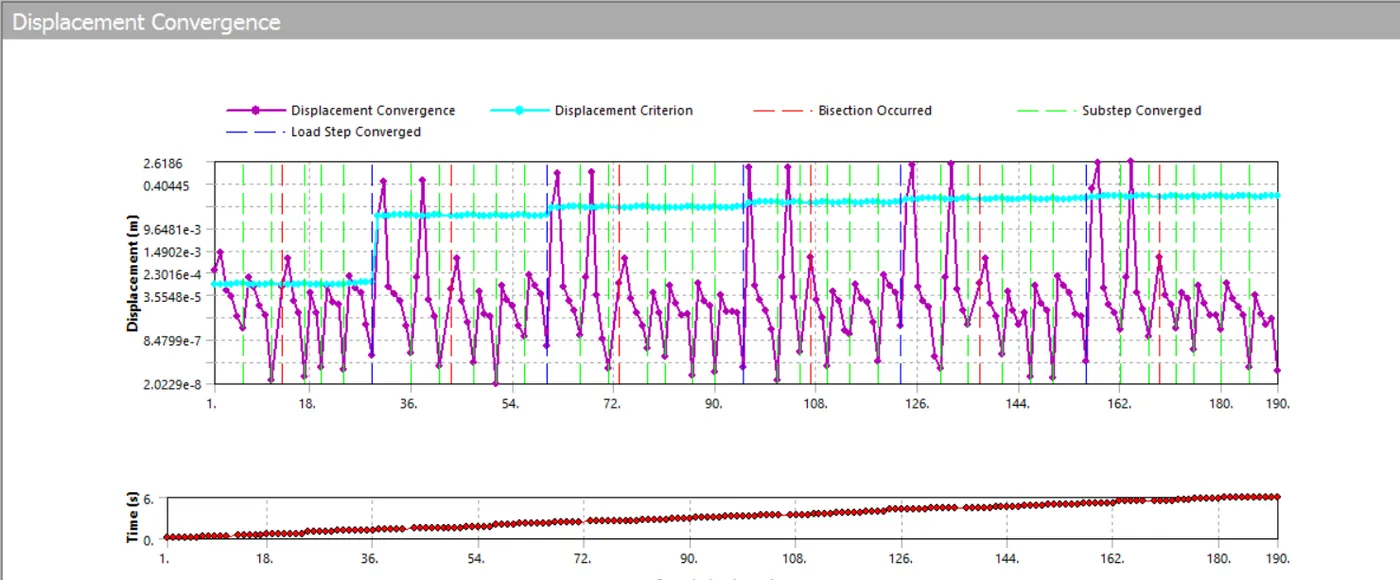

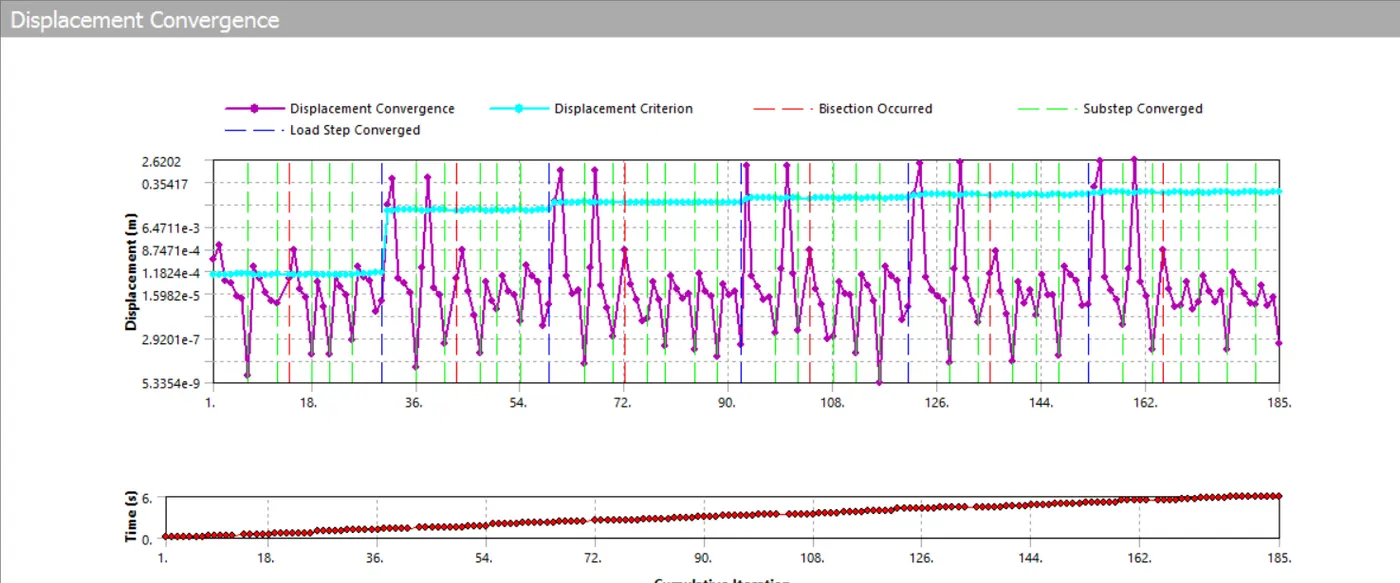

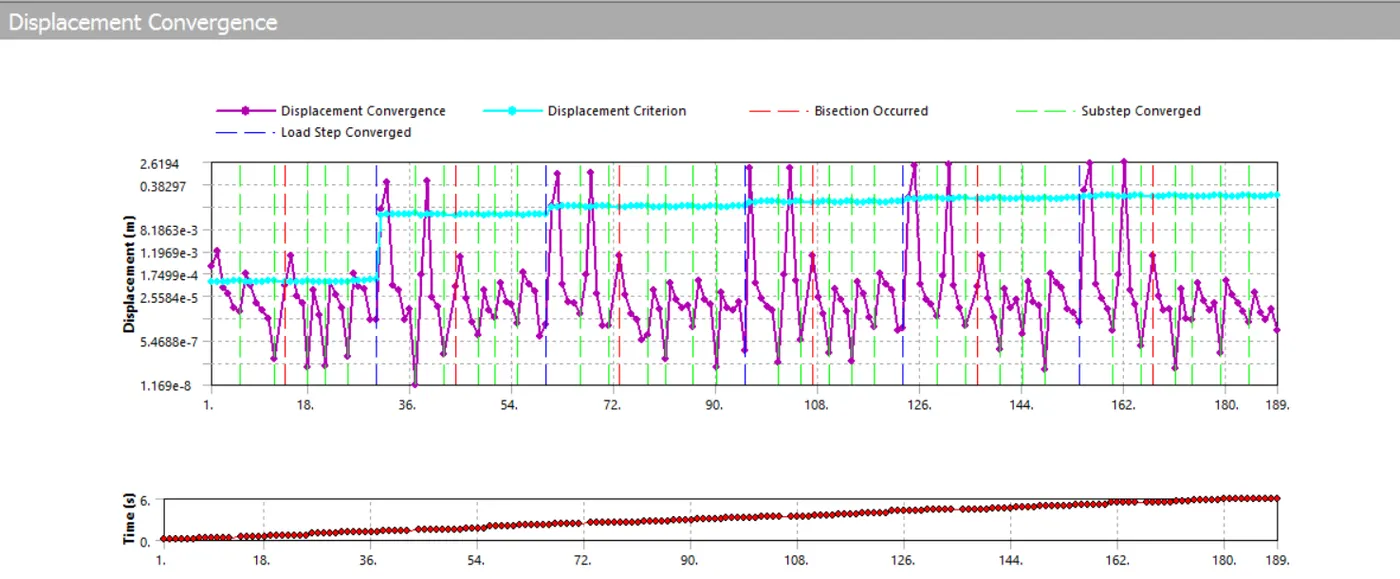

Displacement Convergence Graph:-
|
Displacement Convergence Graph:-
|
Displacement Convergence Graph:-
|
Conclusion:- Based on Analysis carried out on the 3 different materials based on the results the CASE 3 material Cast Bronze is the best material for the spur gear as the Equivalent stress occurring on the gear is less than that of other materials and the stress intensity is also moderate on the gear.
