Week 1:- Introduction to BiW and Fixtures Challenge

BIW INTRODUCTION

1. What is BIW & define its parts?

EXPANSION: Body in White (BIW)

DEFINITION:

• Body in white or BIW refers to the stage in automobile manufacturing in which

The car body sheet metal has been assembled but before the components (like., engine, chassis, exterior and interior trim) have been added.

• A Body in White is an assembly of a frame and panels made up of homogenous materials (like., instance, steel, or aluminium sheets or composites)
• It is the stage in automobile manufacturing in which a car body’s frame has been joined together that is before painting and before the motor chassis sub-assemblies or trim have been joined into the structure.

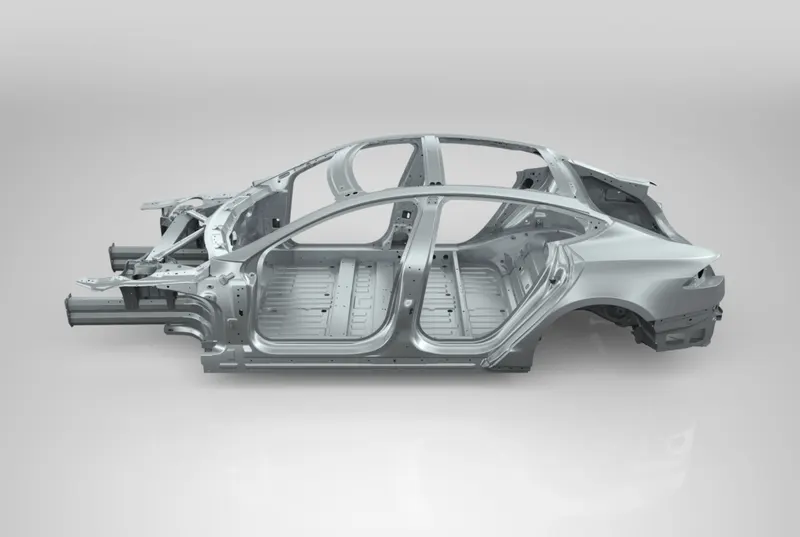

This image is welded BIW structure before priming and painting :

Parts

1. Under body structure
2. Front end structure
3. Body side structure
4. Closure
5. Roof

Definition

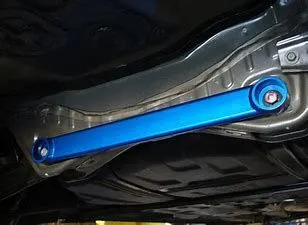

• Under body structure

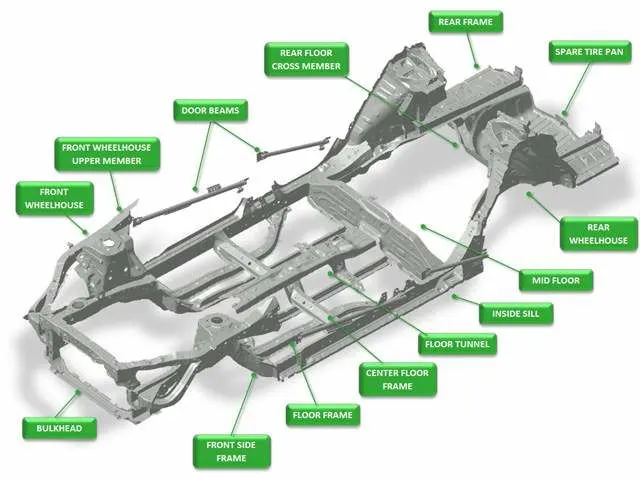

This image shows the under body structure of the BIW

1. Dash panel – it provides a partition between engine and cabin inside car
2. FRT – it provides a base for car seats and also provides a partition between cabin and propeller shaft/ground
3. Riser – riser connects front floor to rear floor by providing a level difference
4. Rear floor – rear floor is the floor on the rear of the car and provides a partition from ground and also provide base for rear seat mounting
5. Rear wheel house

• Front end structure

This picture shows the front end structure of the BIW

1. Plenum panels – plenum is a chamber located between the throttle body and the runners of the intake manifold used to distribute the intake charge evenly and enhance engine breath

This image shows the plenum panels in front end structure

2. FRT – it is an encasement around the FRT Wheel
3. Wing panel – wing panel are the outer most side panel in the front

This image shows the wing panel in the front end structure

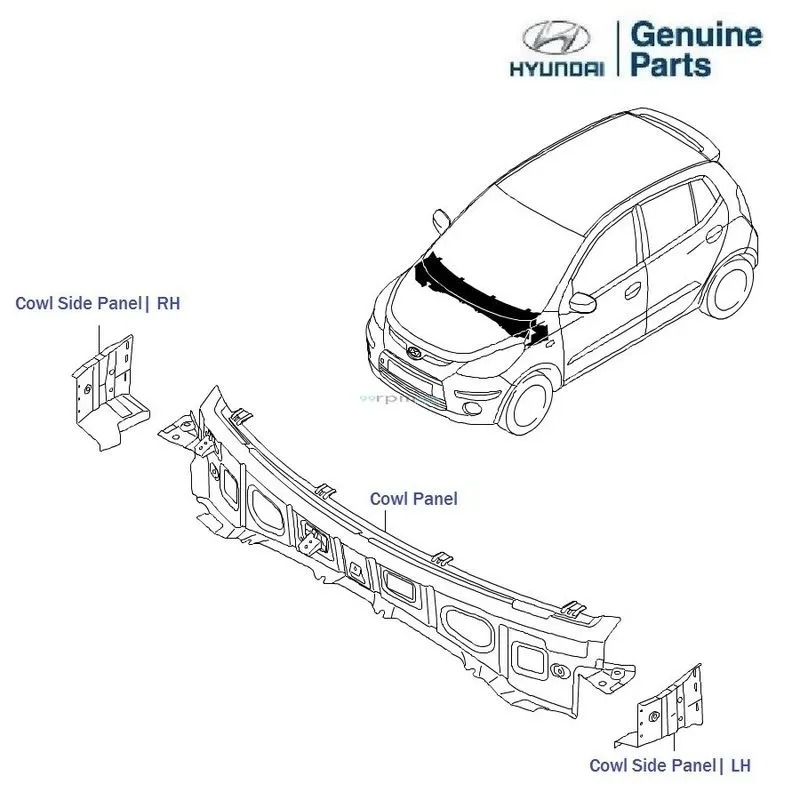

4. Cowl – cowl is the partition of the body bounded by the front fenders, the base of the windshield and the rear edge of the hood

These below image is shows that is the cowl panel

5. Upper tie bar – upper tie bar is the upper panel in front connecting the two sides of front structure

6. Lower tie bar – lower tie bar is the lower panel in front connecting the tow sides of front structure

• Body side structure

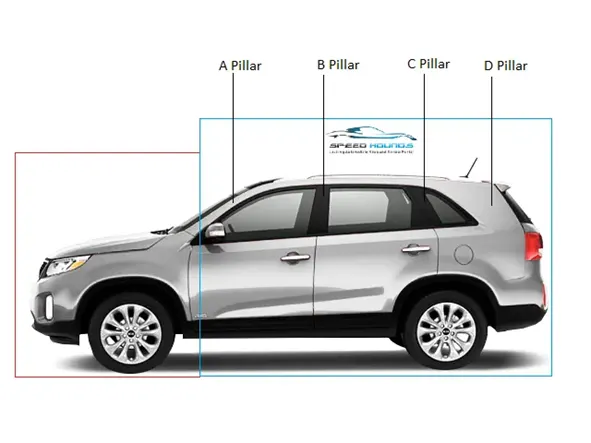

1. ‘A’ pillar – it is the front most support to the roof
2. ‘B’ pillar – it is the second support to the roof and situated on the locking side of the front door
3. ‘c/d’ – ‘C’ pillar is the rear most support to the roof in case of a two rows seats car , or third support to the roof .

‘D’ pillar is the forth support to the roof and usually and the rear side of quarter

4. Ring panel – ring panel is a structure panel connecting the rear partition of the body to front and constitutes a big part in side structure

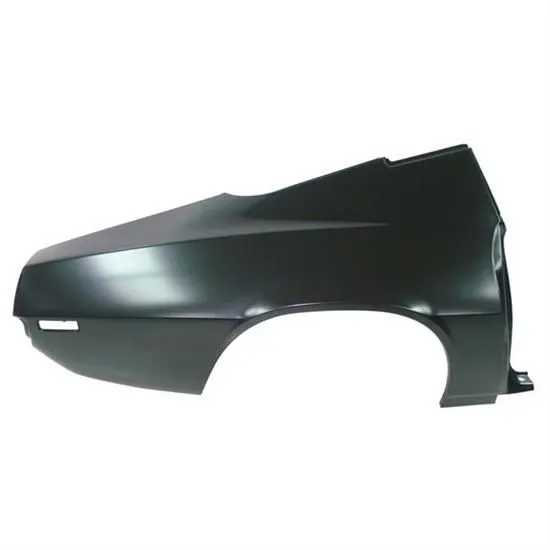

5. Quarter panel – quarter panel is rear most panel of a body side structure

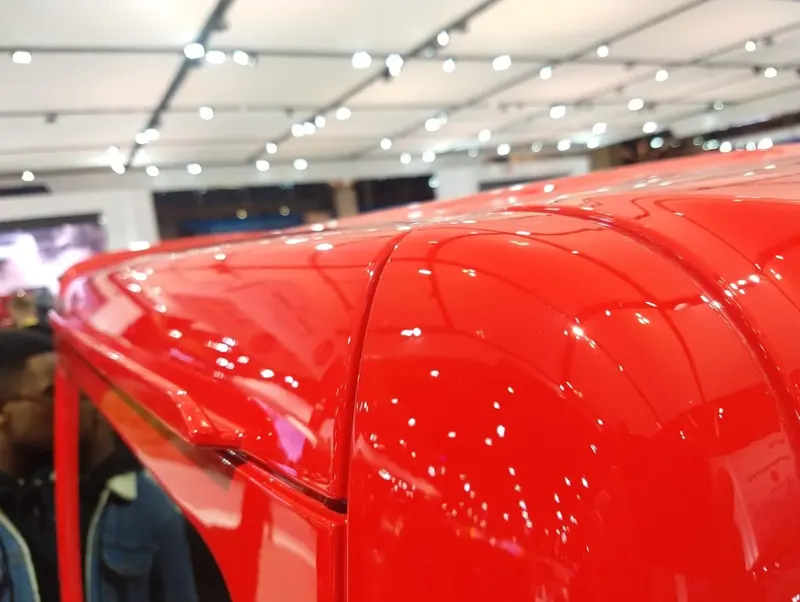

6. Drip rails/ gutters – drip rails / gutters is an exposed channel applied to the roof over the side windows to direct water away from the windows and to cover structural welding

• Closures

1. All doors
2. Hood / bonnet

• Roof structure

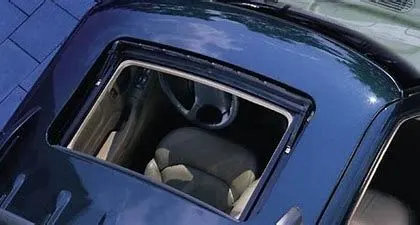

1. Roof
2. Header
3. Rows

2.What do you understand by BIW Nomenclature?

• Nomenclature is basically choosing names for thing BIW have no of parts in it .

All parts have different names

Item	UK Description	US Description
A	Inner wing panel	Motor comportment side panel
B	Upper wing panel	Motor compartment upper rail
C	Suspension tower	Shock tower
D	Upper ‘A’ panel	‘A’ Pillar
E	Windscreen header rain	Front head
F	Roof stiffener	Roof bow
G	Rear parcel tray	Package shelf
H	Can trail	Side roof rail
I	Backlight frame	Rear head
J	‘c’ pillar	‘C’ pillar
K	‘d’ pillar	‘D’ pillar
L	Rear quarter panel	Rear quarter panel
M	Boot floor panel	Rear compartment pan
N	Rear seatback panel	Rear seat back opening frame
O	Rear seat panel	Rear seat back panel
P	‘B’ pillar	‘B’ panel
Q	Floor panel	Floor panel
R	Sill	Rocker panel
S	Lower ‘a’ pillar	Front body hinge pillar (FBHP)
T	Dash panel	Dash panel
U	Engine rail	Motor compartment lower rail
V	Front bumper	Front bumper
W	Spare wheel well	Spare tire well
X	Centre tunnel	Tunnel
Y	Rear seat cross beam	# 4 cross bar
Z	Rear suspension support beam	# 5 cross bar

3.what is fixtures & Its types?

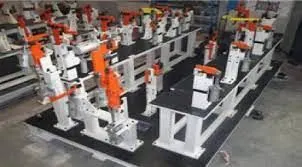

• Definition

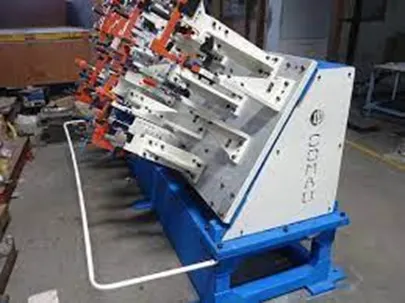

• Fixture is device which holds the work piece to processed by using 3-2-1 principle
• In a general fixtures consists of number of units together to hold car panel together

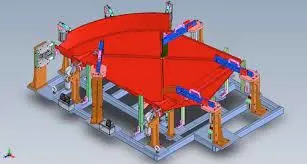

• Welding fixtures are normally designed to hold and support the various components to be welded
• It is necessary to support them in proper location which is capable of preventing distortions in work pieces during welding.
• The fixture has to be quite stable and rigid to with stand the welding stress.

• Purpose of BIW Fixture
• It should prevent distortions in work piece during welding operation
• The clamping need to be light but firm means the clamping force should be able to maintain the part at its required position without damaging the part
• Placement of clamping need to be clear of welding area
• BIW fixture types
• Production fixture – this fixtures are used for mass production purpose .it requires high consistency through its operation to maintain the geometry of the parts so the material used are well tested for the hardness & aesthetics. And then the time requires for assembly and disassembly should be as low as possible which saves lots of times.

• PPO (preproduction operation fixtures) – these fixtures are design as a prototype fixture to check the feasibility of initial batch production & to check which things need to be improved before starting the production. These fixtures can be taken as the base fixtures which sets the benchmark & criteria which help us to rectify the errors that we could get from preproduction operation fixtures. We have to maintain the cost of car as low as possible. its requires lots of time and cost also.

• Checking fixtures – as named suggest these fixtures are used for the checking purpose. no operations like welding, gluing, or hemming are carried out in this fixtures. the geometry of the welded parts is also checked in this fixtures to ensure the parts maintain the required dimensions & geometry.

4.principle of Fixture design ?

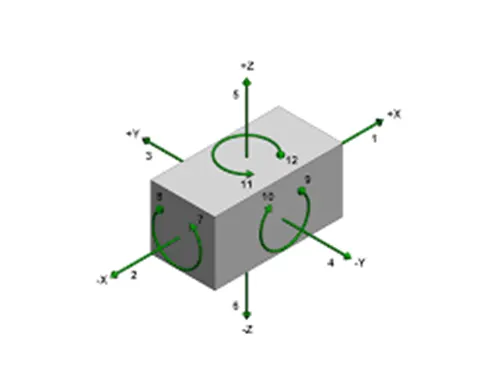

• For any free body there are have total twelve degrees of freedom as below,

• 6 translation degrees of freedom: +x, -x, +y, -y, +z, -z
• 6 rotational degrees of freedom :
• Clockwise around x axis (CROT-X )
• Clockwise around x axis (ACROT-X )
• Clockwise around Y axis (CROT-Y )
• Clockwise around Y axis (ACROT-Y )
• Clockwise around Z axis (CROT-Z )
• Clockwise around Z axis (ACROT-Z )

• You must fix all the 12 degrees of freedom in order of locate the workpiece in fixture . so we arrest the 12 degrees of freedom of the workpiece and we achieve the zero degree of freedom for the work piece .

• Locating principle

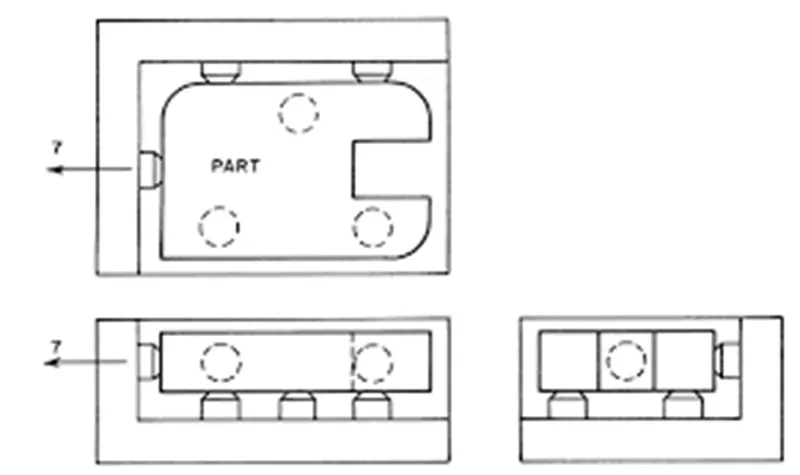

• 3-2-1 principle : holding fixtures used in assembly operation of follow a 3-2-1 locating scheme to position of parts
• Under this scheme, Three locators position a part in a primary plane or direction on (high / low )
• Two locators then position the part in secondary plane or direction (in / out )
• Leaving one locator for the tertiary direction (front / back )
• This approach fixes the part in 3 dimensional space and statics the degrees of freedom constraint

4.TYPES OF BIW STATIONS?

• In BIW assembly lines in where different types of panel are joined in together in each specified zones
• Each panel categories will have individual zones
• Zones are classified by under body zone , door zone , hood zone .,. etc
• STATIONS
• (Tool stations
• Gripper stations
• Stand stations
• Miscellaneous stations)
• TOOL STATIONS
• Geo stations -

geo tool is a fixture in which geometry of the panels which are welded together are defined accurately ,

the pin tolerance for geo pin will be of closure tolerance (i-e) -0.15 in general

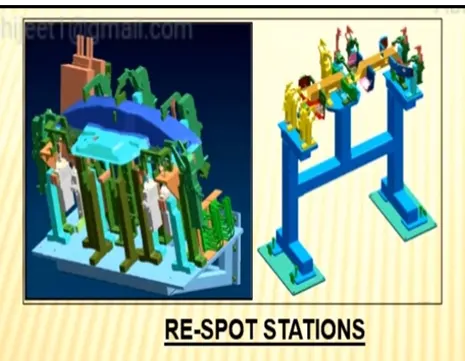

• Re-spot stations

Re-spot tool or stations is fixture in which the remaining weld spot which are not achieved in geo tool are welded for the pre welded for the pre welded panel from the geo tool .

The pin tolerance for re-spot stations will be of tolerance with – 0.28 in general

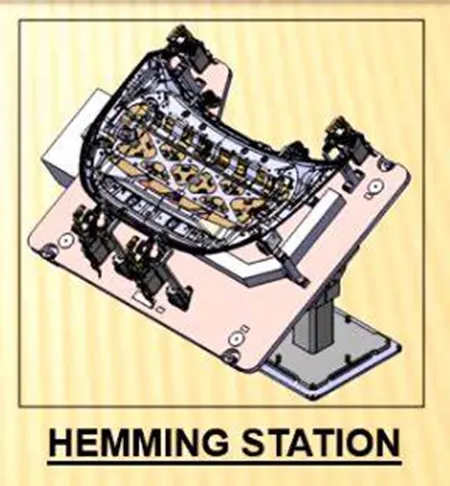

• Hemming stations

A marriage or a hemming tools is fixture in which the inner panel assembly and outer panel assembly are joined together .

These are done by welding or hemming in case of closures panels

• Framer stations

Framer fixture is next stations after marriage stations . in framer fixture roof is attached to output of the marriage fixture and it from like frame hence it is called as framer tool

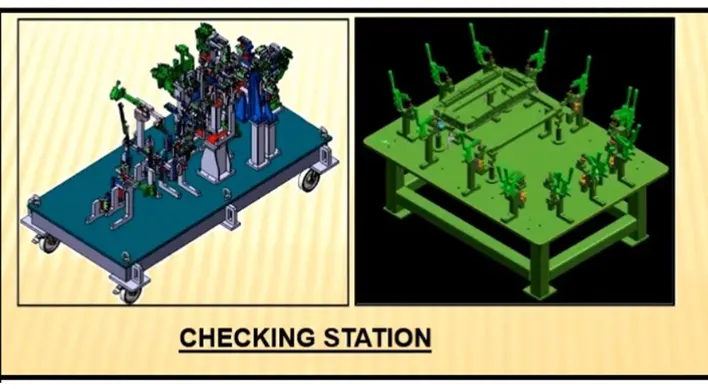

• Checking stations

A checking stations tool is fixture which is used to check the automotive parts assemblies ,ensuring all the co-ordinate , relative dimension and position as per the tolerance

A fixed type checking fixture is used where work piece is fixed with clamps & pins & CMM machine is used which measures the co-ordinates of different points of the panel or assembly

• Gripper stations
• Material handling grippers – material handling gripper is designed for handling the car panel from one station to other
• Process grippers – process grippers are designed for handling the car panel one stations to another stations & in addition to that it under goes process like welding , pedestal , riveting , gluing , sealing .,.etc
• Combo gripper – combo gripper is designed for handling the car panel from one stations to another stations also with combination of weld gun at another side of gripper for welding .
• Dual gripper – dual gripper is designed for handling car panel from one tool to other , with two sided gripper . it can hold two panel simultaneously one RH & one LH side .

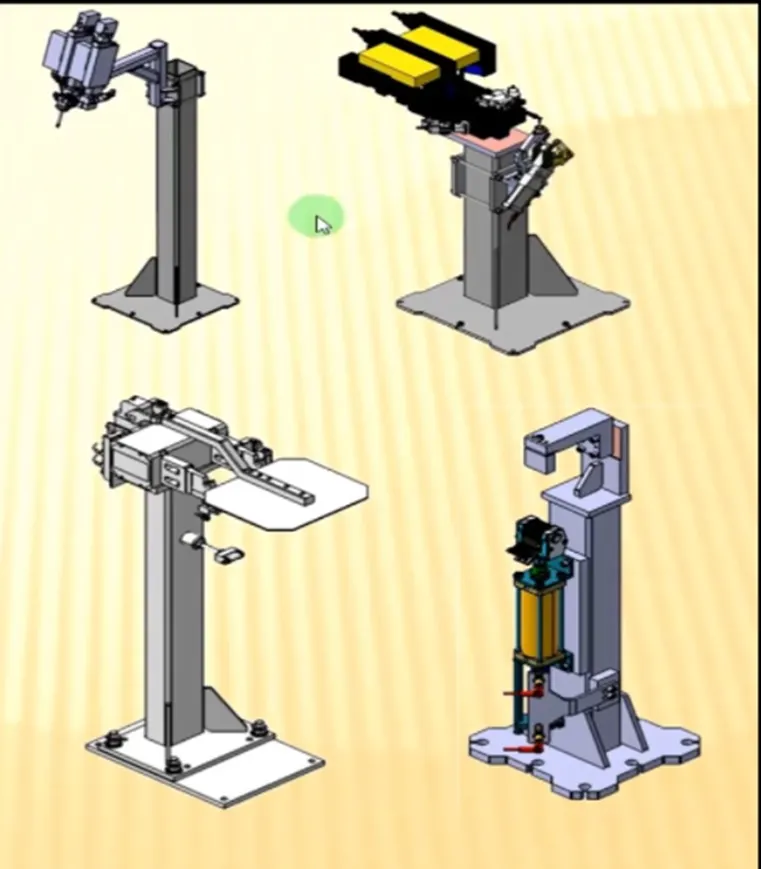

• Stand stations

• Pedestal stations – weld gun is mounted to the floor permanently. The gripper can carry the panel under the stand to do some operations
• Gluing & sealer stand – gluing or sealer gun is attached to standard stand which is grouted to floor permanently fixed is required ,so stand should not move due to vibration or other factors .
• Docking stand – when robots are selected of multitasking like material handling & welding , which cannot carry both due to some limitations . it is also called as parking stand for gripper .
• Date stamp stand – every manufactured product have some data to stamped or to be embossed on it like serial no , batch no , date etc .

The required data is stamped or embossed by using the stamping device mounted on stand .

• Miscellaneous stations
• Curing – after gluing it needs some time to cool down , so we put assembly on some belts & it will take the panel to another station & meanwhile gluing will cool down .

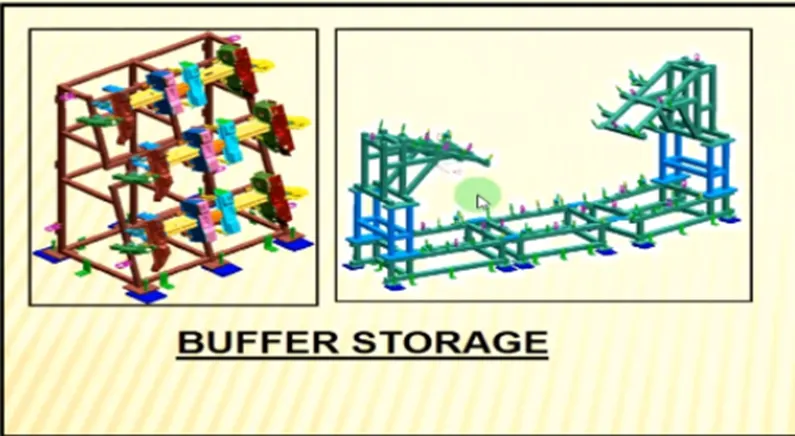

• Buffer stand – after some operations we can put no . of assemblies in this stand which is buffer stock & it can be transported to another station in easy way

• Take out trolley – it is used to take out some panels for inspection to rectify the process is going in right or not between the cycles .

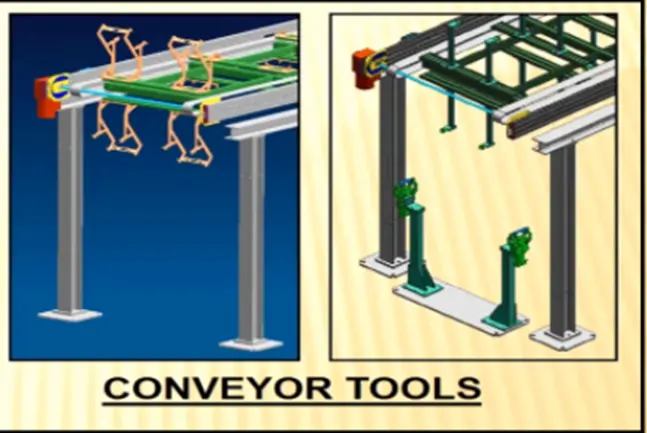

• Conveyor – conveyor is material handling .they are used to transfer panel from one station to another station . it can be of two types gravity & powered

6.what are the basic terminologies used in the BIW fixture?

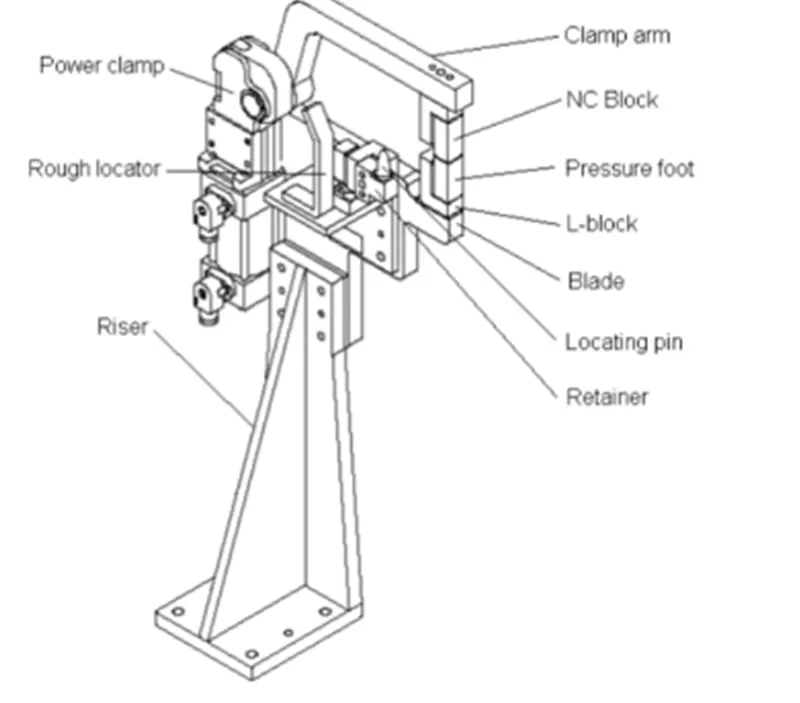

• The basic terminologies used in BIW are
• Nc/mylars/fingers
• Principle locating point
• Risers
• Blades
• Shims
• Rough locators
• Hard wares
• CMM
• Units
• Co-ordinate points
• Name plate
• Clamp arm
• Number plates
• Pivot
• Read switches and sensors

• MYLARS – These parts are used to hold the panel .they are globally called as MYLARS . top side mylar is called as clamping mylar & bottom side mylar is called as resting mylar.
• PLP-principle locating point which are used for the accurate location of part to maintain the geometry of assembly ,means principle locating points are those where we use pin for locating panel
• Risers – risers can be of L-type , welded or square tube or frame type . these are basically manufactured parts are use to give height to assembly .
• Blades – blades are plates attached to riser . other part likes cylinder, arm etc are mounted on the blade .
• Shims – in fixture we providing tolerance to each parts mostly manufactured .those tolerance tend to stack up & reflect together . in order to avoid that we use shims so we can easily adjust after assembly so whatever stack up there we will rectify it through shims . shims come in thickness of 0.1, 0.2,0.5 etc .
• Rough locators – rough locators are those used majorly for manual fixture . there is chance that operator can place part in wrong orientation mistakenly. The rough locator will work as a guide while placing the part in fixture & part will be loaded in desired orientation.
• Hardware – hardware are like the hex head bolts , Allen bolt , hex nuts , spring washers , self locking nuts , etc .,.
• CMM – CMM stands for co ordinate measuring machine . its is a device that measure the geometry of physical objects by sensing discrete point on the surface of object with probe
• Units – this fixture is assembly of different types of units to form a fixture. There are different unit like pin unit , base unit , clamping unit , etc
• Number plates – number plate is the aluminium embossed plate placed on each unit to recognize the unit .
• Co-ordinate plates – when we discuss about fixture on every fixture we have tooling hole which is called master hole through all fixture checked on CMM mastering the particular hole .
• Name plate – the plate on which basic information described like company name , fixture name , fixture weight , panel name , are embossed and joined to fixture
• Clamp arm – clamp arm is part of clamp unit which moves about axis , over clamp are mylars are mounted
• Pivot – it is axis about which clamp arm will rotates
• Read switches & sensors – these are the electric components used in automated fixtures is fully automated or semiautomatic that run through PLC , control panel etc . sensor are used to defect part present or not clamp is close or open where as reed switches confirm position of piston i.e. it is at top or down .
