Week 1 : Exploring the GUI of GT-POWER

3. Explore intercooler tutorial and note down all settings of:

• Run setup
  • Time control
  • Initialization
  • Flow control
  • ODE control
  • Signal control
  • Thermal control
  • convergence RLT
• Advanced setup
  • General
  • Flow
  • Mechanics
  • Restart
  • Version changes
  • Paths
  • Misc files
• Plot setup
  • Template
  • Part name
  • Plot attribute
  • Location
  • max plot points
  • plot range
  • Sampling type
  • sampling interval
• Output setup
  • Data storage
  • General
  • GT Post setup
  • Flow
  • ODE Mech
  • Score board rlt
  • End of run tables

4. Problem: (50 Marks)

    Given

• Diameter of cooler inlet and outlet pipe= 50 mm
• Length of the CAC= 1000 mm
• Inlet mass flow rate = 1200 kg/ h at 100 degC
• Outlet pressure 2 bar at 30 deg C

• Calculate the total heat transfer at the Charge air cooler (CAC)
• Calculate pressure drop across CAC

Solution.

Total heat transfer at Charge air cooler (CAC) = -7.8267403 kW

The pressure drop across CAC = 1.1474642E-5 bar

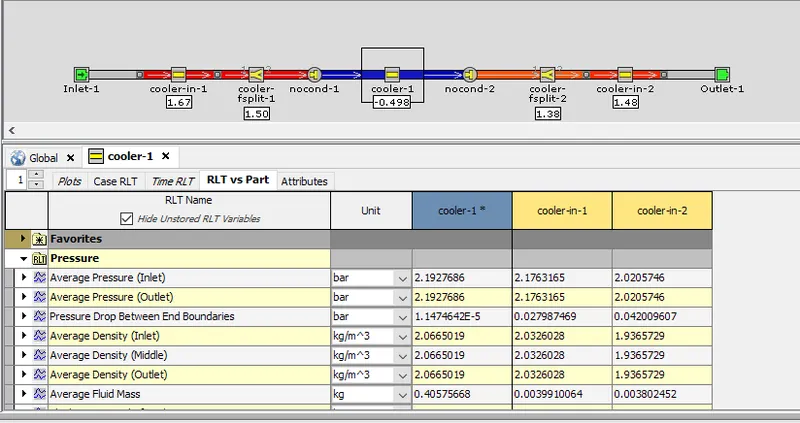

 Model created using given data
