AIM : To Analyze and Design a Boiler shed structure as per IS code in Tekla Structural Designer.
Tools :
- File
- Grids
- Levels
- Models
- Manage Property Sets
- Beams
- Columns
- Loads
- Loadcases
- Analyze
Procedure :
- First open a new file to start the structure as per the per the plan given above.

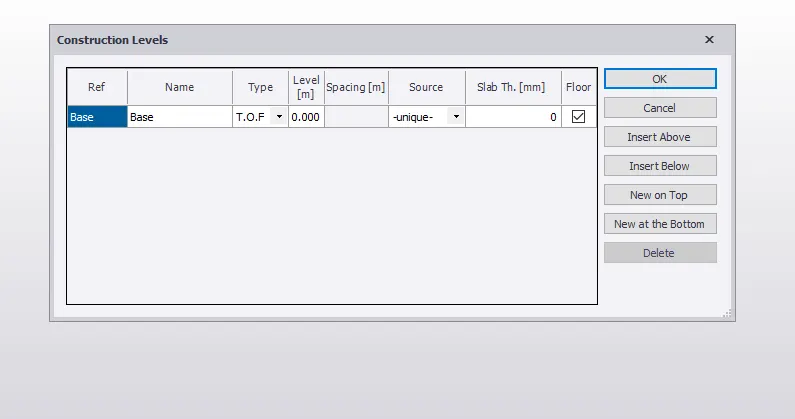

2.Click on Constuction Levels and add all the levels as per the given plan.

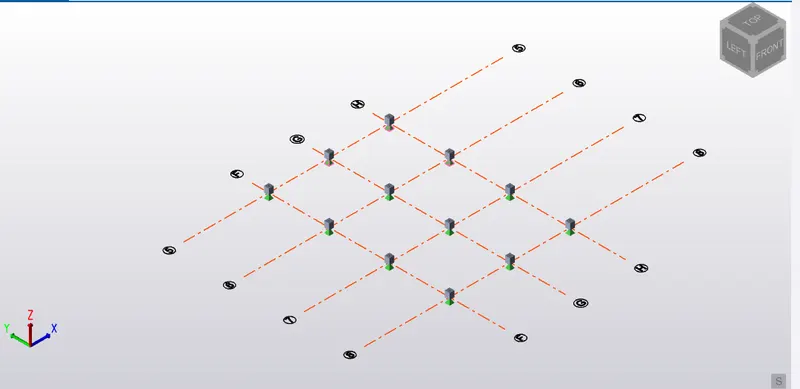

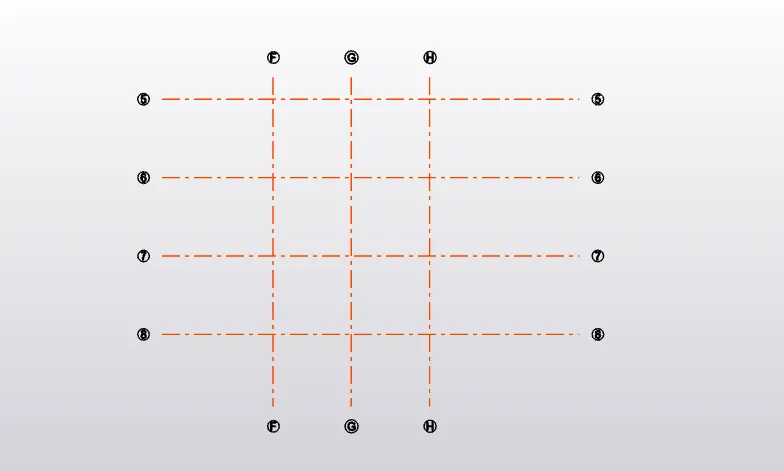

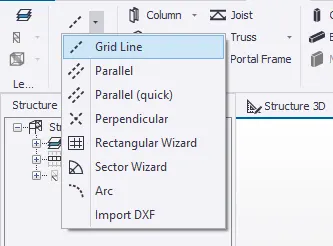

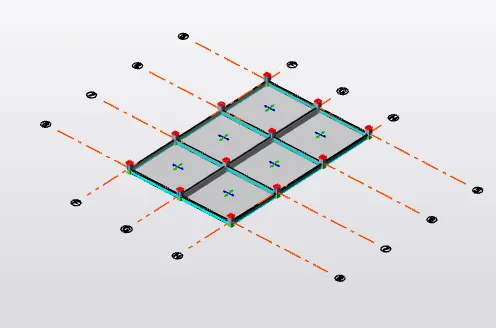

3.Select grid tools and draw horizontal grid lines.
4.With the option parallel quick draw the remaining grid lines.
5.Repeat the same for the vertical grid lines too.

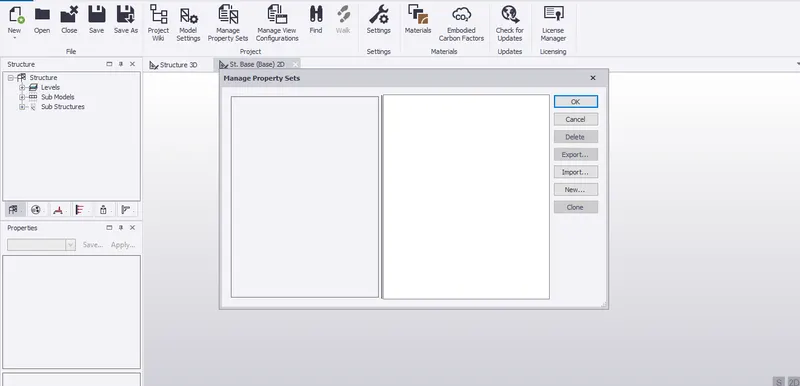

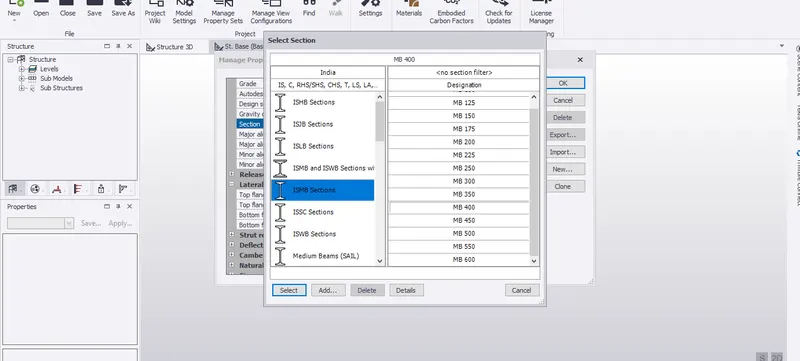

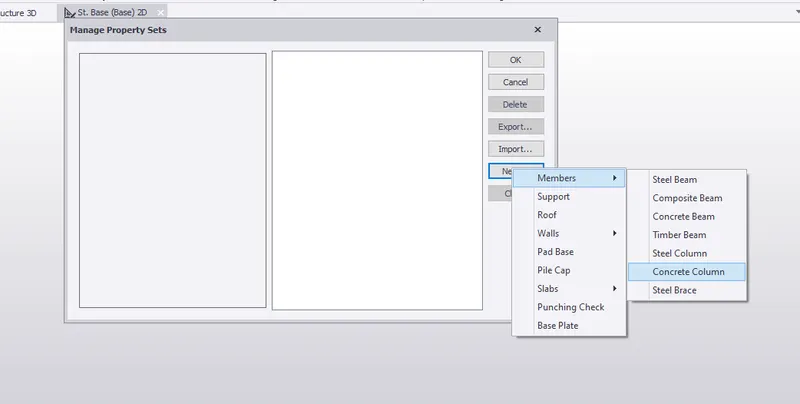

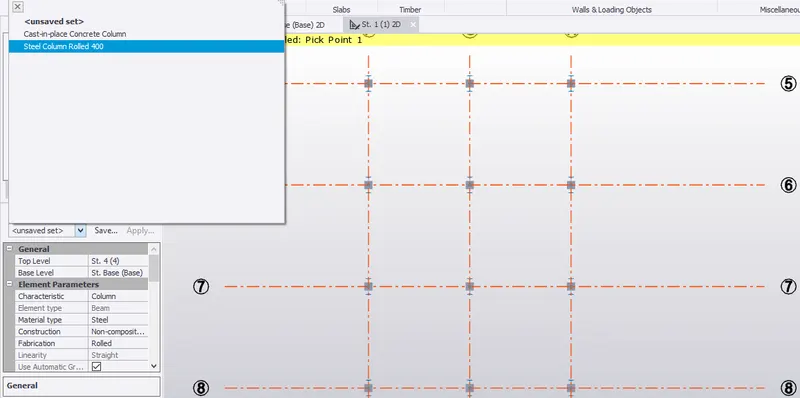

6.Click on Manage Property set tools and create members like steel column, Steel beams etc..

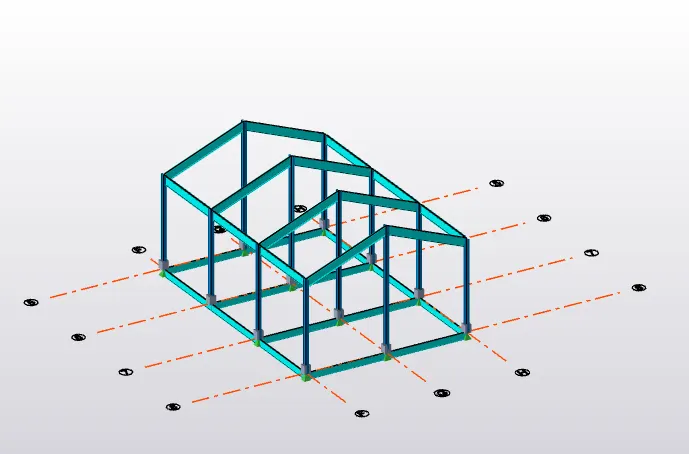

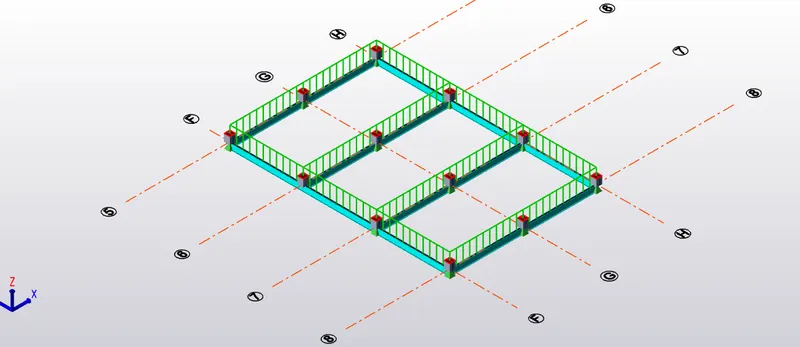

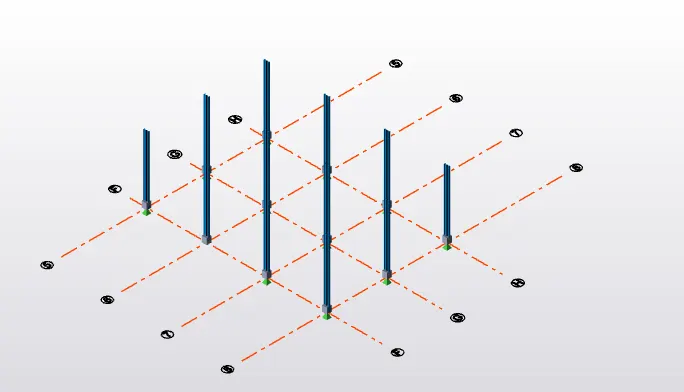

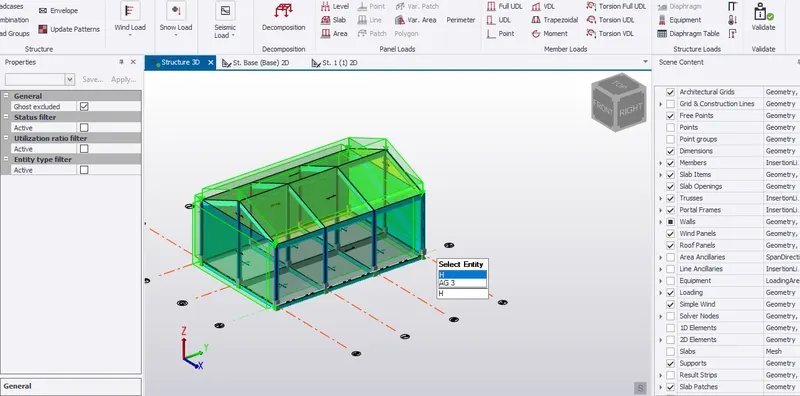

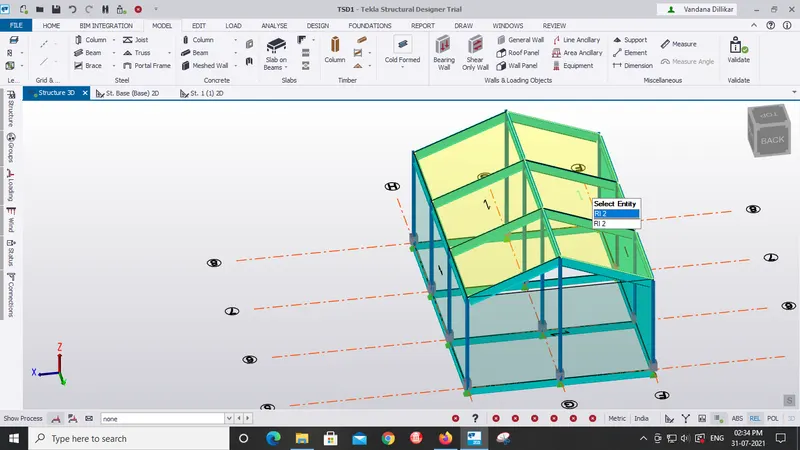

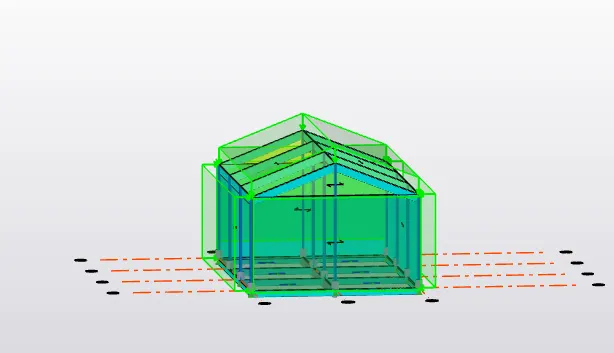

7. Start Drawing the Structure.

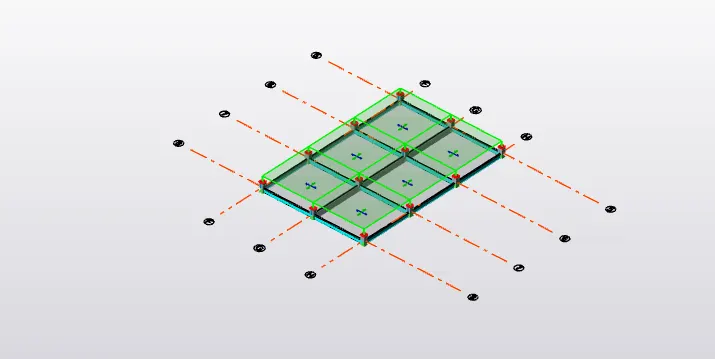

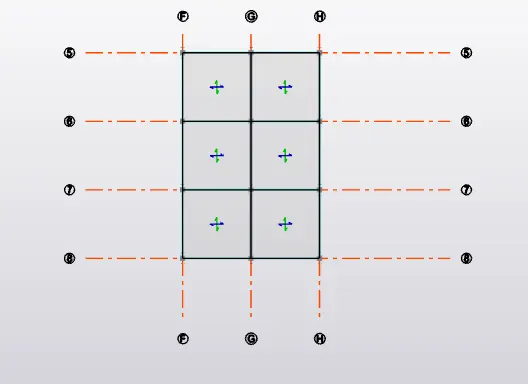

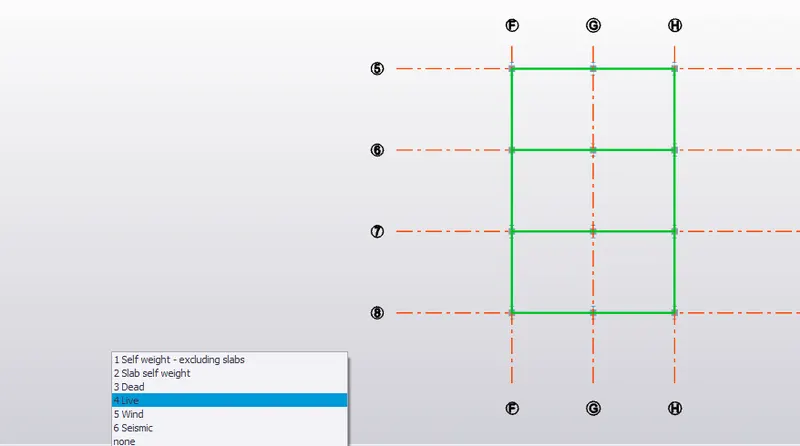

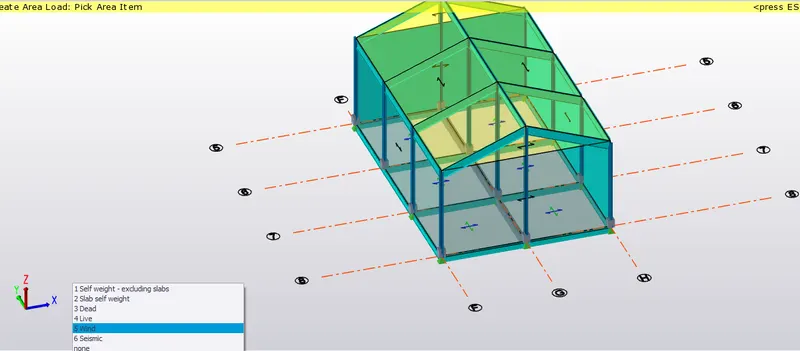

8. Create Panels and Loading Requirements.

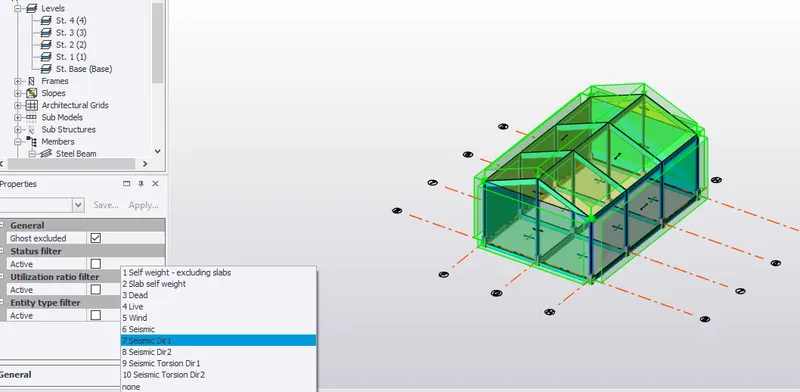

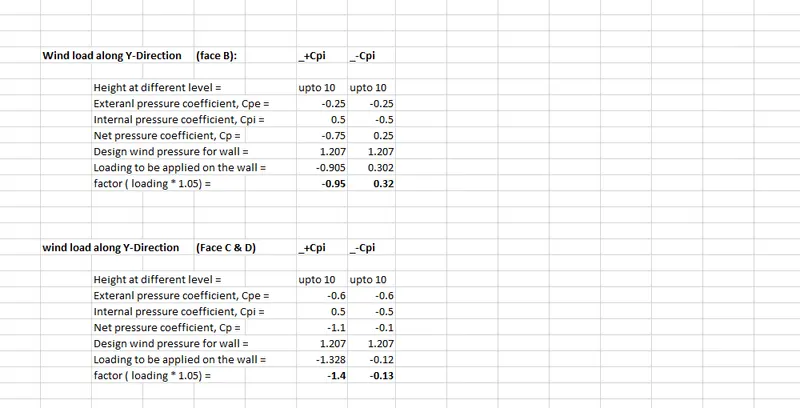

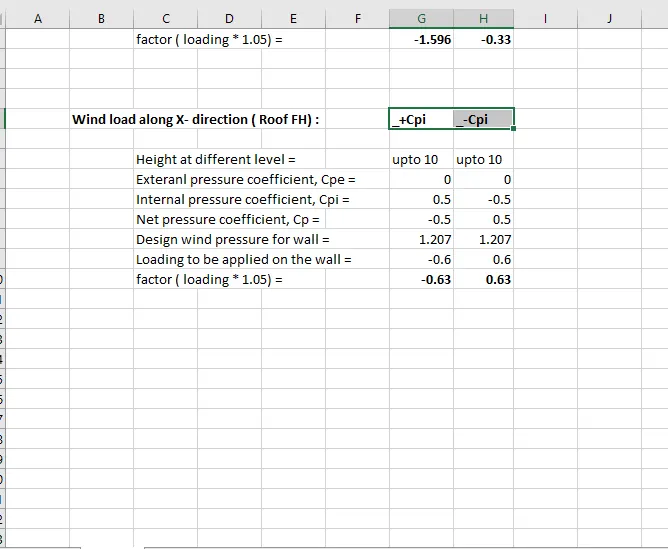

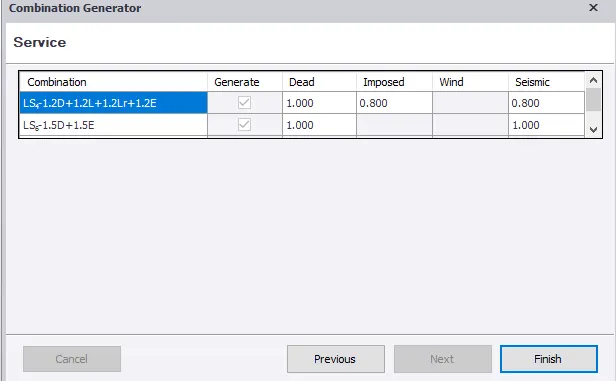

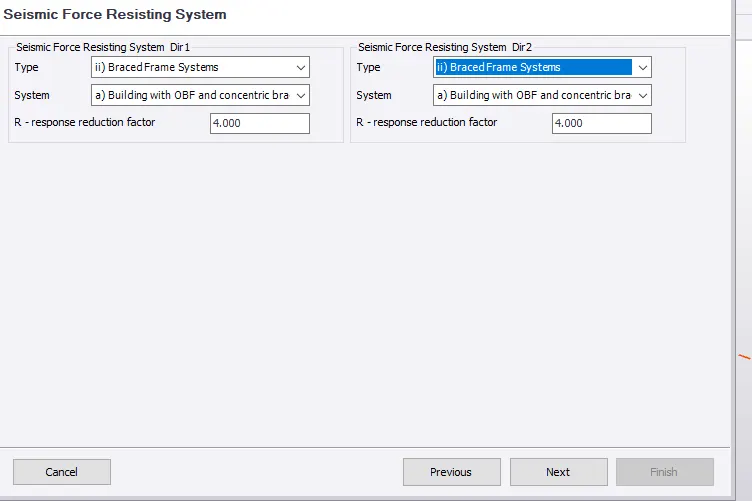

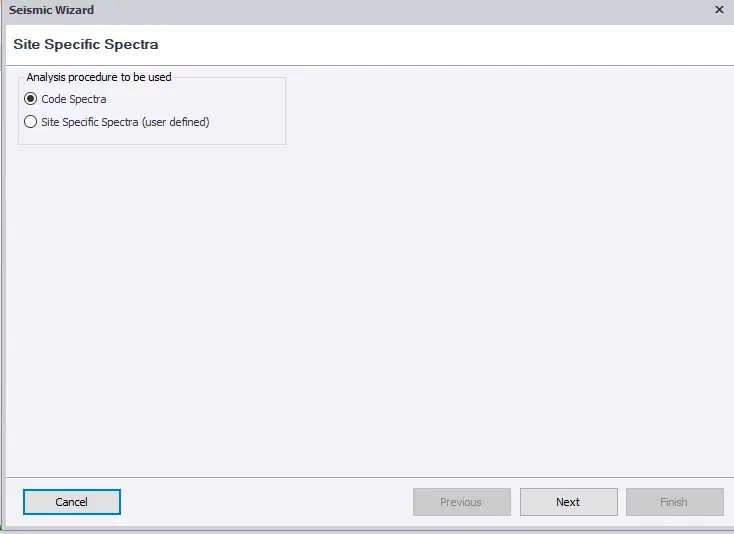

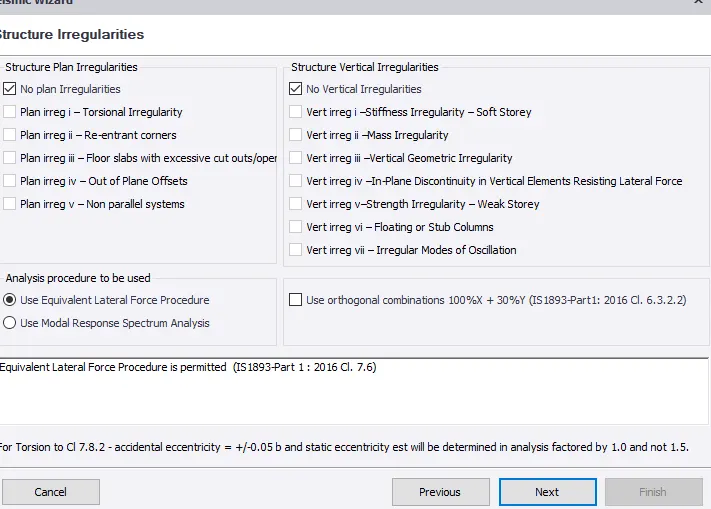

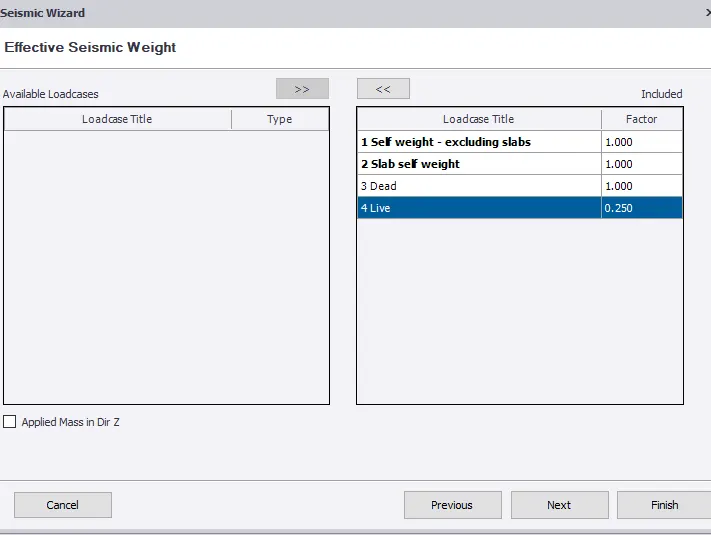

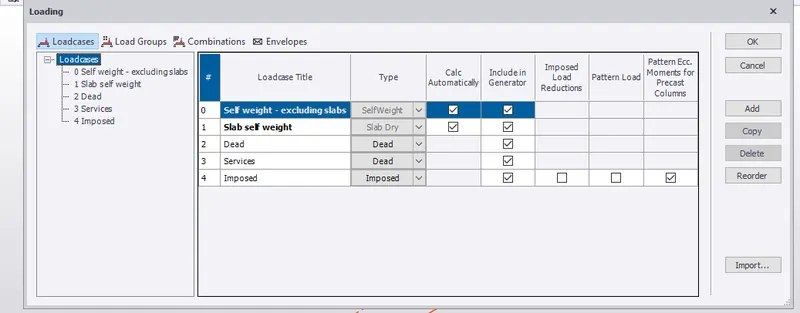

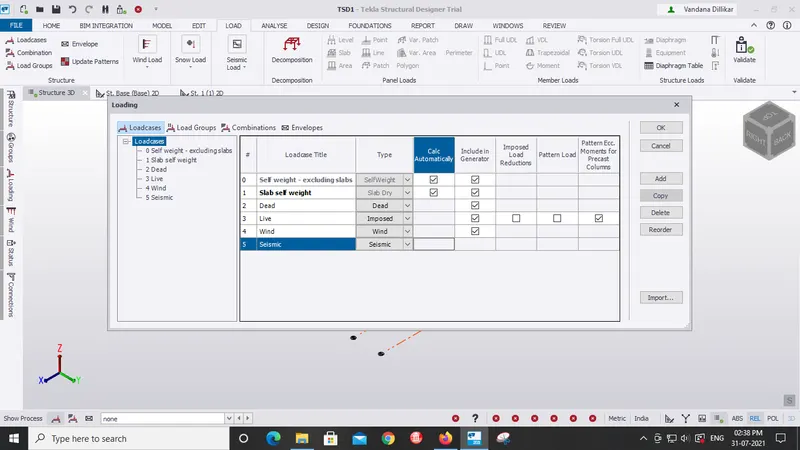

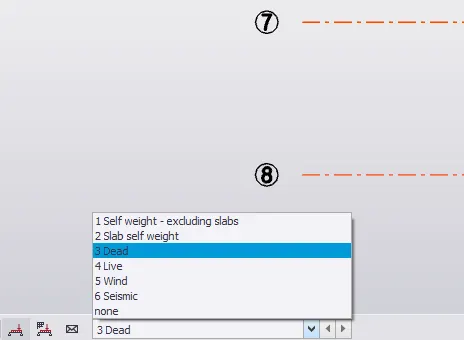

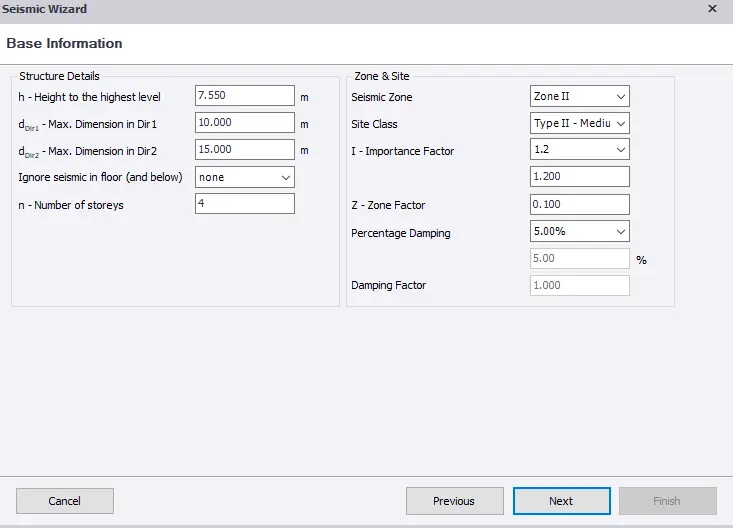

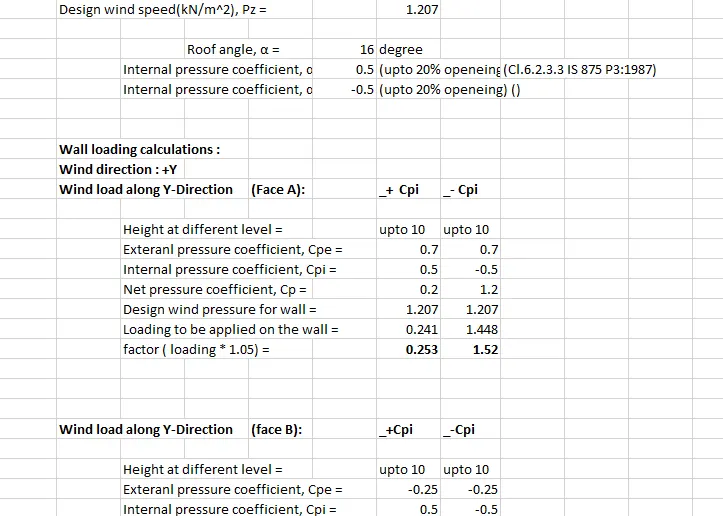

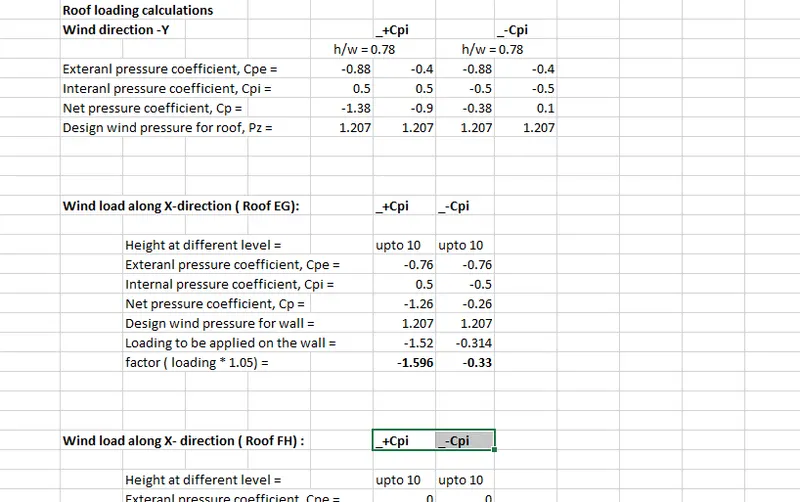

9. Create Dead, Live, Wind, Seismic Loads.

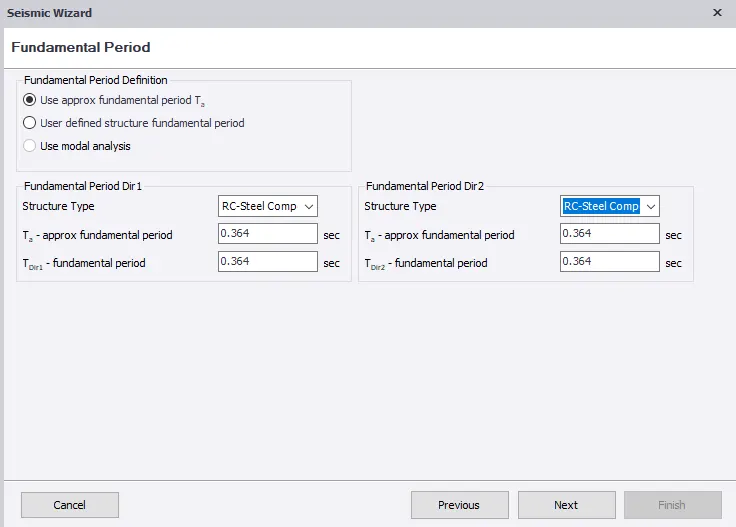

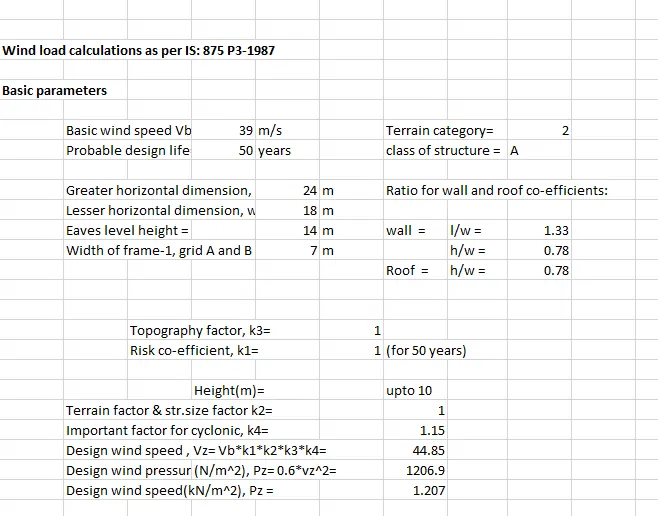

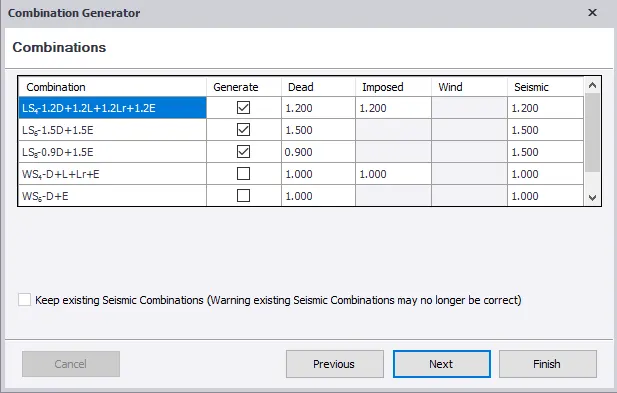

10. Calculate and Validate the Loads.
RESULT : Hence Analysis and Design of a Boiler shed structure as per IS code in Tekla Structural Designer is completed successfully.
