Challenge

II. Answer in detail

Create a G+4 Residential building as per NBC standards and make it a central model file. Your model should contain:

ANS)

AIM: To create a G+4 Residential building as per NBC standards and to make it a central model file. And to include

TOOLS USED :

Procedure:

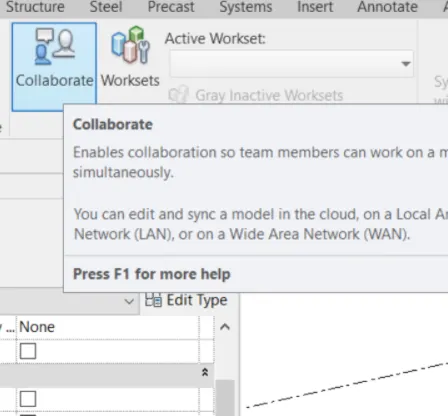

1)click collaborate

2) click ok to dialog box opened

3) click save and save the file a central model

Select door tool and window tool from the architecture tab and place them one after the other wherever required
Specify dimensions for each room using the aligned tool from the annotate tab
Now, go to the architecture tab and select room command, and place it in each room
Select tag room command and tag each room

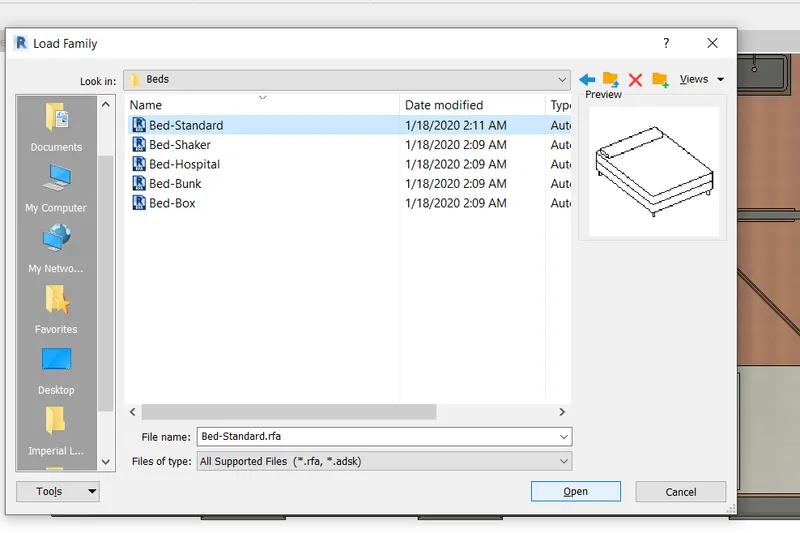

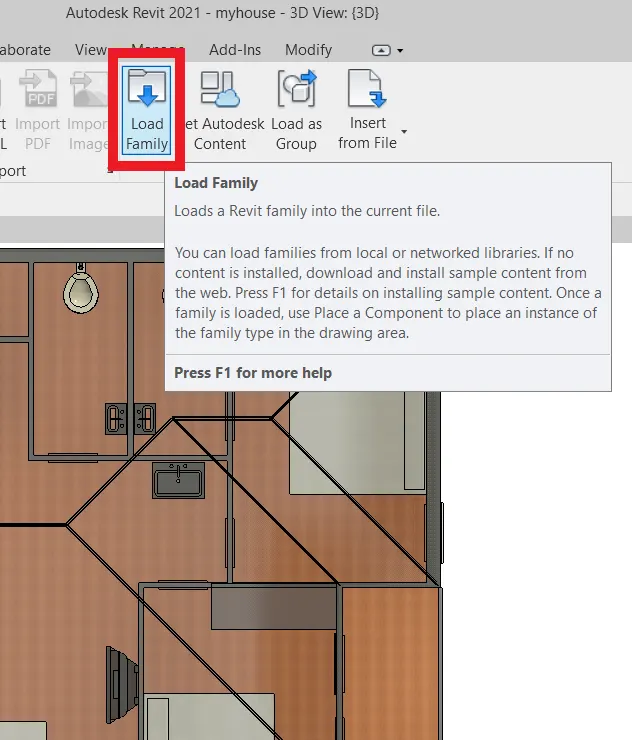

Go to insert tab and load families

Choose the appropriate doors from families
Select the window and replace it with the required type of window from the project browser
Place the detail elements like a couch, bed, chairs, tables, etc. at appropriate places by choosing place a component command under the architecture tab.

Select the whole plan view and select floor command under the architecture tab to draw
Again select the whole project to copy and paste it aligned to selected levels

Open the fourth-floor plan view
Go to the architecture tab and select ceiling command and choose sketch ceiling to draw, by selecting fourth-floor level and specifying height offset from the selected level in the property browser
Select the appropriate type of ceiling from the property browser
Go to the Manage tab and click on project units and then select slope and degree

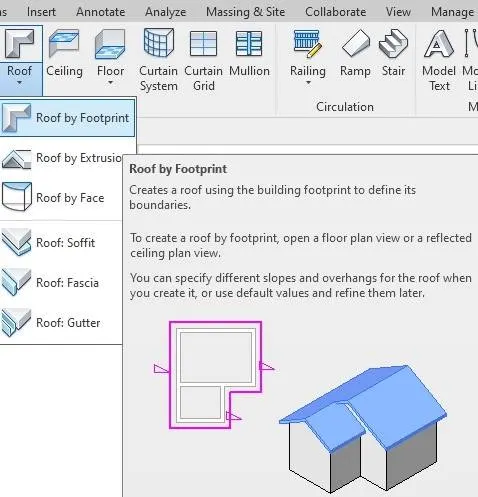

Go to architecture tab and select roof by footprints then pick lines to draw roof and choose roof as lowest level in pop up
Choose the roof material and set slope to 10 degrees in the property browser.

Go to View tab and select section command
Draw a section in plan views either longitudinally or in transverse directions.

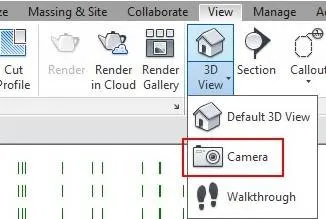

Select a camera from 3D view under the view tab and keep it in each room for corresponding views and rename those views respectively

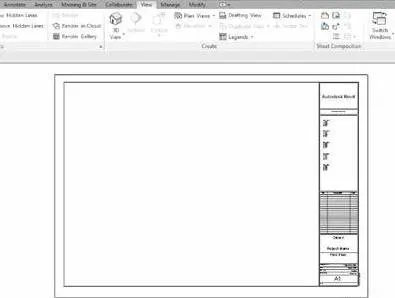

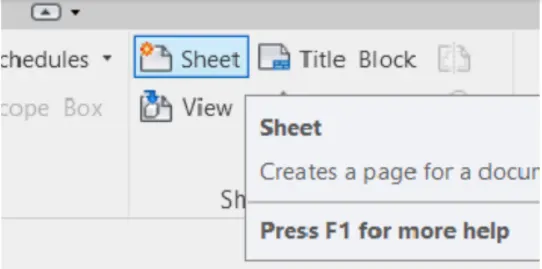

Drag the 3d views of each room from the property browser and place them in the sheet template.

RESULT: Hence a G+4 residential building is created.

The sloped roof at the top level of the building (10 degrees) is created.
Architectural components including furniture and home appliances are included.
Room tags and annotations are included.
Section cut through each room either longitudinally or transversely is done.
A camera view on each room and added them in sheet template is completed successfully.

----------------------------------------------------------***--------------------------------------------------------------------
