Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class

AIM: To use the architecture/ structure project file to export revit architecture and structural model to Naviswork cache file

PROCEDURE:

• open an architectural model created in week 8
• click on 3D view

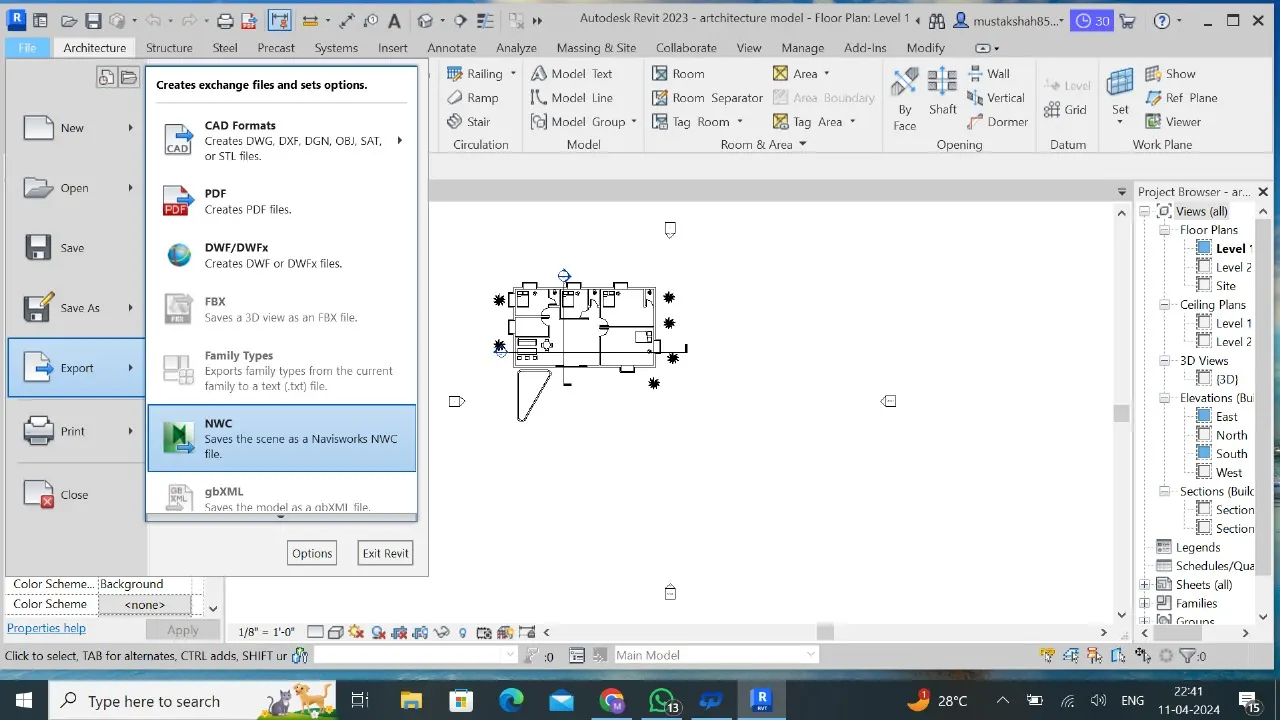

• go to file
• click on export and save as NWC
•
•
• 2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file
• AIM:To Use Navigate Tool to walk around the model and walk through the rooms created and record my moving as animation in Navisworks file

• PROCEDURE:

  • Open the file previously
  • clik on view point

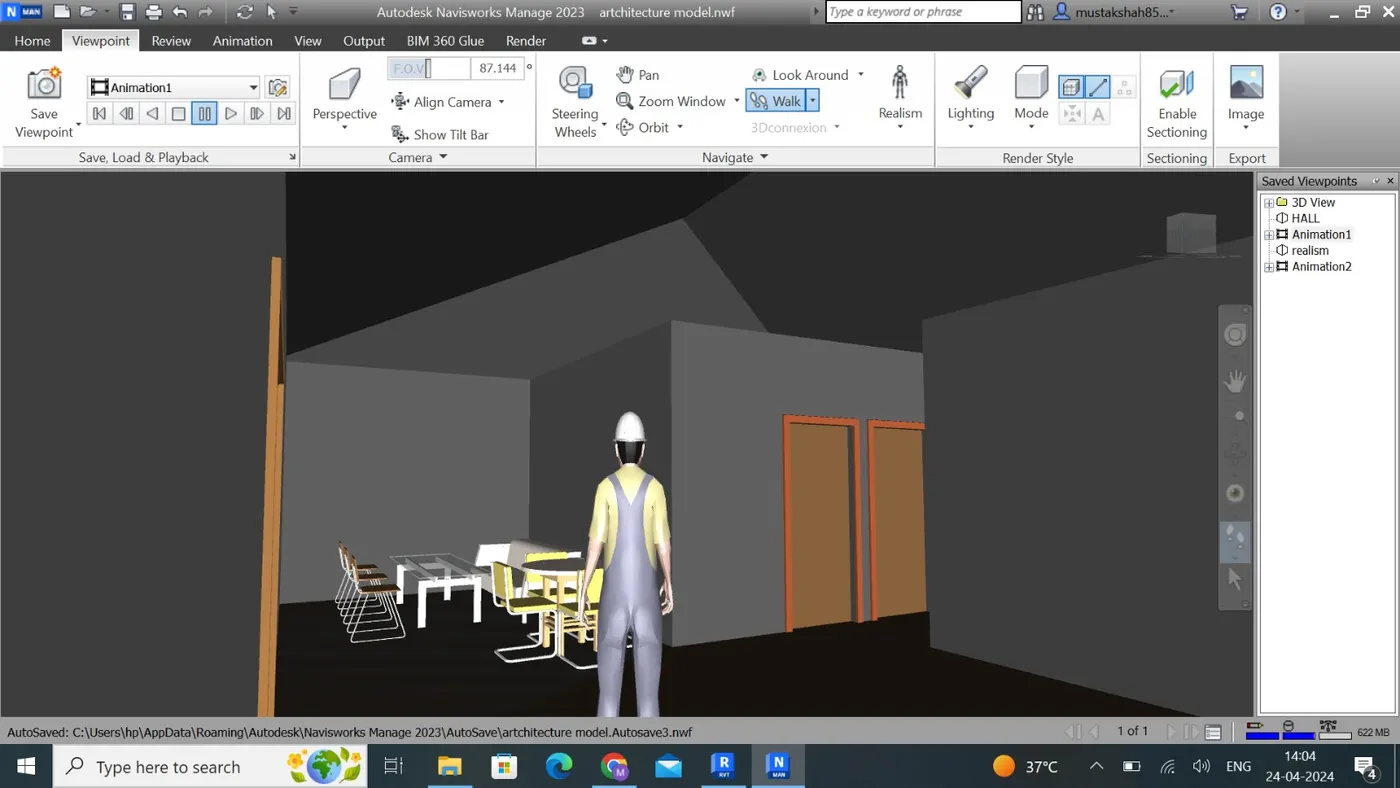

  • click on walk
  • go to animation tab click on record and it will star recording
  • walk throughly all the rooms
  • click on stop after finishing
  • 3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file
  • AIM: Using navigate tool to use realism feature to walk through the model and record moving as aniation in Navisworks file

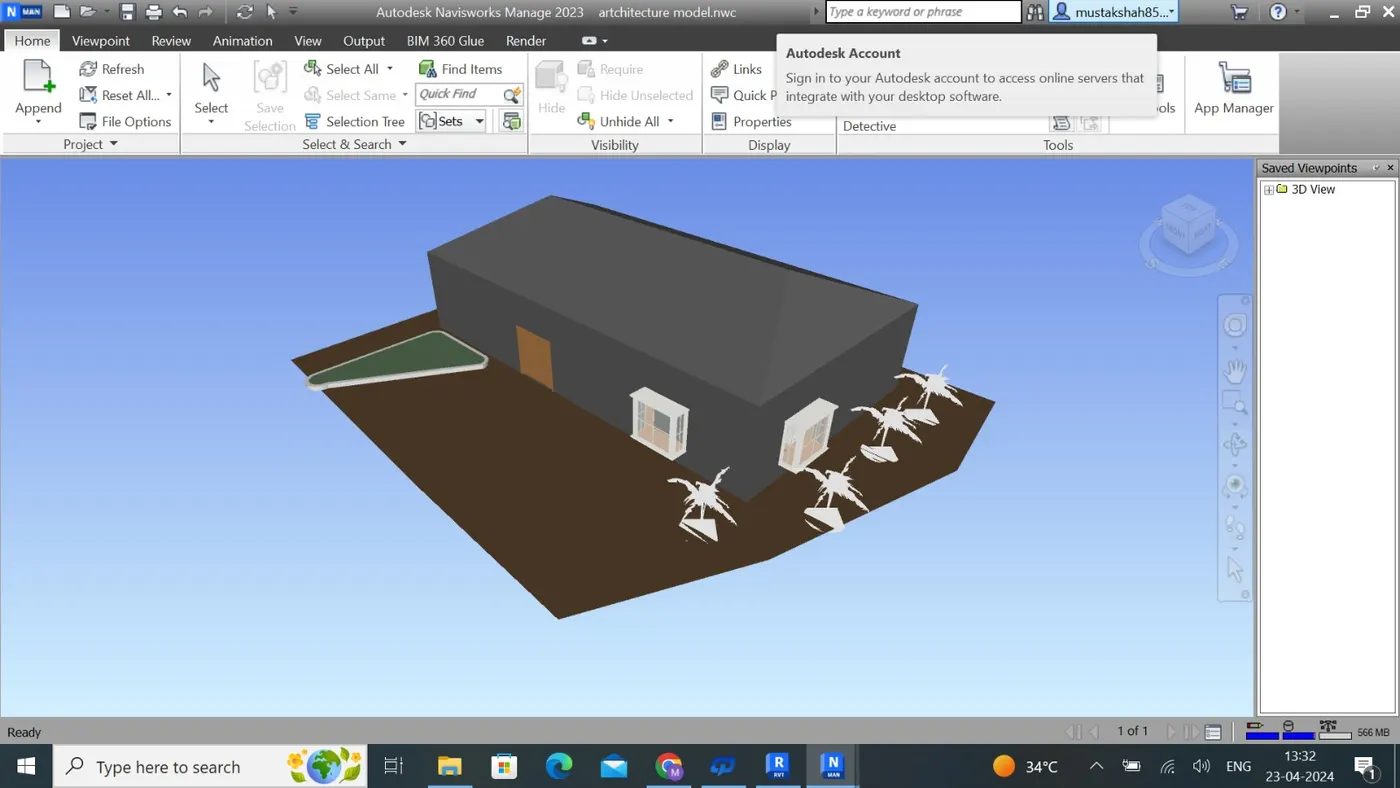

  • open the architectural model in naviswork
  • click on view point and select the view

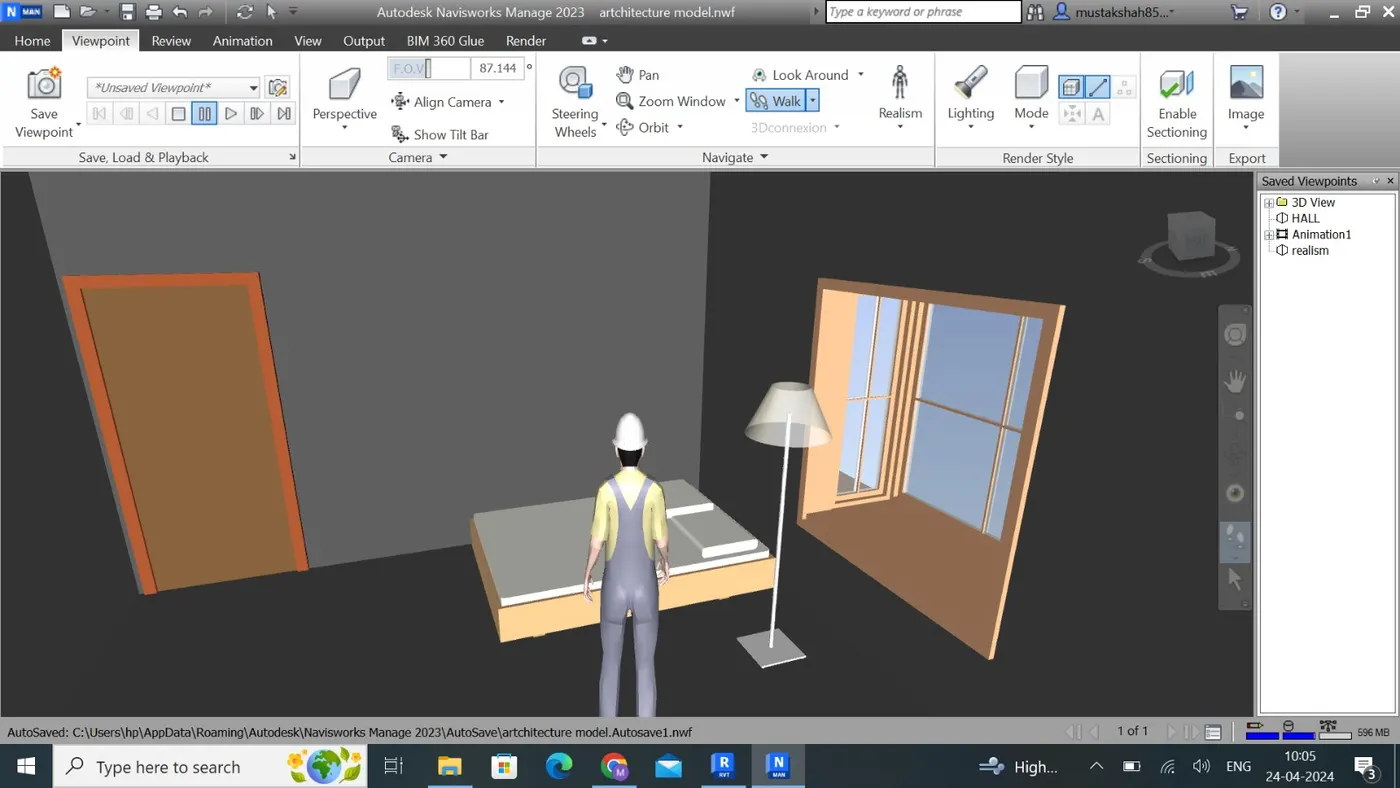

  • click on realism command
  • check on third person and select the record option
  •
  •

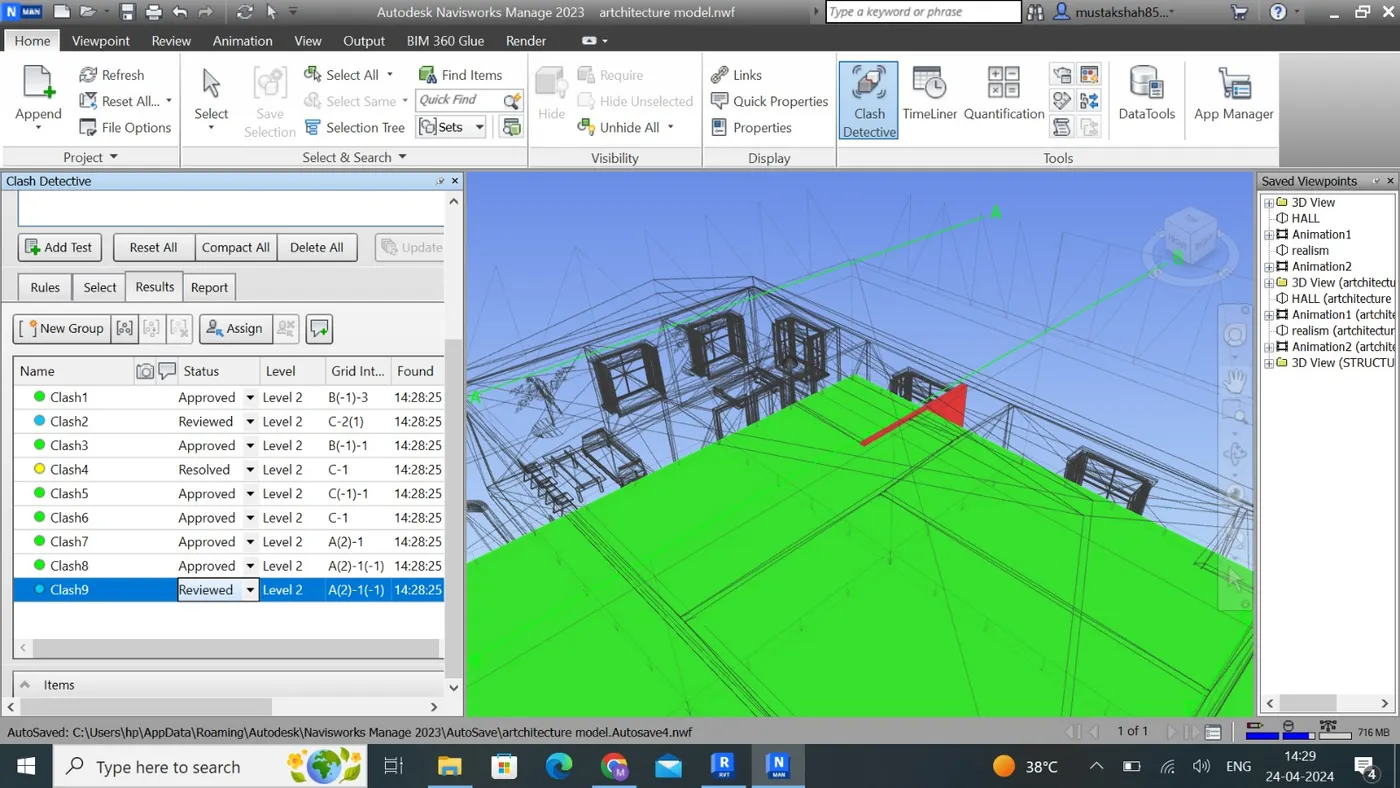

  • 4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
    a. Run the Clash Detection Test
    b. Study the clashes between the two models
    c. List which of the clashes could be approved
    d. List which of the clashes could be neglected ( will be taken care later)
    e. List which of the clashes can be resolved
    f. Save the results after color coding the clashes to the Navisworks file
    g. In case of resolution annotate the clash and save the view to defined views in Navisworks
  • AIM: To embed both architectural and structure *.nwc file to navisworks file and create a clash detection between thhe two models

  • PROCEDURE:

    • Open the architectural file in naviswork
    • click on in home tab
    • select the structural model to identify clashes between models
    •
  • 5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file
  • AIM: To use timeline feature in naviswork and prepare a schedule for the project developed in week 6 to 8 by addding reasonable assumptions for taskdate and end date and simulate the task completion as a visual simulation.

  • PROCEDURE:

    • open the structual file in naviswork exported from revit
    • go to home

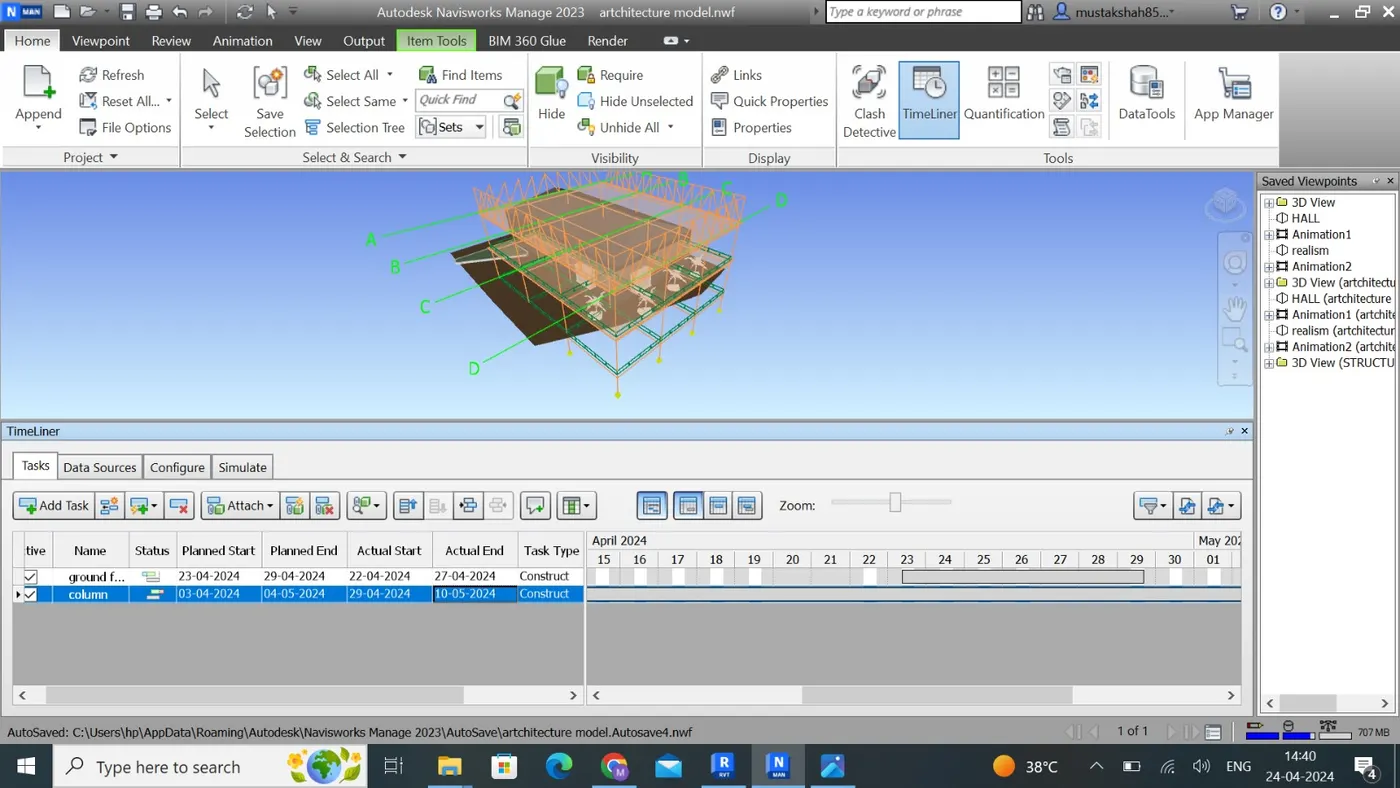

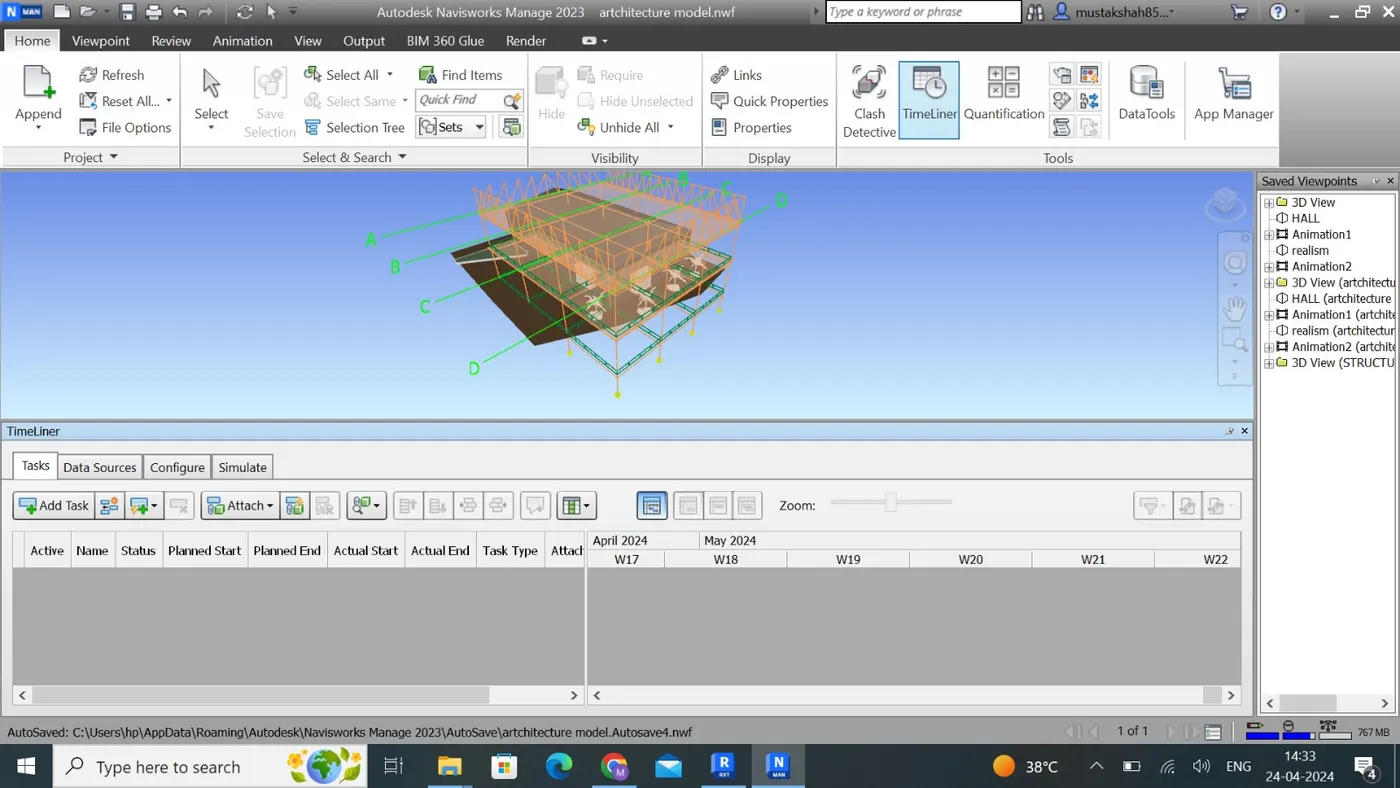

    • click on timeliner
    • add tasks and attach the materials by clicking on selection tree
    • assign planned and actual start and ends dates to task
    • Follow the the same procedure for entire building in which order the tasks have to complete
    •
    •
