Usage of Collaborate tool in REVIT

AIM : TO FOLLOW THE FORMAT AND COMPLETE THE TASK

PROCEDURE

1) OPEN THE NEW ARCHITECTURAL TEMPLATE AND START IT AND SAVE THE FILE

2) DRAW THE GRID HORIZONTALLY AND VERTICALLY

3)RENAME THE GRIDS

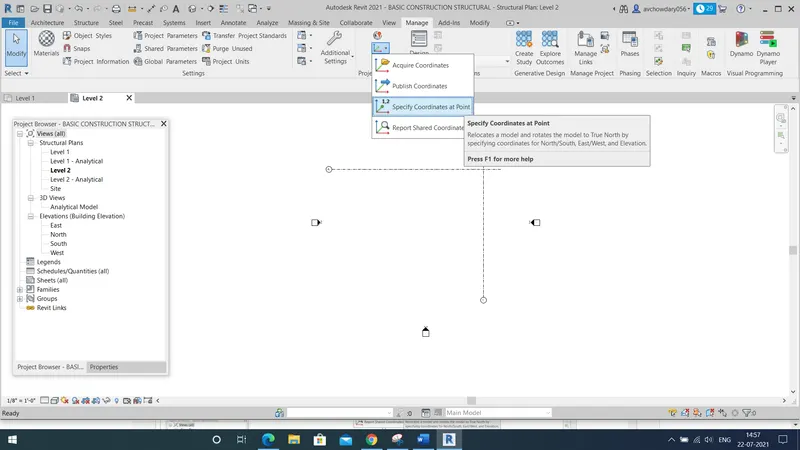

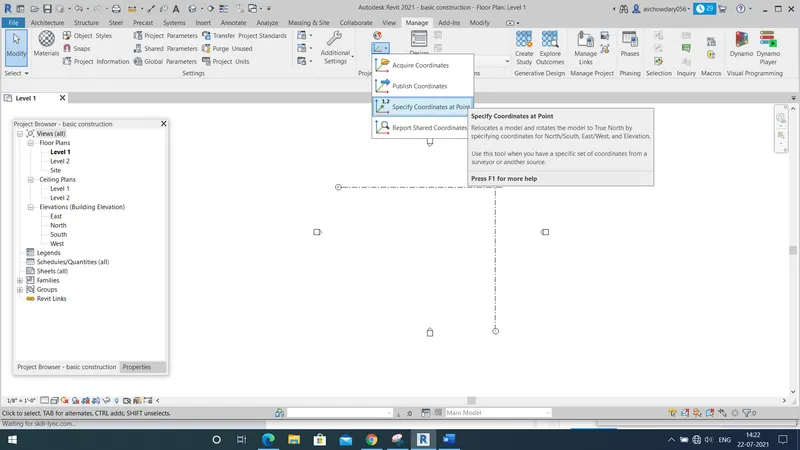

4) CLICK ON MANAGE TAB AND SELECT COORDINATES AND SELECT SPECIFY COORDINATES AND KEEP BOTH AS 0'

2)REPEAT THE SAME THING IN NEW STRUCTURAL TEMPLATE

3)OPEN THE ARCHITECTURAL TEMPLATE WITH WE ARE SAVED

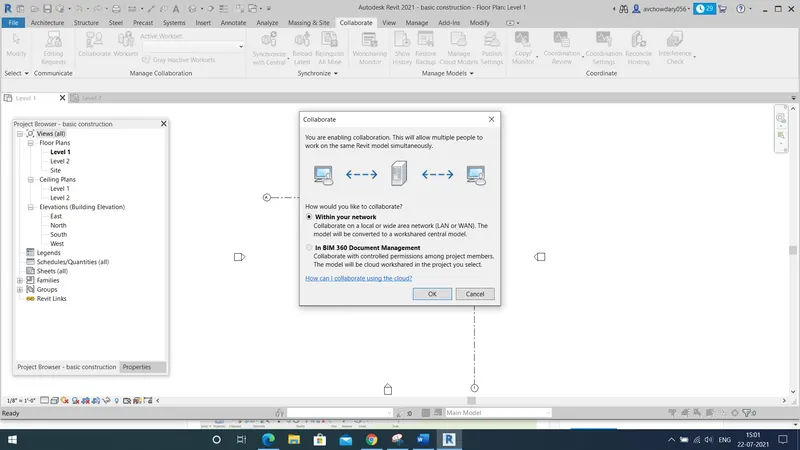

AND CLICK ON COLLABORATE AND CLICK ON COLLABORATE

CLICK OK AND SAVE

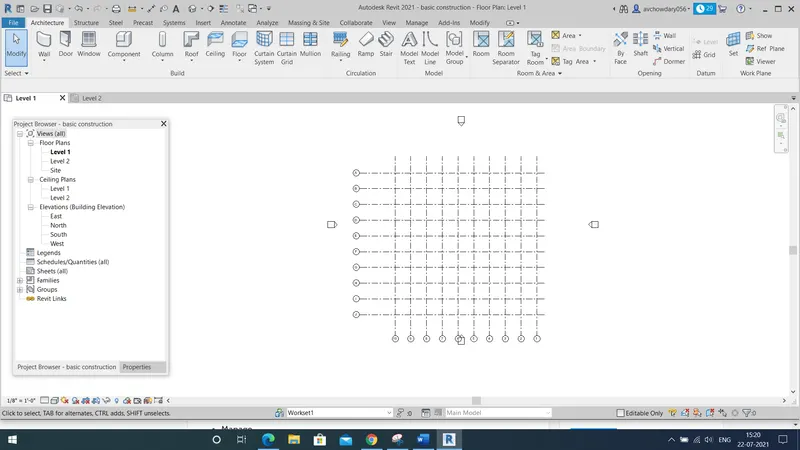

4)CLICK ON GRID AND DRAW THE GRID HORIZONTALLY AND VERTICALLY 10 WITH SPACING 10'

SAVE IT

5)

1)CLICK ON COLLABOATE AND SELECT SYNCHRONIZE WITH CENTRAL

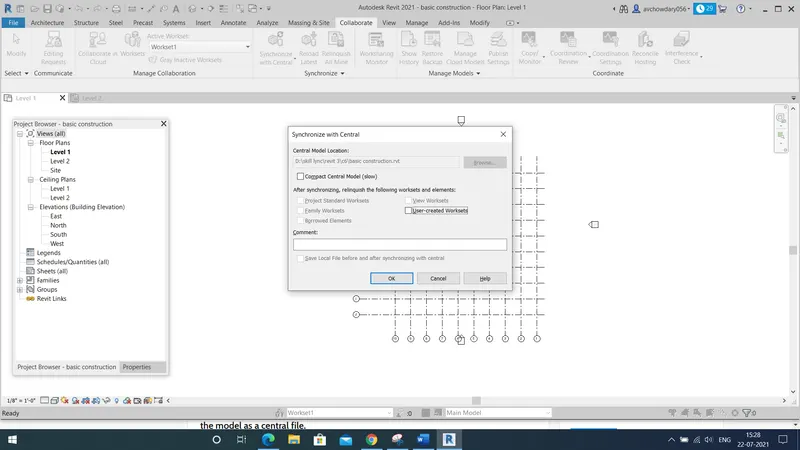

2) SELECT SYNCHRONIZE EITH SETTEINGS

CLICK OK

6)

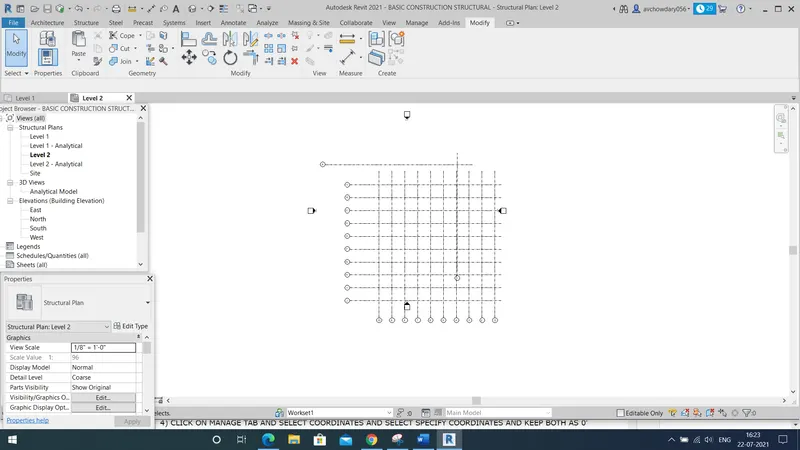

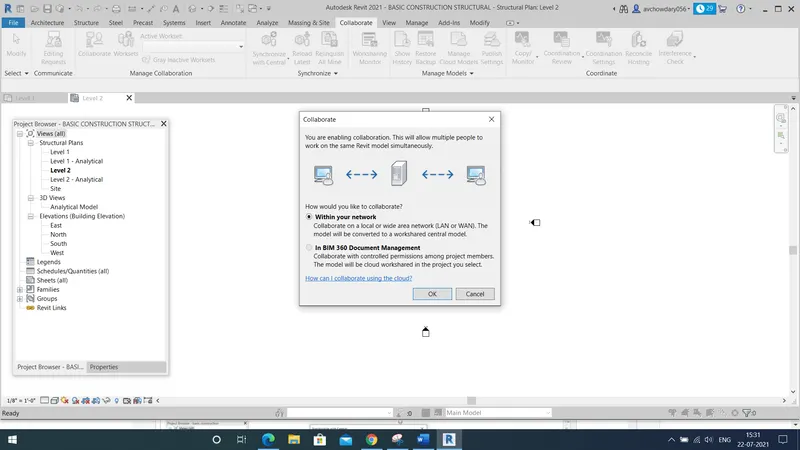

1)OPEN THE STRUCTURAL PLAN AND CHANGE TO CENTER MODE

2)CLICK ON COLLABOATE AND SELECT SYNCHRONIZE WITH CENTRAL

3) SELECT SYNCHRONIZE EITH SETTEINGS

CLICK OK

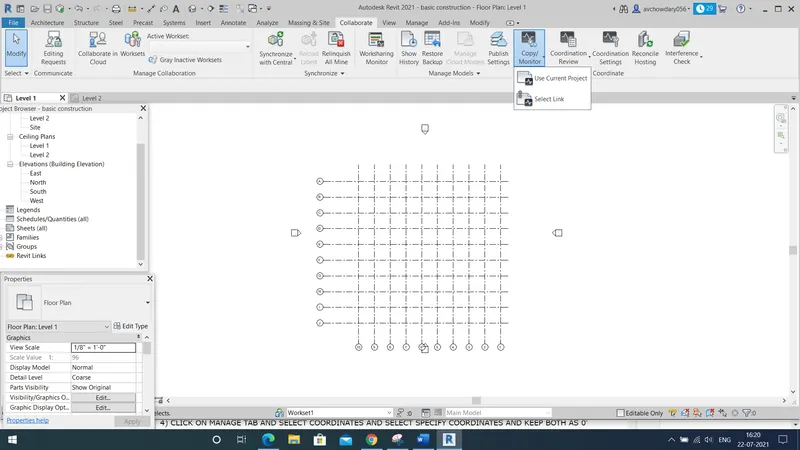

7) OPEN ARCHITECTURAL TEMPLAE CLICK ON COLLABARATE AND SELECT COPY MONOTOR COPY THE GRIDS AND LINKS

CLICK ON CLIP BOARD AND OPEN STRUCTURAL PLAN AND CLICK ON MANGE AND PASTE

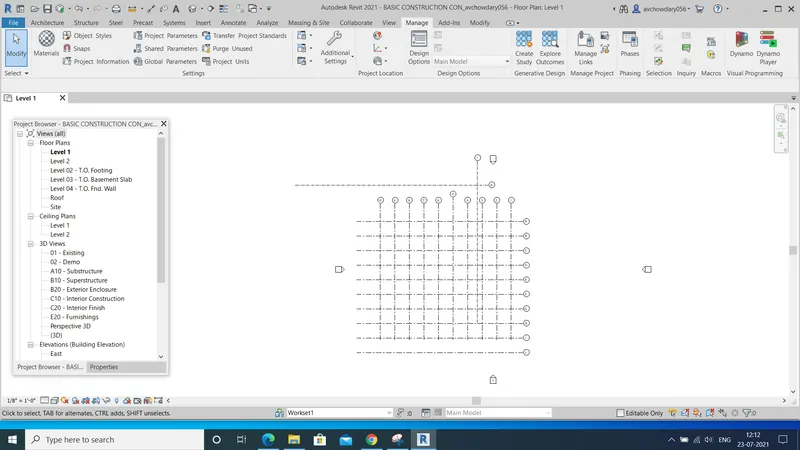

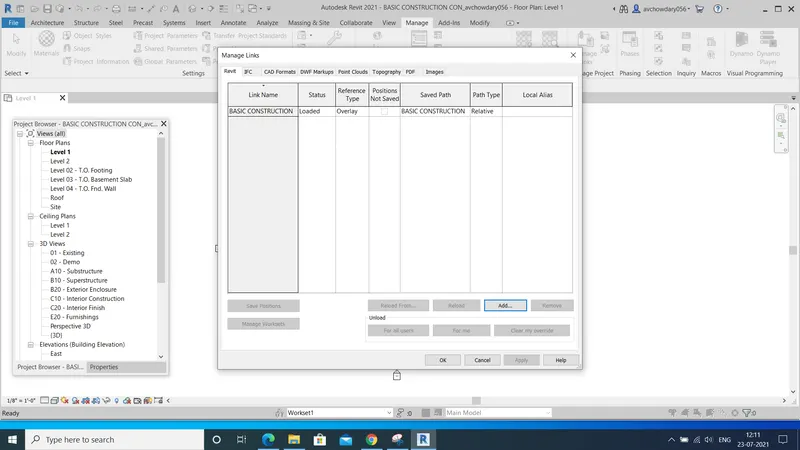

8)CREATE NEW FILE WITH CONSTRUCTION TEMPLATE AND CHANGE TO CENTRAL MODE AND SAVE IT AND LINK TO ARC AND STR BOTH TO CONSTRUCTION TEMPLATE USING MAGAGE LINK

9) YES
