Underbody Coating

UNDER -BODY COATING

Automotive coatings and the processes used to coat automobile surfaces exemplify the avant-garde of technologies that are capable of producing durable surfaces, exceeding customers expectations of appearance, maximizing efficiency, and meeting environmental regulations. These accomplishments are rooted in 100 years of experience, trial-and-error approaches, technique and technology advancements, and theoretical assessments. Because of advancements directed at understanding the how, why, when, and where of automobile coatings, the progress in controlling droplets and their deposition attributes, and the development of new technologies and paint chemistries, a comprehensive and up-to-date review of automobile coatings and coating technologies was considered to be of value to industrial practitioners and researchers. Overall, the critical performance factors driving the development and use of advanced automotive coatings and coating technologies are

(a) aesthetic characteristics

(b) corrosion protection

(c) mass production

(d) cost and environmental requirements

(e) appearance and durability

Although the relative importance of each of these factors is debatable, the perfection of any one at the expense of another would be unacceptable. Hence, new developments in automotive coatings are described and discussed in the following review, and then related to improvements in production technologies and paints. Modern automotive coating procedures are also discussed in detail. Finally, an extrapolation into the future of automotive coating is offered with a view of the developments and technologies needed for an increasingly efficient and more sustainable coatings industry.

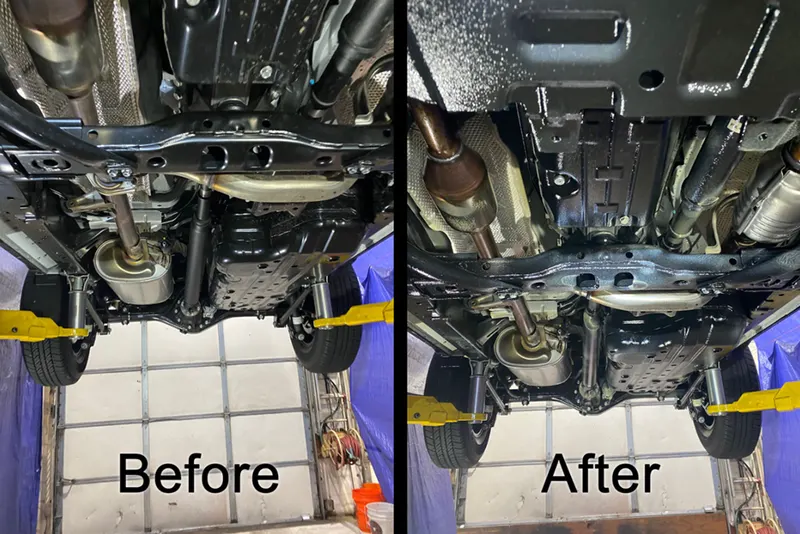

Most of these coatings provide chemical and corrosion resistance, along with several other properties based on different product formulations. Protection of underbody and wheel arches against chip damage is achieved by applying automotive underbody coatings, which protect the metal from debris of gravel, stones, salts, etc. tossed by the road.

Coating process of a vehicle body (automotive coating process) comprises minimum five layers of paint, while the underbody coating process comprises the first two layers in the overall coating process. These two layers provide durable protection against corrosion; however, damage over time requires renewal of these coatings. Automotive aftermarket service providers often provide these services during scheduled vehicle maintenance.

AUTOMOTIVE COATING PROCESS

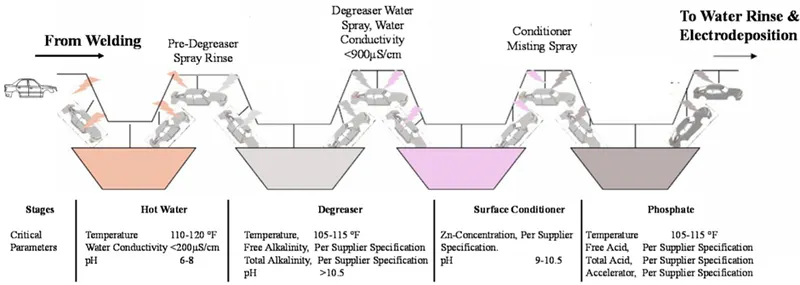

• Pre-treatment

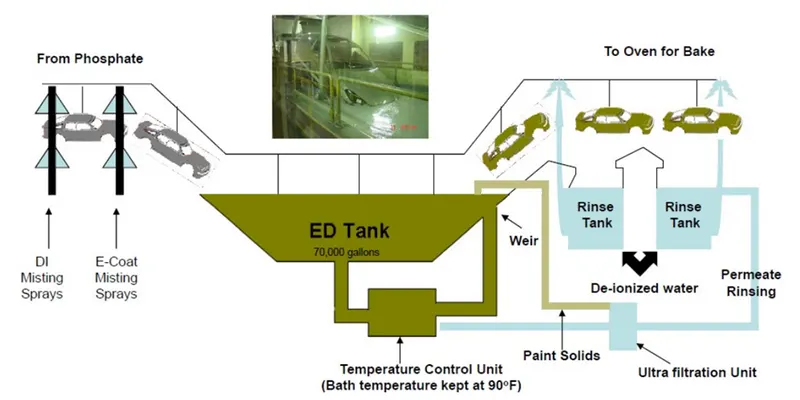

• Electrodeposition (ED)
• Rust proof material: Sealer/PVC
• Primer
• Top-coat

DIFFERENT TYPES OF VEHICLE UNDERCOATING

Having undercoating professionally applied to your vehicle can be expensive, but fortunately, if your budget is tight, you can do it yourself for a fraction of the price. Here are some of the various types of undercoating available.

Rubberized Undercoating

Rubberized vehicle undercoating is easy to apply and offers sound-cushioning as well as protection from dust, moisture, and dings or dents.

In addition to your undercarriage, rubberized undercoating is also safe to use on wheel wells and quarter panels, and dries to a soft rubbery finish that prevents further rust, damage, or moisture seeps. The coating can be painted over and, if necessary for bodywork, can be easily removed with an undercoating removal spray.

Overall, rubberized coating is generally the best option for protecting your vehicle's undercarriage, as it provides the simplest and best protective measures against rust and moisture.

Polyurethane Undercoating

The other option for undercoating your vehicle is to use a polyurethane-based sealant. This type of vehicle undercoating is a little bit quicker and easier to apply.

Oftentimes, polyurethane undercoating will come in canisters ready to preload into an application gun. This type of sealant works by seeping into all cracks and seams, displacing salt and moisture and oozing around rusty areas to bond with and protect unoxidized metal. It also sands quickly in case you'll need to perform bodywork and can be painted over.

On the flipside, this type of car undercoating generally requires a little bit more surface prep work before applying -- sanding and applying an etching primer to bare metals before using are generally recommended.

Wax or Paraffin-Based Undercoating

A paraffin-based undercoating will be the cheapest and quickest option available with which to protect the undercarriage of your vehicle. However, keep in mind that it will wear off quicker than other types of undercoating and will need to be stripped and reapplied at least once every year.

Wax-based undercoating never truly harden. During application, they drip or flow into seams and cracks to provide protective properties. They are usually available in a spray gun canister or in an aerosol can and offer at least a base protection in moderately humid climates.

Asphalt-Based Undercoating

For standard vehicles, any of the aforementioned types of undercoating will provide sufficient protection. For large trucks and heavy machinery, asphalt-based undercoating provides a bit of extra durability against rocks, chips, and moisture.

Asphalt-based undercoating generally contains a little bit of rubberized material that sets up firmly and also helps soften noise. Generally sold in five gallon containers, this type of undercoating also needs more cure time than the other three, and is NOT paintable, making it best to use only for undercarriages.

PROS OF UNDER-BODY COATING

• It provides a layer of protection against corrosion.
• It will extend the life of your vehicle.
• It can be applied to damaged areas.
• The service might help with the cost of your insurance.
• It may help to reduce interior noise.

CONS OF UNDER-BODY COATING

• It is less helpful if corrosion is already present.
• It works best on new cars.
• Most vehicles make it five years before corrosion begins to show.
• A third-party undercoating service might void your vehicle’s warranty.
