Tool Test-2
|
S.No |
Quality Criteria |
Value |
|
1 |
Target/Average length |
3 |
|
2 |
Minimum Length |
1 |
|
3 |
Maximum Length |
5 |

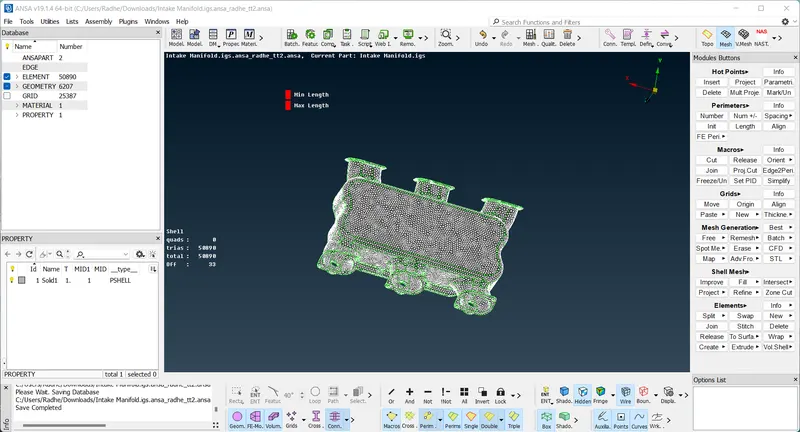

Use tetra elements to mesh the Volumes defined in the model and check for the below quality after Volume meshing.
|
S.No |
Quality Criteria |
Value |
|
1 |
Tet collapse |
0.2 |
ANSWER -: Intake Mainfold model
AIM -: To given the model go to the tetra mesh and volume mesh.

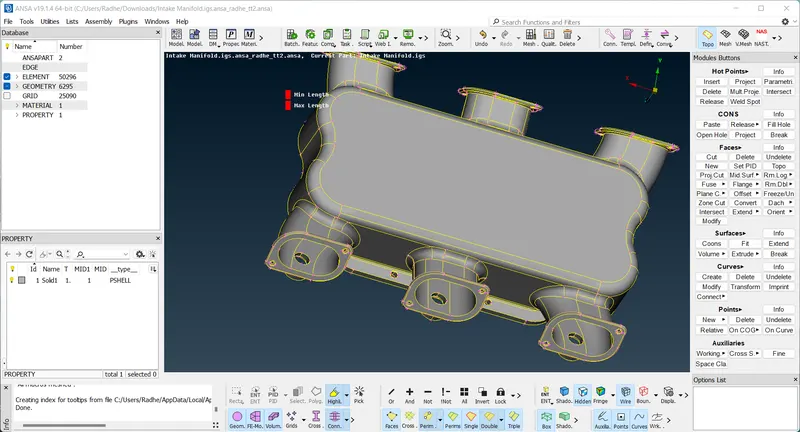

1) first import the model and go to the topo mode.

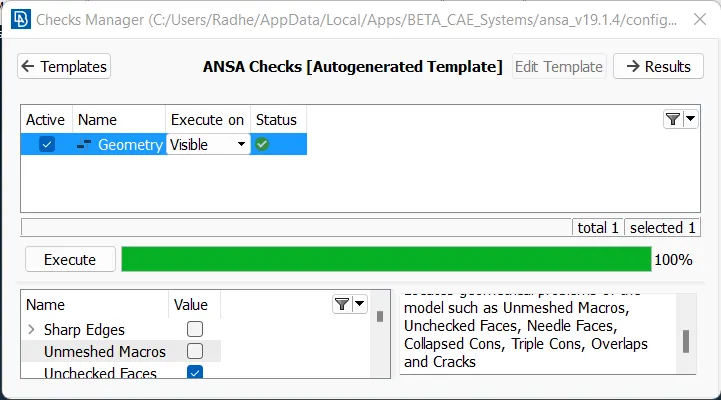

2) after that use the check the geometry then fix.
3)

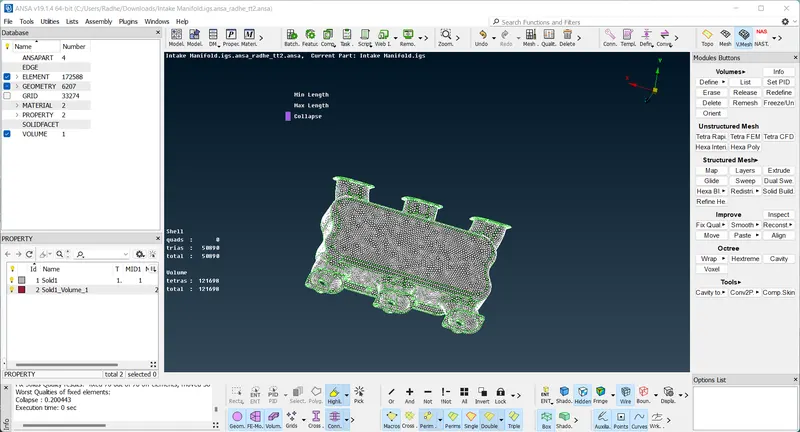

Conclusion -: Complete the tetra mesh and volume tetra mesh.
