Tool Test-2

TOOL TEST – 2
VOLUME MESH GENERATION FOR INTAKE MANIFOLD USING ANSA
(UNSTRUCTURED MESH)

OBJECTIVE:

• Import the CAD geometry of Intake Manifold
• Clean up the geometry until no topological error is found
• Mesh geometry with target/average length of 3mm with no errors.
• Assign closed volume and generate unstructured volumetric mesh using the given quality
  criteria.

S.No	Quality Criteria	Value
1	Target/Average length	3
2	Minimum Length	1
3	Maximum Length	5

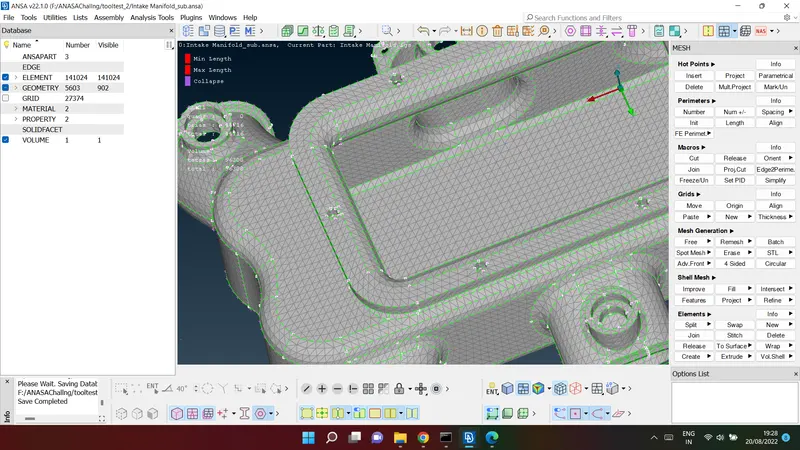

FINAL IMAGE OF THE COMPONENT : TIMING USED : 2 hour

Conclusion:

Solid meshing is successfully generated for Intake Manifold using the given quality
criterias mentioned under the challenge. There are no raised edges,kinks and tetcollapses.
understood how volumes are defined and meshed.
