Tool Test-2

Aim:

The aim is for the given Intake Manifold component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias given below.

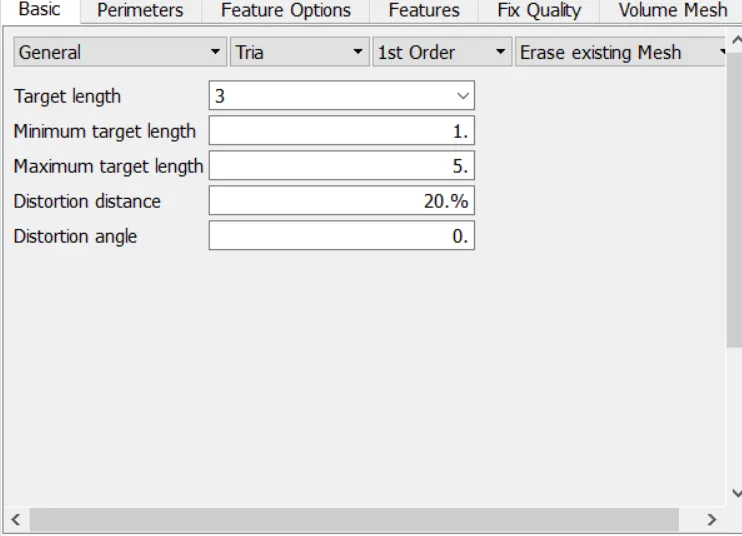

S.No	Quality Criteria	Value
1	Target/Average length	3
2	Minimum Length	1
3	Maximum Length	5

Use tetra elements to mesh the Volumes defined in the model and check for the below quality after Volume meshing.

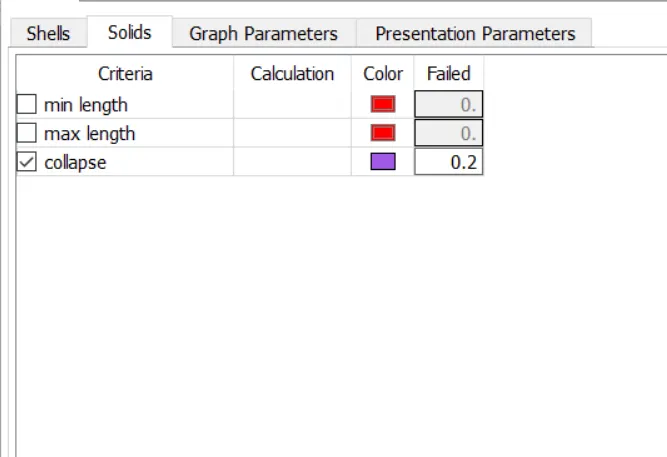

S.No	Quality Criteria	Value
1	Tet collapse	0.2

As per the same procedure is followed and the values are given,

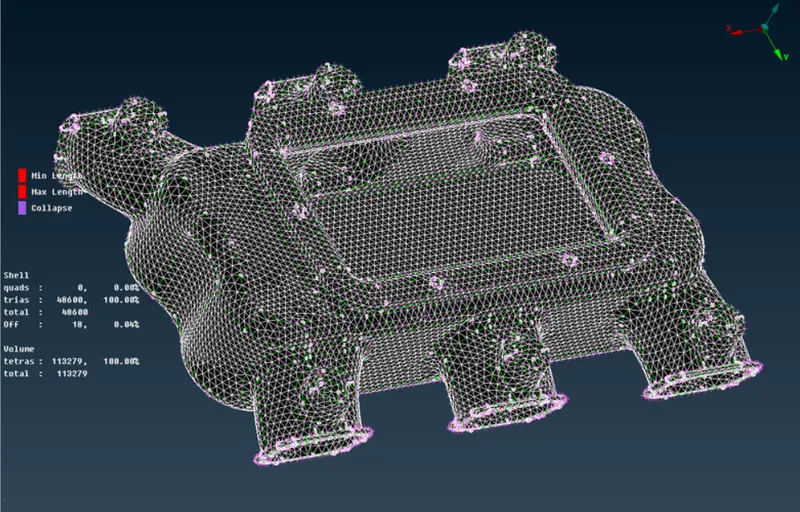

The final manifold:

and model is attached,
