Tool Test 1

FOR MODEL 1

Open model in ANSA

check all Parameter like thickness and etc.

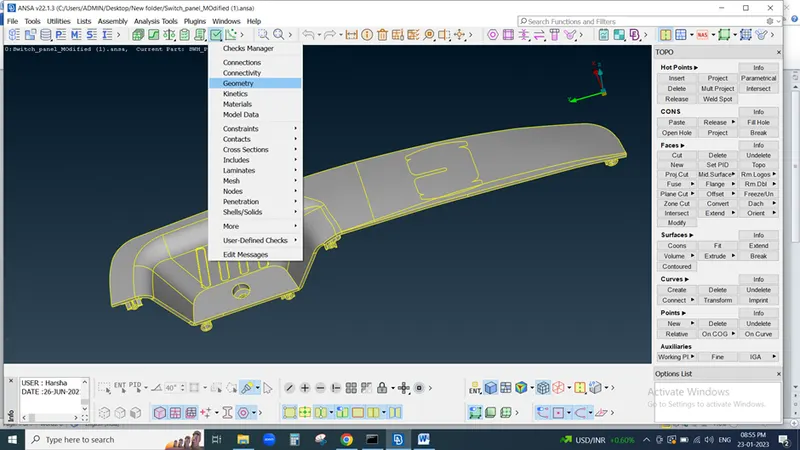

then check Geometry of component

then if error are present in model then Fix it Either manually or Auto

Again check after fix all error

then check thickness of component

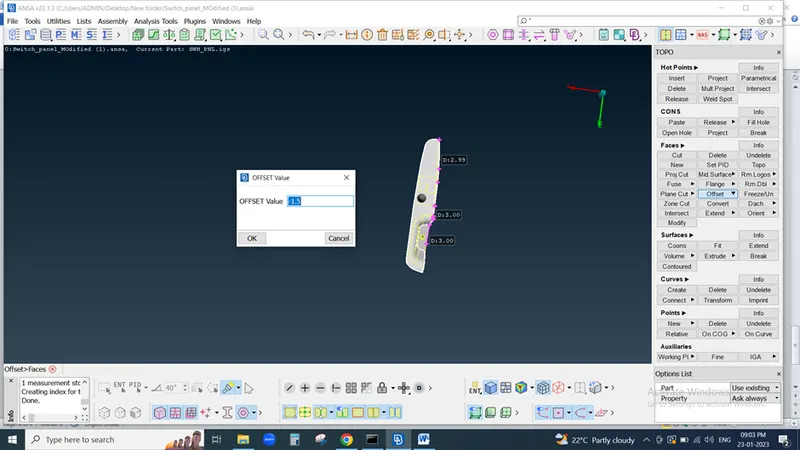

after than we need to take midsurface of component using offset command

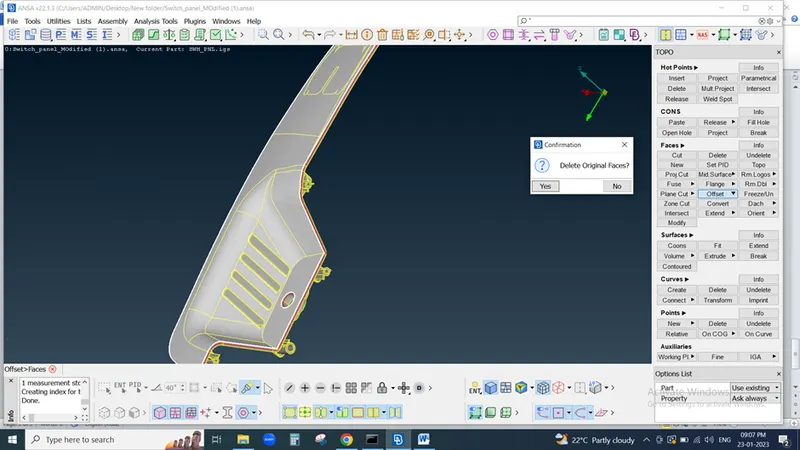

dont delet Parent faces

take midsurface one by one

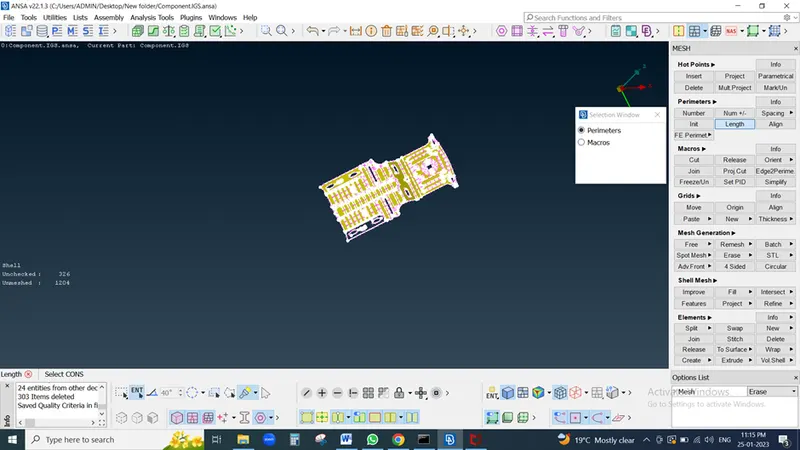

After that we need to go for meshing before that we need to perform some operation like check length parametric lenghth

then we perform some operation like

for extend , intersect , New , cut, curve circle

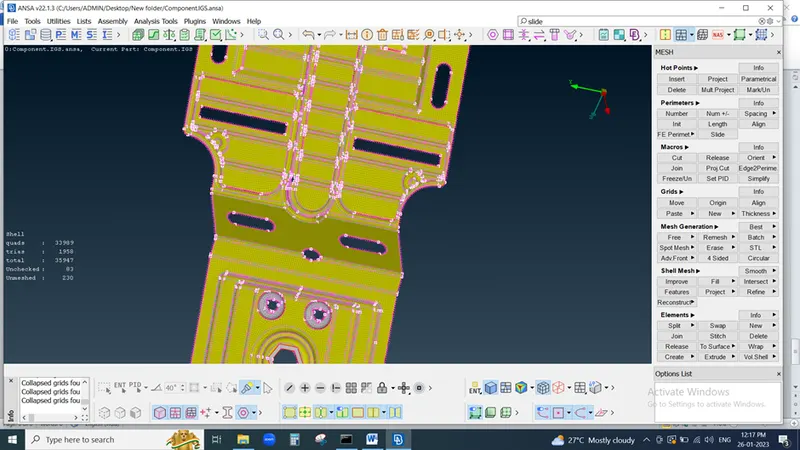

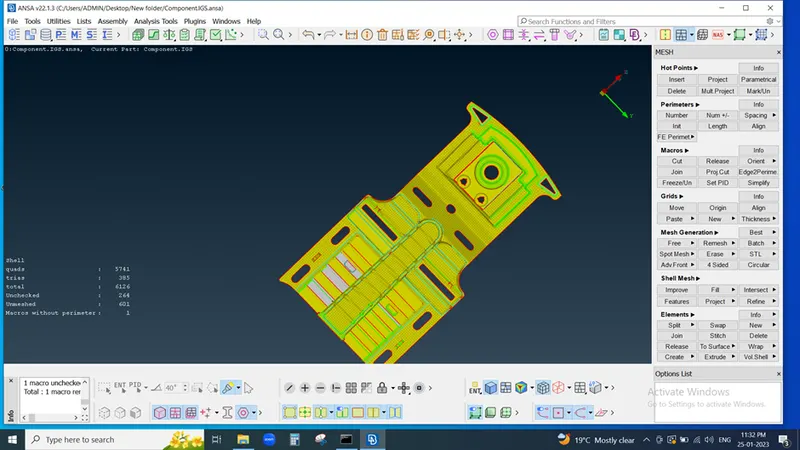

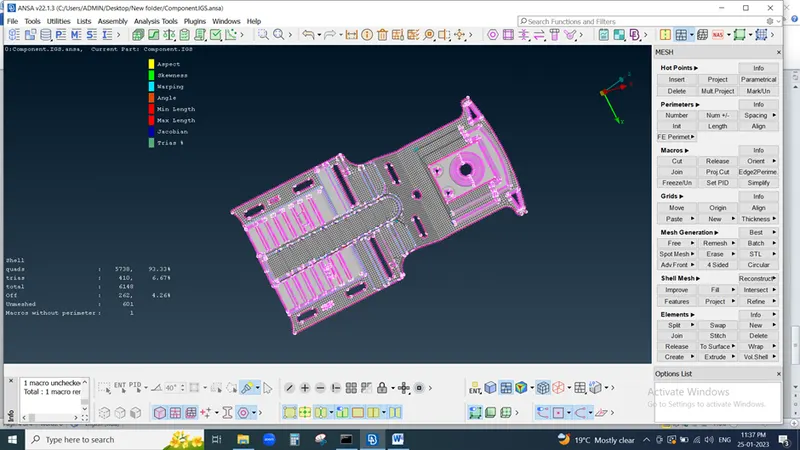

After then go to Best mesh and select are one by one and mesh

if tri come then use swap , split and join command then

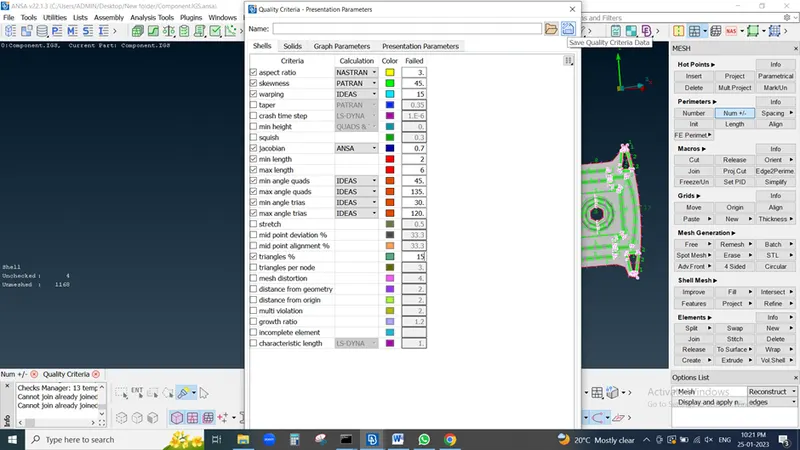

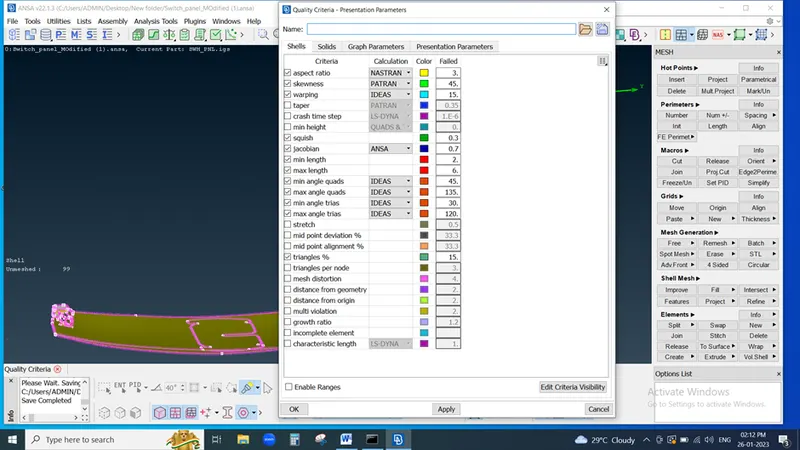

go to quality criteria and set it

and check in quality criteria

FOR MODEL 2

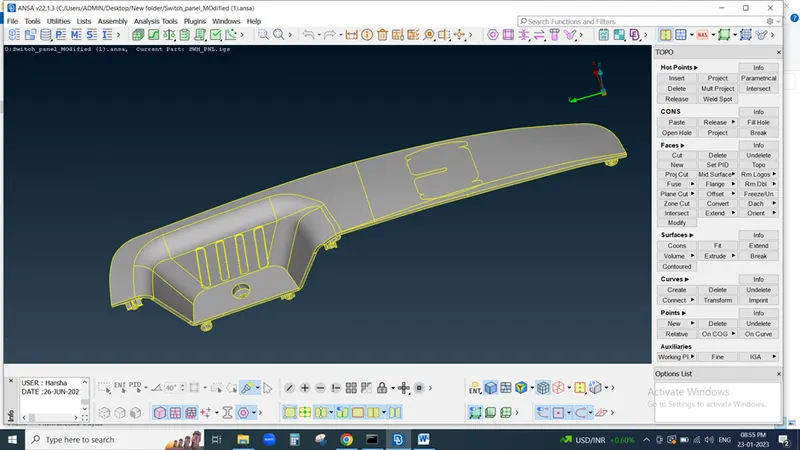

open another model

check properly

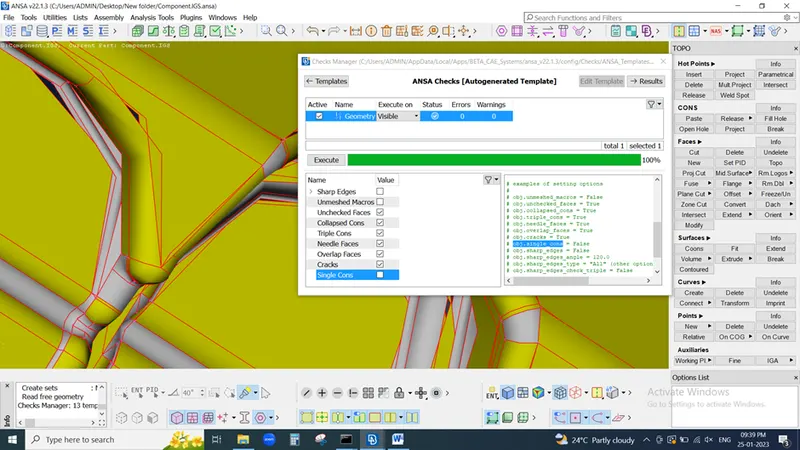

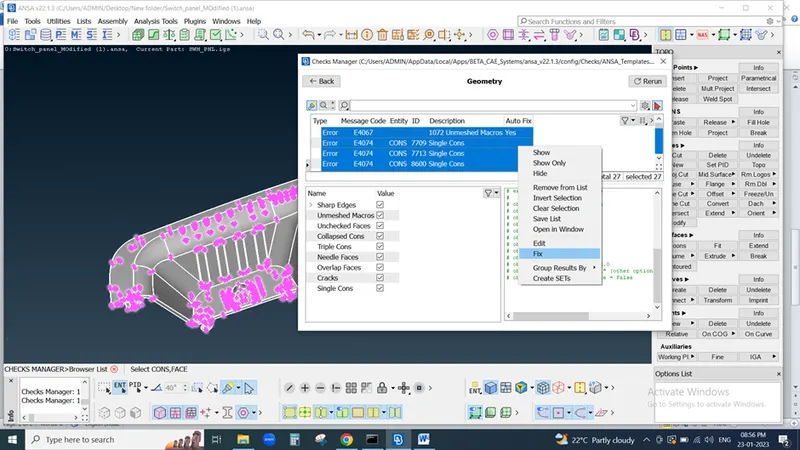

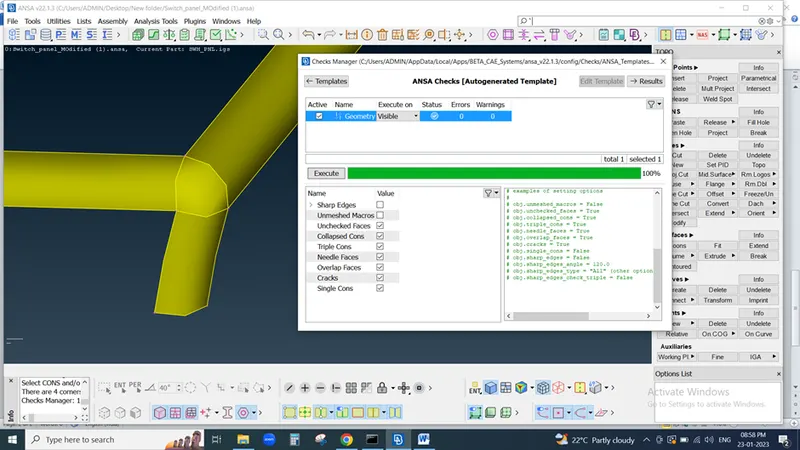

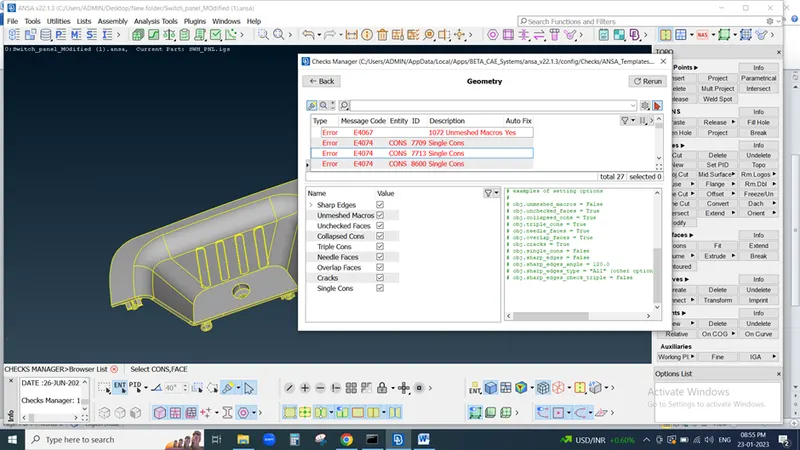

then go for geometry check and execute if error found then mix it manually or Auto

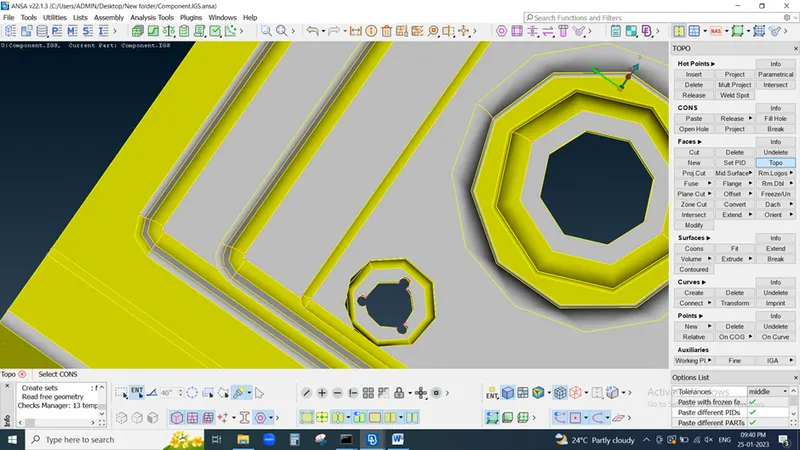

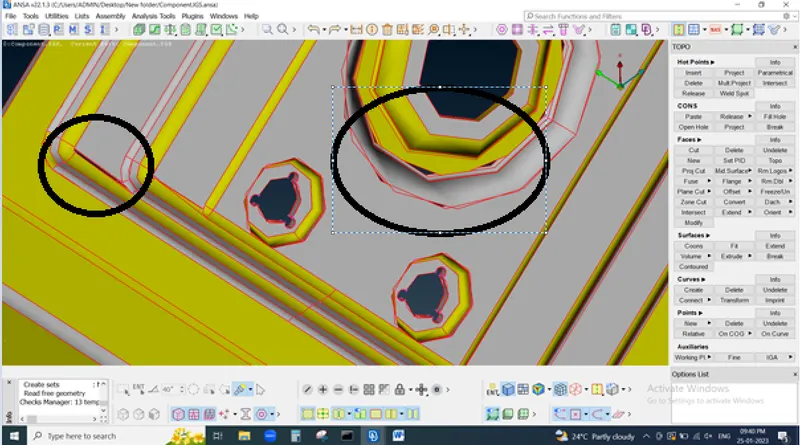

here we can see some fases are not connected properly

so we perform topo operation for connect

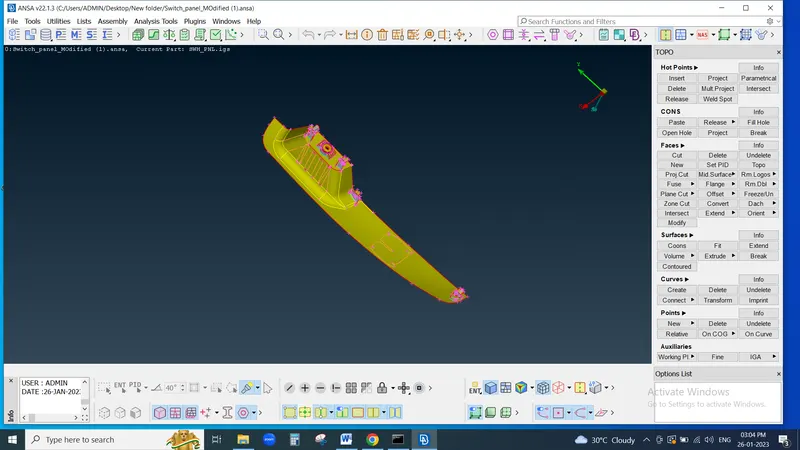

now all fases are connect properly so we can move for offset command

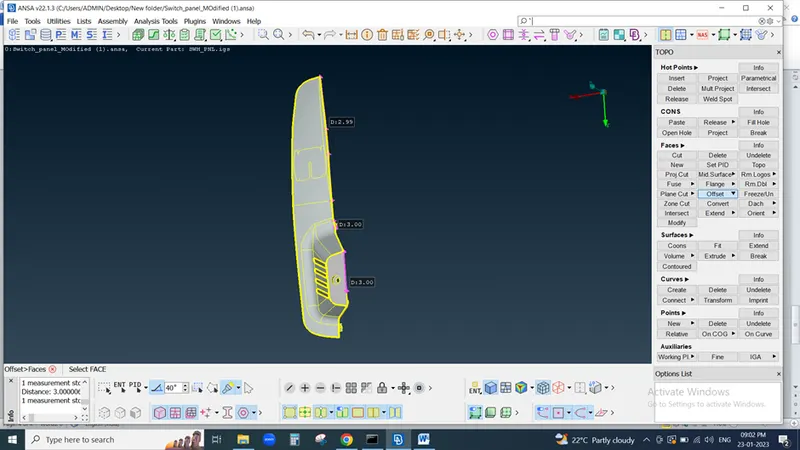

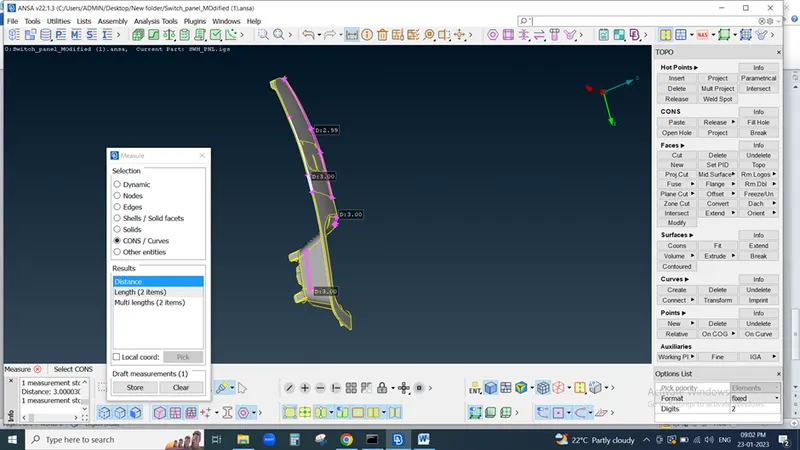

before that we need to measure thickness of component for proper midsurface

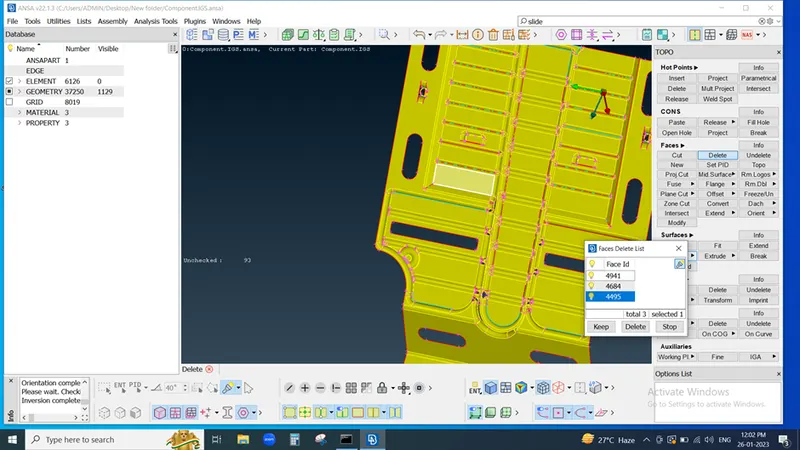

after that we can see triple con are form becouse of exctra surface so we need to delet it

after taking midsurface go to length and select parametric length

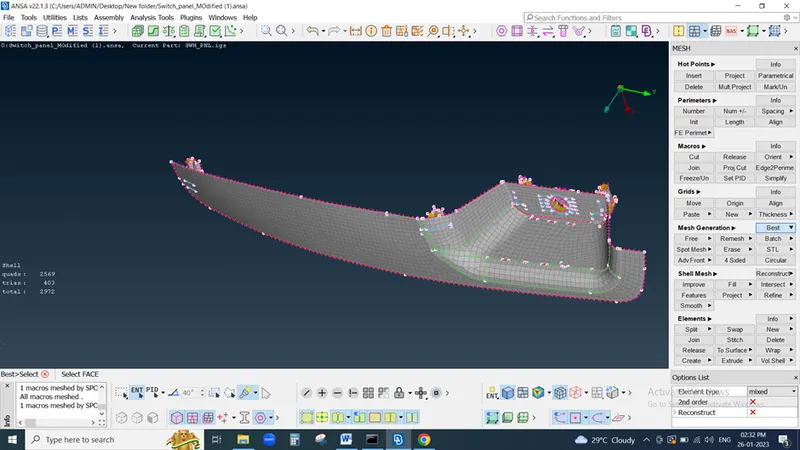

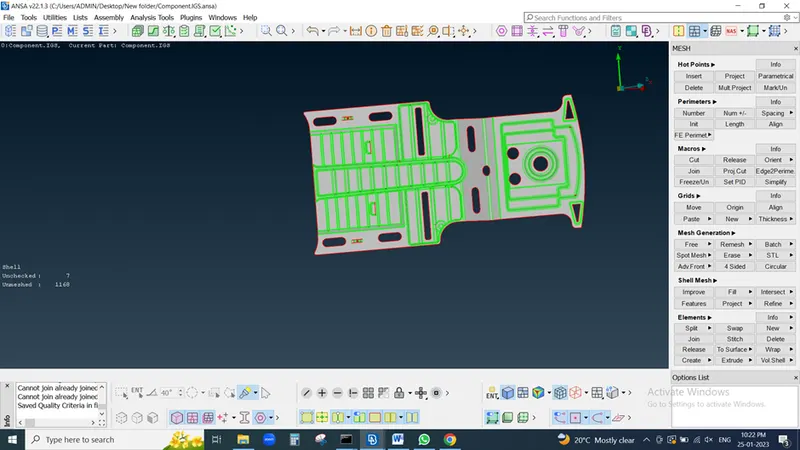

after that we go for best mesh generation pattern

select one by one surface and mesh it

if tria are form use split , swap , join command

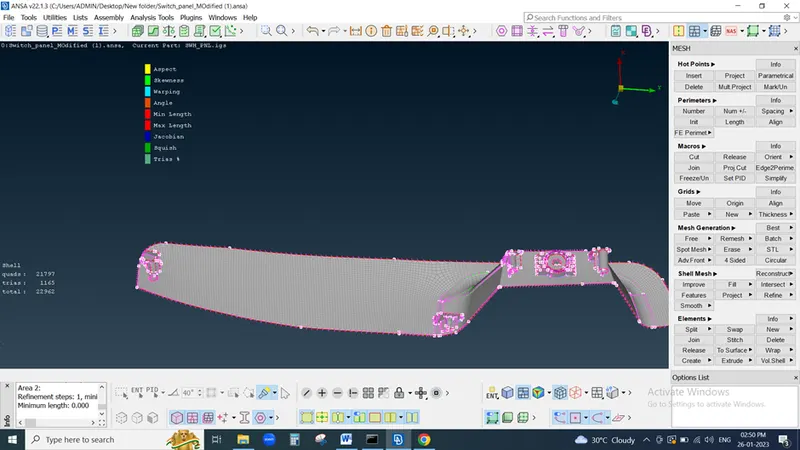

after that go for quality criteria

then check it in quality criteria

Conclusion:

This tool test which carries two models which are Plastic model and Sheet metal model. For both the models, Mid surface and proper meshing is done as per the given quality criteria also the thickness are assigned to both the models.
