To plan a structural layout and to create grids using TSD

QUESTION:1.

Summarize the user interface in TSD with the for the following items: -

• Project Workspace – How to access and usage
• Scene Content – Demonstrate the use of scene content
• Create two scene views
• Loading drop list- How to access
• Properties windows – how to access and usage

ANS:

AIM: To Summarize the user interface in TSD with the for the following items: -

• Project Workspace – How to access and usage
• Scene Content – Demonstrate the use of scene content
• Create two scene views
• Loading drop list- How to access
• Properties windows – how to access and usage

PROCEDURE:

STEP: 1

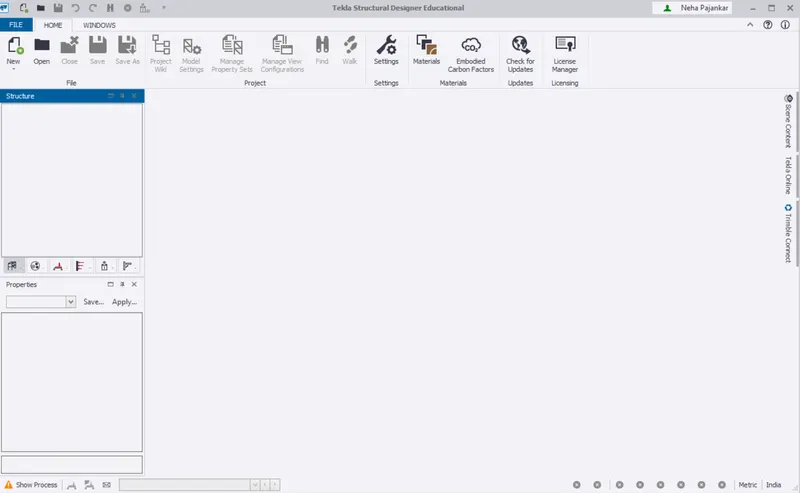

Project Workspace – How to access and usage

• first download and install the TDS softeware in your system
• open the software

• now click on new option
• the workspace window will be activated

STEP: 2

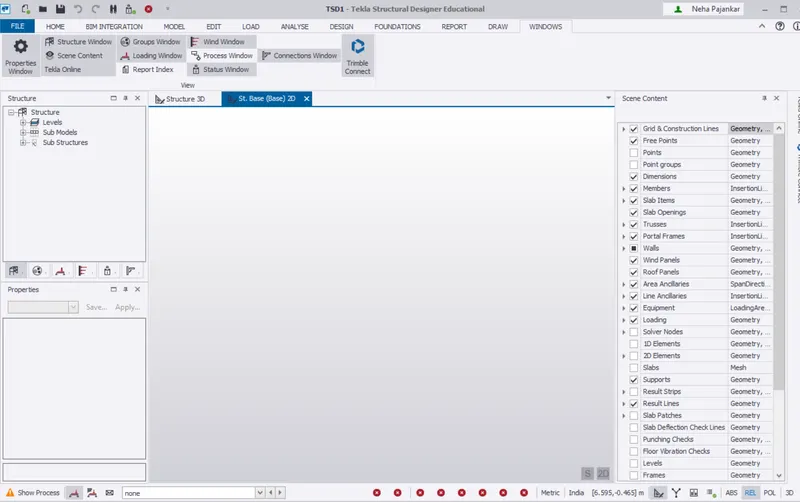

Scene Content – Demonstrate the use of scene content

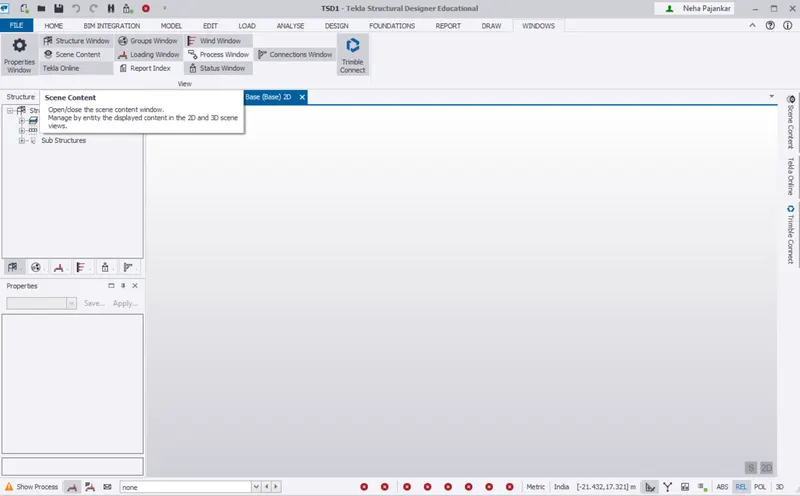

• click on window tab < screen content option

• the screen content check box will appear to use for required settings

STEP: 3

Create two scene views

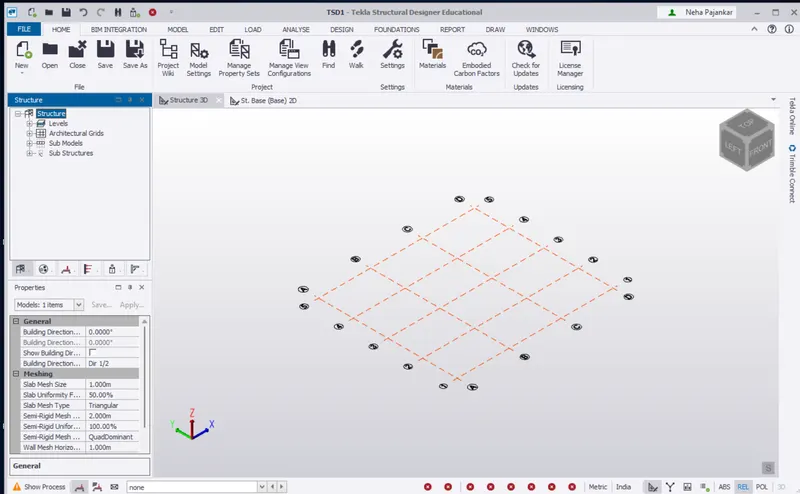

• when creating a new Tekla file, the software automatically creats two default views like 2D and 3D

• the grid lines are created for understanig views

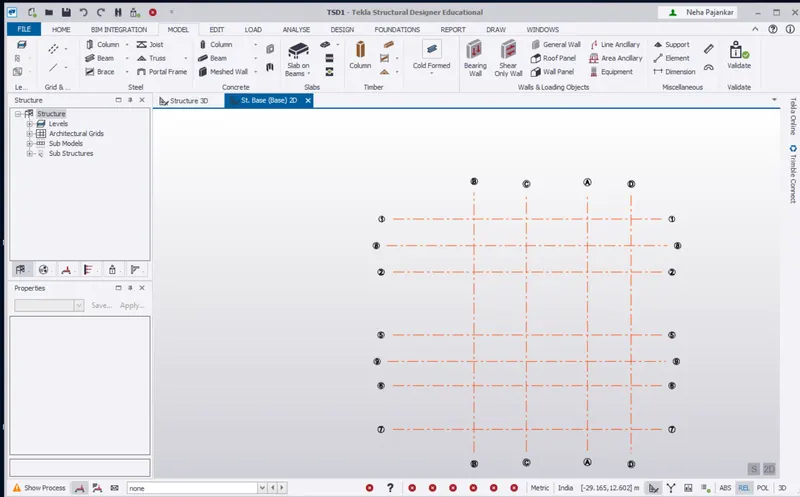

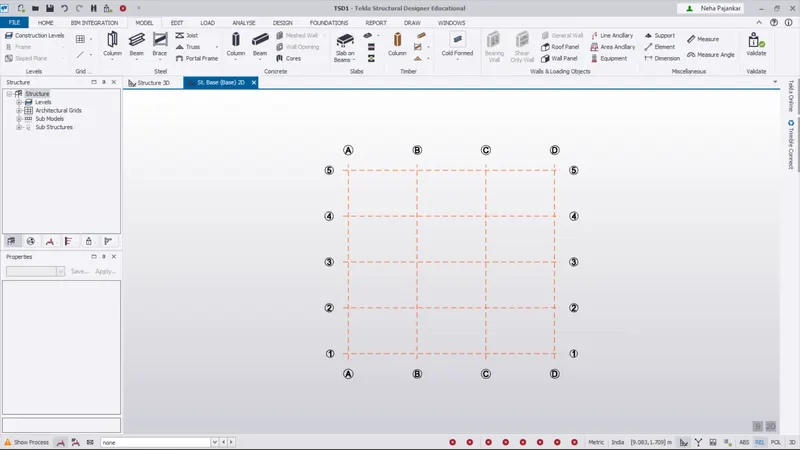

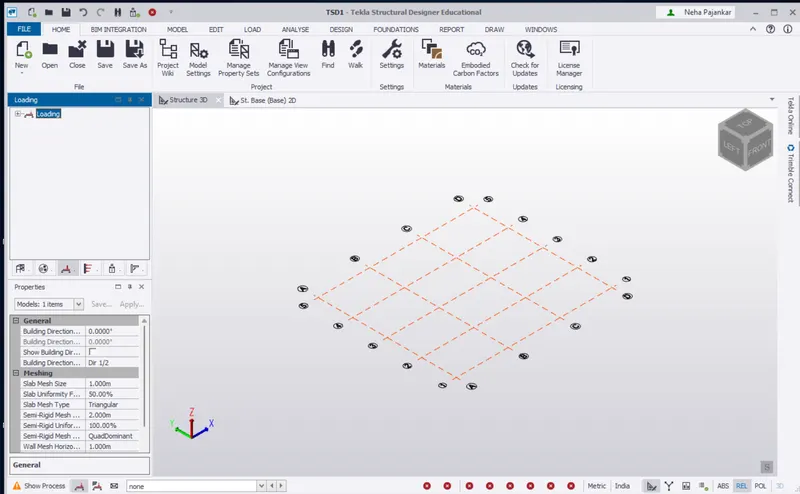

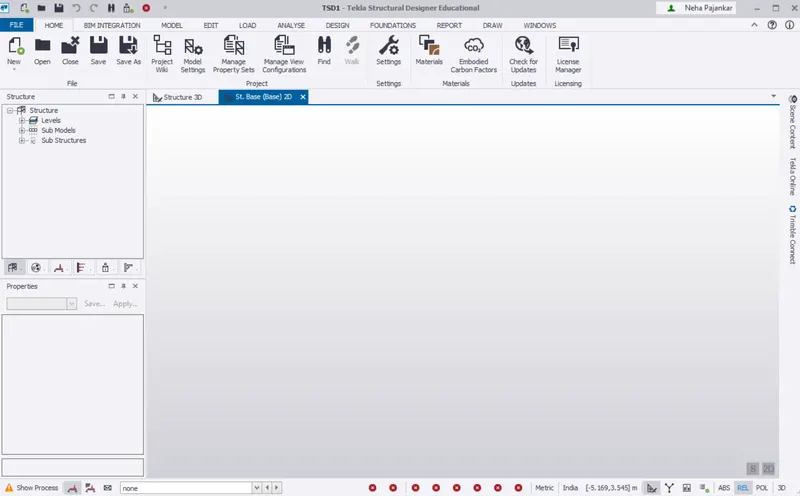

• 2D view:

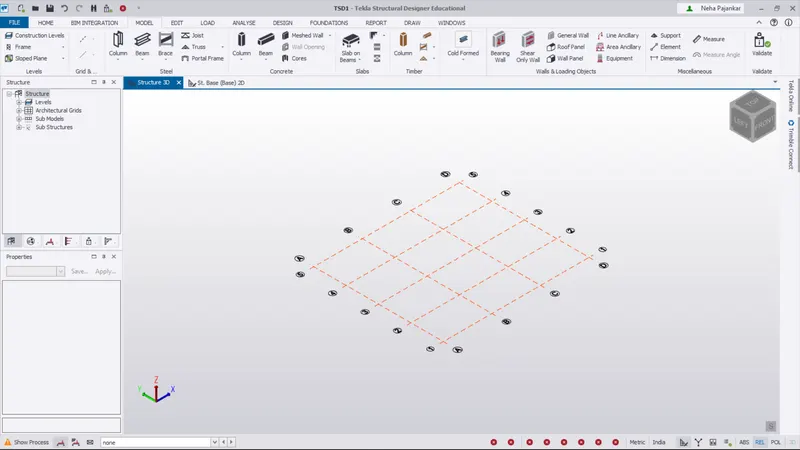

• 3D view:

STEP: 4

Loading drop list- How to access

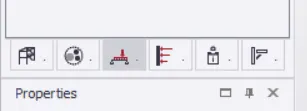

• on the left side of the screen, above the property window will get a small icon of loading

• click on icon to open loading drop list

• here we can see various load case and combinations which are created .

STEP: 5

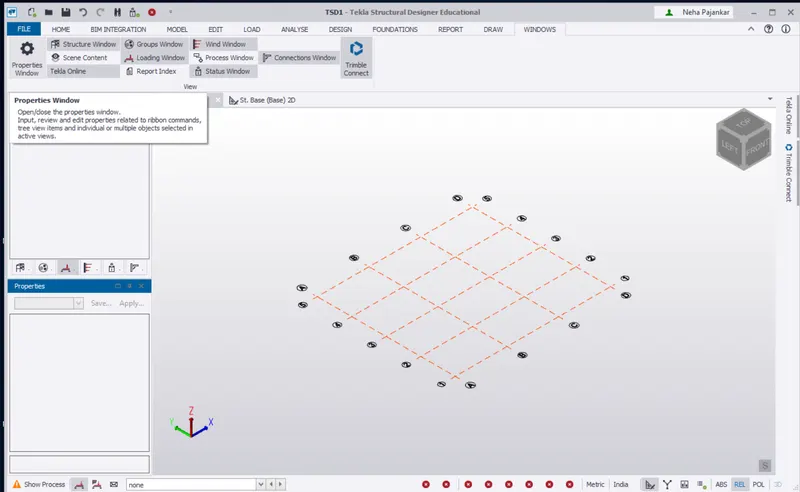

Properties windows – how to access and usage

• Go to window in ribbon < property window option

• this setting will help to open and close the property window

RESULT:

we have succesfully Summarize the user interface in TSD with the for the following items: -

• Project Workspace – How to access and usage
• Scene Content – Demonstrate the use of scene content
• Create two scene views
• Loading drop list- How to access
• Properties windows – how to access and usage

QUESTION:2

Create a new file in TSD and set up the settings for a steel building to have member grade FE410 and concrete grade of M30 as per IS codes. The covers for the members to be as per the following input: -

MEMBERS	IN CONTACT WITH GROUND	ABOVE GROUND
Column	50mm	40mm
Slab	30mm	25mm
Pile cap	75mm
Foundation	50mm

ANS:

AIM: To Create a new file in TSD and set up the settings for a steel building to have member grade FE410 and concrete grade of M30 as per IS codes. The covers for the members to be as per the following input: -

MEMBERS	IN CONTACT WITH GROUND	ABOVE GROUND
Column	50mm	40mm
Slab	30mm	25mm
Pile cap	75mm
Foundation	50mm

PROCEDURE:

STEP: 1

• first download and install the TDS softeware in your system
• open the software

• now click on new option
• the workspace window will be activated

STEP: 2

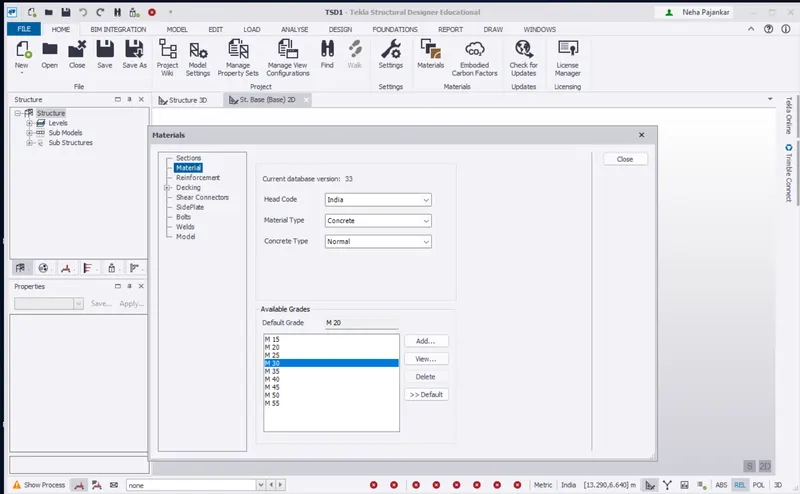

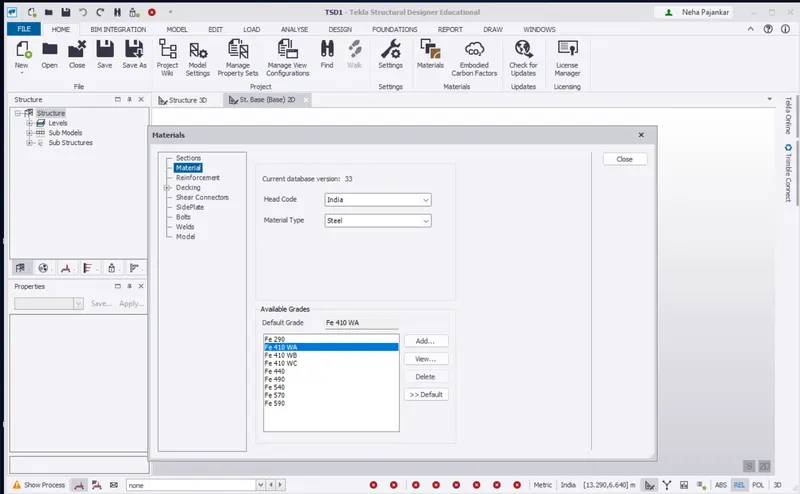

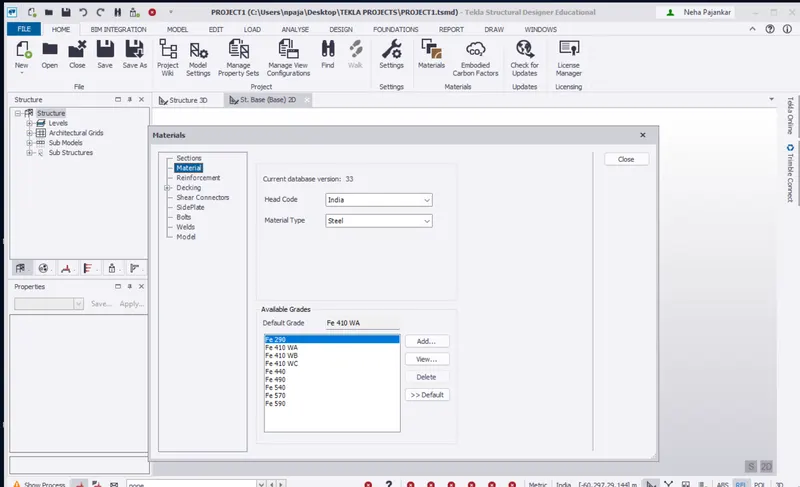

• Go to ribbon click on material tab
• the material dailouge box will appear
• select material

• now under the materail type drop down select steel
• select the desired steel as given in question Fe410
• click on default

• now under the materail type drop down select concrete
• select the desired concrete grade as given in question M30
• click on default

STEP: 3

• to chnage the cover thickness

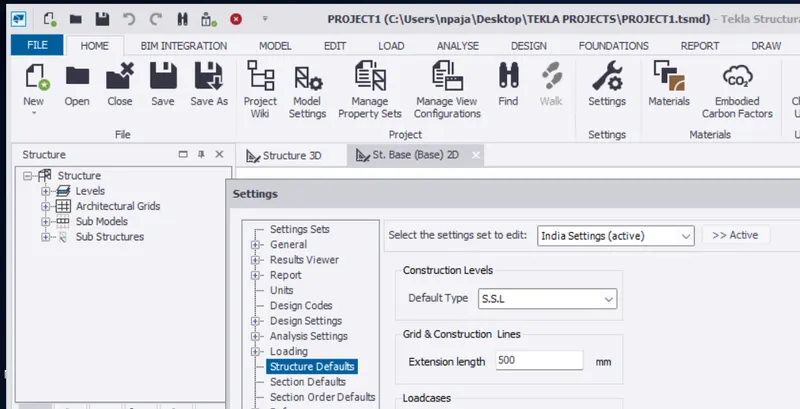

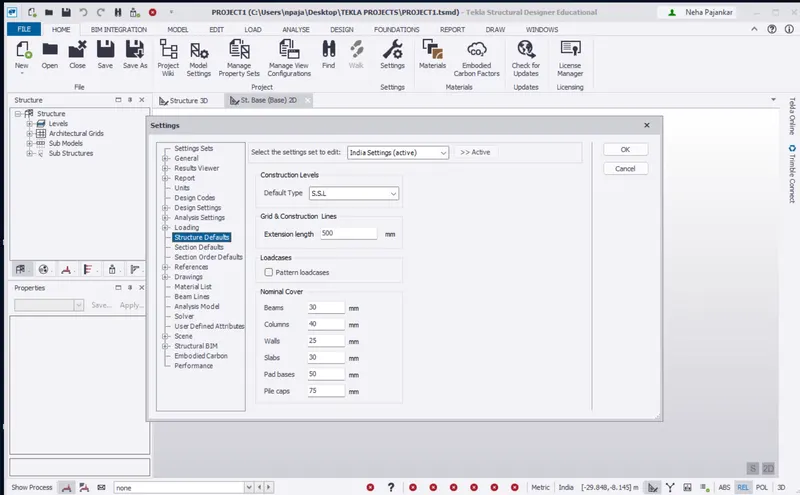

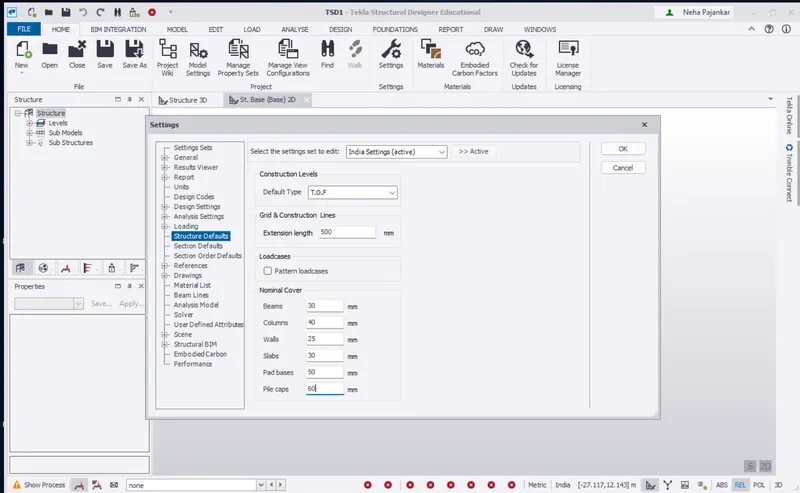

• go to settings tab < loading setion < structure defaults

• select SSL
• apply the cover value as reqiured

• select TOF
• apply the corresponding cover values

RESULT:

we have Created a new file in TSD and set up the settings for a steel building as mentioned.

QUESTION:3
With reference to the input drawing as per Attachment 1, 1.1, and 1.2 and study the steel building plan and summarize your understanding of the plan. Based on your study assume and explain the location of columns and beam and develop a hand sketch for each plan

ANS:

AIM: To study the steel building plan and summarize your understanding of the plan. Based on your study assume and explain the location of columns and beam and develop a hand sketch for each plan

SUMMARY:

The first step of any structural planning is

• to study the architectural drawing given and
• to check the various properties like geometry, symmetry, stiffness, redundancy etc.

After this assigning the column and beams are done before planning for foundation or any other components.

Columns are to be placed at:

• At or near the corners of the building.
• Intersection of beam or wall
• Select positions so as to avoid bending moment in beam. • Avoid larger spans of beams.
• Avoid larger centre-to-centre distance between columns.
• Columns on property line.

Columns should not be placed at places having door(openings) or at places that takes away the beauty of the building or at areas having less spaces.

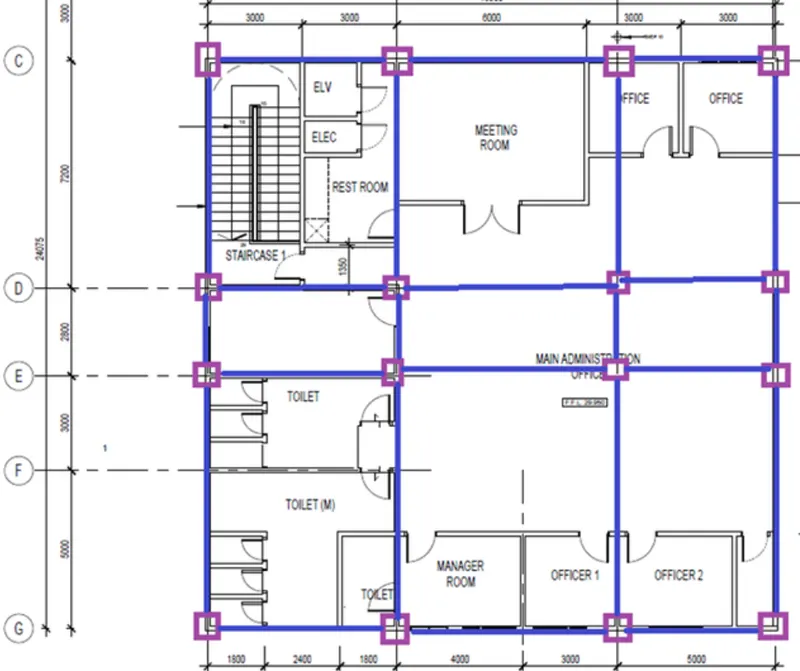

GROUND FLOOR

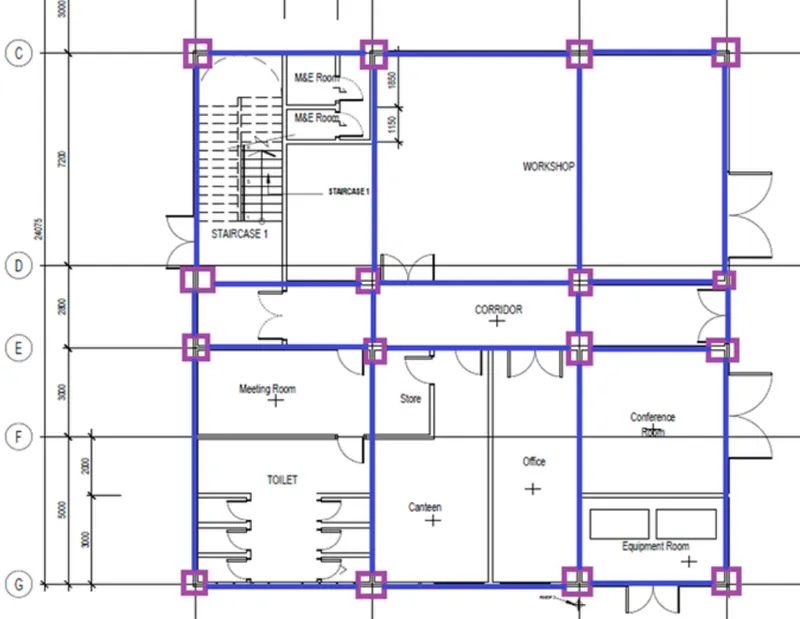

FIRST FLOOR

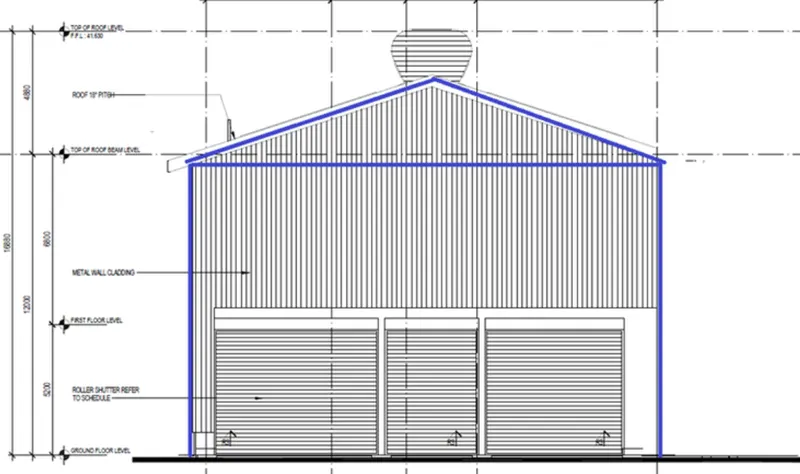

ELEVATION

QUESTION:4

Model grid lines and construction levels as per Attachment 1. 1.1 and 1.2. All dimensions are in mm

• The base level to be 500mm below ground level.

ANS:

AIM: To Model grid lines and construction levels as per Attachment. The base level to be 500mm below ground level.

PROCEDURE:

STEP: 1

• first download and install the TDS softeware in your system
• open the software

• now click on new option
• the workspace window will be activated

STEP: 2

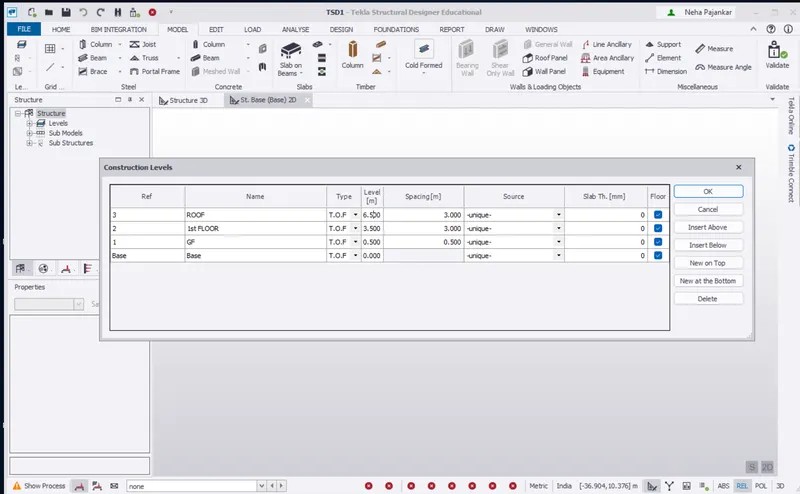

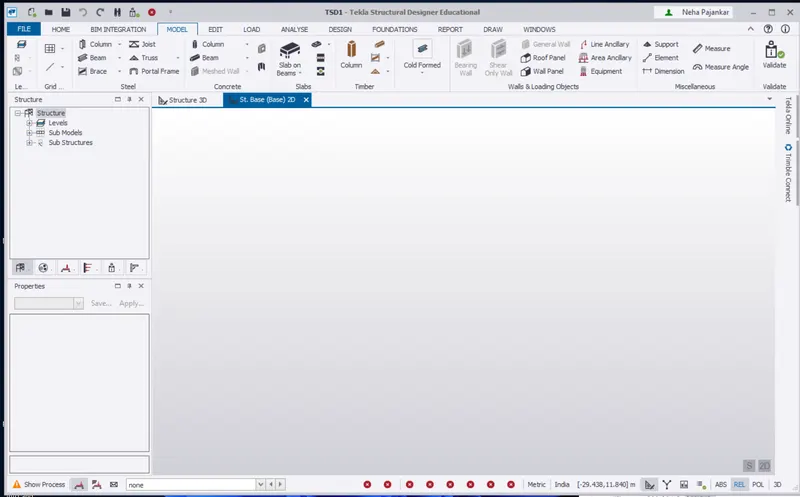

• Go to Model in ribbon tab
• select construction level icon

• open construction level dailogue box
• now add leves and name each leves as required.

STEP: 3

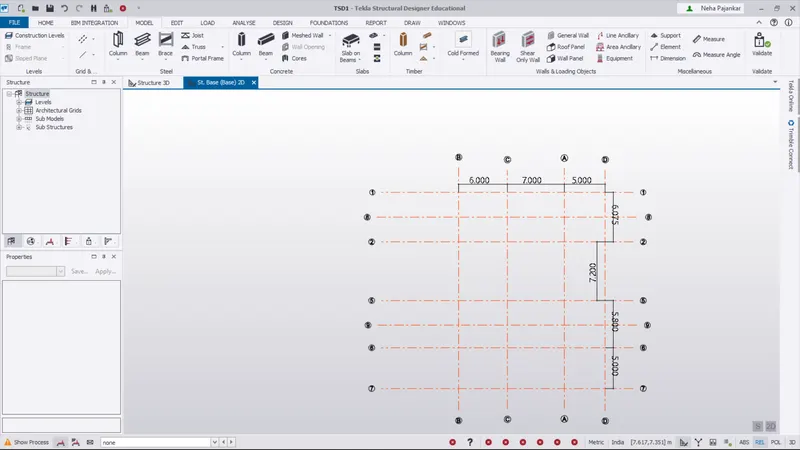

• now use grid lines and quice parallel grid line option
• the horizontal and vertical grids are drawn as per the given dimentions

RESULT:

We have Modeled grid lines and construction levels as per Attachment
