To plan a structural layout and to create grids using TSD

Ans 1:-

Aim:- to summarize the user interface in TSD

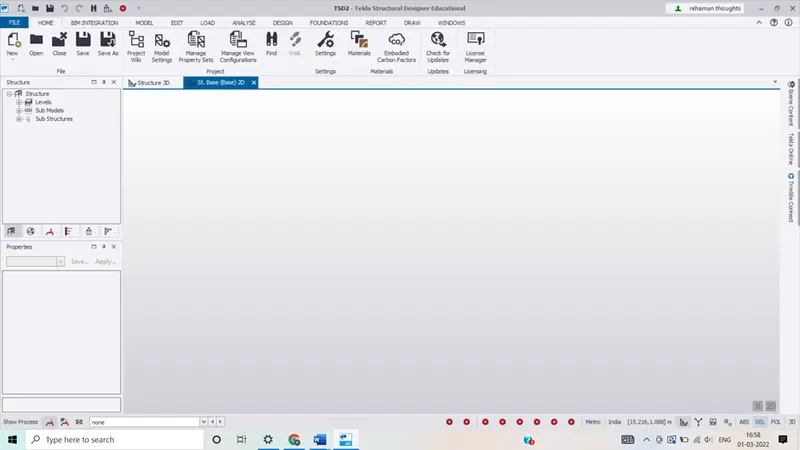

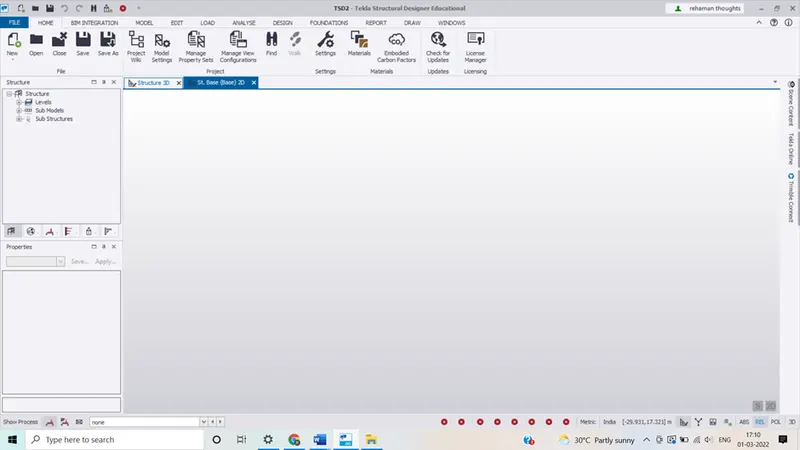

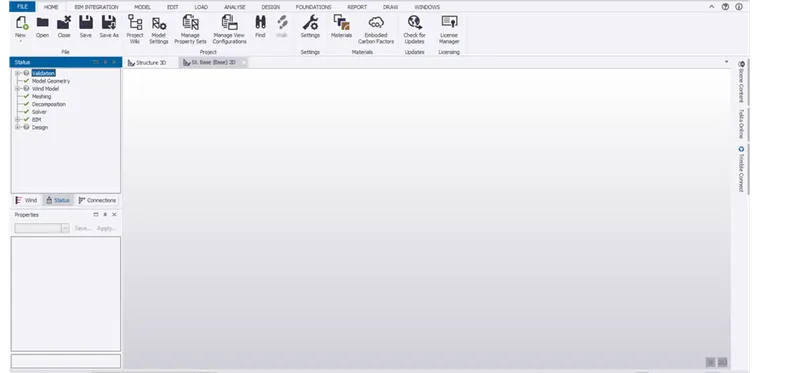

• Project workspace:-

1. Open the Tekla software and click on new from file option
2. We get the project work space we can access it.

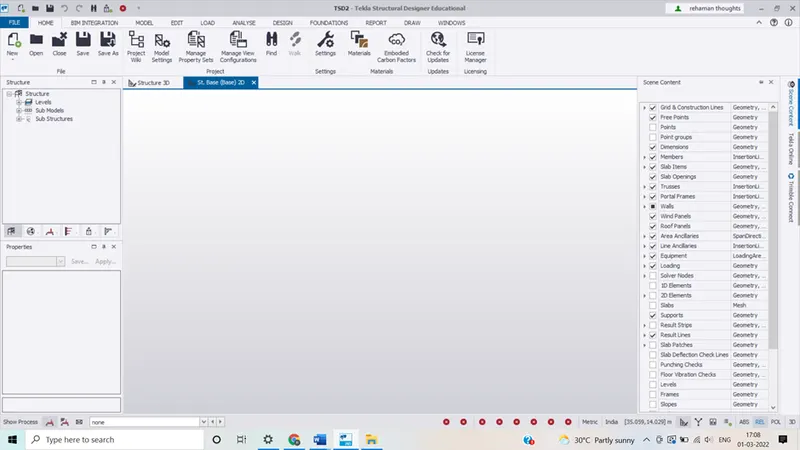

   • Scene Content
   1. On the project workspace , we can see there is an option at the right side of interface called scene content
   It is used to filter the different components of the model
   • Create two scene views:
   1. On the project interface we see two options at the top, base 2D and Structure 3D
   To obtain the 2D view,click on base 2D
   • LOADING DROP LIST
   1. TO Obtain the loading drop list , click on the loading option left of project interface
   It shows the different loads and load combinations to be applied on the structure
   • Property Windows
   1. There is an option called properties windows below project settings
   2. Click on it and we get the different options which can be used to assign to the object

      Ans 2:

      Aim:- To create a  new TSD and set up settings for a steel building to have a member grade FE410and  concrete grade of M30 as per IS codes. The covers  for members to be as per the following input:-

      MEMEBERS IN CONTACT WITH GROUND ABOVE GROUND

      Column 50 mm                  40 mm

      Slab       30 mm                   25 mm

      Pile cap 75 mm

      Foundation 50 mm

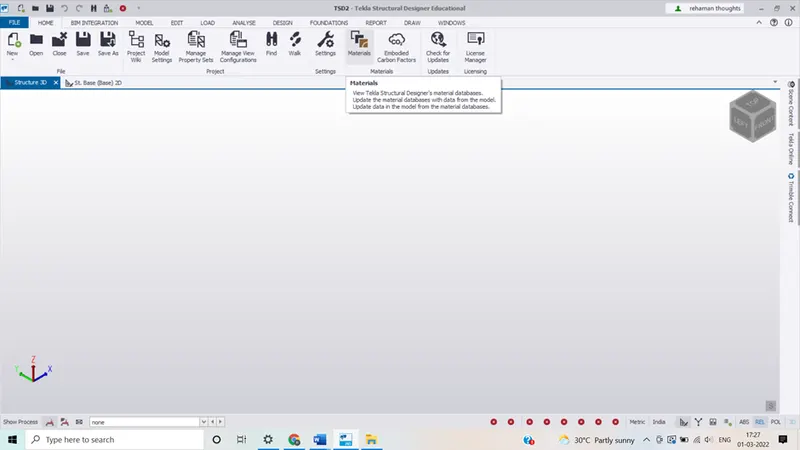

      1. First select the material under home tab

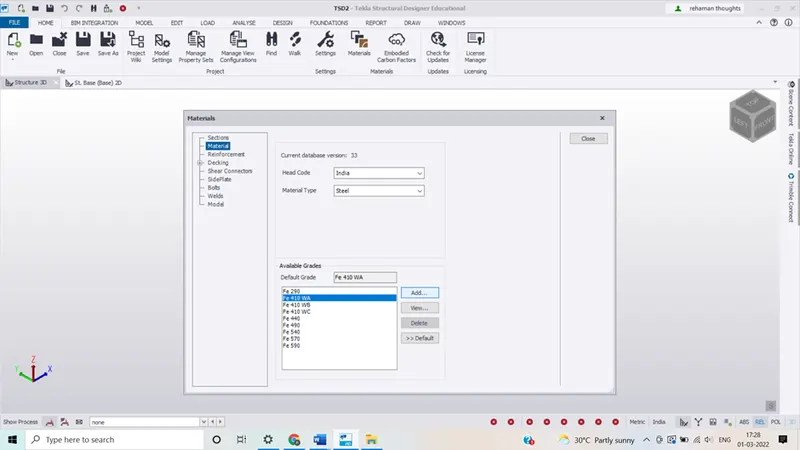

      To make the grade changes in steel FE 410 and concrete grade M30 , select the material option from the ribbon and change the grade to FE 410 and concrete to M30  grade

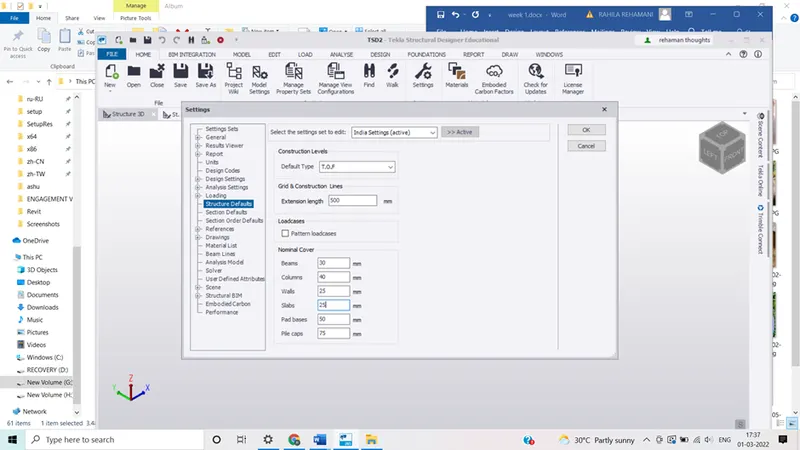

      1. To change the nominal cover of components, go to setting and select structure default, change the cover as given In option ,
       nominal ground cover Nominal cover below  ground

      Ans 3:-

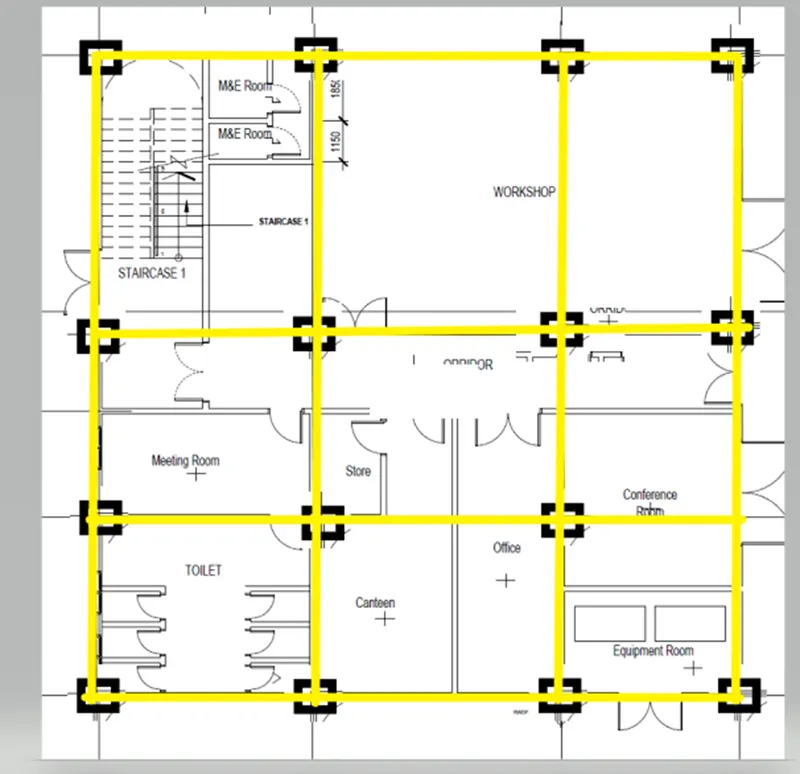

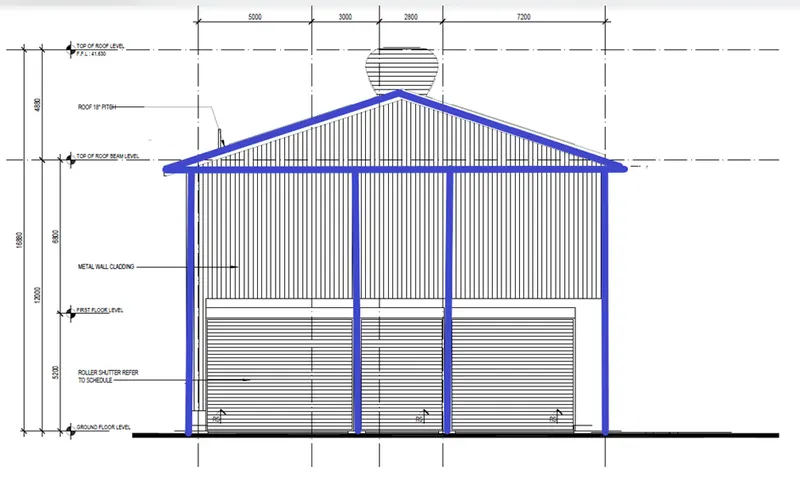

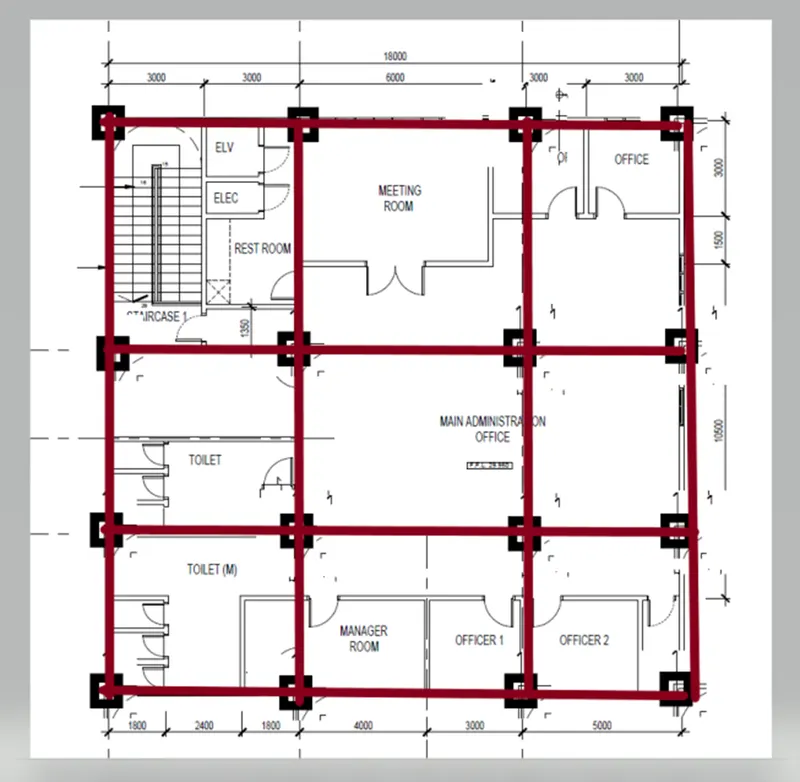

      Aim:- To study the given drawings  and to locate the columns beam and develop a hand sketch for each plan

      1. Symmetry and uniformity of column is very important for all layouts
      2. First provide 4 columns at 4 intersections along the last grid or line
      3. Similarity is maintained for all 4 grids throughout the plan
      4. All these columns are connected by primary beams

         Ans 4:- Aim:- To model the grid lines and construction levels as per given drawings

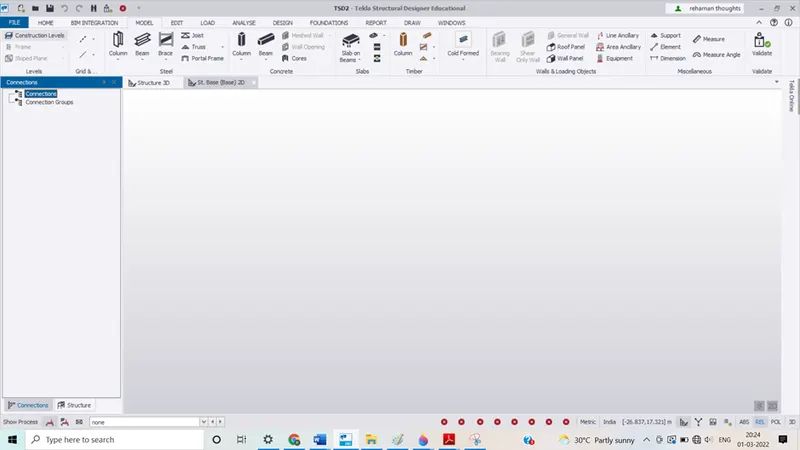

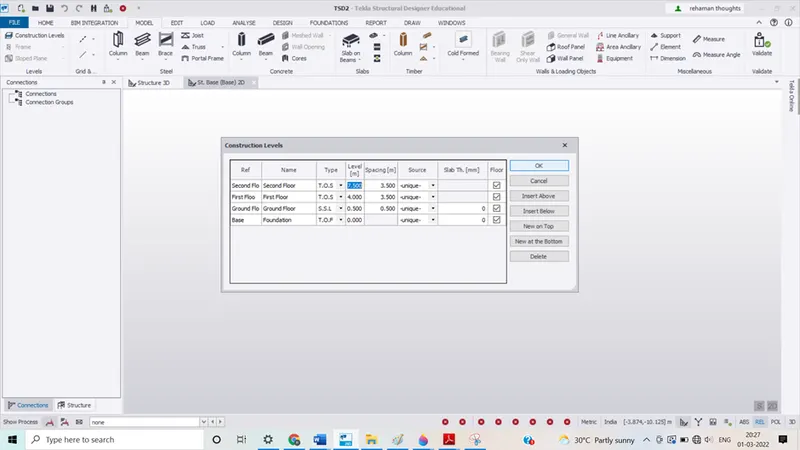

         1. Open Tekla ,go to construction levels and make the settings as  GF to roofChange the spacing between foundation and GF as 500 mm and enter the spacing of rest floors

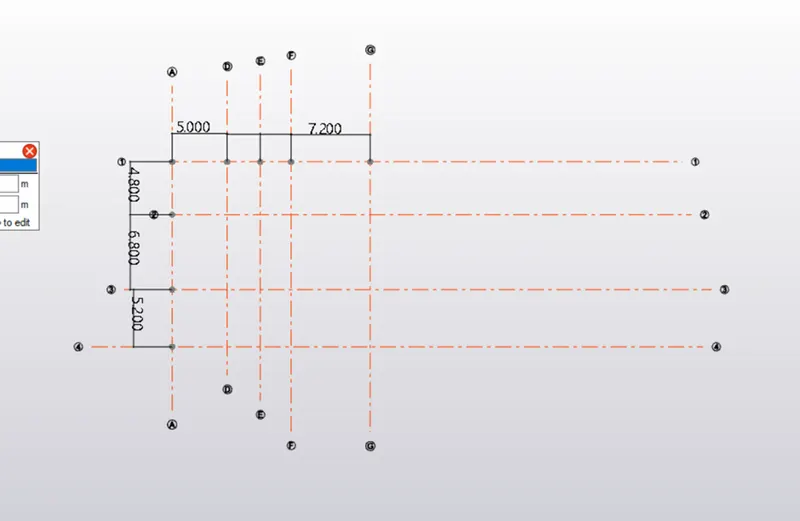

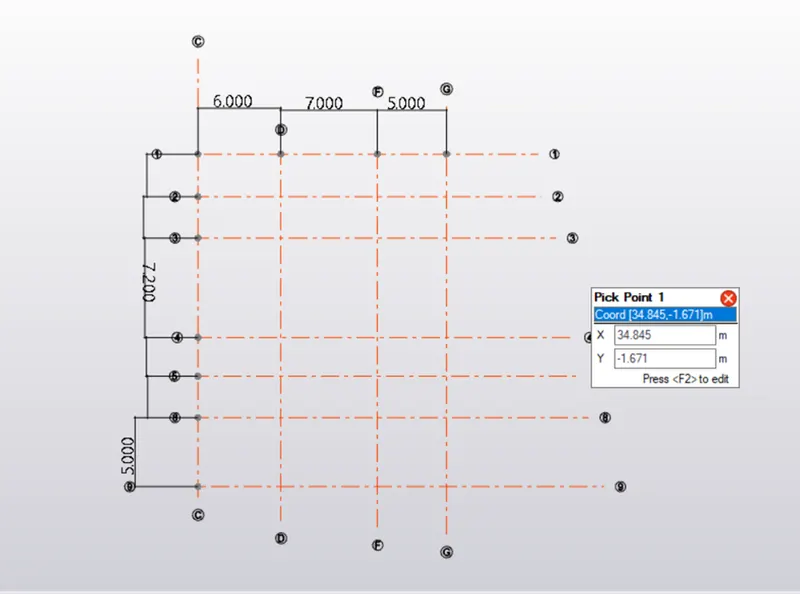

         2. To make the grids as fig 1. Go to gride line and draw a horizontal grid
         3. New select the parallel option from the same and click the previous line
         4. Enter the spacing as given in the grid plan , repeat the same procedure for the entire layout
